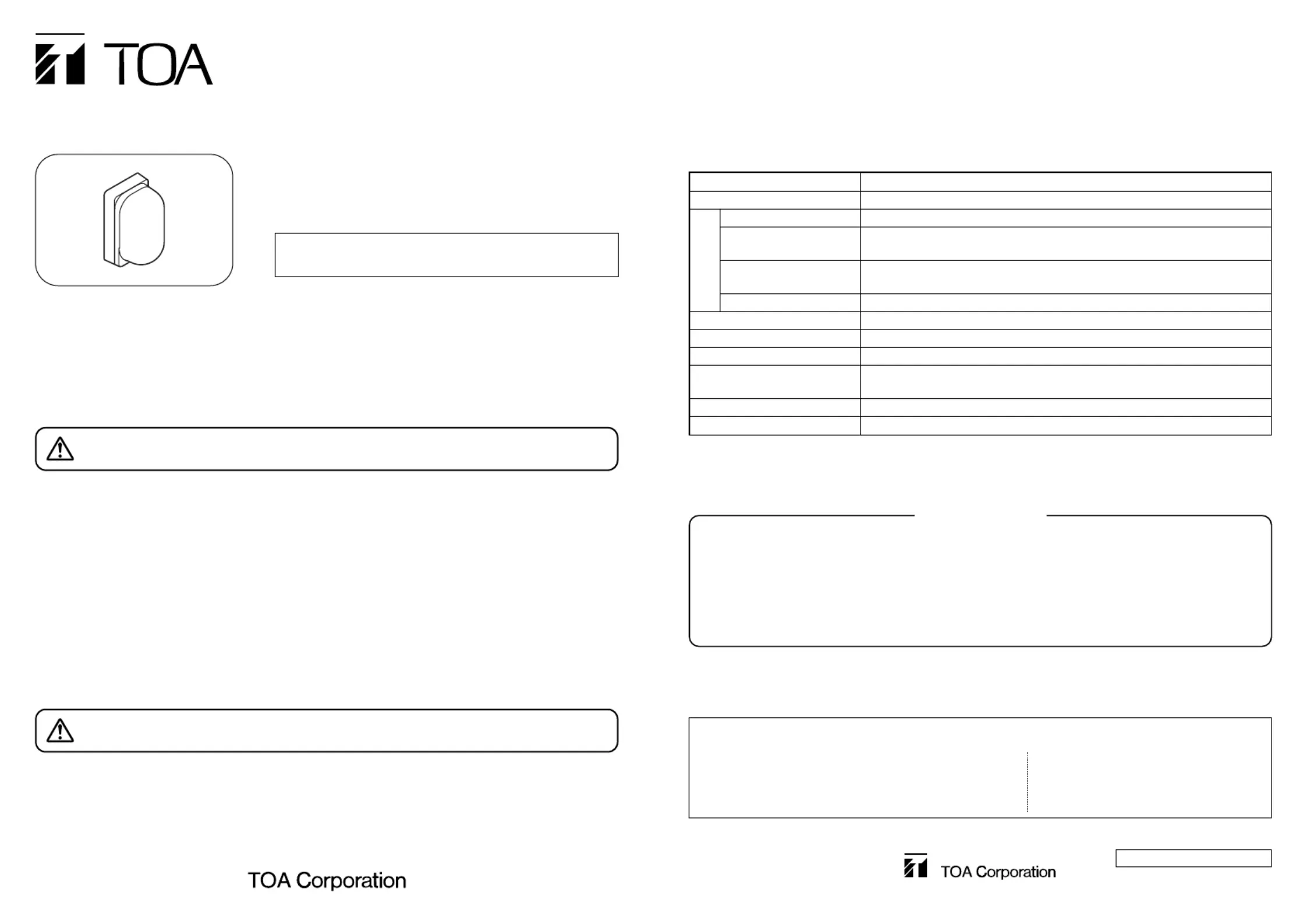

INFRARED WIRELESS RECEIVER

INSTRUCTION MANUAL

IR-500R

Thank you for purchasing TOA's Infrared Wireless Receiver.

Please carefully follow the instructions in this manual to

ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct

and safe operation.

• Be sure to follow all the precautionary instructions in this section, which contain important

warnings and/or cautions regarding safety.

• After reading, keep this manual handy for future reference.

Indicates a potentially hazardous situation which, if mishandled, could

result in death or serious personal injury.

WARNING

When Installing the Unit

• Install the unit only in a location that can structurally support the weight of the unit.

Doing otherwise may result in the unit falling down and causing personal injury and/or property

damage.

• Use screws that are appropriate for the wall's structure and composition. Failure to do so may

cause the unit to fall, resulting in material damage and possible personal injury.

• Tighten each screw securely. Ensure that the unit has no loose joints after installation to prevent

accidents that could result in personal injury.

• Do not mount the unit in locations exposed to constant vibration. The unit can be damaged by

excessive vibration, potentially causing the unit to fall, which could result in personal injury.

When the Unit is in Use

• Do not touch the connection cable during thunder and lightning, as this may result in electric shock.

For installation instructions, refer to the instruction

manual enclosed with the infrared wireless tuner.

Indicates a potentially hazardous situation which, if mishandled, could

result in moderate or minor personal injury, and/or property damage.

CAUTION

When Installing the Unit

• (Stand mounting) Avoid placing the stand in a doorway or other high traffic area as people may

trip on the equipment and cords, or be injured by falling objects.

• Leave the installation of the unit to your TOA dealer because the installation requires expert

knowledge. Improper installation may cause the unit to fall, resulting in personal injury or electric

shock.

133-07-277-20

2. GENERAL DESCRIPTION

The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless

Tuner. It can be mounted to a wall or an electrical box.

3. SPECIFICATIONS

Note: The design and specifications are subject to change without notice for improvement.

URL: http://www.toa.jp/

Power Source 24 V DC (supplied from the optional IR-702T)

Current Consumption Max. 40 mA

Wavelength 870 nm

Carrier Frequency Channel A: 3.100 MHz

Channel B: 3.350 MHz

Acceptance Angle Vertical: 80° (Up to 30° movable downward)

Horizontal: 80° (Up to 30° movable left or right)

Communication Area Approx. 15 m or 50 ft (in the space where no obstacles exist)

Connection Terminal 75 Ω, BNC jack

Operating Temperature 0 to 40 °C (32 to 104 °F)

Operating Humidity 30 to 80% RH

Finish Case: Polycarbonate resin, visible light cut filter

Base: ABS resin, off-white

Dimensions 70 (w) x 120 (h) x 72 (d) mm (2.76" x 4.72" x 2.83")

Weight 220 g or 0.49 lb (unit only)

Infrared Detector

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo,

Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,

Germany

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause

undesired operation.

Any modifications made to this device that are not approved by TOA Corporation may void

the authority granted the user by the FCC to operate this equipment.

FCC Compliance
