Note: For operation of the units, refer to the N-8000 series operating instructions.

1. GENERAL DESCRIPTION

The RS-480 is a substation to be connected to the N-8400RS Substation Interface Unit. The RS-481 is designed

exclusively for indoor-use in combination with the RS-480. It also features handset conversation with the RS-480.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may

be required to take adequate measures.

2. SPECIFICATIONS

[RS-480]

RS-480

RS-481

SUBSTATION

OPTION HANDSET

INSTALLATION MANUAL

Call Button Momentary (Emergency call: Press twice within 400 ms.)

Rated Input 1 W

Control Output Open collector, Maximum controlled voltage: 30 V DC,

Control current:

30 mA

Internal Speaker Cone-type

Internal Mic Electret condenser type

Indicator When called: Status indicator (red) flashing

In conversation: Status indicator (red) lit

)riap-2( selbac riap detsiwTgniriW

Transmission Range 1000 m/ø0.5 mm (AWG24), 1500 m/ø0.65 mm (AWG22), 2000 m/ø0.9 mm (AWG19)

Operating Temperature –10 to +50°C (Temperature range not to freeze the speaker and switch)

Housing Protection BS EN62262: 2002: IK02 equivalent

Dust/Water Protection IP54

enilriah ,leets sselniatS:lenaP hsiniF

Call button: Metal, silver

Circuit board: Weather-resistant coating

Dimensions 120 (w) x 120 (h) x 50.5 (d) mm

g 575 thgieW

Accessories No.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4

Applicable Box 2-gang electrical box: YC-302 (option)

[RS-481]

Note: The design and specifications are subject to change without notice for improvement.

Handset Receiver Dynamic type

Handset Microphone Electret condenser type

Handset Receiver Slide volume

Volume Control Maximum attenuation level: 12 – 18 dB

Operating Temperature 0 to +40°C

etihw elap ,niser SBA hsiniF

Dimensions 116 (w) x 220 (h) x 71 (d) mm

g 563 thgieW

Accessories No.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4

Applicable Box 2-gang electrical box: YC-302 (option)

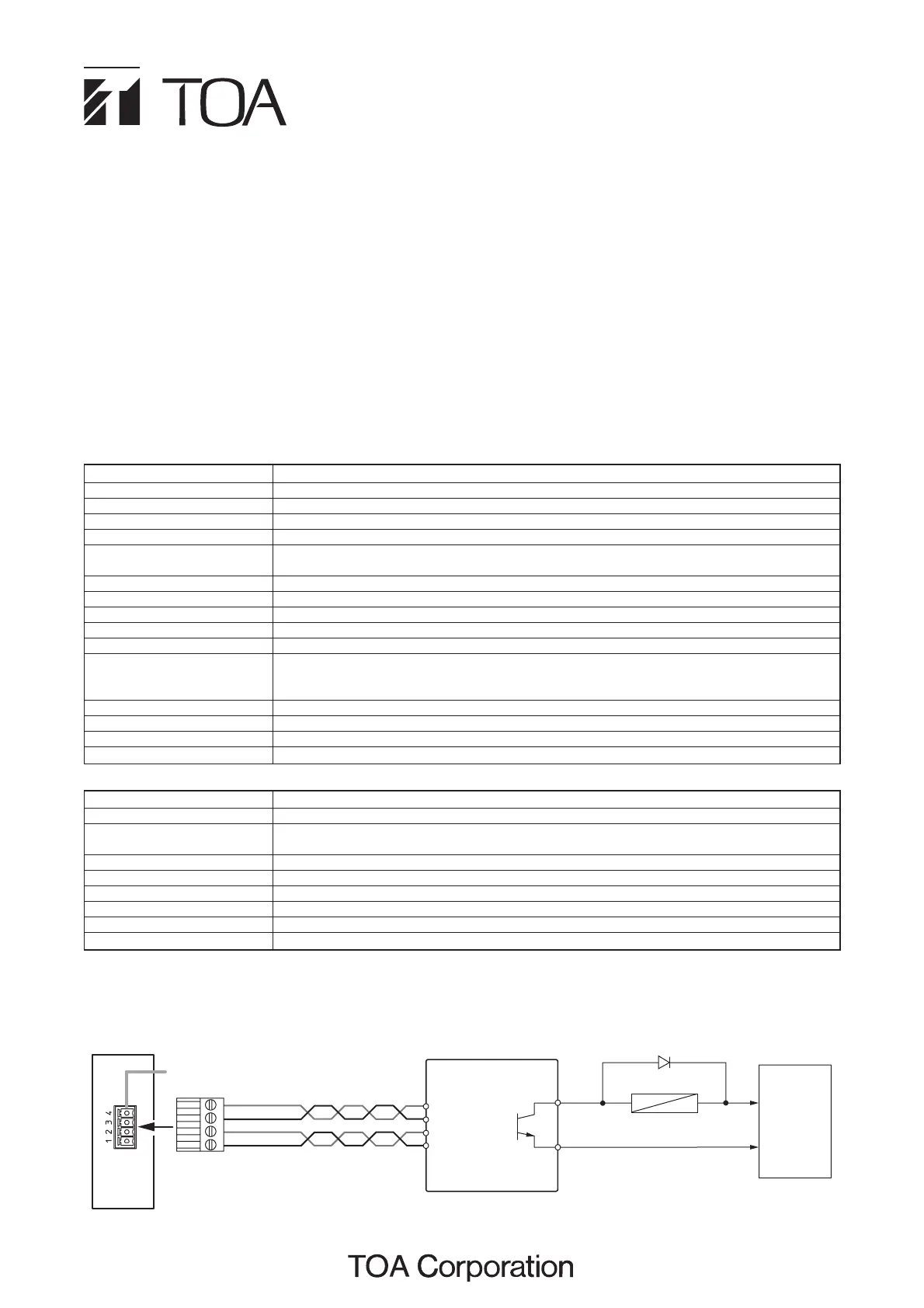

3. CONNECTIONS

3.1. RS-480, N-8400RS, and external relay connections

External

power supply

Relay

Diode

24 V DC

GND

Open collector output: 24 V DC, Max. 30 mA

RS-480

Substation connection terminal

N-8400RS Substation interface unit

Line 3: Orange, Line 4: Yellow

Line 1 : Brown, Line 2: Red,

Yellow

Orange

Red

Brown

Blue

Green

Note: Cut out the control cables if they are not used to avoid short-circuiting.

Traceability Information for Europe (EMC directive 2004/108/EC)

Manufacturer:

TOA Corporation

7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg,Germany

133-21-949-80

URL: http://www.toa.jp/

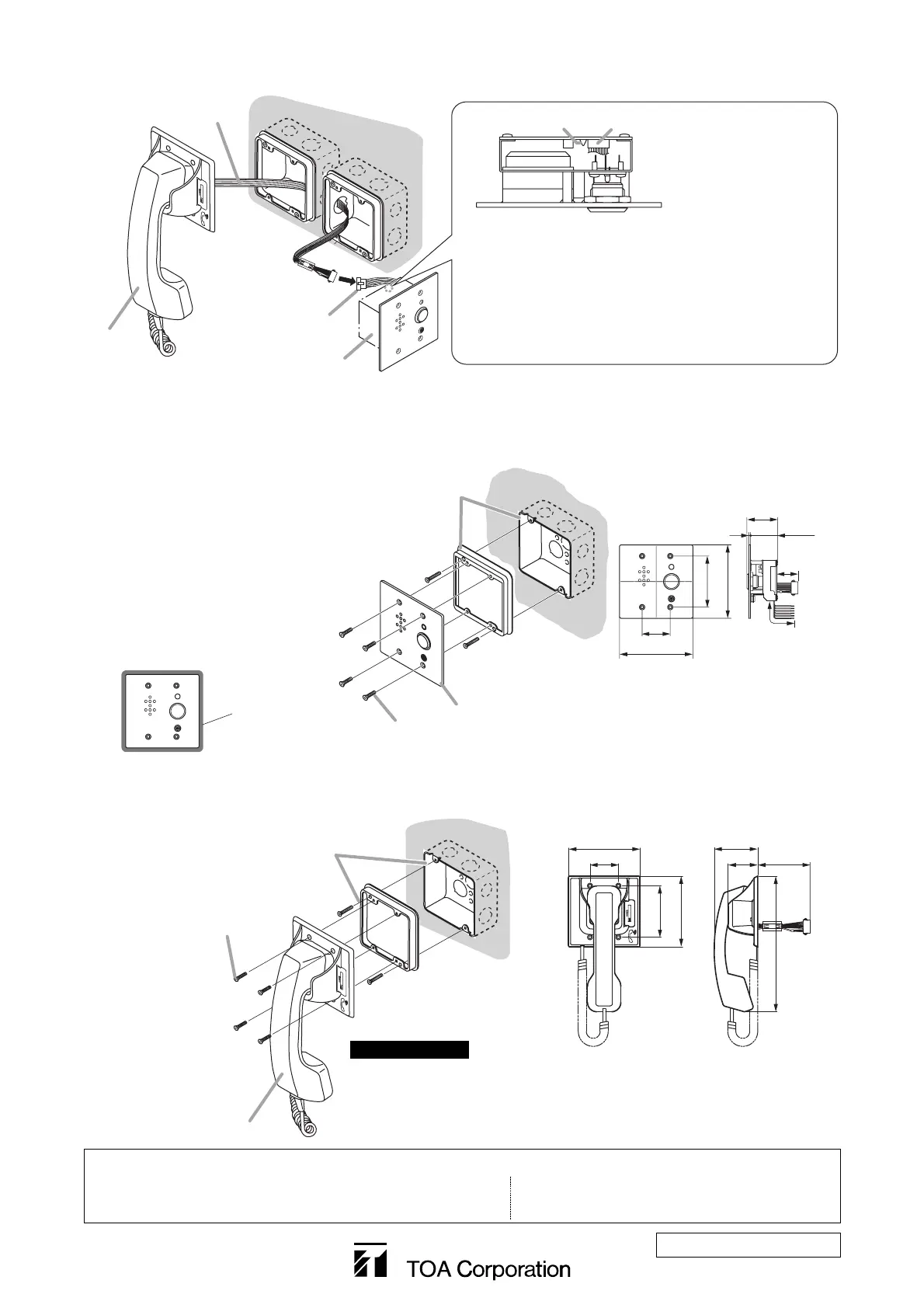

3.2. RS-480 and RS-481 connections

RS-480

Handset cables

Wall surface

RS-481

RS-480 (top)

Note

When using the RS-481 Option handset, cut the jumper

wire next to the handset joint connector on the circuit board

as illustrated above.

If not cut, sound comes out from the RS-480's front

speaker and returns back to the handset’s microphone,

resulting in acoustic feedback.

Jumper wire

Handset joint

connector

4. WALL MOUNTING

Mount the RS-480/481 to an electrical box mounted in the wall.

[RS-480]

RS-480

120

50.5

200 or less

44.5

200 or less

83.5

115

[Dimensional diagram]

Unit: mm

YC-302

2-gang electrical box

(option)

Machine screw M4 x 25

(accessory)

Wall surface

Seal the panel edges.

RS-480's front panel

Notes

• When using the PA paging function,

keep the switch panel as far away

from the PA paging speaker as

possible to avoid acoustic feedback.

• When installing the RS-480 at

outdoor or locations where it gets wet

with water, tightly seal the panel

edges. Besides, provide a weep hole

at the underside of the mounting box

to permit water to drain off.

[RS-481]

116 71

200 or less

Unit: mm

83.5

115

220

RS-481

[Dimensional diagram]

YC-302

2-gang electrical box

(option)

Machine screw M4 x 25

(accessory)

Wall surface

Accessory screws

The RS-480/481 come with 2 types of screws to match the box screw threads:

M4 x 25 and UNC No. 6-32 x 18.

For the electrical box provided with unified threads, use the UNC No. 6-32 x 18.
