INFRARED TRANSMITTER/RECEIVER

INSTRUCTION MANUAL

TS-907

Thank you for purchasing TOA's Infrared Transmitter/Receiver.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

The TS-907 Infrared Transmitter/Receiver is designed for the TOA Infrared Conference Systems.

It is connected to the Central unit, and permits communications between the Central unit and

Chairman/Delegate units in the systems. Communications between the TS-907 and

Chairman/Delegate units are performed by means of infrared signals.

Up to 12 TS-907 units can be installed in a system.

For more information, refer to the instruction manual supplied with the Central unit.

3. SPECIFICATIONS

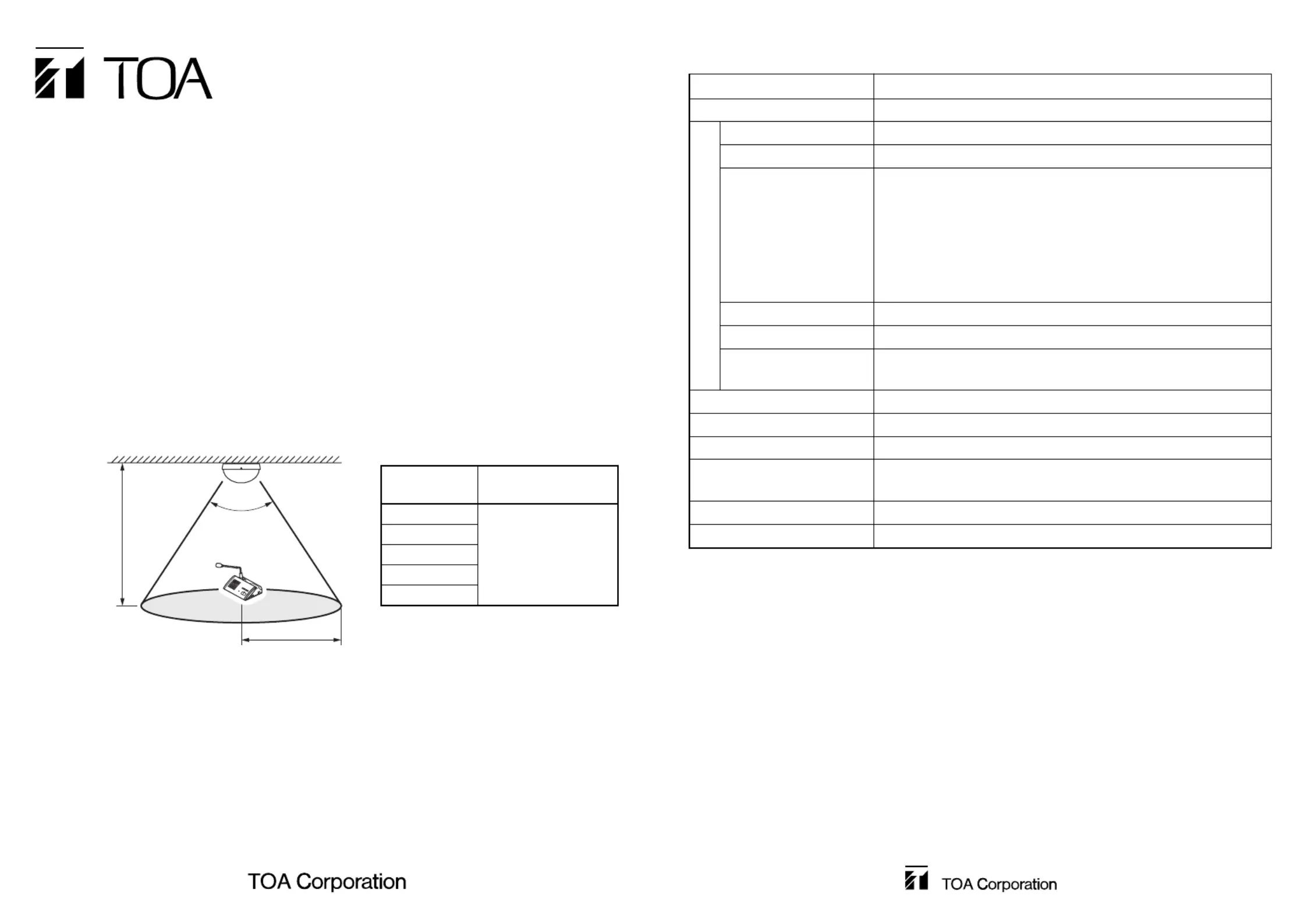

2. INFRARED SERVICE AREA

Note: The design and specifications are subject to change without notice for improvement.

Power Source 24 V DC (supplied from the optional TS-800 or TS-900)

Current Consumption Max. 180 mA

Wavelength 870 nm (AM: Brightness modulation)

Modulation Method Frequency modulation

Carrier Frequency Transmission: Audio channel 1: 7.35 MHz

Audio channel 2: 8.10 MHz

Audio channel 3: 8.55 MHz

Audio channel 4: 9.15 MHz

Control channel: 6.45 MHz

Reception: Base language channel: 1.95 MHz

Translation language channel: 2.25 MHz

Acceptance Angle Vertical: 90° (45° + 45°), Horizontal: 360°

Emission Angle Vertical: 90° (45° + 45°), Horizontal: 360°

Communication Area Approx. 6 m in radius from the point underneath the unit

(ceiling height: 5 – 7 m)

Connection Terminal BNC jack

LED Indicator Power

Operating Temperature 0°C to 40°C

Finish Dome: PC resin, visible light cut filter

Base: ABS resin, black

Dimensions ø120 x 71.3 (h) mm

Weight 230 g (unit only)

Infrared Emitter/Detector

• Accessories

Mounting bracket .................................... 1

Stand mounting bracket .......................... 1

Screw M3 x 6 .......................................... 3

W5/16 – W5/8 thread adapter ................ 1

Printed in Japan

133-07-230-50

Notes

• Infrared signals cannot reach the Infrared Transmitter/Receiver unit if it is hidden behind the

user or other objects. Install multiple Transmitter/Receiver units in line-of-sight from all

Chairman and Delegate units.

• Install the Infrared Transmitter/Receiver units in such a way that each Chairman and

Delegate unit can always communicate with two or more Transmitter/Receiver units.

If installed in such a way that communication is only established with one

Transmitter/Receiver unit, the infrared signal may be blocked by persons or other objects,

possibly causing a momentary loss of signal reception.

90°

Ceiling height

5 7 m–

Radius of

communication area

Ceiling height

Radius of

communication area

5.0 m

5.5 m

6.0 m Approx. 6.0 m

6.5 m

7.0 m
