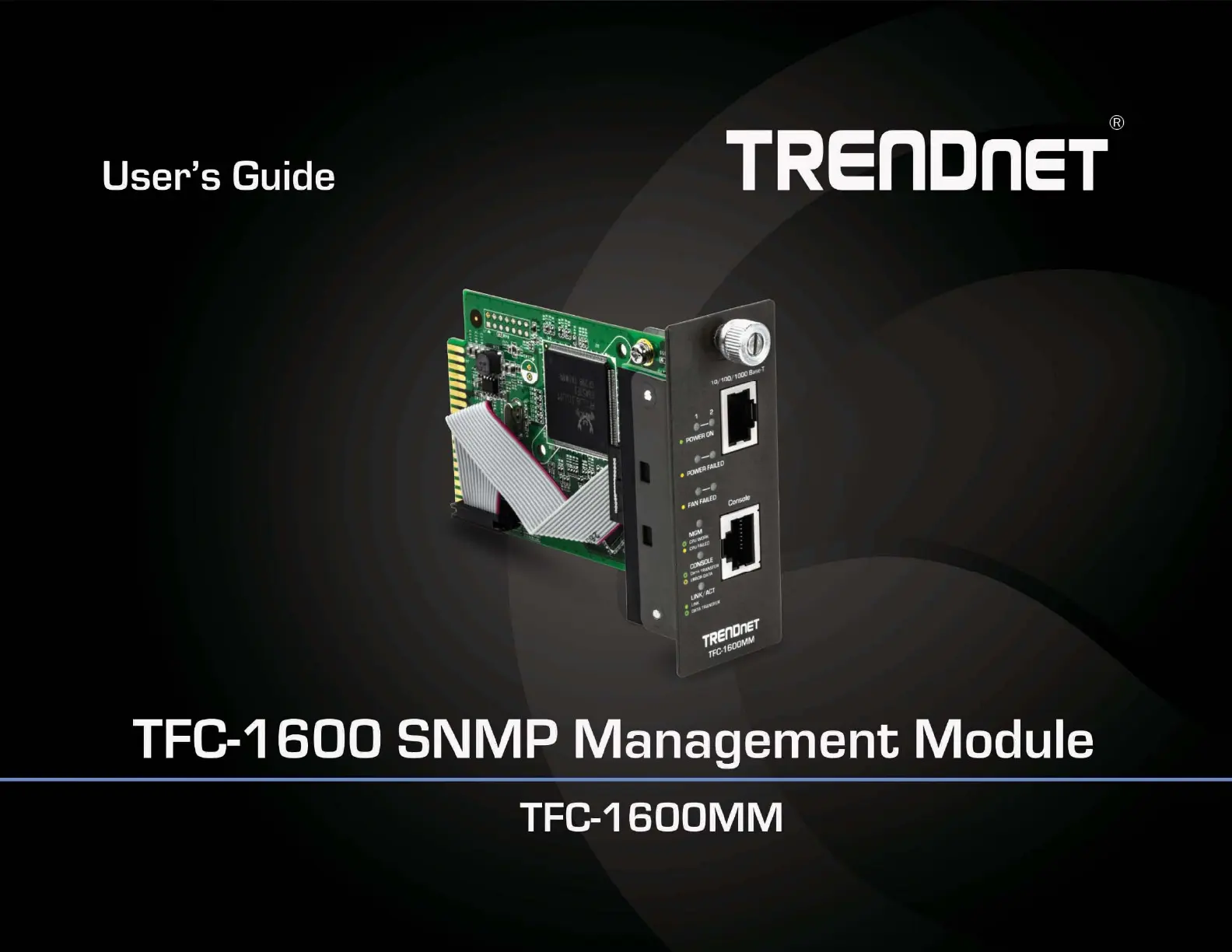

TRENDnetUser’sGuide
CoverPage

©Copyright2016TRENDnet.AllRightsReserved.
TRENDnetUser’sGuide
TableofContents
i
Contents
ProductOverview.............................................................................1
PackageContents..........................................................................................................1
Features.........................................................................................................................1
ProductHardwareFeatures...........................................................................................2
ModuleInstallation..........................................................................1
InstallingtheManagementModule..............................................................................1
Configureyourmodule(WebManagement)....................................2
AccessyourSNMPmodulemanagementpage.............................................................2
MainMenu....................................................................................................................3
SystemFunction............................................................................................................5
SoftwareReboot..................................................................................................5
FactoryReset.......................................................................................................6
ImageUpdate......................................................................................................6
SaveConfiguration...............................................................................................6
ConfigurationUpdate..........................................................................................7
Configuration.................................................................................................................8
GeneralConfiguration.........................................................................................8
SystemConfiguration..........................................................................................9
SNMPConfiguration..........................................................................................10
ConverterLocationSetting................................................................................11
RedundantBackupSetting................................................................................11
ConfigureyourModule(CommandLineInterface).........................12
Reboot...............................................................................................................13
FactoryReset.....................................................................................................13
ImageUpdate....................................................................................................13
GeneralConfiguration.......................................................................................13
IPinterfaceconfiguration..................................................................................13
SNMPConfiguration..........................................................................................14
CPUmoduleinformation...................................................................................16
MediaConverterConfiguration.........................................................................16
RedundantBackupSetting................................................................................17
Configuration.....................................................................................................17
SystemFunction................................................................................................17
TechnicalSpecifications.................................................................18
Appendix.......................................................................................20

©Copyright2016TRENDnet.AllRightsReserved.
TRENDnetUser’sGuide
TFC‐1600MM
1
ProductOverview
TFC‐1600MM
PackageContents
Inadditiontoyourswitch,thepackageincludes:
TFC‐1600MM
CD‐ROM(MIB&User’sGuide)
RJ‐45toRS‐232consolecable
Ifanypackagecontentsaremissingordamaged,pleasecontacttheretailstore,online
retailer,orreseller/distributorfromwhichtheproductwaspurchased.
Features
TheTFC1600MMmodulesupportsthemanagementofmediaconvertersandpower
suppliesinstalledintheTFC‐1600fiberchassis.Thismoduleprovidesinstantaccessto
coolingfanandpowersupplystatus,andallowstheusertoconfigureandmonitorthe
stateofthechassisbymeansofaworkstationwithsupportforSNMP,orfromaPCvia
webbrowser.

EventNotifications
Benotifiedwhenaneventnotificationisraisedandcorrecterrorconditionsinatimely
mannertomaintainnetworkuptime.Supportscold/warmstart,linkup/down,
authenticationfailure,powersupplyon/off,connected/disconnected,module
connected/disconnected,andunknownfailure
Configuration
Configuresettingssuchaslinklosscarryforward/linklossreturn,modulename,reset
module,downloadsoftwareviaHTTP,IPaddress/subnetmask/defaultgateway,and
redundantbackup
Real‐timeMonitoring
Real‐timemonitoringprovidesthelateststatisticsonlinkstatus,slotoccupied,revision,
convertertype,andpartnumber
SNMP
SupportsSNMPv1,v2c,v3agentmanagementwithMIB‐2andenterpriseMIBs,
SNMPv2‐SMIMIB,INET‐ADDRESSMIB,IFMIB,SNMP‐FRAMEWORKMIB,SNMPv2‐TC
MIB
