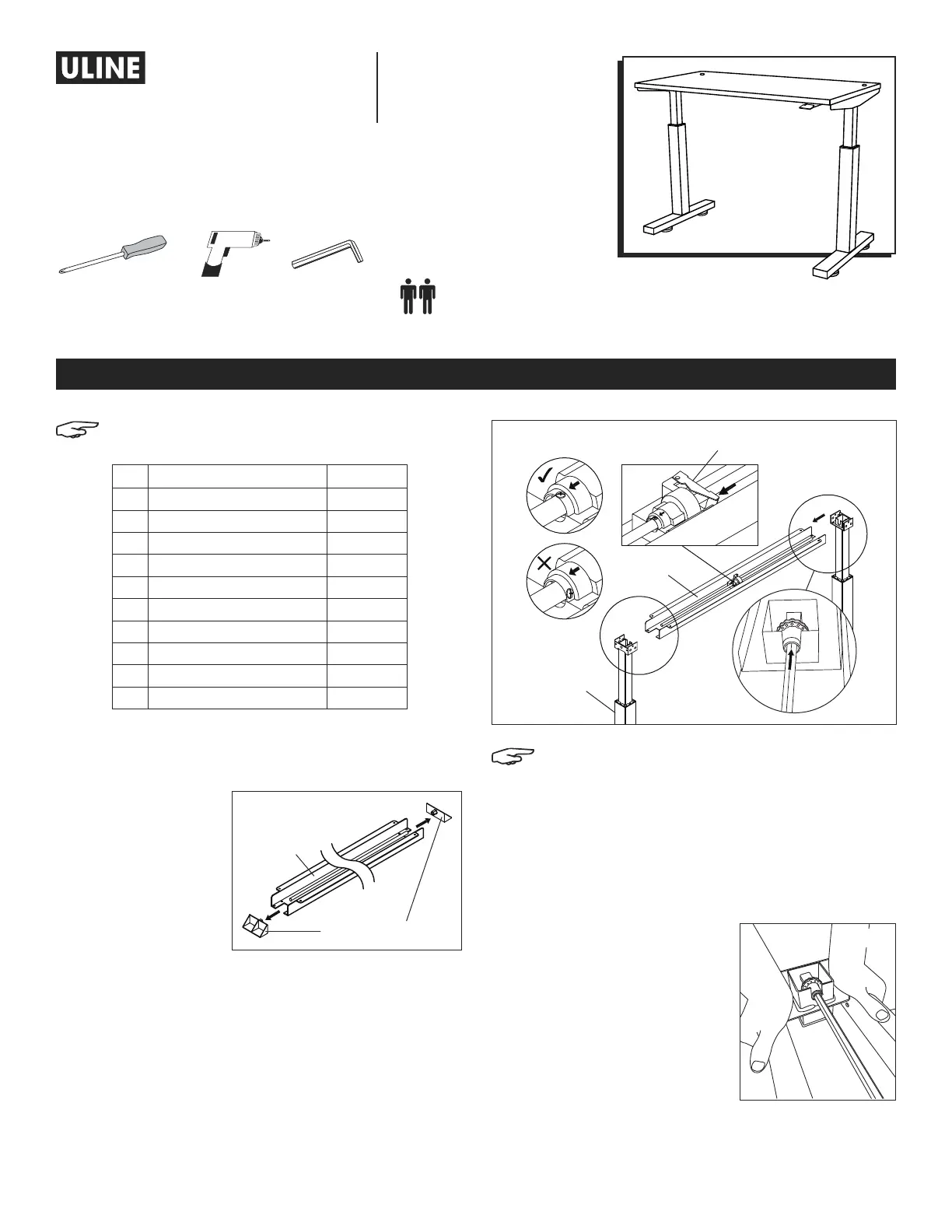

PAGE 1 OF 9 0323 IH-10242

PNEUMATIC ADJUSTABLE

HEIGHT DESK

1-800-295-5510

uline.com

H-10242, H-10243,

H-10244

NOTE: Count and inspect all pieces before

disposing of any carton or packing materials.

#DESCRIPTIONQTY

1Channel1

2Leg2

3Leg Screw, 6 x 12 mm16

4Side Frame2

5Tabletop1

6Wood Screw, 4.8 x 16 mm18

7Lever1

8Foot2

9Foot Screw, 8 x 65 mm8

10Glide4

1. Remove the two

plastic protectors

on the sides of the

channel (1).

(See Figure 1)

2. For easier assembly, place channel (1) on a raised

surface, such as a table. Insert metal rod located

inside of channel (1) into the mechanism opening

on the top of the leg (2). Repeat this step on the

opposite side. (See Figure 2)

NOTE: If it is difficult to insert the rod into the

mechanism opening on the top of the leg:

• Align the arrow on the mechanism with

the screw. If metal rod will not insert into

mechanism opening on top of leg, press

center mechanism lever and rotate metal

rod to align arrow with screw on top of metal

rod. (See Figure 2)

• If still experiencing

difficulty inserting

the rod into the

mechanism opening,

slowly press down on

top of leg to turn

mechanism opening.

As opening turns,

push rod into opening

until it is inserted fully.

(See Figure 3)

ASSEMBLY

1

Plastic Protector

Figure 1

Figure 2

2

Center Mechanism Lever

1

Phillips Head

Screwdriver

DrillAllen Wrench

(included)

TOOLS NEEDED

Two Person Assembly

Recommended

Figure 3

Para Español, vea páginas 4-6.

Pour le français, consulter les pages 7-9.
