Sida 1/28

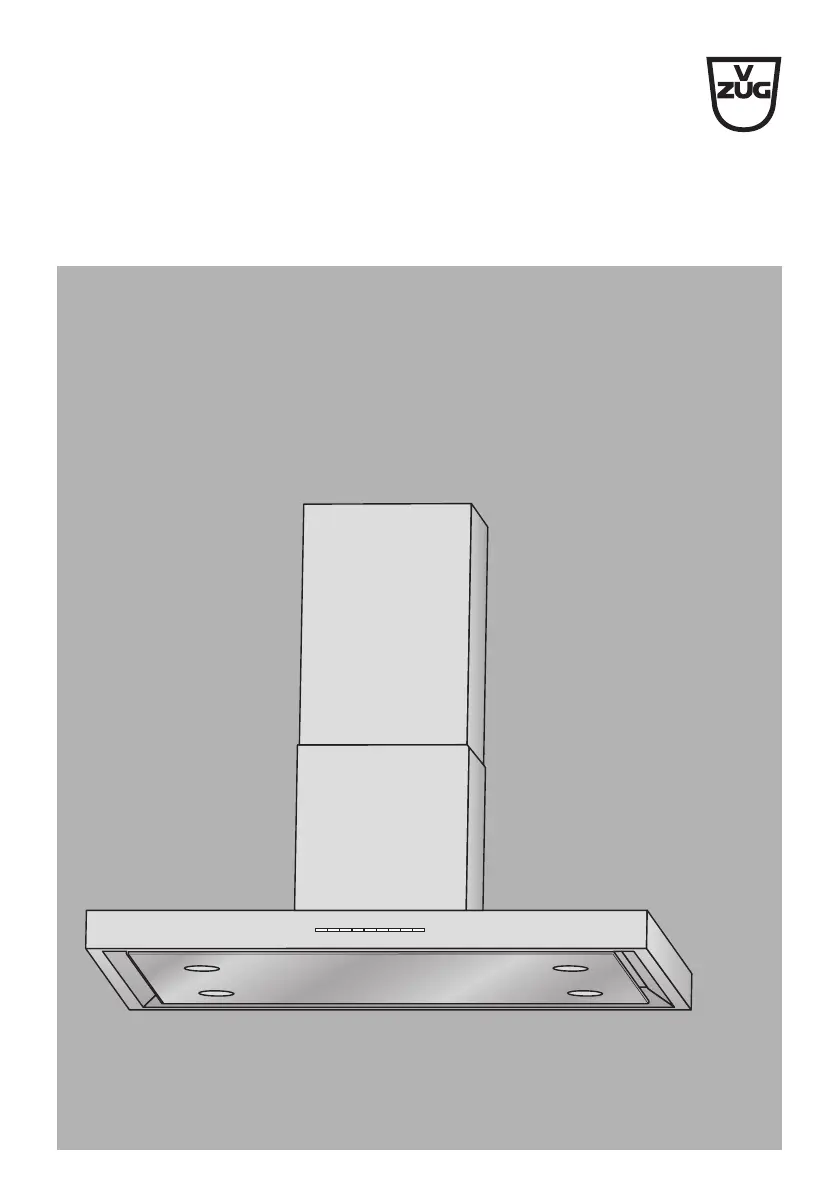

Range hood

Mistral/Bora

Operating instructions

V-ZUG Ltd

Thank you for choosing to buy one of our products. Your appliance is made

to high standards and is easy to use. Nevertheless, please take the time to

read these operating instructions in order to familiarize yourself with the

appliance and get the best use out of it.

Please follow the safety precautions.

Modifications

Text, diagrams and data correspond to the technical standard of the appli-

ance at the time these operating instructions went to press. The right to make

technical modifications for the purpose of the further development of the

appliance is reserved.

Symbols used

➤ Indicates step-by-step instructions.

– Describes how the appliance reacts to the steps taken.

• Indicates a list.

Validity

The model number corresponds to the first 3 digits on the identification plate.

These operating instructions apply to the models:

Variations depending on the model are noted in the text.

Denotes important safety precautions. Failure to observe said

precautions can result in injury or damage to the appliance or

fittings!

Denotes useful tips for the user.

Type Model no. Type Model no.

DW-M9 991 DI-M10 996

DW-M12 992 DI-M12 997

DW-B9 993 DI-B10 816

DW-B14 994 DI-B14 821

Contents

1 Safety precautions 4

1.1 Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.4 Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 Appliance description 8

2.1 Extraction model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Recirculation model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Fitted with . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.4 Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5 Operating and display elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3Use 12

3.1 Switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.2 Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.3 After-running time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.4 Clean-Air function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.5 Intensive level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.6 Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3.7 Saturation indicator for the grease filter . . . . . . . . . . . . . . . . . . . . . . . . . 14

4 Care and maintenance 15

4.1 Cleaning the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.2 Cleaning the grease filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

4.3 Cleaning and replacing the long-life activated charcoal filter . . . . . . . . . 17

4.4 Replacing the halogen light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5 Trouble-shooting 19

5.1 What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6 Accessories and spare parts 21

7 Technical data 22

8Disposal 23

9Notes 24

10 Index 25

11 Repair service 27

1 Safety precautions

In accordance with the requirements of IEC 60335-1:

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless supervised or unless they have been given instruction

concerning the use of the appliance by a person responsible for their

safety.

1.1 Before using for the first time

• The appliance must be installed and connected up to the electricity supply

in accordance with the separate installation instructions. The necessary

work should be done by a qualified fitter or electrician.

• Dispose of the packaging material in accordance with local regulations.

• Ensure the grease filters are properly installed.

The appliance corresponds to recognised technology standards

and the relevant safety regulations. Proper use of the appliance is

however essential to avoid damage and accidents. Please

therefore follow the precautions given in these operating

instructions.

1 Safety precautions

1.2 Correct use

• The appliance is designed for use in the home for extracting cooking fumes

and smells from above the cooking surface.

• Any repairs, modifications or manipulations to the appliance, especially

any electrically live parts, should only be carried out by the manufacturer,

its Customer Services or similarly qualified persons. Repairs if carried out

incorrectly may cause serious injury, damage to the appliance and fittings,

as well as affect the functioning of the appliance. If the appliance is not

working properly or in case of a repair order, follow the instructions given

in the

REPAIR SERVICE section. Please contact our Customer Services if

necessary.

• Use original spare parts only.

• Retain these operating instructions for future reference. If you sell or pass

the appliance on to a third party, please ensure these operating instruc-

tions, together with the installation instructions, accompany the appliance.

In this way, the new owner can inform themselves about how to use the

appliance correctly and read the pertinent safety precautions.

1.3 Children in the home

• Packaging material e.g. plastic and polystyrene can be dangerous for

children. Danger of suffocation! Please keep packaging material away from

children.

• The appliance is designed for use by adults who are familiar with these

operating instructions. Children are often unable to recognise the danger

of electrical appliances. Ensure proper supervision and do not allow

children to play with the appliance – there is a danger that children could

hurt themselves.

1 Safety precautions

• If other appliances – fuelled by gas or other fuels – are being used at the

same time, ensure that there is a sufficient supply of fresh air. This does

not apply to air recirculation appliances.

• If other firing systems are being used at the same time (e.g. wood, gas, oil

or coal-fired heating appliances), safe operation is only possible providing

a room negative pressure of 4 Pa (0.04 mbar) is not exceeded at the

location of the appliance. Risk of toxic fumes! An adequate flow of fresh air

must be guaranteed e.g. via non-closable openings in doors or windows

and in combination with an air-intake/exhaust-air wall box or by other

technical means.

• When carrying out maintenance work on the appliance, including replacing

the light bulb, cut off the electricity supply to the appliance (remove the

screw fuse from the holder or switch the circuit breaker off, or disconnect

from the mains supply).

• When cleaning the appliance make sure no water gets inside the

appliance. Use a moderately damp cloth. Do not spray the inside or

outside of the appliance with water. Do not use a steam cleaner. If water

gets inside the appliance, it can cause damage.

2 Appliance description

The appliance is designed to extract cooking fumes and smells from the

cooking area.

This particular model can be used to extract or recirculate air.

2.1 Extraction model

A fan extracts cooking fumes and smells from above the cooking surface. The

metal grease filter cleans the extracted air, which is passed through a

connecting pipe fitted with an integrated non-return valve and through the air

duct to the outside.

2.2 Recirculation model

The cooking fumes and smells are filtered over the metal grease filter through

an activated charcoal filter and the filtered air is then circulated back into the

room through the side openings.

When the appliance is in use, ensure there is a sufficient supply of

fresh air to replace the air that is being extracted.

If activated charcoal filters are not supplied with the appliance, these

should be ordered and installed before using the appliance.

Moisture is not taken out of the air.

2 Appliance description

2.3 Fitted with

• 1 extraction fan

• Illumination

• 1 metal grease filter

• 1 long-life activated charcoal filter

The extraction fan has 4 power levels.

• = Low, = Medium, = High and = Intensive

level.

• Power levels 1–3 can be used for longer periods of operation.

• The intensive level is for shorter bursts of intensive extraction of the

cooking fumes and smells, e. g. when searing meat. The intensive level

runs for 5 minutes at a time.

Produktspecifikationer

Varumärke:	V-Zug
Kategori:	Fläktkåpa
Modell:	DI-Mistral 12
Vikt:	48000 g
Bredd:	1200 mm
Djup:	700 mm
Höjd:	- mm
Motoreffekt:	260 W
Antal motorer:	1
Antal lampor:	4 lampor
Antal filter:	1 styck
Strömförsörjning:	220-240V, 10A
Antal hastigheter:	4
Modell:	Köksö
Produktens färg:	Rostfritt stål
Kontrolltyp:	Knappar
Fettfilter typ:	Metall
Strömförbrukning (vanlig):	640 W
Lamptyp:	halogen
Ljudnivå Lc IEC:	40 dB
Inbyggd förmåga:	Nej
Typ av fläkt:	Bedrivs
Maximal flödeskapacitet:	825 m³/h
Intensiv hastighet:	Ja
Evakueringsanslutning diameter:	150 mm
Diskmaskin filter:	Ja
Filterrengöring indikator:	Ja
