notice or obligation. Vaddio is a registered trademark of Vaddio. All other trademarks are property of their respective owners. Toll Free: 800-572-2011, Main: 763-

971-4400, FAX: 763-971-4464, SD: 68410.5. Document Number 342-0929 Rev B

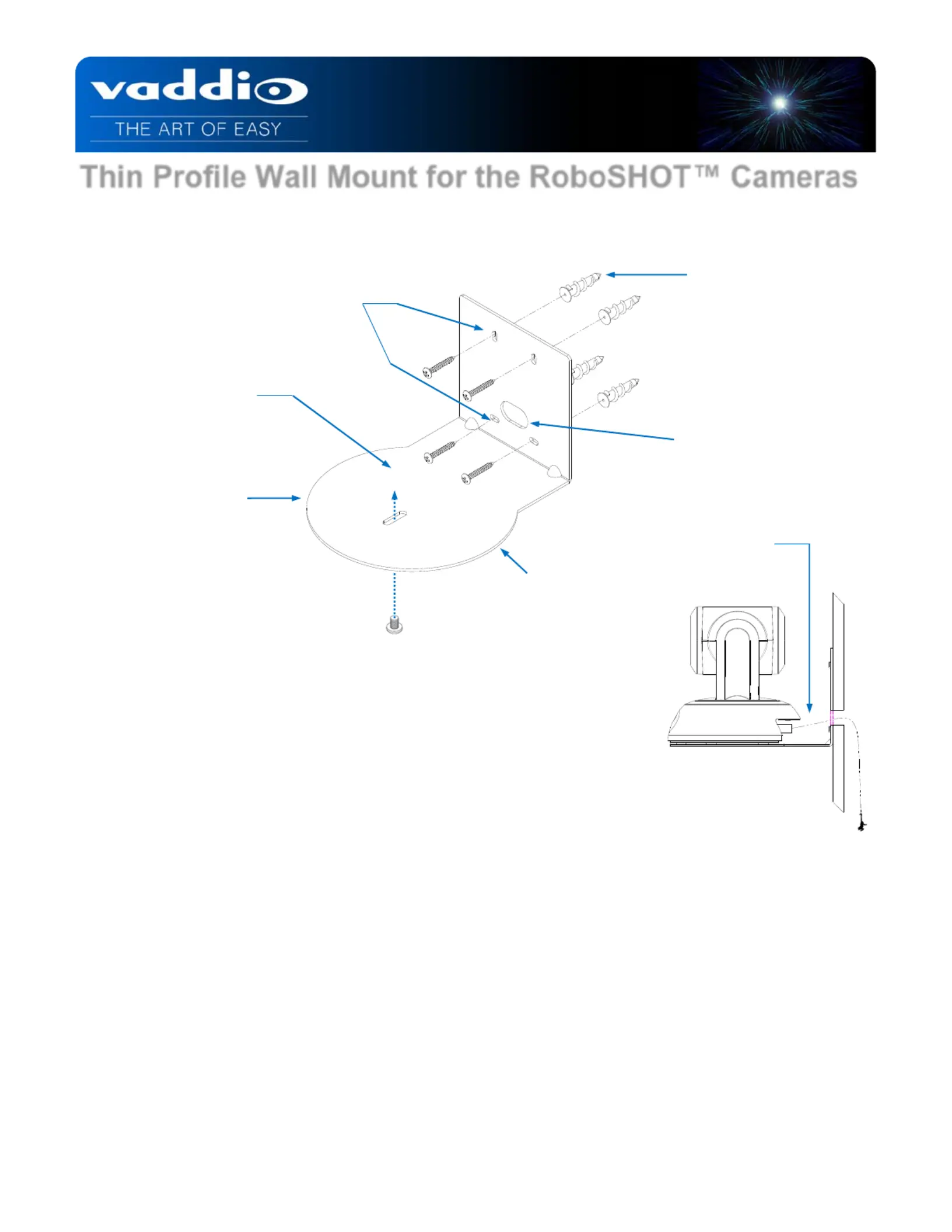

Thin Profile Wall Mount for the RoboSHOT™ Cameras

Part Numbers:

535-2000-240 (Black)

535-2000-240W (White)

UNPACKING:

Carefully remove the product from the packaging and identify the following parts:

 One (1) Thin Profile Mount for RoboSHOT Cameras (camera not included)

 One (1) ¼” x 20 x .375 Screw to attach camera to mount

 Four (4) #8 x 1.25” Sheet Metal Screws

 Four (4) Self-Drilling Wall Anchors

 Manual

MOUNTING THE CAMERA:

The Thin Profile Wall Mount for the RoboSHOT cameras can be mounted to a 2-gang wall electrical wall box or be mounted directly to a

drywall surface with the supplied wall anchors or other spiral type wall anchors of the integrator’s choice. The slotted mounting holes are

90º opposed from top to bottom to ensure that the camera can be adjusted and mounted level. When locating the camera, consider

viewing angles, lighting conditions, possible line of site obstructions and check for in-wall obstructions where the camera is to be mounted.

Always pick a mounting location to optimize the performance of the camera. Dimensional drawings (DWG and PDF) are available at

vaddio.com.

INTENDED USE:

This Thin Profile Wall Mount was designed, built and tested for use indoors and to support the weight, size and shape of the Vaddio

RoboSHOT camera only. Using this wall mount for any other purpose could certainly create a potentially unsafe operating condition,

really.

HARDWARE WARRANTY:

Please see the Vaddio website at support.vaddio.com for the Vaddio Statement of Warranty for all Vaddio Products. The Statement of

Warranty covers the policies and procedures of the Hardware Warranty, Exclusions, Customer Service, Technical Support, Return

Material Authorizations (RMA), Voided Warranty, Shipping, Handling and Products Not Under Warranty. The Vaddio Warranty Statement

supercedes all other published warranty statements heretofore in content and coverages. Vaddio Technical Support can be contacted

through the Vaddio website or through e-mail support at support@vaddio.com.

Mounts to a 2-gang

electrical box or directly

to drywall with provided

wall anchors.

Heavy-duty 12-gauge

steel construction.

Cable slot for

in-wall cabling.

Front radius matches

the contour of the

RoboSHOT camera

base.

Durable black powder

coat finish (paintable

to match any décor).

Slotted mounting holes

are 90º opposed for

easy camera/mount

leveling.

Camera base

blocks cabling

from front view.

Installation and User Guide

Produktspecifikationer

Varumärke:	Vaddio
Kategori:	Videokonferenssystem
Modell:	RoboSHOT 30 QCCU
Inbyggd display:	Nej
Vikt:	2199.923 g
Videolägen som stöds:	720p, 1080i, 1080p
Maximal bildfrekvens:	60 fps
Bildsensortyp:	CMOS
Bildsensorstorlek:	1/2.8 "
Optisk zoom:	30 x
Bildförhållande:	16:9
Antal personer:	- personer
Väggmonteringssats:	Ja
Fjärrkontroll ingår:	Ja
Lutningsvinkel:	-30 - 90 °
Synkroniseringssystem:	Intern
Horisontellt synfält:	65 °
Produktens färg:	Svart
HD-typ:	Full HD
Datahastighet för Ethernet-LAN:	10, 100 Mbit/s
Antal LAN (RJ-45) anslutningar:	2
Temperatur vid drift:	0 - 40 ° C
Intervall för relativ operativ luftfuktighet:	20 - 80 %
Minimibelysning:	1.4 lx
Brännviddsintervall:	4.3 - 129 mm
Nätverksansluten (Ethernet):	Ja
Ström:	2.78 A
Webbaserad adminstraion:	Ja
Lednings Protokoll:	Telnet
PTZ-styrning:	Ja
Power over Ethernet (PoE)-portar kvantitet:	2
Kamera inkluderad:	Ja
Megapixel:	2.38 MP
Bländarintervall (F-F):	1.6 - 4.7
Signal/brusförhållande (SNR):	50 dB
Panoreringsvinkel:	-160 - 160 °
Närmsta fokusavstånd:	0.01 m
Likströmsdriftspänning:	36 V
Gränssnittsmodul, mått (B x D x H):	480.8 x 177.8 x 43.7 mm
Kamerans mått (BxDxH):	179.2 x 171.6 x 176.3 mm
Fjärrkontrollsgränssnitt:	IR trådlös/RS-232
Kabel standard:	Cat5e
Extern gränssnittsmodul inkluderad:	Ja
Gränssnittsmodul, DC-ingång:	Ja
Kamerastyrningsalgoritm:	Tri-synkron rörelse
Närmaste fokuseringsavstånd (tele):	1.2 m
Hastighetsintervall för lutning:	0.35 - 120 °/sek
Hastighetsintervall för panorering:	0.35 - 120 °/sek
Gränssnittsmodul, antal VGA-portar (D-sub):	1
Gränssnittsmodul, vikt:	1564.9 g
Gränssnittsmodul, antal RJ-45-portar:	4
Gränssnittsmodul, antal HDMI-portar:	1
Gränssnittsmodul, antal BNC-portar:	1
