Thin Profile Wall Mount for the RoboSHOT™ Cameras
Part Numbers:
535-2000-240 (Black)
535-2000-240W (White)
UNPACKING:
Carefully remove the product from the packaging and identify the following parts:
One (1) Thin Profile Mount for RoboSHOT Cameras (camera not included)
One (1) ¼” x 20 x .375 Screw to attach camera to mount
Four (4) #8 x 1.25” Sheet Metal Screws
Four (4) Self-Drilling Wall Anchors
Manual
MOUNTING THE CAMERA:
The Thin Profile Wall Mount for the RoboSHOT cameras can be mounted to a 2-gang wall electrical wall box or be mounted directly to a
drywall surface with the supplied wall anchors or other spiral type wall anchors of the integrator’s choice. The slotted mounting holes are
90º opposed from top to bottom to ensure that the camera can be adjusted and mounted level. When locating the camera, consider
viewing angles, lighting conditions, possible line of site obstructions and check for in-wall obstructions where the camera is to be mounted.
Always pick a mounting location to optimize the performance of the camera. Dimensional drawings (DWG and PDF) are available at
vaddio.com.
INTENDED USE:
This Thin Profile Wall Mount was designed, built and tested for use indoors and to support the weight, size and shape of the Vaddio
RoboSHOT camera only. Using this wall mount for any other purpose could certainly create a potentially unsafe operating condition,
really.
HARDWARE WARRANTY:
Please see the Vaddio website at support.vaddio.com for the Vaddio Statement of Warranty for all Vaddio Products. The Statement of
Warranty covers the policies and procedures of the Hardware Warranty, Exclusions, Customer Service, Technical Support, Return
Material Authorizations (RMA), Voided Warranty, Shipping, Handling and Products Not Under Warranty. The Vaddio Warranty Statement
supercedes all other published warranty statements heretofore in content and coverages. Vaddio Technical Support can be contacted
through the Vaddio website or through e-mail support at [email protected].

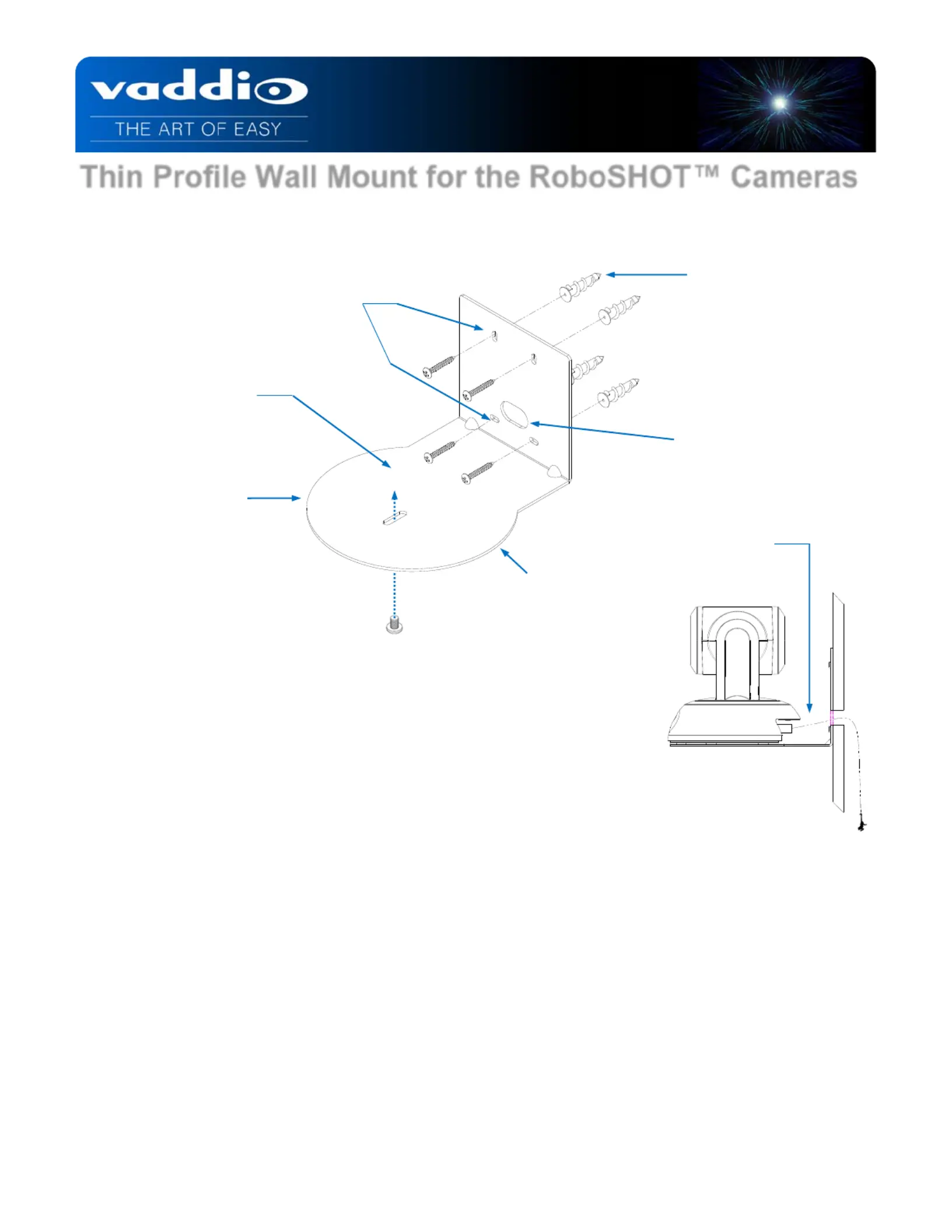

Mounts to a 2-gang
electrical box or directly
to drywall with provided
wall anchors.
Heavy-duty 12-gauge
steel construction.
Cable slot for
in-wall cabling.
Front radius matches
the contour of the
RoboSHOT camera
base.
Durable black powder
coat finish (paintable
to match any décor).
Slotted mounting holes
are 90º opposed for
easy camera/mount
leveling.
Camera base
blocks cabling
from front view.
Installation and User Guide
Produktspecifikationer
| Varumärke: | Vaddio |
| Kategori: | Videokonferenssystem |
| Modell: | RoboSHOT 30 QDVI |
| Inbyggd display: | Nej |
| Vikt: | 2199.923 g |
| Videolägen som stöds: | 720p, 1080i, 1080p |
| Maximal bildfrekvens: | 60 fps |
| Bildsensortyp: | CMOS |
| Bildsensorstorlek: | 1/2.8 " |
| Optisk zoom: | 30 x |
| Bildförhållande: | 16:9 |
| Antal personer: | - personer |
| Väggmonteringssats: | Ja |
| Fjärrkontroll ingår: | Ja |
| Lutningsvinkel: | -30 - 90 ° |
| Synkroniseringssystem: | Intern |
| Horisontellt synfält: | 65 ° |
| Produktens färg: | Vit |
| HD-typ: | Full HD |
| Datahastighet för Ethernet-LAN: | 10, 100 Mbit/s |
| Antal LAN (RJ-45) anslutningar: | 2 |
| Temperatur vid drift: | 0 - 40 ° C |
| Intervall för relativ operativ luftfuktighet: | 20 - 80 % |
| Minimibelysning: | 1.4 lx |
| Brännviddsintervall: | 4.3 - 129 mm |
| Nätverksansluten (Ethernet): | Ja |
| Webbaserad adminstraion: | Ja |
| Lednings Protokoll: | Telnet |
| PTZ-styrning: | Ja |
| Power over Ethernet (PoE)-portar kvantitet: | 2 |
| Kamera inkluderad: | Ja |
| Megapixel: | 2.38 MP |
| Bländarintervall (F-F): | 1.6 - 4.7 |
| Signal/brusförhållande (SNR): | 50 dB |
| Panoreringsvinkel: | -160 - 160 ° |
| Närmsta fokusavstånd: | 0.01 m |
| Gränssnittsmodul, mått (B x D x H): | 203.2 x 171.5 x 43.69 mm |
| Kamerans mått (BxDxH): | 179.2 x 171.6 x 176.3 mm |
| Fjärrkontrollsgränssnitt: | IR trådlös/RS-232 |
| Kabel standard: | Cat5e |
| Extern gränssnittsmodul inkluderad: | Ja |
| Gränssnittsmodul, DC-ingång: | Ja |
| Gränssnittsmodul, antal DVI-D portar: | 1 |
| Kamerastyrningsalgoritm: | Tri-synkron rörelse |
| Närmaste fokuseringsavstånd (tele): | 1.2 m |
| Hastighetsintervall för lutning: | 0.35 - 120 °/sek |
| Hastighetsintervall för panorering: | 0.35 - 120 °/sek |
| Gränssnittsmodul, IR-utgång: | Ja |
| Gränssnittsmodul, antal VGA-portar (D-sub): | 1 |
| Gränssnittsmodul, vikt: | 550 g |
| Gränssnittsmodul, antal RJ-45-portar: | 4 |
