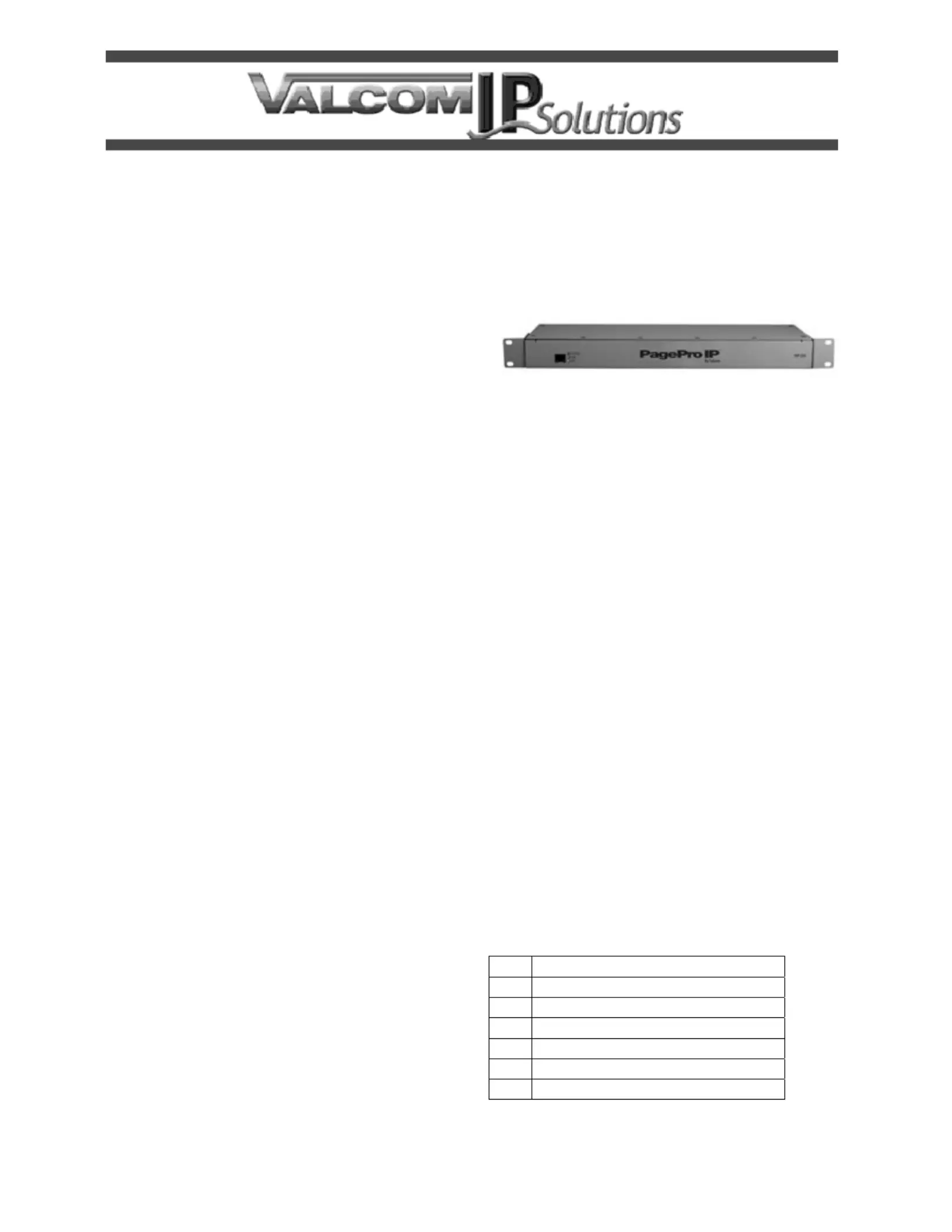

PagePro VIP-204

SIP Paging Gateway

INTRODUCTION

The VIP-204 SIP Paging Gateway is designed for

use with virtually all IP based telephone systems.

The unit provides SIP addressable groups and 4

analog outputs that may be included as part of

the SIP addressable groups. The VIP-204 can

control thousands of IP speakers and/or analog

speakers or provide an interface to legacy paging

systems.

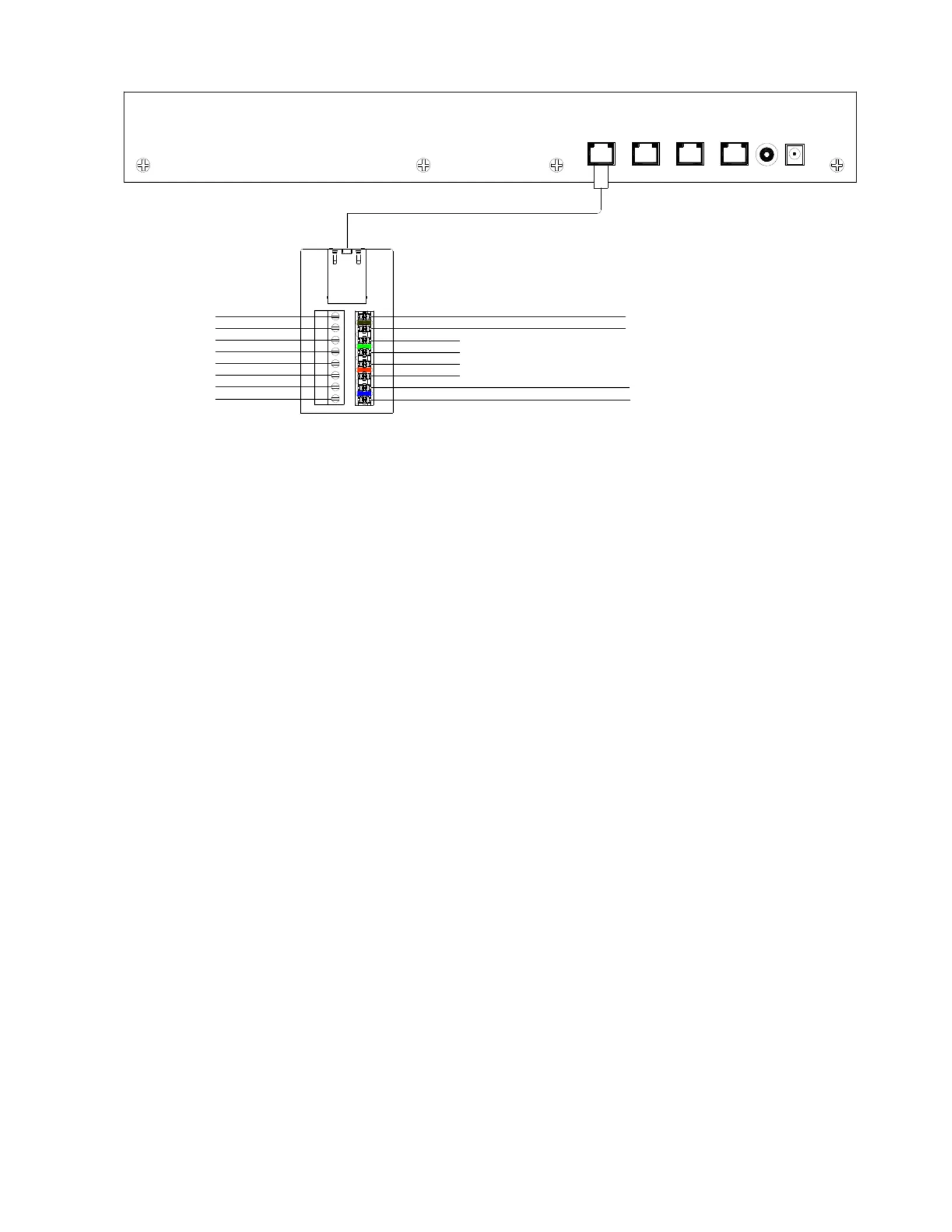

Connection to a SIP server can be as individual

SIP Stations (extensions) or as a SIP trunk.

Station mode provides up to 8 SIP-adressable

groups. Trunk mode accepts up to 100 SIP

phone numbers for flexible grouping.

SPECIFICATIONS

Access Methods

 SIP

 Valcom Multicast Page Group

Features

 SIP – Addressable Groups (phone numbers)

 4 Analog Audio Outputs (for inclusion in

groups only)

 4 Programmable Form A Relay Closures

 RJ-45 for Network Connection

 Provides Audio for Valcom Analog One-Way

Self Amplified Speaker Assemblies or 25/70

Volt central amplifiers

 AUX Audio Input via RCA Jack

 Background Music Input, Music Mutes During

a Page

 Output Control Relay Closure Provided

During Paging Output

 2.5mm Jack for optional DC Power (non-

PoE)

 LED Status Indicator

 Network Activity LEDs

 Programmable Feedback Elimination/Page

Repeat

 Programmable Night Ring

Power Options

 Power over Ethernet (PoE) 802.3af, Class 3

Compatible

 Optional External Power Supply (VIP-324D)

Dimensions/Weight

1 Standard 19” Rack Unit:

 1.75” H x 16.6" W x 9.5" D

(4.57 cm x 42.16 cm x 24.13 cm)

 Weight: 7.25 lbs. (3.28 kg)

Nominal Specifications

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current Rating: 1 Amp @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% Non-Precipitating

Packing List

Qty Item

1 VIP-204

4 RJ-45 Patch Cables

4 VM-186 RJ-45 Connectors

4 Rubber Pads

2 Mounting Brackets W/ Hardware

1 VSP Document

Produktspecifikationer

Varumärke:	Valcom
Kategori:	Server
Modell:	PagePro SIP VIP-204
Produktens färg:	Silver
Antal LAN (RJ-45) anslutningar:	1
Produktstorlek (BxDxH):	421.6 x 241 x 45.7 mm
Intervall för relativ operativ luftfuktighet:	0 - 85 %
Utgångsspänning:	24 V
Stödda protokoll:	IETF SIP (RFC3261), IETF IGMP 3 (RFC3376), IETF RTP (RFC1889), IETF RFC2833\nDHCP, NTP
