VSP-V-1050C

Issue 8

1 947050

V- - -1050C 5 WATT BI DIRECTIONAL HORN/

ONE-WAY AMPLIFIER ASSEMBLY

INTRODUCTION

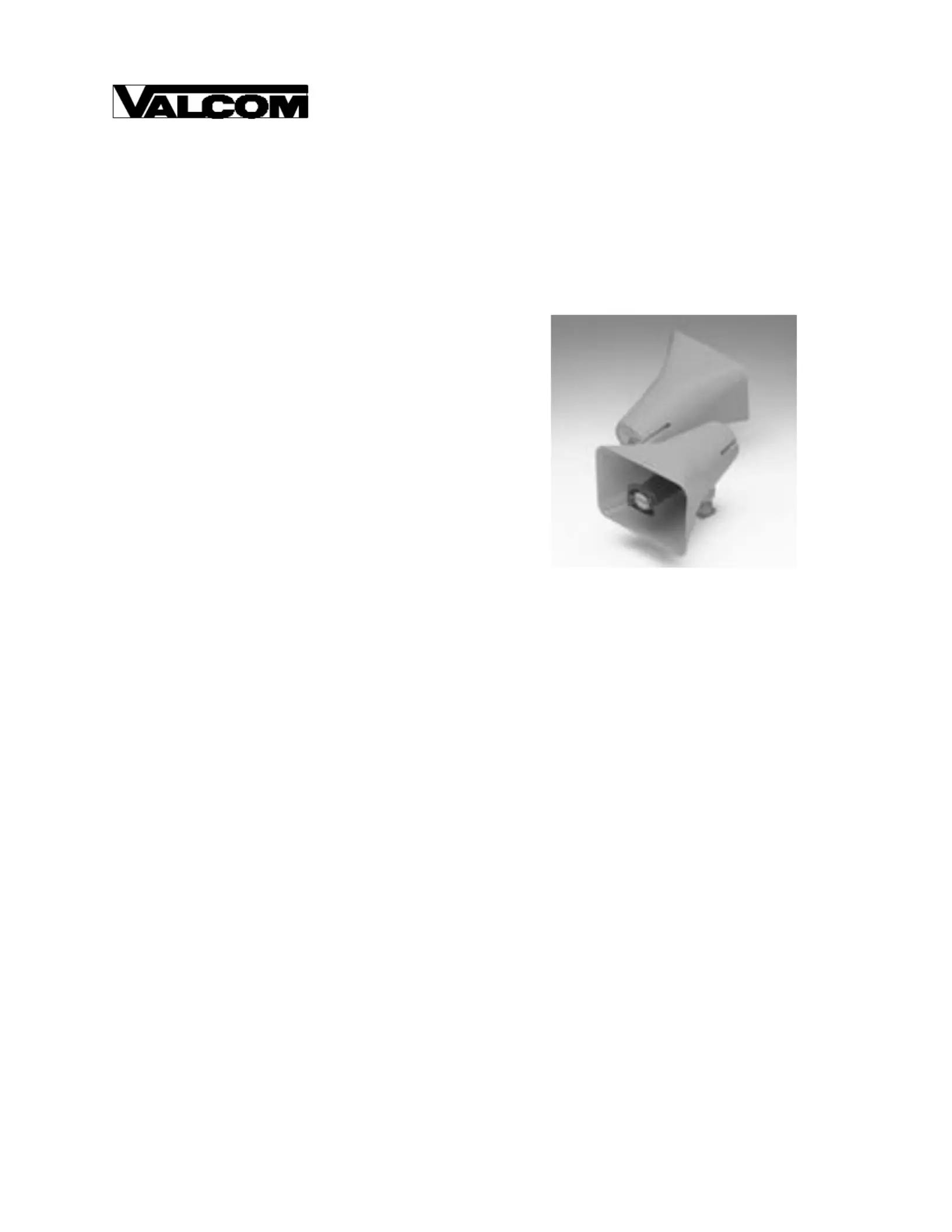

The V- - -1050C is a Bi directional, 5 Watt One way

Amplified Horn Assembly. The V-1050C consists of

two horn speakers positioned on a common mounting

frame with a built-in one-way 5 Watt amplifier.

SPECIFICATIONS

Features

• 5 Watts

• Self-contained amplifier and volume control

• Simplifies paging horn installation

• Vertical or horizontal mounting

Dimensions/Weight

• 9.60" H x 8.20" W x 9.30" D

(24.38cm H x 20.83cm W x 23.62cm D)

• Weight: 6.3 lbs. (2.86 Kg)

Power Requirements

• Unfiltered -24VDC ("B" Battery) 300mA

maximum

Environment

• Temperature: -20 to +55 degrees C

• Humidity: 0 to 95% non-precipitating

DESIGN

General

The V- -1050C may be used to provide one way paging

from any Va lcom one-way or talkback page control

unit. A standard Valcom paging system is made up of

three basic components:

• Page Control Unit

• Speakers

• Power Supply

Consult Valcom's One-way Paging VSP for detailed

information on selecting the control unit and power

supply.

Special Applications

The V-1050C may be connected directly to the

speaker in most electronic key telephones to amplify

the level of the speaker and broadcast it to a large

area. A power supply will also be required.

The V-1050C may be used to expand a constant

voltage (25/70/100 Volt) paging system without

placing an additional load on the amplifier by adding a

V-1095, 70V Paging Expander. A power supply will

also be required.

Coverage

Refer to Table 1 for coverage of this horn assembly.

The first figure given is the side to side distance to

use when mounting the horns. The second figure is

the front to back distance between horns. The third

figure is the total square footage the assembly will

cover.

Produktspecifikationer

Varumärke:	Valcom
Kategori:	högtalare
Modell:	V-1050C
Vikt:	2860 g
Bredd:	208.3 mm
Djup:	236.2 mm
Höjd:	243.8 mm
Impedans:	600 Ω
Ljudutgångskanaler:	1.0 kanaler
Högtalarplacering:	Väggfästningsbar
Förstärkare:	Inbyggd
Produktens färg:	Beige
Uteffekt (RMS):	5 W
Temperatur vid drift:	-20 - 55 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Equalizer:	Nej
Material, hölje:	Plast
Frekvensområde:	275 - 14000 hz
Högtalartyp:	1-vägs
