Sida 1/6

PagePac

947179

ISSUE 2

Universal Voice Coil and

70 Volt Door Speaker

V-5330120 / V-5330230

Installation Manual

2 947179

Your PagePac

Door Speaker

Note: The Door Phone

Controller and

PagePac 6 systems

require that a Voice

Coil Door Speaker be

used. The PagePac 6

Plus system requires a

70 Volt Door Speaker

be used. (Additional

speaker can be added

to controller and

paging systems

mentioned).

Your Door Speaker operates within a weather resistant enclosure ideal for indoor as well as

outdoor applications. When used in conjunction with the Door Phone Controller, PagePac 6,

or PagePac 6 Plus, persons within your office or building can speak directly with outside

visitors, through the telephone system. sBoth Voice Coil (V-5330120) and ffkfkjskgg kfgjkjgk

70 Volt (V-5330230) models are available.

Installation of double-gang electrical boxes, running of conduit, cutting through walls, etc.,

should be conducted by persons with appropriate technical skills; we highly recommended

installation be provided by a licensed electrician. Install per National Electrical Code and any

applicable local codes. This manual provides information for installing the Door Speaker to a

solid (surface mount) or nonsolid (flush mount) surface.

Note: For some wall

surfaces, such as

drywall, plastic wall

anchors may need to be

driven into the wall

surface to secure the

mounting screws.

The Door Speaker can be mounted to virtually any type of surface or wall. Those surfaces that

are too hard or difficult to cut through require the unit to be SURFACE MOUNTED (device

installed so it is completely external to the wall surface). Wall surfaces such as wood or

drywall often are hollow and allow wiring to be run within the wall. Mounting the Door

Speaker unit to non-solid surfaces is often preferred because the unit can be FLUSH

MOUNTED so only the faceplate is exposed. Refer to the following pages for both surface-

mount and flush-mount double-gang outlet box installations.

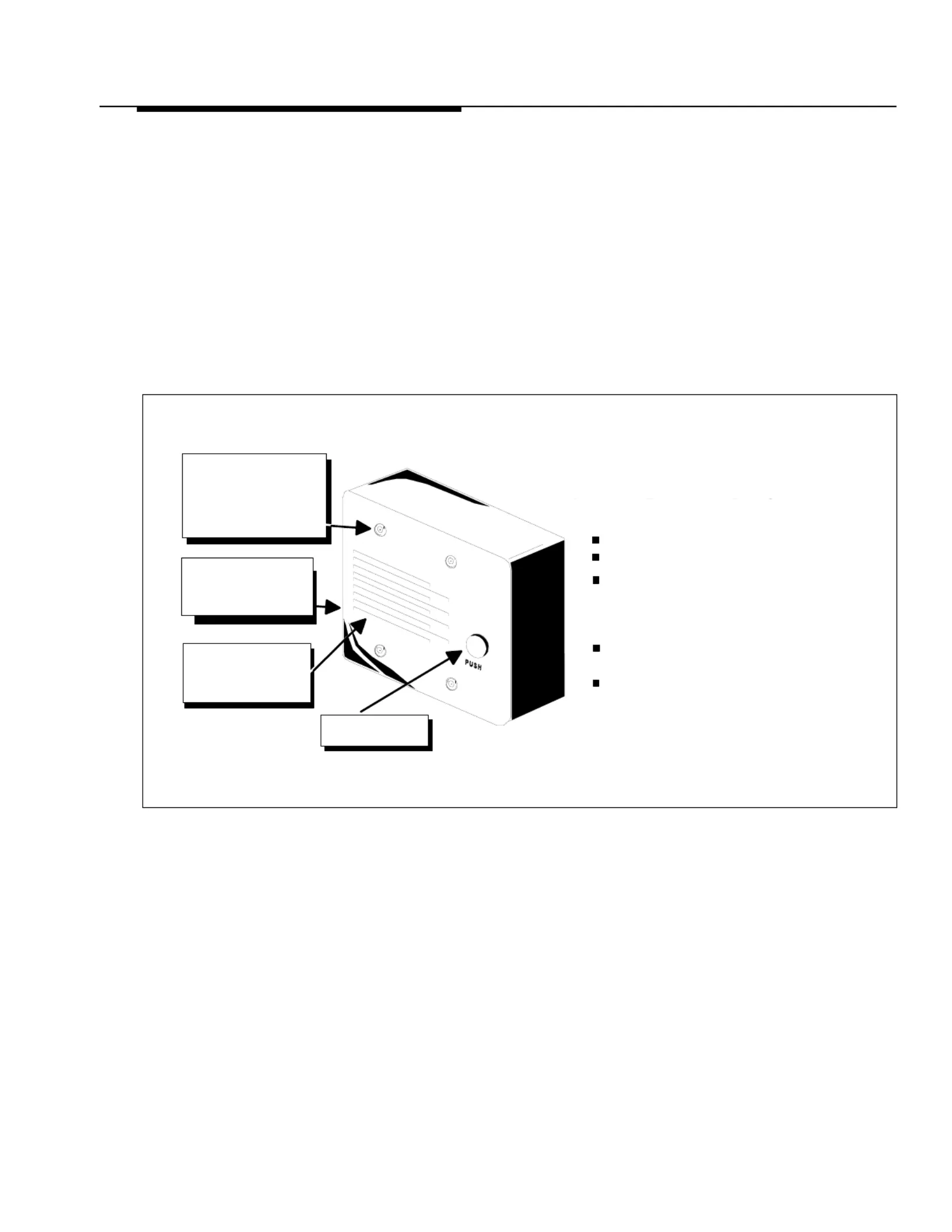

DURABLE STAINLESS STEEL

FACEPLATE WITH FOUR

TAMPER RESISTANT

SCREWS (A SPECIAL ALLEN

WRENCH IS INCLUDED FOR

INSTALLATION).

STRONG WEATHER

RESISTANT ENCLOSURE

TO MEET BUILDING AND

SAFETY CODES.

PUSH-BUTTON TO

INITIATE SIGNALING

INSIDE ENCLOSURE IS A

45 OHM (FOR VOICE-COIL

UNITS) OR 70 VOLT

SPEAKER

shipping box contains:

Door speaker unit

Faceplate (steel)

Weather resistant double-gang outdoor

electrical outlet box gasket, and surface

mounting hardware (screws and

brackets)

Tamper resistant (faceplate) mounting

screws (four) with driver tool

This instruction booklet

Your PagePac Door Speaker

3 947179

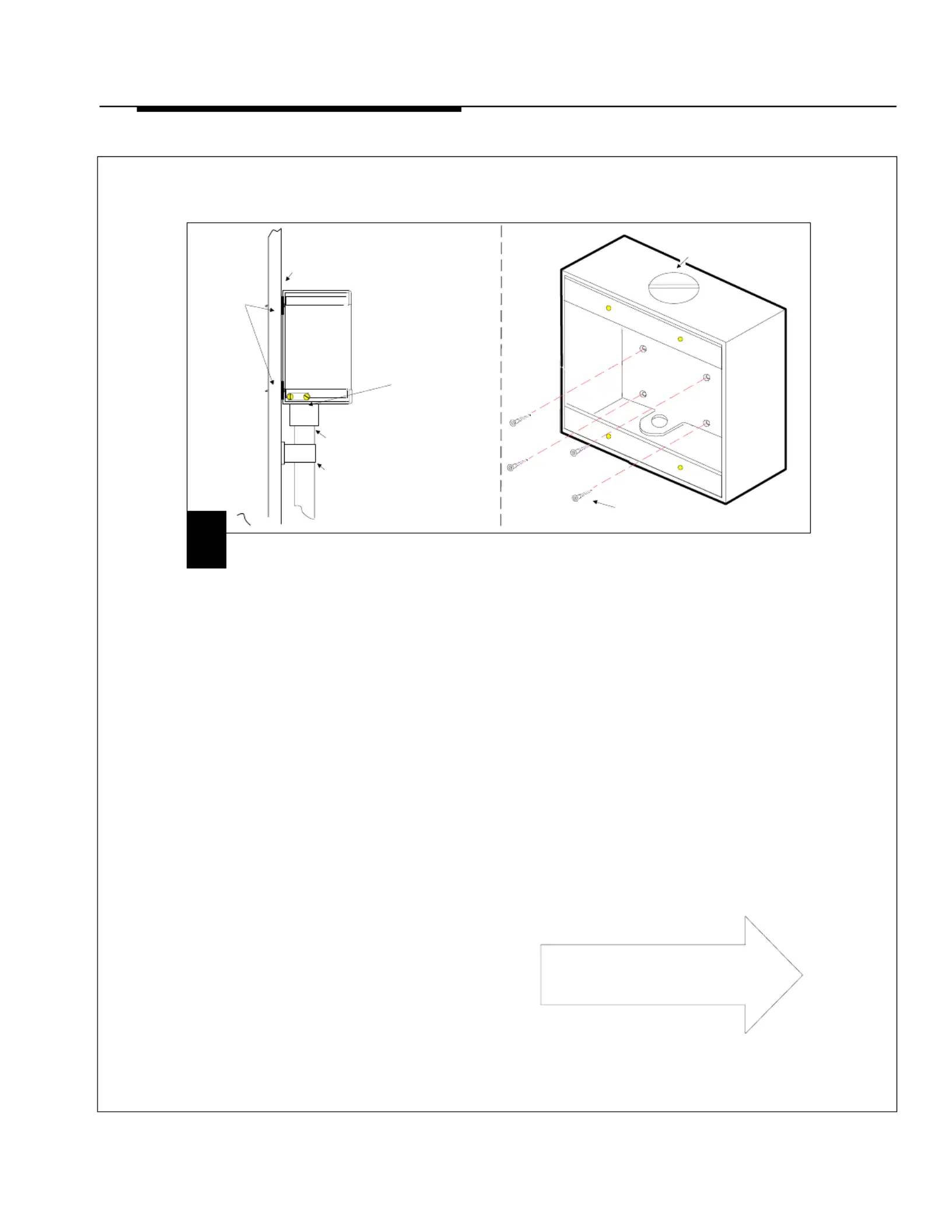

PIPE OR CONDUIT

WALL

SURFACE

BRACE

MOUNTING SCREWS

GANG BOX

Another method to attach the

gang box to the surface of a wall,

which is more secure and

provides.an esthetically pleasing

look, is to drill mounting holes (4)

directly into the back of the gang box.

Using the appropriate screws

(depending on the material the wall

surface is made of) position the

screws through the inside of the gang

box and using a screwdriver secure

the gang box to the wall. Once the

gang box has been properly braced,

install the speaker unit and face plate

as shown in illustrations 4 and 5.

The gang box mounting

brackets (included) can be screwed

to the gang box back plate so they

protrude out the sides of the gang

box. Using the appropriate screws

(depending on the material the wall is

made of), position the screws through

the bracket holes and using a

screwdriver secure the gang box to

the wall surface. Once the gang box

has been properly braced, install the

speaker unit and face plate as shown

in illustrations 4 and 5.

GANG BOX

MOUNTING

BRACKETS

NOTICE:

—All conduit and

closure plug

connections

should be

adequately sealed

(i.e., pipe joint

compound) for wet

location

installations.

—Do not allow

conduit to

protrude into rear

opening of outlet

box to avoid

interference with

Door Speaker.

FLUSH MOUNTING...

go to step 2.

SURFACE MOUNTING

—The gang box

should be

grounded via the

conduit to a

suitable earth

ground to provide

protection against

lightning strikes.

CAUTION : SEAL TOP PLUG

WITH OUTDOOR SEALANT

SUCH AS SILICONE RUBBER

WEATHER RESISTANT

DOUBLE-GANG OUTDOOR

ELECTRICAL BOX

(PROVIDED)
