VSP V- -9936A

Issue 5

1 947961

V-9936A

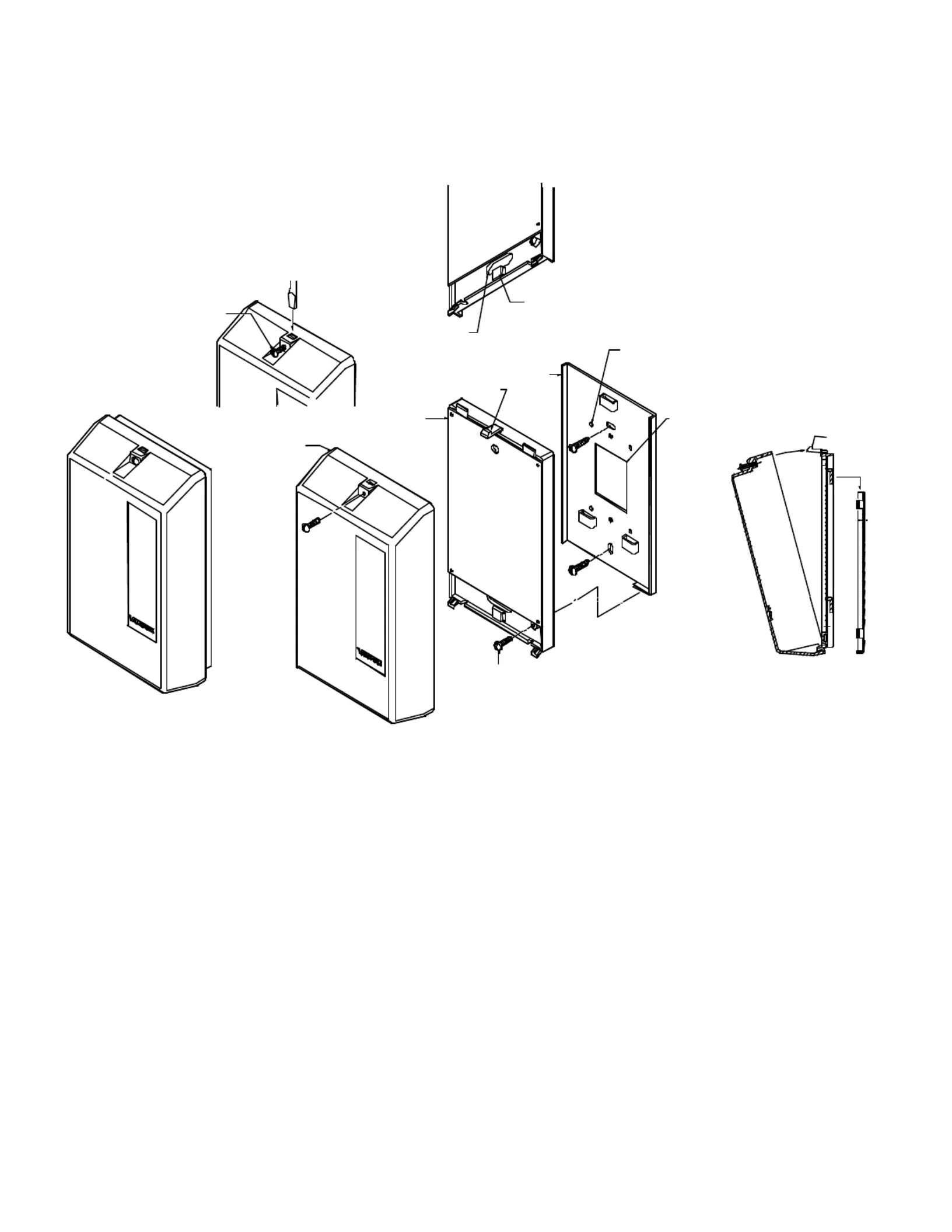

SIX LINE C. O. AUDIBLE RING UNIT

INTRODUCTION

The V-9936A is a Six Line C. O. Audible Ring Unit to

be used with Electronic key and PABX telephone

systems.

These instructions contain the specifications and

information necessary to install, operate and maintain

the Six Line C. O. Audible Ring Unit.

When installing the V-9936A, notify the local

telephone company with the following information:

• The telephone number of the lines to which the

V-9936A will be connected

• The FCC Registration number of the V-9936A,

which is BAF9I7- -12995 RG-N

• The ringer equivalence number (REN): 0.7B

SPECIFICATIONS

Purpose

• Monitors up to six C. O. Lines or PABX station

numbers and gives a common audible tone signal

and a dry relay contact closure to indicate

incoming ring on any of the lines.

• V-9936A units may be multiplied to supervise

additional lines.

Applications

• Central office lines

• PABX station numbers

• Phone system night ring relay

Features

• Monitors six lines

• Units may be multiplied for additional lines

• Provides interrupted electronic warble tone

output for tone signaling

• Provides interrupted dry contact closure output

to activate loud bells

• Input for a night switch (On/Off switch)

• Built-in 66 type connection block

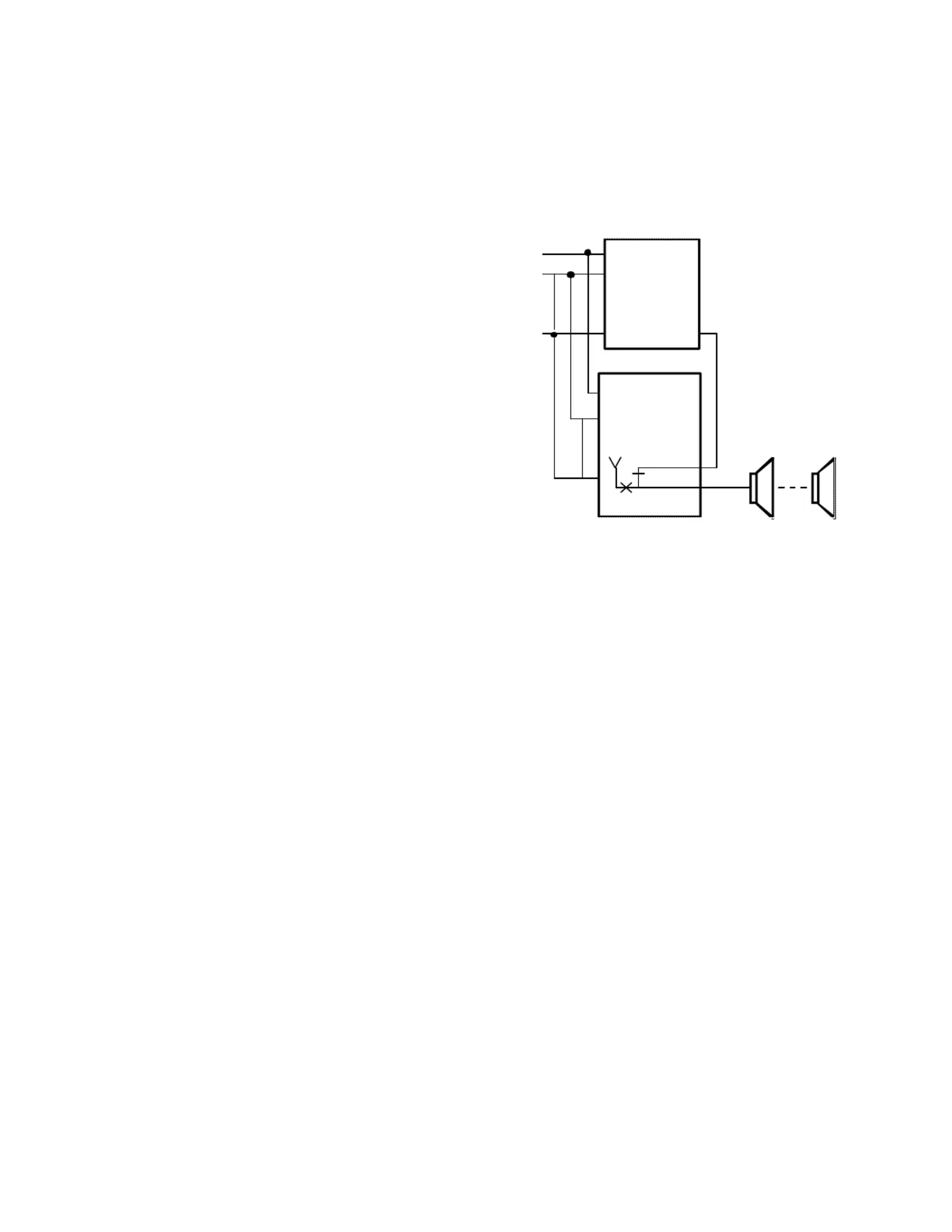

• May be connected to an existing paging system

• Drives up to 150 Valcom One-way Amplified

Speaker Assemblies

• Drives up to two 45 Ohm Talkback Speakers

• May be used with One-way or Talkback Paging

Systems

• May be used with 70 Volt Paging Systems

• Ring tone will override any page in progress

• Volume control

• Power reversal indicator

• Powered by -24VDC "B" battery

Capacity

• Each V-9936A will provide signaling for six C.O.

lines or extension numbers

• Up to four units may be multiplied for monitoring

of 24 lines

• May be connected to one zone of a paging

system

• The V-9936A will drive two 45 Ohm talkback

speakers or 150 one-way amplified speaker

assemblies

• The dry contact closure is rated at 1.0 Amp @

105VAC, or 2.0 Amps @ 24VDC.
