1 947767
ISSUE 3
VIP-A, VIP-801A- 801V4
NETWORK AUDIO PORT
INTRODUCTION
The VIP-801A and VIP-801A- Network Audio V4
Ports enable voice access to a single zone of one-
way paging over an IP network, allowing page
zones to be extended anywhere network
connectivity is available. The VIP-801A can be
programmed as a SIP (Session Initiation Protocol)
device for connectivity to virtually any Voice over IP
(VoIP) telephone system.Both models are identical
in t, form and function.
SPECIFICATIONS

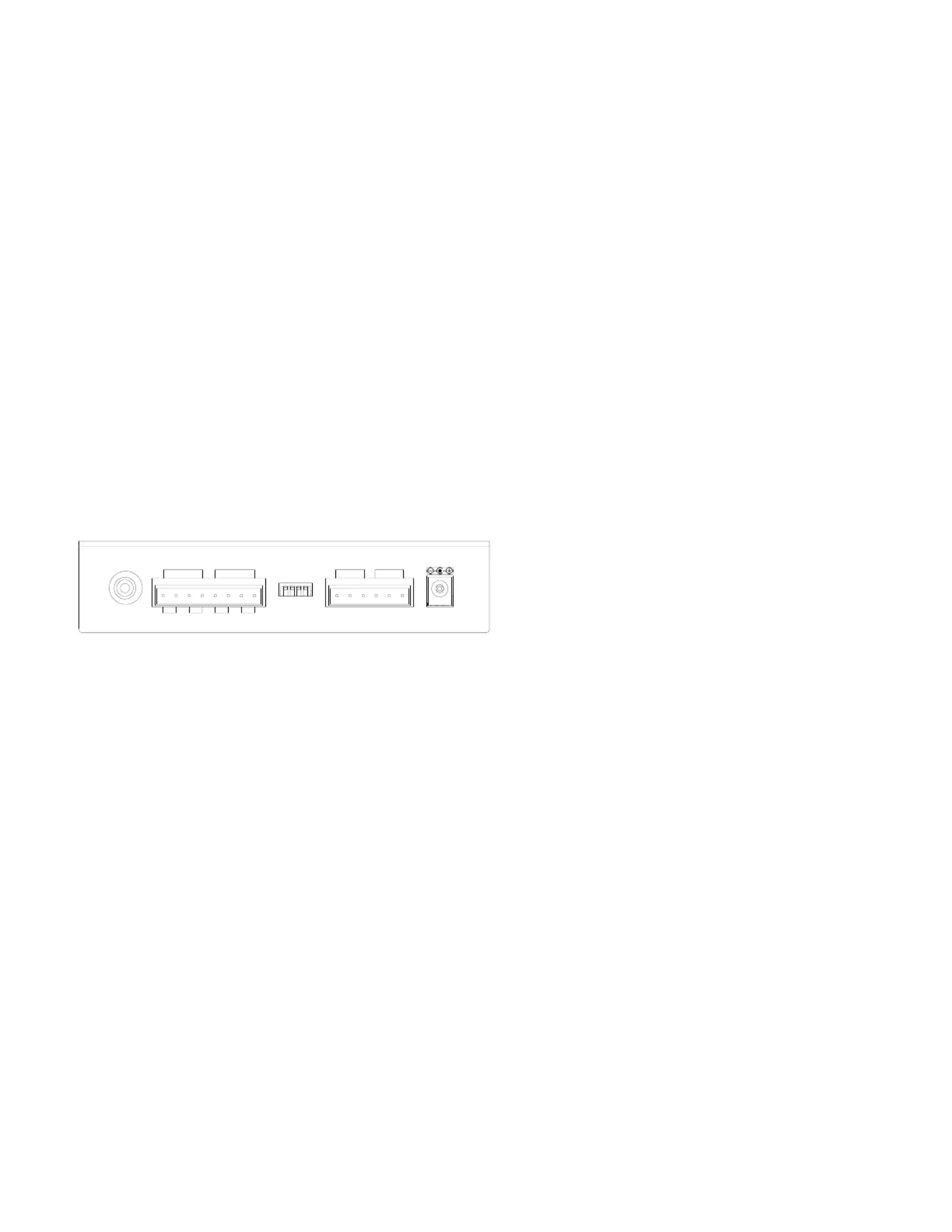

Features
•1 Audio Input
•2 Audio Outputs
•2 Form C Relays
•1 Contact Closure Input
•1 SIP identity for registering to a VoIP telephone
system
•-jack for network connection RJ45
•Front panel activity LED
•Provides audio for up to 40 Valcom one-way
amplied speaker assemblies
•AUX audio input via RCA jack
•Contact closure or VOX operation of audio input
•Removable screw terminal connectors provided
for audio and relay interfaces
•AUX input audio mutes during page
•Output control contact closure provided during
paging output
•Compatible with - or 70-Volt ampliers 25
•Barrel jack for optional DC power
•Power over Ethernet (PoE) 802.3af compatible

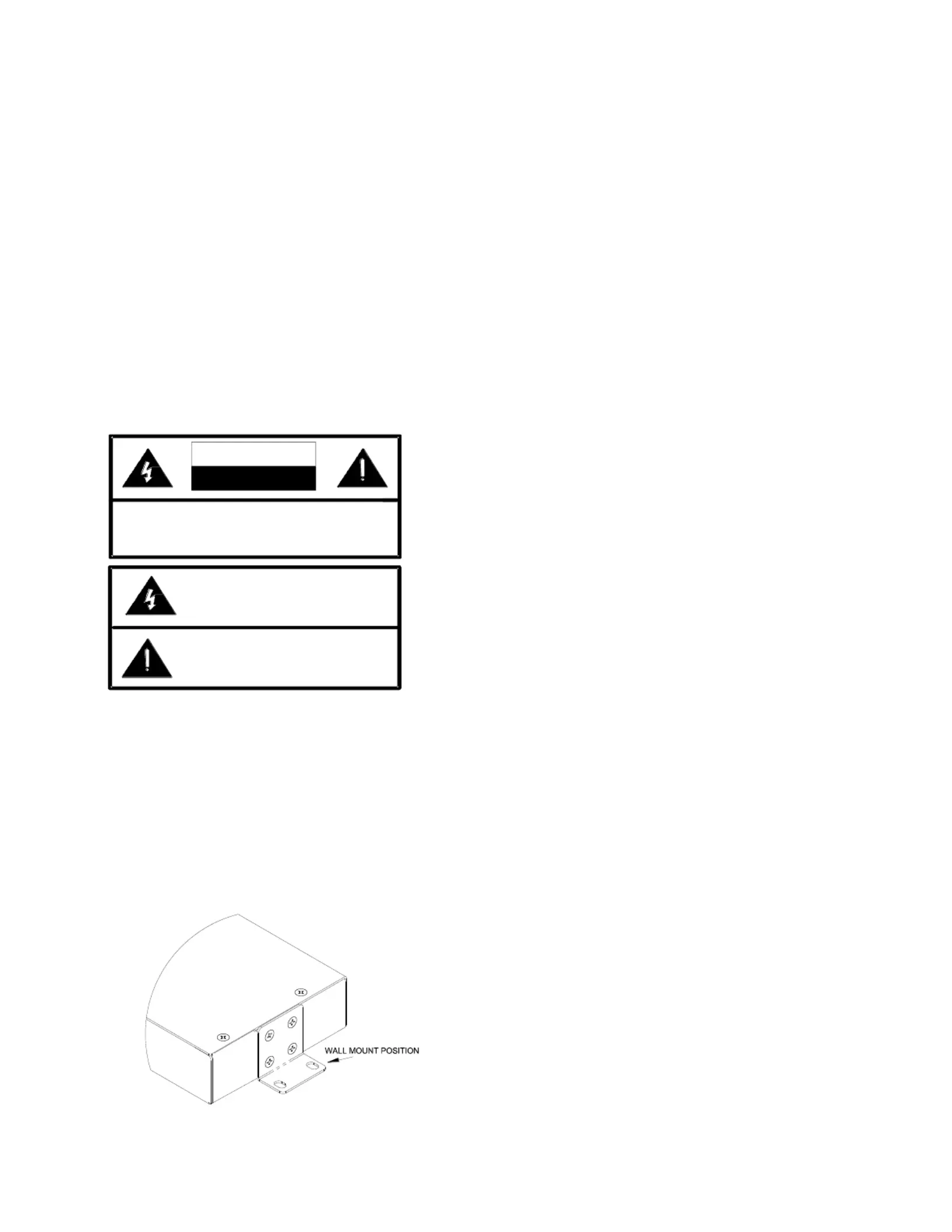

Dimensions/Weight
• H x 6.13" W x 5.25" D 1.38”
(3.50cm H x 15.6cm W x 13.33cm D)
•Weight: 1.25 lbs. (0.57 kg)
Nominal Specications
Input Impedance: 600 Ohms
Input Level: -10dBm nominal
Voice Switch Sensitivity: -21dBm
AUX Input Impedance: 8 to 600 Ohms
AUX Input Level: -10dBm nominal
Output Impedance: 50 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 Amp @ 24VDC
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24VDC
Current: 3mA 25
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
