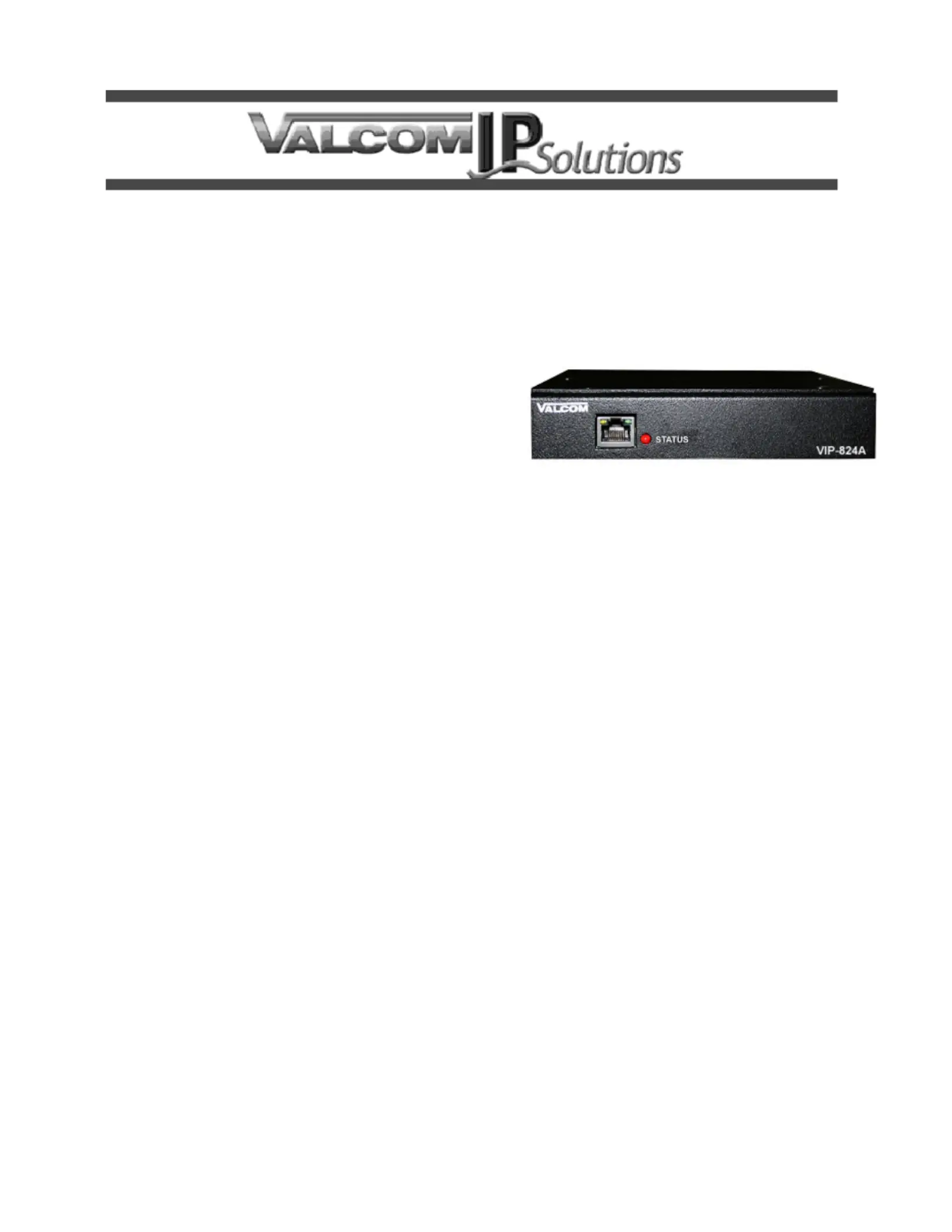

1 947494

ISSUE 2

VIP-A 824

QUAD ENHANCED NETWORKED TRUNK PORT

INTRODUCTION

The VIPNetworked Trunk -824Quad Enhanced A

Port allows most loop start station ports to be

connected to a managed IPbased LAN/WAN. -

SIP -A connectivity allows the VIP824to act as a

gateway device between a SIP telephone system

and the other Valcom paging systems, such as the

MultiPath.

SPECIFICATIONS

Access Methods

• PBX, FXS Port

• SIP

Features

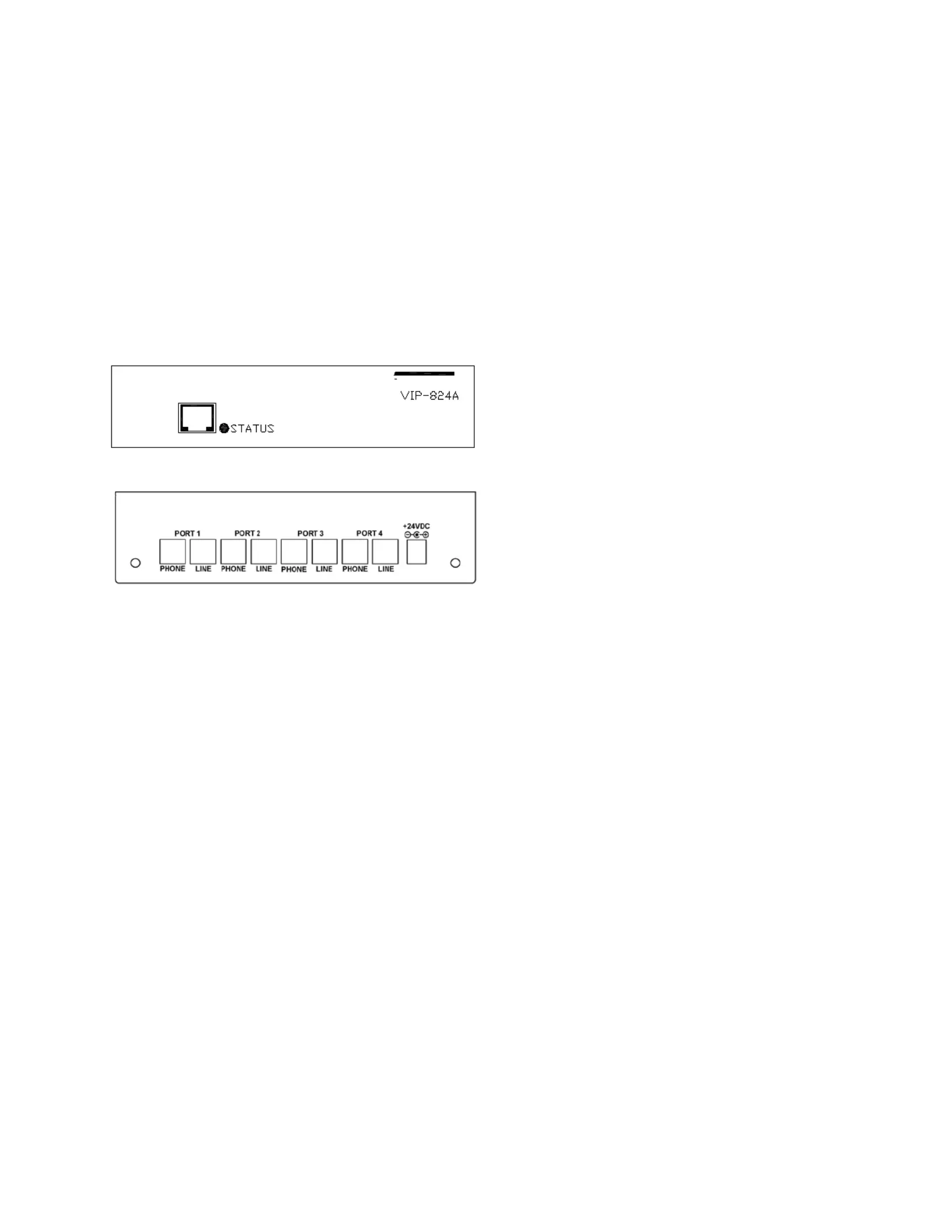

•- RJ45 for network connection

•- 4 RJ11 FXO connections

•- 4 RJ11 failover telephone connections

• Decode Caller ID signals

• Front panel activity LED

•Network activity LEDs

• 2.5mm jack for DC power

• Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

• 5.2 1.38H x 6.13" W x 5" D

(30.5cm H x 15.6.3 cm W x 133cm D)

•2 Weight: 1.5 lbs. (0.57kg)

Nominal Specifications

Input Impedance:600 Ohms

Input Level: -10dBm

Output Impedance:600 Ohms

Output Level: - 10dBm nominal

Nominal Power Requirements

Via back panel barrel connector:

Voltage: 24VDC

Current:325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non - precipitating

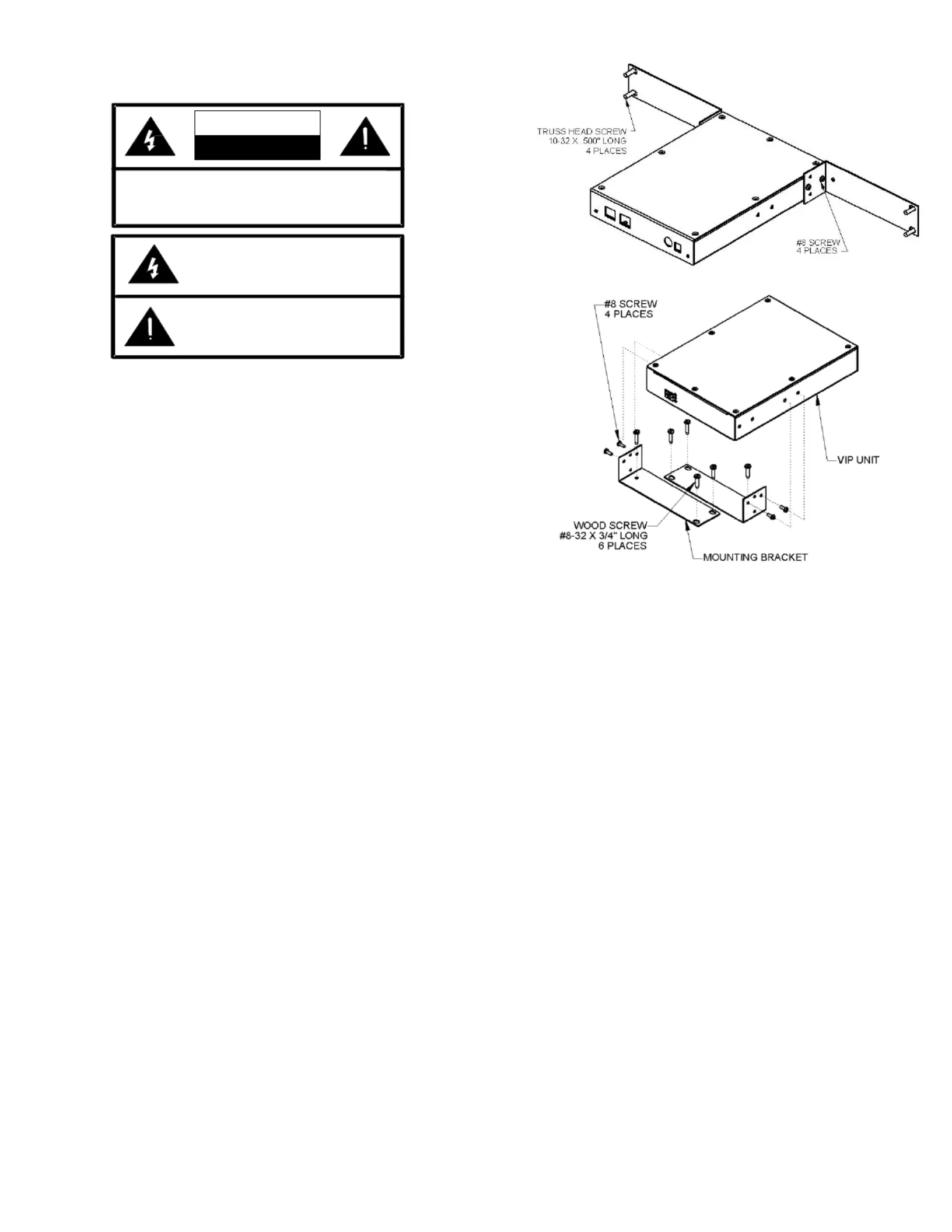

INSTALLATION

NOTE: The telephone system referred to in this

manual is the customer premise equipment

such as an electronic key system, a PBX or a

dedicated single line telephone sets. The

VIP-A 824is not intended for direct or indirect

connection to the public telephone network.

When used with a customer premise telephone

system such as a key system or PBX system,

these units are interfaced to the system via a

fully protected system central office port,

which is a fully protected interface device.

Also, the host system must be configured to

disallow central office trunk conferencing in

order to prevent indirect connection to the

public network.
