1 947831

Issue 2

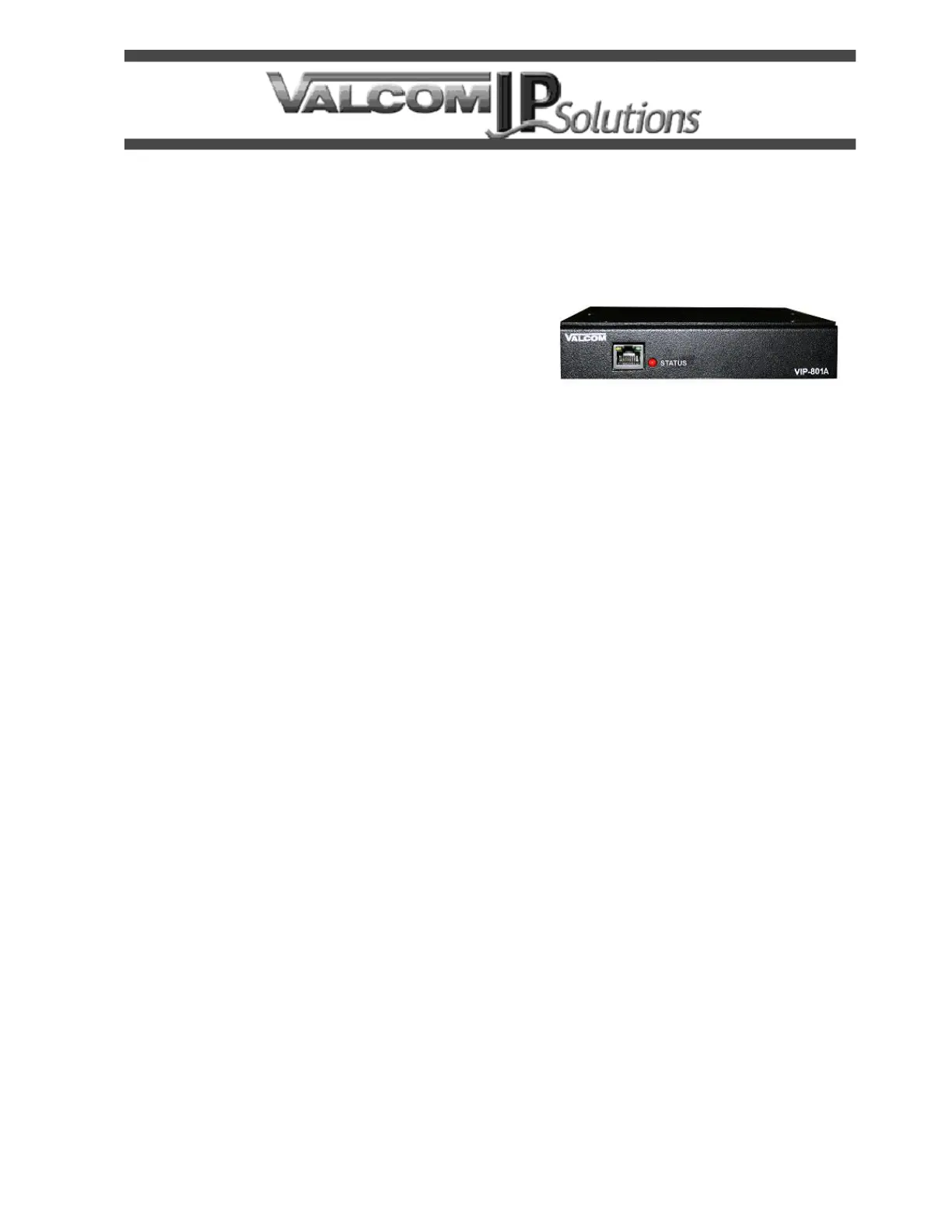

VIP-801A-IC, VIP-801A-IC-V4

InformaCast

®

Compliant

Network Audio Port

INTRODUCTION

The VIP-801A-IC and VIP-801A-IC-V4 Singlewire

InformaCast

®

Compliant Network Audio Port

provides audio output from an InformaCast server.

The VIP-801A-IC registers with and is controlled by

the InformaCast server. The -V4 model is identical

in fit, form and function to the non -V4 model.

SPECIFICATIONS

Features

•2 Audio Outputs

•2 Form C Relays

•RJ-45 jack for network connection

•Front panel activity LED

•Provides audio for up to 40 Valcom one-way

amplified speaker assemblies

•AUX audio input via RCA jack

•Removable screw terminal connectors provided

for audio and relay interfaces

•AUX input audio mutes during page

•Output control contact closure provided during

paging output

•Compatible with 25- or 70-Volt amplifiers

•Barrel jack for optional DC power

•Power over Ethernet (PoE) 802.3af compatible

Dimensions/Weight

•1.38” H x 6.13" W x 5.25" D

(3.50cm H x 15.6cm W x 13.33cm D)

•Weight: 1.25 lbs. (0.57 kg)

Nominal Specifications

AUX Input Impedance: 8 to 600 Ohms

AUX Input Level: -10dBm nominal

Output Impedance: 50 Ohms

Output Level: - 10dBm nominal

Relay Current: 1 Amp @ 24VDC

Nominal Power Requirements

Via rear panel barrel connector:

Voltage: 24VDC

Current: 325mA

Via 802.3af PoE Ethernet Switch:

802.3af: Class 3

Environment

Temperature: 0 to +40° C

Humidity: 0 to 85% non-precipitating

FCC Information

This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when

the equipment is operated in a commercial

environment. This equipment generates, uses

and can radiate radio frequency energy and if

not installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential area

may cause harmful interference in which case

the user will be required to correct the

interference at his own expense.
