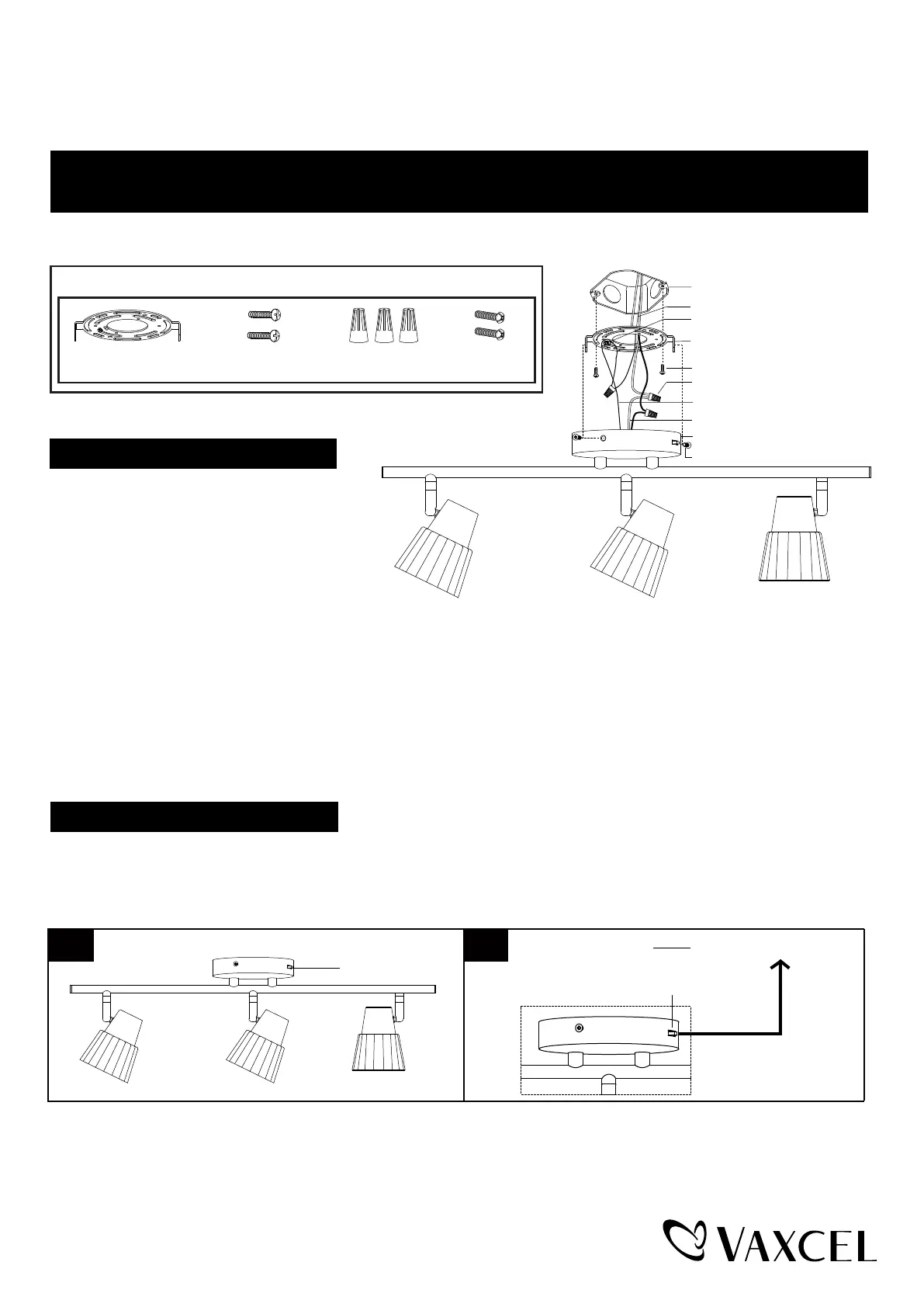

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
C0320
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
Installation Steps
1. Unscrew the two set screws (D), remove
the mounting plate unit (A) from the canopy kit.
2. Attach mounting plate unit (A) to the outlet
box using two mounting screws (B).
3. Pull out the source wires from the outlet box.
Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw, then
depending on local code, connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
4. Attach the canopy kit to the mounting plate unit (A) by using two set screws (D).
5. Adjust the spot light heads to desired position.
1-a1-b
Toggle Switch
Color Temperature
3000K-4000K-5000K
Toggle Switch
Adjusting the Correlated Color Temperature (CCT) of the Light
Customize the correlated color temperature (CCT) of the LED light by moving the toggle
switch (For Reference).
a. Move the toggle switch to 3000K, the color temperature will be set at Soft White.
b. Move the toggle switch to 4000K, the color temperature will be set at Bright White.
c. Move the toggle switch to 5000K, the color temperature will be set at Daylight.
Wire Connector (C)Mounting Screw (B)Mounting plate Unit (A)Set Screw (D)
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Fixture Wire
Canopy Kit
Set Screw (D)
Page 1 / 2
250303
