ASSEMBLY AND INSTALLATION

INSTRUCTIONS

WL33042NS

T

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read

and save these instructions.

Hardware Package (included):

Mounting Screw (B)Wire Connector (C)

Bolt Nut (D)

Mounting Plate Unit (A)

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

1. Unscrew the two bolt nuts (D), remove the mounting plate unit (A) from the backplate.

2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of

the preinstalled fixture mounting screws if necessary.

Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.

Turn off the power at fuse or circuit box.

Installation Steps

Page 1 / 2

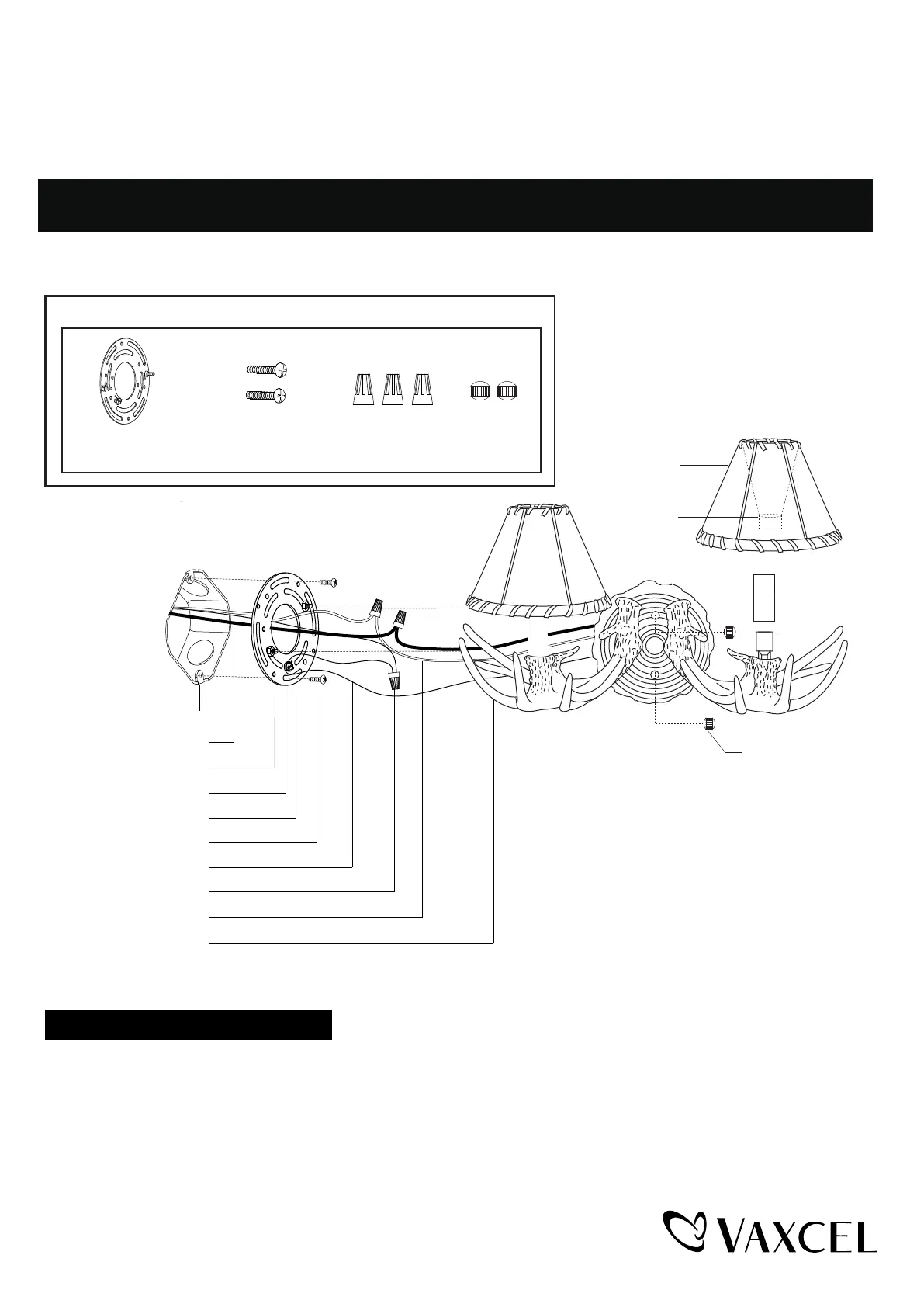

Fixture Wire

Backplate

Harp

Shade

Wire Connector (C)

House Ground Wire

Outlet Box

Mounting Screw (B)

Green Ground Screw

Mounting Plate Unit (A)

Bolt Nut (D)

Socket

Candle Tube

Fixture Ground Wire

Fixture Mounting Screw

230907
