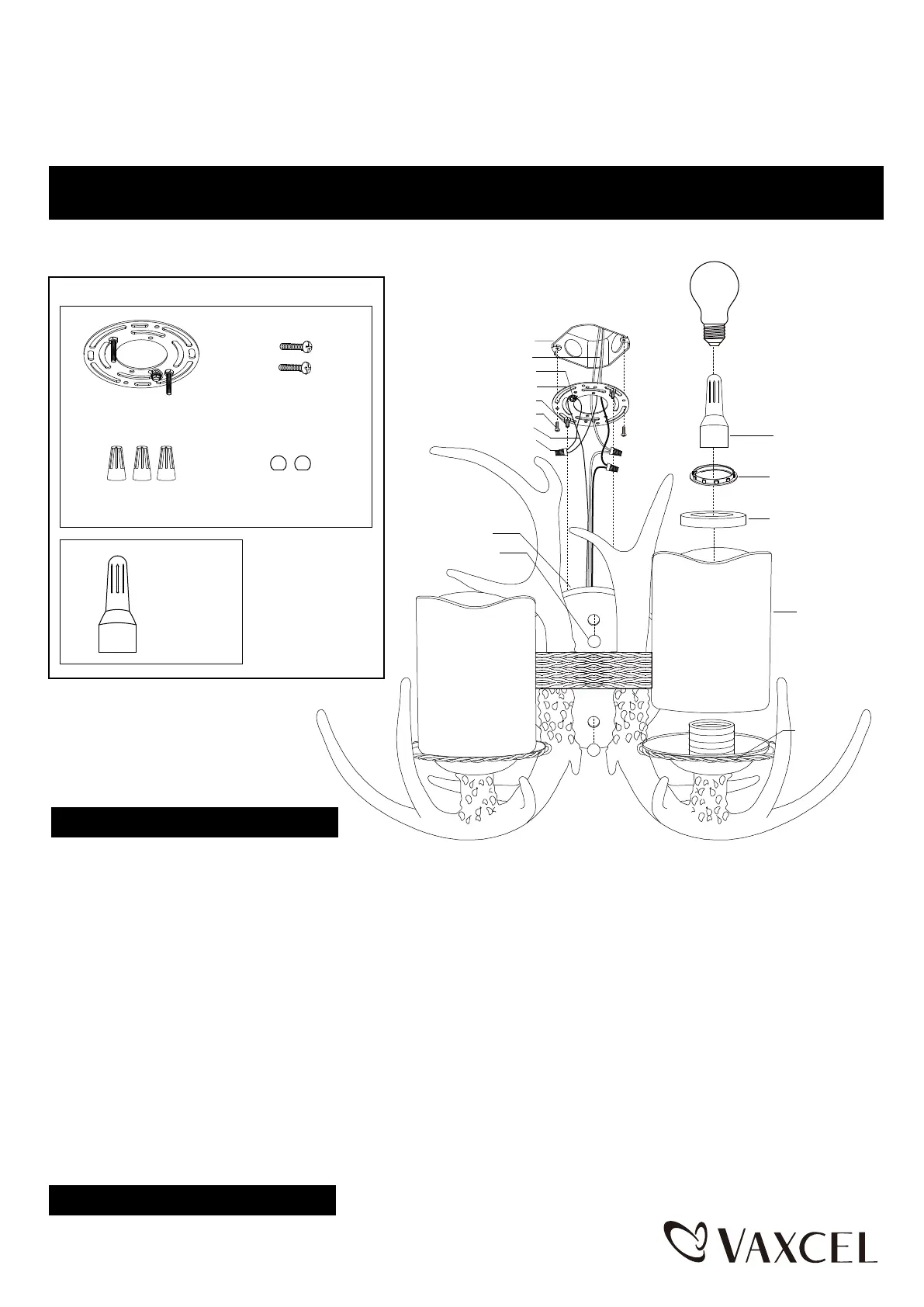

Page 1 / 2

230509

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. Read and save these instructions.

W0033

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (included):

1. Attach mounting plate unit (A) to outlet box using two mounting screws (B).

2

. Pull out the source wires from the outlet box. Make wire connections using wire connectors

(C)

as follows:

---Connect the smooth-coated wire (marked) from the fixture to the black wire from the power source.

---Connect the ribbed-coated wire (unmarked) from the fixture to the white wire from the power source.

---Attach the fixture ground wire to the mounting

plate unit (A)

with the green ground screw, then connect it

to the house ground wire with a wire connector

(C)

.

Carefully put the wires back into the outlet box.

3. Attach the backplate to the mounting plate

unit (A)

by inserting the headless screws, then secure it with two

bolt nuts

(D)

.

4. Attach the glass shades onto the glass holders, secure them with the spacer and socket rings, using supplied socket

fixter (E).

5. Install 2 x 100W Max. medium base bulbs (not included). See relamping label at socket area or packaging for maximum

wattage allowed.

Turn off the power at fuse or circuit box.

Turn on the power at fuse or circuit box.

Installation Steps

Glass Holder

Glass Shade

House Ground Wire

Fixture Ground Wire

Headless Screw

Wire Connector (C)

Bolt Nut (D)

Backplate

Mounting Plate Unit (A)

Green Ground Screw

Mounting Screw (B)

Outlet Box

Socket Ring

Socket Fixer (E)

Spacer

Max. 100W Medium

Base Bulb (not included)

Socket Fixer (E)

Wire Connector (C) Bolt Nut (D)

Mounting Screw (B)Mounting Plate Unit (A)
