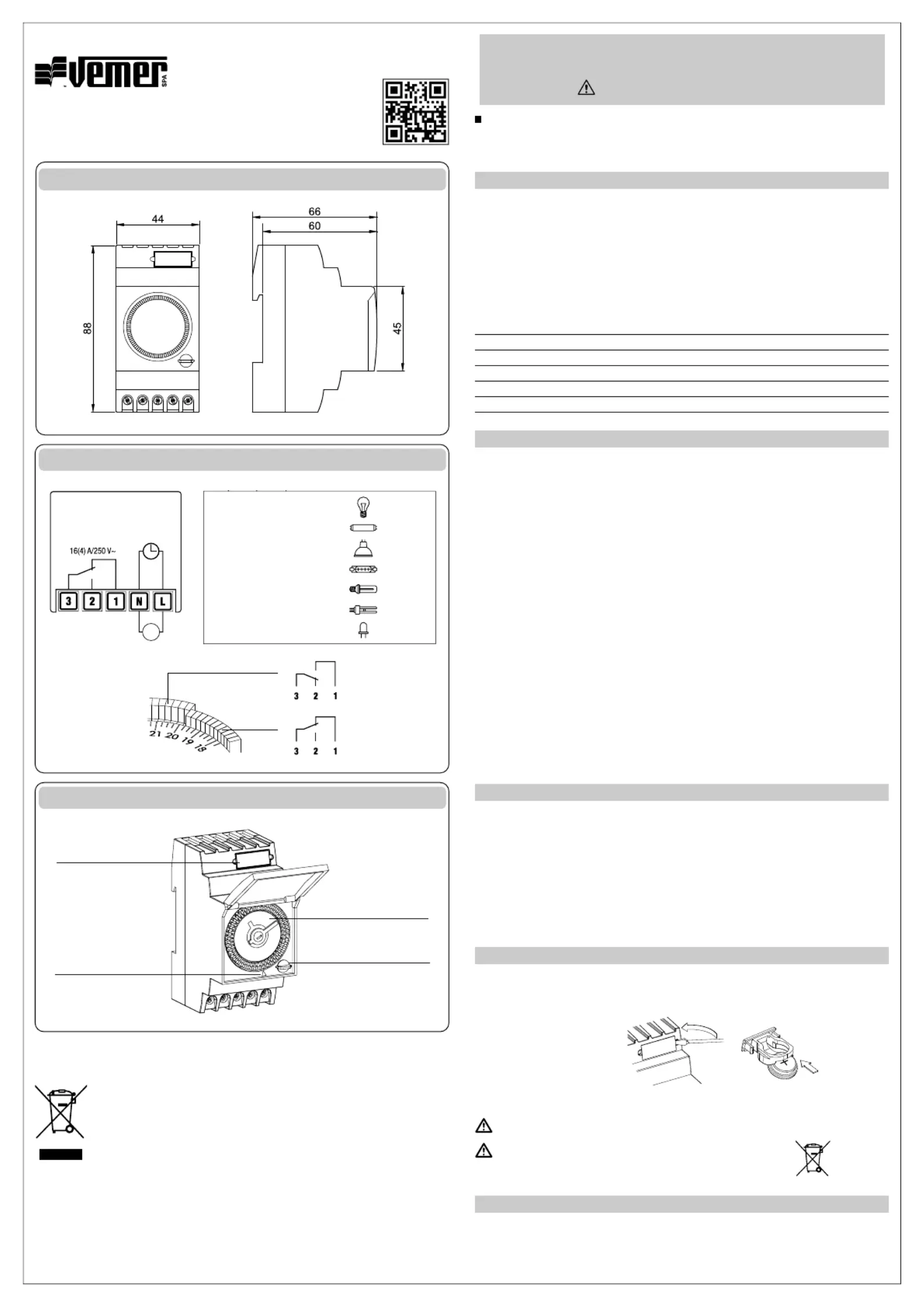

USER MANUAL
ANALOG TIME SWITCH WITH TRIPPERS
Read carefully all instructions
The ARVO-D, and time switches control any electrical installation by means ARVO-ED ARVO-W
of daily (Arvo-D/Arvo-ED) or weekly (Arvo-W) programs. For models ARVO-D and ARVO-W the
cover on the front of the device makes it possible to replace the battery when it is run down.
They are designed for household and similar operation with normal pollution levels.
SAFETY WARNINGS
1) The device must be installed and activated by qualified personnel, following the
connection diagrams provided in this manual scrupulously
2) After installation, it must be made impossible to access the terminals without
specific tools
3) Before accessing the connection terminals, verify that the leads are not live
4) Do not connect or power the device if any part of it is damaged
5) The device must be installed and activated in compliance with current electric
systems standards
6) Do not use the device for purposes other than those indicated.
Code Model Description Power supply
VP882500 ARVO-D
Daily analog time switch with power reserve 230 Vac
VP882501 ARVO-D
Daily analog time switch with power reserve 115 Vac
VP882510 ARVO-D
Daily analog time switch with power reserve 12 Vdc
VE785500 ARVO-ED
Daily analog time switch without power reserve 230 Vac
VP883300 ARVO-W
Weekly analog time switch with power reserve 230 Vac
TECHNICAL CHARACTERISTICS
• Power supply (depending on model):
-115 or 230 V AC (± 10%) - 50/60 Hz
- 12 V DC (± 20%)
• Power consumption: 0.5 W
• Switching capability: 16 (4) A 250 V~
• Operating accuracy: ± 1 second/day at 23°C
• Type of dial:
- ARVO-D/ ARVO-ED: 96 pins
- ARVO-W: 84 pins
• Minimum time of functioning:
- ARVO-D/ ARVO-ED: 15 minutes
- ARVO-W: 2 hours
• Switching accuracy:
- ARVO-D/ ARVO-ED: ± 5 minutes
- ARVO-W: ± 30 minutes
• Manual control by 3 positions selector:
0 - Permanent disconnected
A - Automatic operation
I - Permanent connected
• Power reserve: 150 hours (NiMH rechargeable battery – replacing)
only on and ARVO-D ARVO-W
• Operating temperature: -10 °C ÷ 50 °C
• Protection class: II
• Protection category: IP20
• 2,5 DIN modules container
• Maximum cables section: 4 mm
2
PROGRAM
• Lift the transparent cover
• Move all the setting pins towards the interior of the sphere (contact 3-1 remains closed)
• Move the setting pins corresponding to the desired switch on times outwards, in which contact
3-1 remains closed. Each pin corresponds to 15 minutes of functioning for Arvo-D/Arvo-ED
and 2 hours for Arvo-W
• The number of pins outwards determines the time of functioning
• Rotate the minute hand clockwise until the index and hands indicate the current time
• Close the transparent cover
• Power the device
• Manual mode: 3 positions are available with the selector.
BATTERY REPLACEMENT
• To replace the battery (only on and ):ARVO-D ARVO-W
- disconnect the power supply
- remove the battery holder
- replace the battery
- connect the power supply
It is necessary to remove the batteries before the instrument is scrapped.
In case of replacement, dispose of the batteries in the special containers
of separate waste collection.
REFERENCE STANDARDS
Compliance with Community Directives: (LVD); (EMCD)2014/35/EU 2014/30/EU
is declared in reference to the harmonized standard: EN 60730-2-7
DIMENSIONS
CONNECTION DIAGRAMS
DESCRIPTION
Battery cover
Index
Programming dial
Manual selector
Incandescent 3000 W
Fluorescent 1200 VA
Low voltage halogen 2000 VA
Halogen (230 V~) 3000 W
Low consumption lamp (CFL 1000 VA
Low consumption lamp (CFL 900 VA
Led 200 VA
Use V80H batteries only
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general
waste at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m
2
, if they measure less than 25 cm.
An effi cient sorted waste collection for the environmentally friendly disposal of the used device
or its subsequent recycling, helps avoid the potential negative effects on the environment
and people’s health, and encourages the re-use and/or
recycling of the construction materials.
Vemer S.p.A.
I - 32032 Feltre (BL) • Via Camp Lonc, 16
e-mail: info@vemer.it - web site: www.vemer.it
ISCOM048-2205
Mod. ARVO
