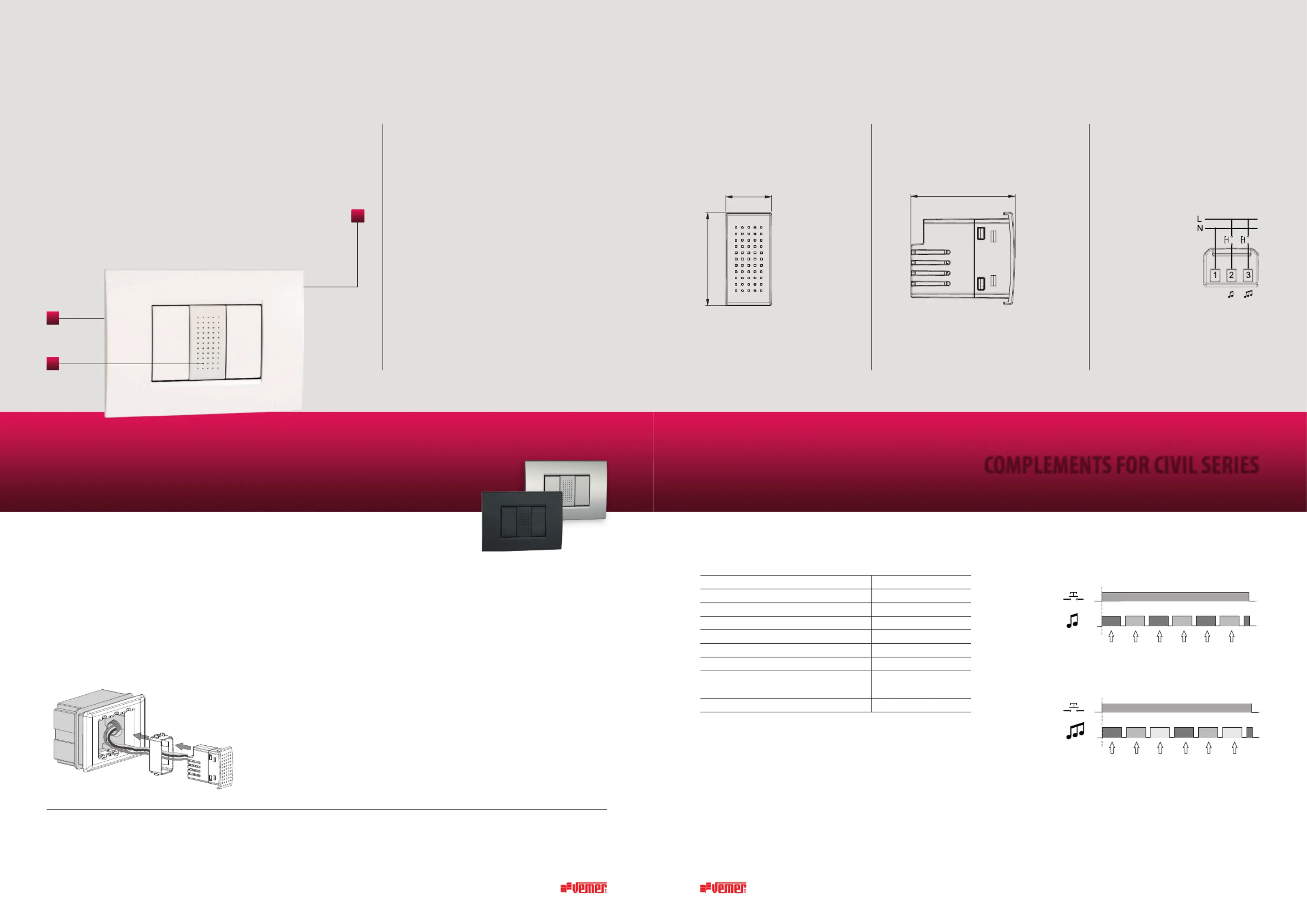

COMPLEMENTS FOR CIVIL SERIES

TECHNICAL INFORMATION

PHONOSounds indicators

1Installation in ush-mounting boxes with a height of 45 mm

2Terminals on the back of the device for connection of the two

external buttons with which to activate one or the other sound

3Holes for tonal diusion

Phono is a flush-mounting not extractable ringtone with two types of sound.

The first two sounds ringtone simulates the siren effect and is suitable, for example, for alarms in rooms

such as bathrooms, etc., while the second three sounds ringtone reproduces the typical sound of a bell.

Phono is small and compact to be installed with discretion in any environment and is supplied with the

supports that allow the adaptation to the plates of the main civil series.

CONNECTION DIAGRAM

Front viewSide viewDiagram

DIMENSIONS (mm)

CodeModelDescriptionColourPower supply

VE770300Phono GrigiaBitonal ringtone compact sizeGrey230 V~

VE770400Phono BiancaBitonal ringtone compact sizeWhite230 V~

VE781100PhonoBitonal ringtone compact sizeSilver Tech230 V~

SOUNDS INDICATORS

•80 dB acoustic buzzer at a distance of 30 cm

•Compact size: 1 module only occupied in the ush-mounting box

•Adapters that allow adaptability with the main civil series (see “Adaptable plates”)

included in the package

Adaptable plates

ABB Mylos series

Ave S44 series

Bticino Axolute series

Bticino Axolute Air series

Bticino Light series

Bticino Living International series

Bticino LivingLight series (LL)

Bticino LivingLight Air series

Bticino Matix series

Gewiss Chorus series

Vimar Arké series

Vimar Eikon series

Vimar Eikon Evo series

Vimar Plana series

For information on the possibility of using dierent plates

contact the technical assistance service

REFERENCE STANDARDS

Compliance with the Community Directives: 2014/35/EU (LVD) and 2014/30/EU (EMCD)

is declared in reference to the following harmonized standards: • EN 62080 • EN 61000-6-1 • EN 61000-6-3

Power supplyV AC230 (-15% ÷ +10%)

Frequency 50/60Hz

Mountingush

Maximum cables section mm

2

1.5

Acoustic signal 80 dB at 30 cm

Operating temperature 0 ÷ 50°C

Storage temperature-10 ÷ +60°C

Operating humidity 20% ÷ 90% RH

non condensing

Protection degreeIP40

GENERAL CHARACTERISTICS

Notes duration: 500 ms

Pause between the notes: duration 100 ms

Notes duration: 500 ms

Pause between the notes: duration 100 ms

N1N1N1N2N2N2

T1

• Pressing the key T1: two-tone sound (siren effect)

Note: if the keys T1 and T2 are pressed simultaneously,

the sound relative to the key T1 is executed.

T2

• Pressing the key T2: three-tone sound (bell effect)

N1N3N2N2N1N3

3

PHONO-ENG-072019
