User Manual
SINGLE-POLE ELECTRODES
Read all the instruction carefully
Mod. ES-ESL-EST
V3IS00276-010-022007
Vemer S.p.A.
I - 32032 Feltre (BL) • Via Camp Lonc, 16
Tel +39 0439 80638 • Fax +39 0439 80619
e-mail: info@vemer.it - web site: www.vemer.it

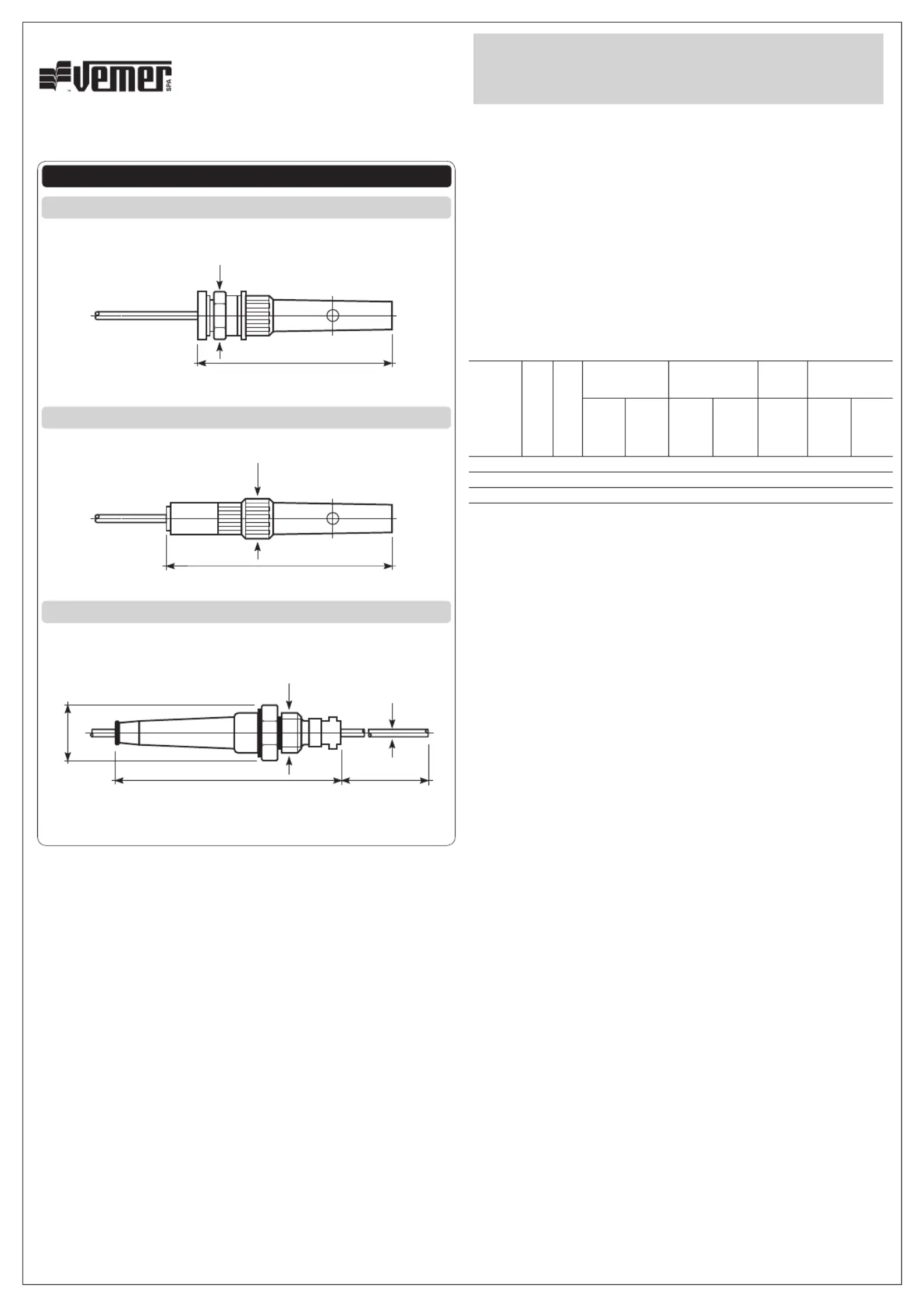

Dimensions
96
Ø 20
117
Ø 16
100
Ø 3
250
3/8" Gas
25
ESL
ES
EST
■ The single-pole electrodes series ES are designed to monitor fitting levels
of electrically conductive liquids in well, storage tanks, boilers or surge
tanks.
■ They can be coupled to the high sensitivity relay LCR, manufactured by
VEMER.
■ The max operational voltage is 50 V AC.
SAFETY WARNINGS
When installing and operating the product it is absolutely necessary to observe
the following instructions:
1) The appliance must be installed by a qualified person
2) Disconnect power supply while installing the appliance
3) Do not connect the appliance if any part of it is damaged
TECHNICAL SPECIFICATIONS
Catalog
No.
Type
Weight
g
Operating conditions Terminals
Flexible
cables
Connection
of the metallic
support
Temperat.
max
°C
Pressure
max
bar
Screw
thread
Tightening
torque
Nm
Section
max
mm²/AWG
Screw
thread
Tightening
torque
Nm
VR448300 ESL
25 80 - M4 1,2 1,5 / 16 - -
VR449100 ES
80 80 - M4 1,2 1,5 / 16 - -
VR450900 EST
70 200 80 M3 0,5 1,5 / 16 3/8” GAS 50
TECHNICAL INFORMATION
ESL
• Stainless steel electrode of small dimensions, with nylon holder for protection
against unintentional contact. A cable-bushing and a seal ring prevent the
connection terminal coming in contact with the water and, consequently,
oxidizing.
This electrode is used in metallic or non-metallic wells and storage tanks.
ES
• Electrode like type ESL, but provided with ballast.
EST
• Stainless steel electrode complete with extension rod and designed for use in
boilers, surge tanks and, generally speaking, in all cases where conditions of high
pressure and high temperature exist.
INSTRUCTIONS FOR INSTALLATION
• Do non install the electrode if a part of this is damaged.
• Before carryng out any installation operation, follow the instructions in this
leaflet carelully.
• Always disconnect the supply before carring out any connection, assembling or
commissioning operations on the electrode and make sure that the conductors
to connect or already connected to the terminals are not live.
• The installation should take place in accordance with the accident prevention
provisius in force.
• The cable section is given in the “Technical Specifications”
table, together
with the tightening torque value.
• We recommended using 1,5 mm² silicon conductors for the connection of these
electrodes to the associated level control relay.
• The cable that interconnect the relay to the electrodes should if possible be kept
separate from the supply cables, especially where long distances are involved. If
this is not possible, we recommend using of screened cables.
