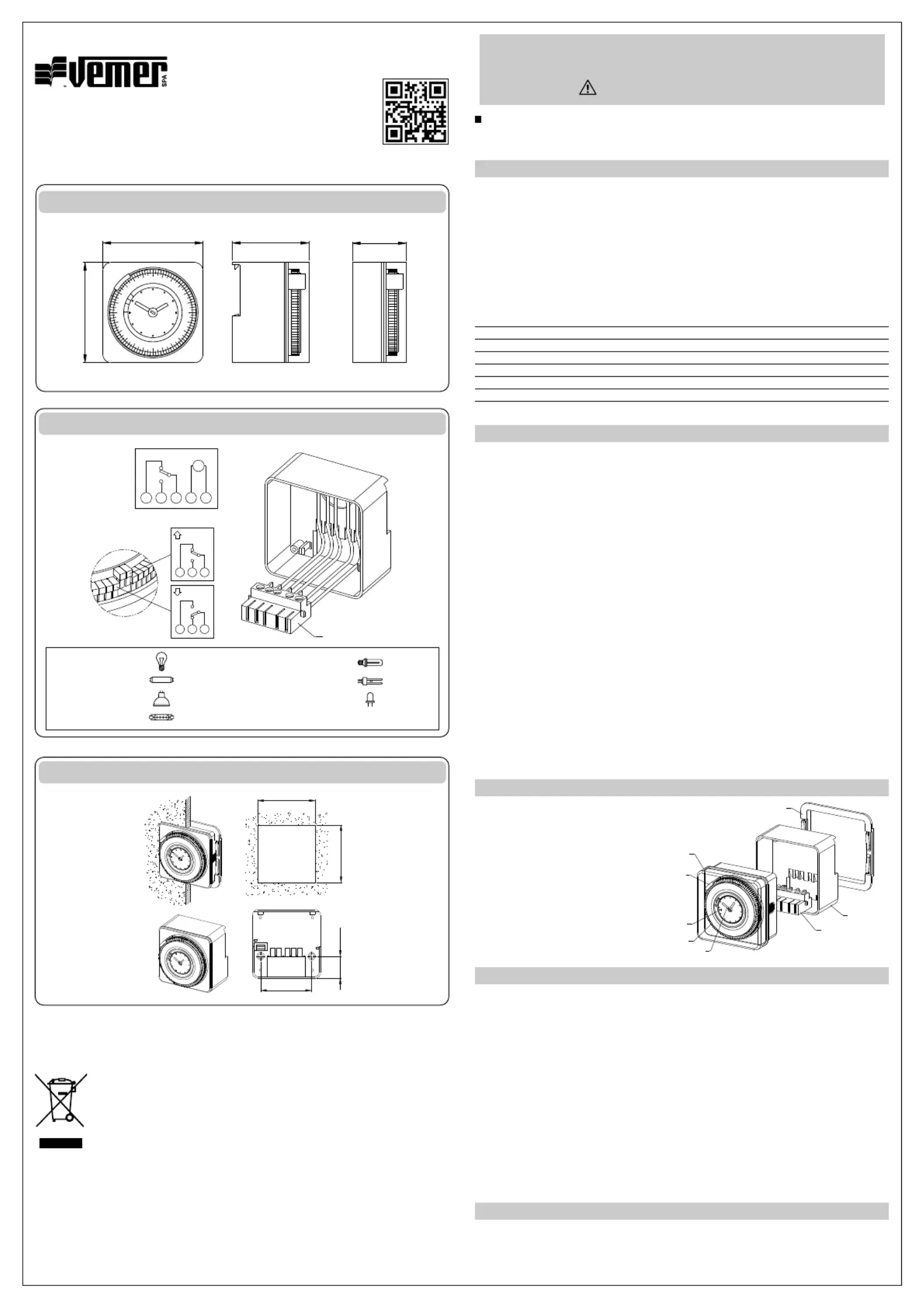

USER MANUAL
ELECTROMECHANICAL TIME SWITCH WITH TRIPPERS
Read carefully all instructions
The NAPA time switches are devices to control any electrical load by means of daily (NAPA-D,
NAPA-RD, NAPA-ED) or weekly (NAPA-W, NAPA-RW) programs. They are designed for
household and similar operation with normal pollution levels.
SAFETY WARNINGS
1) The device must be installed and activated by qualified personnel, following the
connection diagrams provided in this manual scrupulously
2) After installation, it must be made impossible to access the terminals without
specific tools
3) Before accessing the connection terminals, verify that the leads are not live
4) Do not connect or power the device if any part of it is damaged
5) The device must be installed and activated in compliance with current electric
systems standards
6) Do not use the device for purposes other than those indicated.
Code Model Description Power Supply
VP884100
NAPA-D Electromechanical time switch with trippers - daily 230 Vac
VP884101
NAPA-D Electromechanical time switch with trippers - daily 115 Vac
VE049300
NAPA-ED Electromechanical time switch with trippers - daily 230 Vac
VP886600
NAPA-RD Electromechanical time switch with trippers - daily 230 Vac
VP885800
NAPA-W
Electromechanical time switch with trippers - weekly 230 Vac
VP887400
NAPA-RW
Electromechanical time switch with trippers - weekly 230 Vac
TECHNICAL CHARACTERISTICS
• Power supply: 115 or 230 V AC (± 10%) - 50/60 Hz (depending on model).
• Power consumption: 0,5 W
• Switching capability: 16 (4) A 250 V~
• Actions type: 1B
• Operating accuracy: ± 1 second/day at 23°C
• Type of dial:
- NAPA-D, NAPA-RD, NAPA-ED: 96 trippers
- NAPA-W, NAPA-RW: 84 trippers
• Minimum time of functioning:
- NAPA-D, NAPA-RD, NAPA-ED: 15 minutes
- NAPA-W, NAPA-RW: 2 hours (120 minutes)
• Switching accuracy:
- NAPA-D, NAPA-RD, NAPA-ED: 5 minutes
- NAPA-W, NAPA-RW: 30 minutes
• Manual control by 3 positions selector:
0 - Permanent disconnected (the set programming will be ignored)
» - Automatic operation
I - Permanent connected (the set programming will be ignored)
• Power reserve: 100 hours after an uninterrupted 48 hours power (not available on the NAPA-ED)
• Operating temperature: -10°C ÷ 45°C
• Protection class: II
• Protection category: IP20
• Installation:
- NAPA-RD, NAPA-RW: panel
- NAPA-D, NAPA-ED, NAPA-W: panel, DIN-rail or wall
• Maximum cables section: 4 mm
2
DESCRIPTION
1 - Selector switch
2 - Indicator
3 - Trippers for programming
4 - Hours and minutes hands
5 - Accessory for panel mounting
6 - Transparent protection cover
7 - Extractable terminal block
8 - Accessory for wall or
DIN rail installation (only NAPA)
PROGRAMMING
• Remove the transparent protection cover on the front of the time switch.
• The possible operating modes are selectable through the manual control on the front:
I - Permanently closed circuit (terminals contact 3-2 in ON).
» - Automatic operation.
O - permanently open circuit (terminals contact 3-2 OFF).
• For automatic operation of the inserter, position the selector in correspondence of the symbol .»
• Move upward all trippers of the external dial.
• Program the clock intervention by moving down the trippers in correspondence of the desired
intervention time. The number of the trippers downward, determines the duration of stay in
ON position of the contact between terminals 3 and 2. Each tripper corresponds to 15 minutes
(NAPA-D, NAPA-RD, NAPA-ED) or 2 hours (NAPA-W, NAPA-RW) of functioning.
• Set the current time and minutes by acting directly on the external dial, turning it clockwise.
• Place the transparent protection cover in its casing
• Give power to the time switch.
REFERENCE STANDARDS
Compliance with Community Directives: (LVD); (EMCD)2014/35/UE 2014/30/UE
is declared in reference to the harmonized standard: EN 60730-2-7
NAPA NAPA-R
DIMENSIONS
54
72
72
38
CONNECTION DIAGRAM
M
1 2 3 4 5
N L
7
ON 1-3
1 2
3
1 2
3
ON 2-3
Incandescent
3000 W
Fluorescent (neon)
1200 VA
Low voltage halogen
2000 VA
Halogen 230 V
~ 3000 W
Low consumption (CFL) 1000 VA
Low consumption (CFL)
900 VA
Led
200 VA
Extractable terminal block
NAPA
NAPA-R
DIME HOLE
66
66
54
23
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general
waste at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m
2
, if they measure less than 25 cm.
An efficient sorted waste collection for the environmentally friendly disposal of the used device
or its subsequent recycling, helps avoid the potential negative effects on the environment
and people’s health, and encourages the re-use and/or
recycling of the construction materials.
Vemer S.p.A.
I - 32032 Feltre (BL) • Via Camp Lonc, 16
e-mail: info@vemer.it - web site: www.vemer.it
ISCOM056-2205
Mod. NAPA
1
3
4
6
2
8
5
7
