VESTIL MANUFACTURING CORPORATION
P.O. Box 507., Angola, IN 46703 USA
Phone (260) 665-7586 • Fax (260) 665-1339
E-mail: sales@vestil.com • www.vestil.com
DOCK SEALS
MODELS D-150 & D-350
OWNER’S
MANUAL
Revised 0614 23-126-102
A company dedicated to solving ergonomic and material
handling problems since 1955.
Loading Dock Equipment
Contents
Materials List .................................................... 1
Receiving Instructions ...................................... 1
Installation Instructions ..................................... 1
Parts Drawing
................................................... 2
Parts List ........................................................... 2

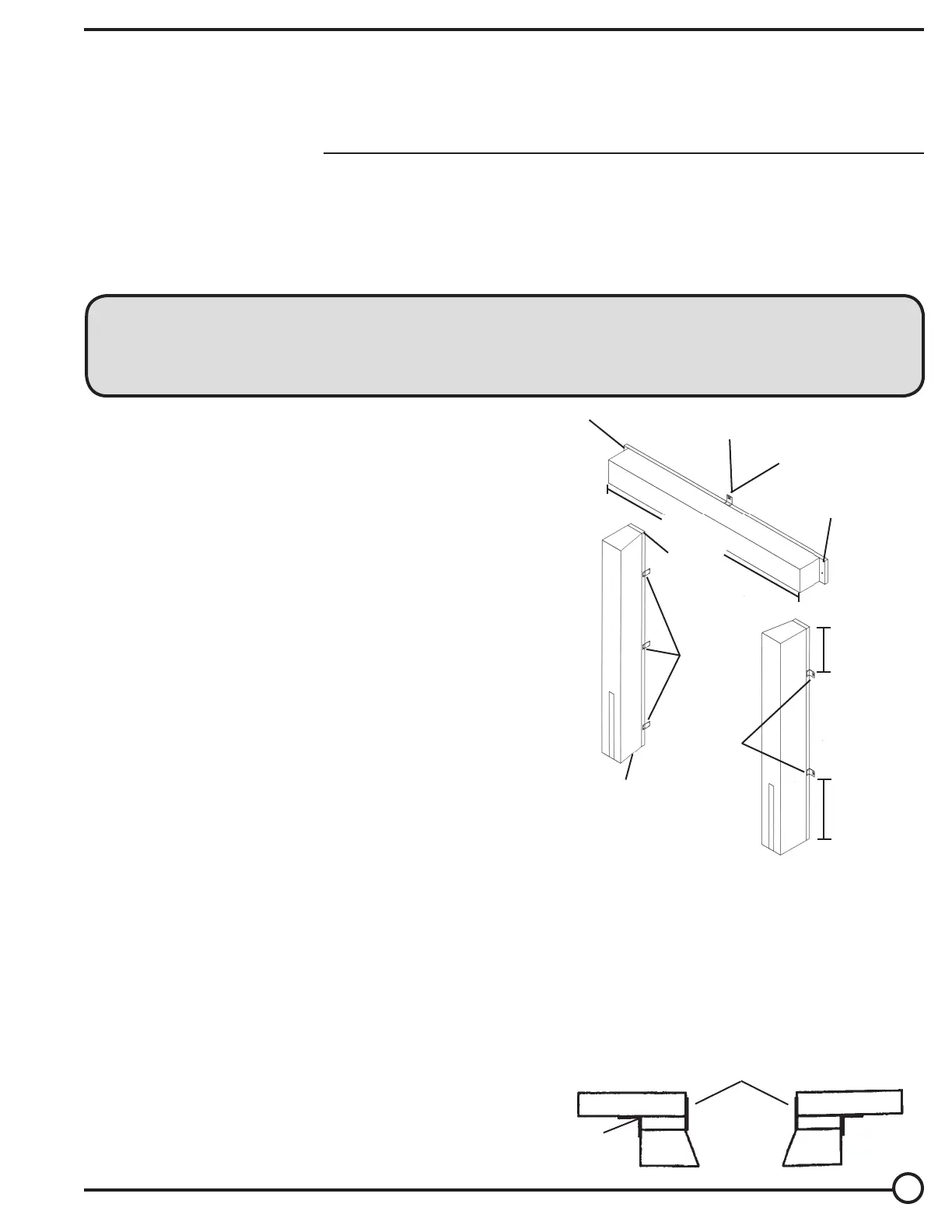

MATERIALS INCLUDED IN BASE KIT
1 Dock Seal Top
2 Dock Seal Sides
5 Angle Brackets
6 Flat Brackets
7 Wall Bolts with Nuts
22 Wood Lag Screws
14 3/8” Nuts
14 Flat Washers
* All buildings and installations are unique. Actual hardware
needed may vary.
RECEIVING INSTRUCTIONS
Every unit is thoroughly tested and inspected prior to ship
ment. However, it is possible that the unit may incur damage
during transit. If damage is noticed when unloading, make
a note of it on the BILL OF LADING. Remove all packing and
strapping material, then inspect the unit again for damage. IF
DAMAGE IS EVIDENT, FILE A CLAIM WITH THE CARRIER
IMMEDIATELY!
INSTALLATION
1. Mount side pieces with vents at bottom.
2. The top piece is identifiable because it does not have
vents on either end.
3. Measure the length of the top foam to determine the out-
side width dimension.
4. Installation of hte sides first is recommended. It is easier
to install all brackets on sides prior to erection.
5. Install top with at least one (1) bolt at each end and one
(1) in the center.
6. For best seal, caulk around perimeter.
Wall mounted brackets (5)
Bolt on leg of the bracket to building
Bolt other leg to side of dock seal using the two lad bolts
provided.
Door jamb brackets (6)
Fasten one side to bracket to door jamb and lag bolt the
other side to the mounting board using the two lad bolts
provided, See Section A-A
D-150 shown.
Distance may vary depending on building structure.
** Dimensions are approximate recommendations.
TOP VIEW
Flat Door Jam Brackets
Door Opening
Wall Mounted
Bracket or bolt
through wood edge
Anchor top to wall in
center using bracket.
Caulk to prevent leak.
3” mounting wood
Bolt top to wall
at both ends.
3” top of
bracket to
top of seal
Door Jam
Flat Brackets
Wall Mounted
Brackets
Vents on
Bottom
Top Length
20” **
20” **
2
Item No.
1a
1b
1c
1d
2a
2b
2c
2d
3a
3b
3c
3d
4
Description
D-150 Right Side Replacement (10” projection)
D-150 Right Side Replacement (20” projection)
D-350 Right Side Replacement (10” projection)
D-350 Right Side Replacement (20” projection)
D-150 Left Side Replacement (10” projection)
D-150 Left Side Replacement (20” projection)
D-350 Left Side Replacement (10” projection)
D-350 Left Side Replacement (20” projection)
D-150 Top Replacement (10” projection)
D-150 Top Replacement (20” projection)
D-350 Top Replacement (10” projection) with 12” flap
D-350 Top Replacement (20” projection) with 12” flap
Installation Hardware Kit (not shown)
(includes 5 angle brackets, 6 flat brackets, 5 wall bolt nuts, 22 wood
lag screws)
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
Part No.
D150-10-RS
D150-20-RS
D350-10-RS
D350-20-RS
D150-10-LS
D150-20-LS
D350-10-LS
D350-20-LS
D150-10-TOP
D150-20-TOP
D350-10-TOP
D350-20-TOP
D150/350-HDWR
* Contact factory for information on custom sizes.
* Product safety signs or labels should be periodically inspected and cleaned by the product users as necessary to maintain
good legibility for safe viewing distance. ANSI 535.4 (10.21) Contact manufacturer for replacement labels.
PARTS DRAWING
DOCK SEALS
* Model D-150 shown
1
3
2
