Rev. 11/13/19 D-520-24, manual
FRONT FRAME
BACK FRAME
CORNER
MATERIAL
QTY DESCRIPTION
1 Front Frame
2 Back Frame
4 Pivot Arms
HARDWARE
QTY DESCRIPTION
4 Corner Brackets
16 Self-tapping bolts
6 Redi Rod
12 3/8” nuts
12 3/8” washers
RECEIVING INSTRUCTIONS:
Every unit is thoroughly tested and inspected
prior to shipment. However, it is possible that
the unit may incur damage during transit. If
damage is noticed when unloading, make a
note of it on the BILL OF LADING. Remove all
packing and strapping material, then inspect the
unit again for damage.
** IF DAMAGE IS EVIDENT, FILE A CLAIM
WITH CARRIER IMMEDIATELY!**
I
NSTALLATION

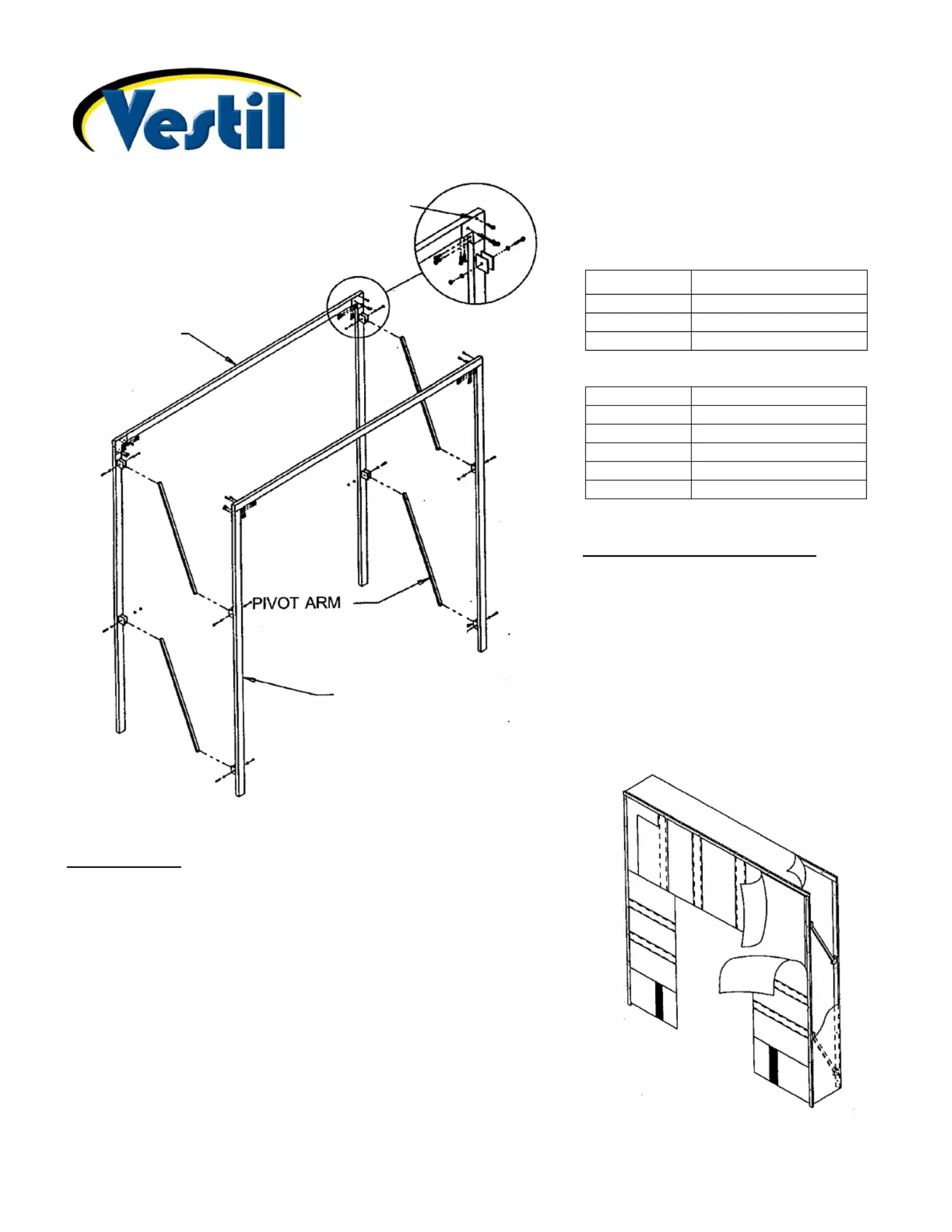

1) BOLT ON CORNER BRACKETS --- Using 3/8”
self-tapping bolts, attach corner brackets to the
same side as the pivot arm brackets.
2) ADD PIVOT BRACKETS --- Bolt pivot arms to
frames using 3/8”-16 UNC x 2” long bolts, 3/8”-16
UNC nylock nuts and two 3/8” SAE at washers.
Assemble so that the top corner brackets on the
front and back frames face toward each other.
RETRACTABLE DOCK SHELTER
MODEL D-520-24
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com Email: sales@vestil.com
RETRACTABLE DOCK SHELTER
D-520-24
