P-HOP-Series Portable Steel Hoppers
Instruction Manual
Receiving instructions:
After delivery, IMMEDIATELY remove the packaging from the product in a manner that preserves the
packaging and maintains the orientation of the product in the packaging; then inspect the product closely
to determine whether it sustained damage during transport. If damage is discovered during the inspection,
record a complete description of the damage on the bill of lading. If the product is undamaged, discard the
packaging.
NOTES:
1) Compliance with laws, regulations, codes, and non-voluntary standards enforced in the location where
the product is used is exclusively the responsibility of the owner/end-user.
2) VESTIL is not liable for any injury or property damage that occurs as a consequence of failing to apply
either: a) the instructions in this manual; or b) information provided on labels affixed to the product.
Vestil is also not responsible for any consequential damages sustained as a result of failing to exercise
sound judgment while assembling, installing, using or maintaining this product.
V M CESTIL ANUFACTURING ORP.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: sales@vestil.com
Table of Contents
Product specifications………………………………………………………………………………………………………… 2
Signal words…………………………………………………………………………………………………………………… 2
Safe use recommendations…………………..…………………………………………..………………………….……… 3
Caster brake…………………………………………………………………………………………………………………… 3
FIGS. 1-3: Exploded parts diagrams and bills of materials………..……………………………………………………... 4-6
Loading & use instructions……………………………………………………………………………………………........... 7
Inspections & maintenance………………………………………………………………………………………………….. 8
Labeling diagram ……………….…..
………………………………………………………….......................................... 9
Limited warranty……………………………………………………………………………………………………………….. 10
Rev. 11/17/2015 P-HOP, MANUAL.doc
Copyright 2015 Vestil Manufacturing Corp. Page 2 of 10
Signal words:
This manual uses SIGNAL WORDS to indicate the likelihood of personal injuries, as well as the probable
seriousness of those injuries, if the product is misused in the ways described. Other signal words call attention to
uses of the product likely cause property damage.
The signal words used appear below along with the meaning of each word:
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme
situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation that
might damage the product.
Each person who assembles, installs, uses, or maintains this product should read the entire manual and fully
understand the directions in advance. If after reading the manual you do not understand an instruction, ask your
supervisor or employer for clarification, because failure to adhere to the directions in this manual might result in
serious personal injury.
Product specifications:

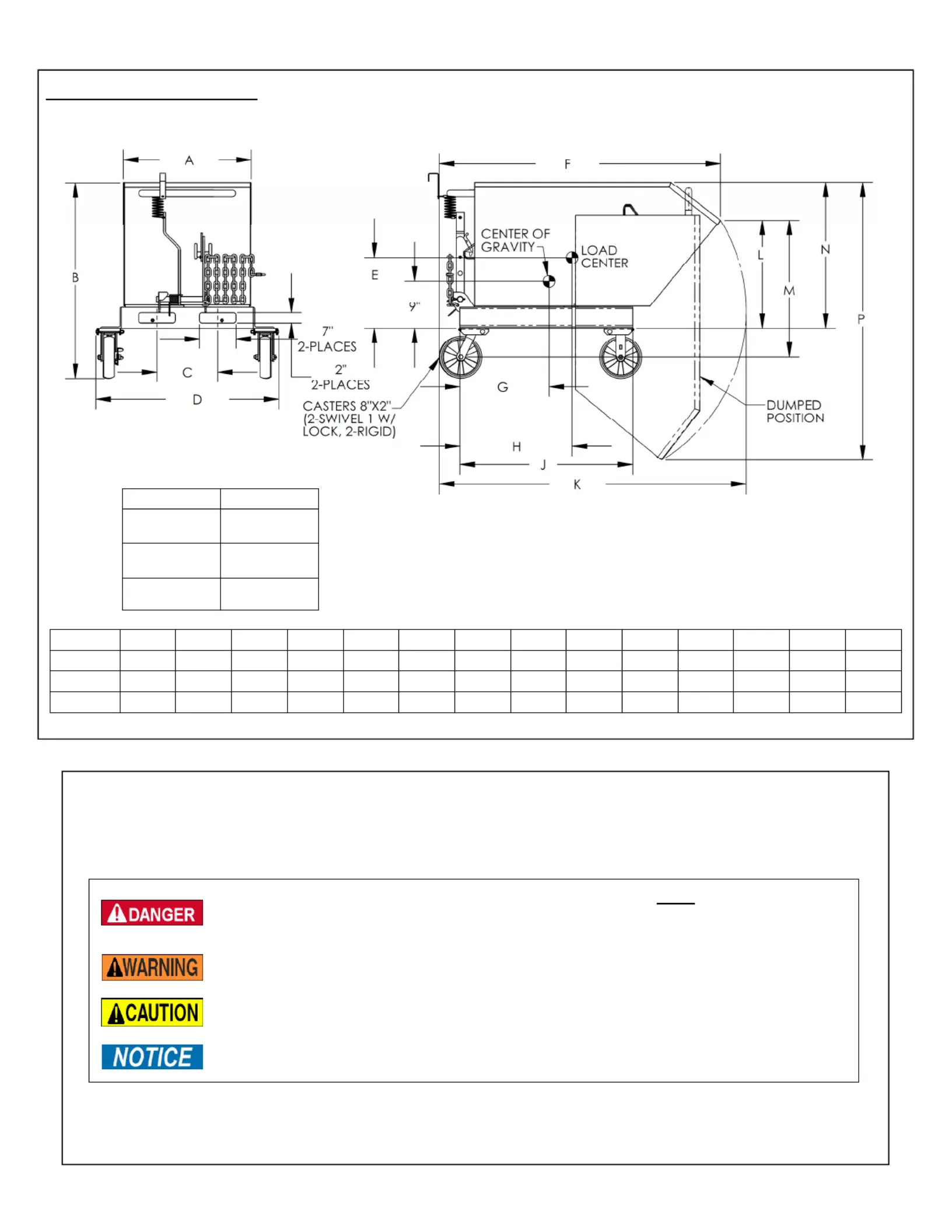

Dimensions and other product specifications for standard P-HOP-series hoppers appear in the diagram and table below.
Model A B C D E F G H J K L M N P
P-HOP-0.5
24
7
/
16
” 37
9
/
16
” 11
5
/
8
” 34
15
/
16
” 13
9
/
16
” 53
11
/
16
” 17
1
/
16
” 21
7
/
16
” 33” 58
9
/
16
” 20
3
/
4
” 26
5
/
16
” 28
1
/
16
” 53
3
/
8
”
P-HOP-1 48
7
/
16
” 37
9
/
16
” 21
5
/
8
” 58
15
/
16
” 11
3
/
4
” 53
3
/
4
” 16
15
/
16
” 21
3
/
8
” 33” 58
1
/
2
” 20
1
/
2
” 30
1
/
16
” 27
13
/
16
” 53
1
/
8
”
P-HOP-1.5
48
5
/
8
” 49
5
/
16
” 21
5
/
8
” 58
15
/
16
” 17
3
/
16
” 54
1
/
4
” 17
3
/
4
” 21
5
/
8
” 33” 66
3
/
16
” 32
3
/
8
” 41
15
/
16
” 39
13
/
16
” 65
11
/
16
”
Model Net weight
P-HOP-0.5
253.8 lb.
115.4 kg
P-HOP-1
386.5 lb.
175.7 kg
P-HOP-1.5
447.6 lb.
203.5 kg
Rev. 11/17/2015 P-HOP, MANUAL.doc
Copyright 2015 Vestil Manufacturing Corp. Page 3 of 10
Safe use recommendations:
Vestil strives to identify all hazards associated with the use of its products. However, material handling is
inherently dangerous and no manual can address every risk. The most effect means for preventing injury is
for the end-user to apply good judgment whenever using this hopper.
Electrocution might result if any part of the product contacts electrified wires. DO NOT contact electrified
wires with any part of your fork truck, the hopper or its contents.
Material handling is dangerous. Improper or careless operation might result in serious personal injuries.
Failure to read & understand the instructions included in this manual before using or servicing the hopper is a misuse.
DO NOT use a malfunctioning or structurally damaged hopper. Examples structural damage include: 1) damage to the
hopper release mechanism (that allows the hopper to dump); 2) broken fork pocket(s); 3) main connection pin; or 4)
broken welds. Inspect the hopper before each use according to the inspection instructions on p. 8. DO NOT use the
hopper unless it passes every part of the inspection.
DO NOT use the hopper if the safety chain is damaged or absent; DO NOT lift the hopper until it is securely connected
to the carriage of the fork truck with the safety chain.
DO NOT fill the hopper with a load weighing more than the maximum rated load (2,000 lb.).
DO NOT stand beneath or travel under the hopper at any time. DO NOT permit any person to stand beneath or travel
under the hopper.
Hoppers with lifting lugs can be lifted with overhead hoists and cranes. DO NOT lift a hopper unless the chute is
securely latched to the frame. The hopper must not be able to rotate while it is suspended.
DO NOT allow people to ride on or in the hopper.
DO NOT use the hopper if any product label (see p. 9) is unreadable, damaged, or missing. Contact Vestil to order
replacement labels.
ALWAYS apply proper (fork) lift truck operation practices learned during your training program. Before raising the
hopper from the floor AND tilt the (forklift) mast toward the cab of the truck to ensure that the hopper will not slide
towards the tips of the forks.
DO NOT modify the hopper in any way! Modification(s) might make the hopper unsafe to use.
DO NOT dump the hopper UNLESS every person in the vicinity is safely behind the forklift truck.
DO NOT dump the hopper if the forklift is facing down a slope. Only dump the hopper while parked on a level surface.
ALWAYS engage the caster brake when the hopper is stationary/not in use.

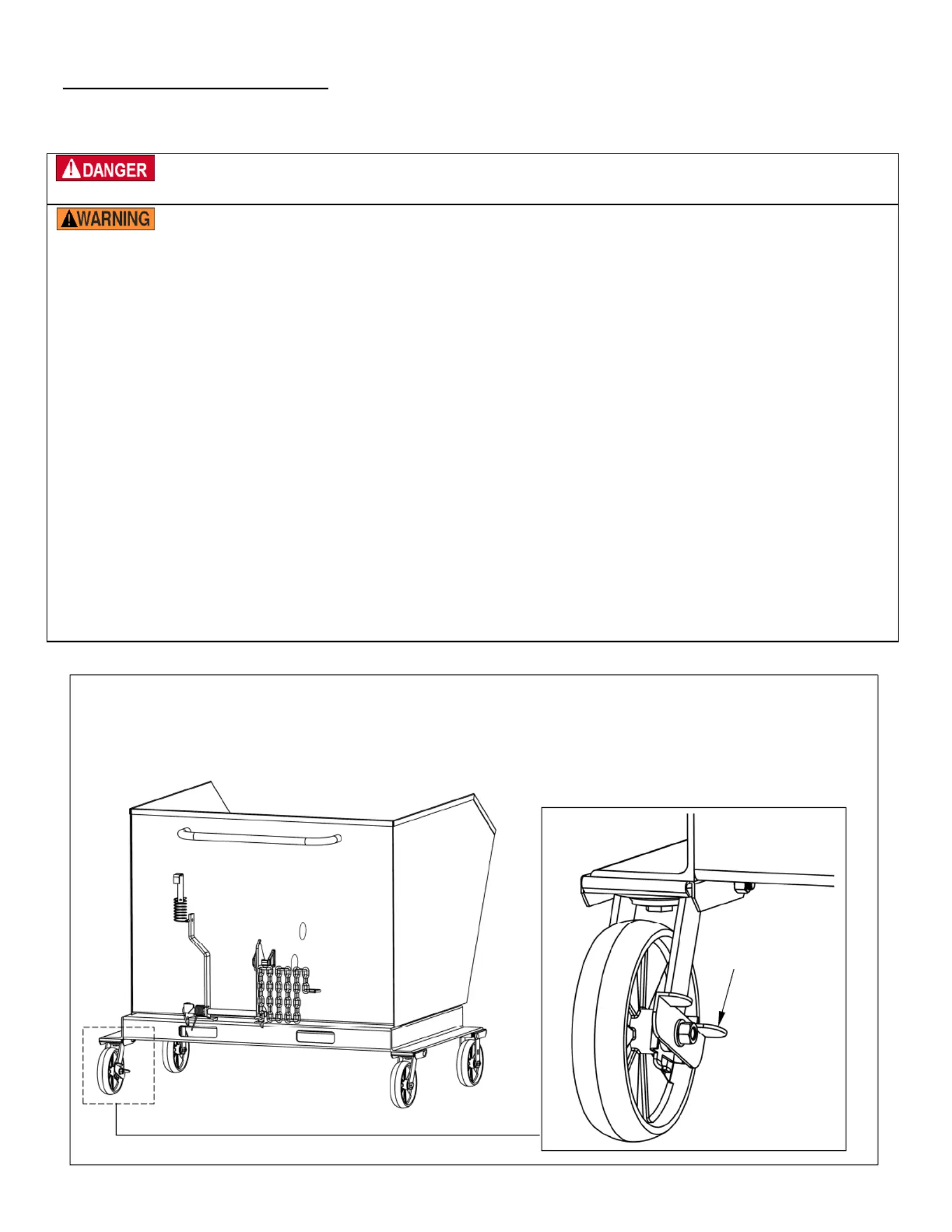

Caster brake:
Each P-HOP series hopper has 2 swiveling casters in back, one of which is equipped with a brake. To engage the
brake, press the brake lever down. When the brake is engaged the wheel will not rotate. To disengage the brake,
lift the brake lever up.
Brake lever
