Rev. 4/19/2017 PAL, MANUAL
Copyright 2017 Vestil Manufacturing Co. Page 1 of 4
PAL-21 Pallet Pullers
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, installation, use, and maintenance
comply with laws, regulations, codes, and mandatory standards applied where the product is used.
Table of Contents
Specifications.…………..….……………………………………….……………………………………………….. 2
Signal Words…………………………………………………………………………………………………………. 2
Hazards of Improper Use...……………..……………….…………………………………………………………. 2
Using the pallet puller……………………………………………………………………………………………….. 2
Exploded parts diagram and bill of materials................................................................................................ 3
Inspections and Maintenance ……………………………………..……………….……………………………… 3
Labeling Diagram……………..……………………………..………………………………………………………. 3
Limited Warranty…………………………………...……………………………………………………................. 4
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
www.vestilmfg.com e-mail: info@vestil.com
NOTE: PAL-series pallet pullers are NOT below-the-hook lifting devices! DO NOT use these products for any other purpose
than pulling pallets and skids across smooth surfaces.
Rev. 4/19/2017 PAL, MANUAL
Copyright 2017 Vestil Manufacturing Co. Page 2 of 4
Specifications

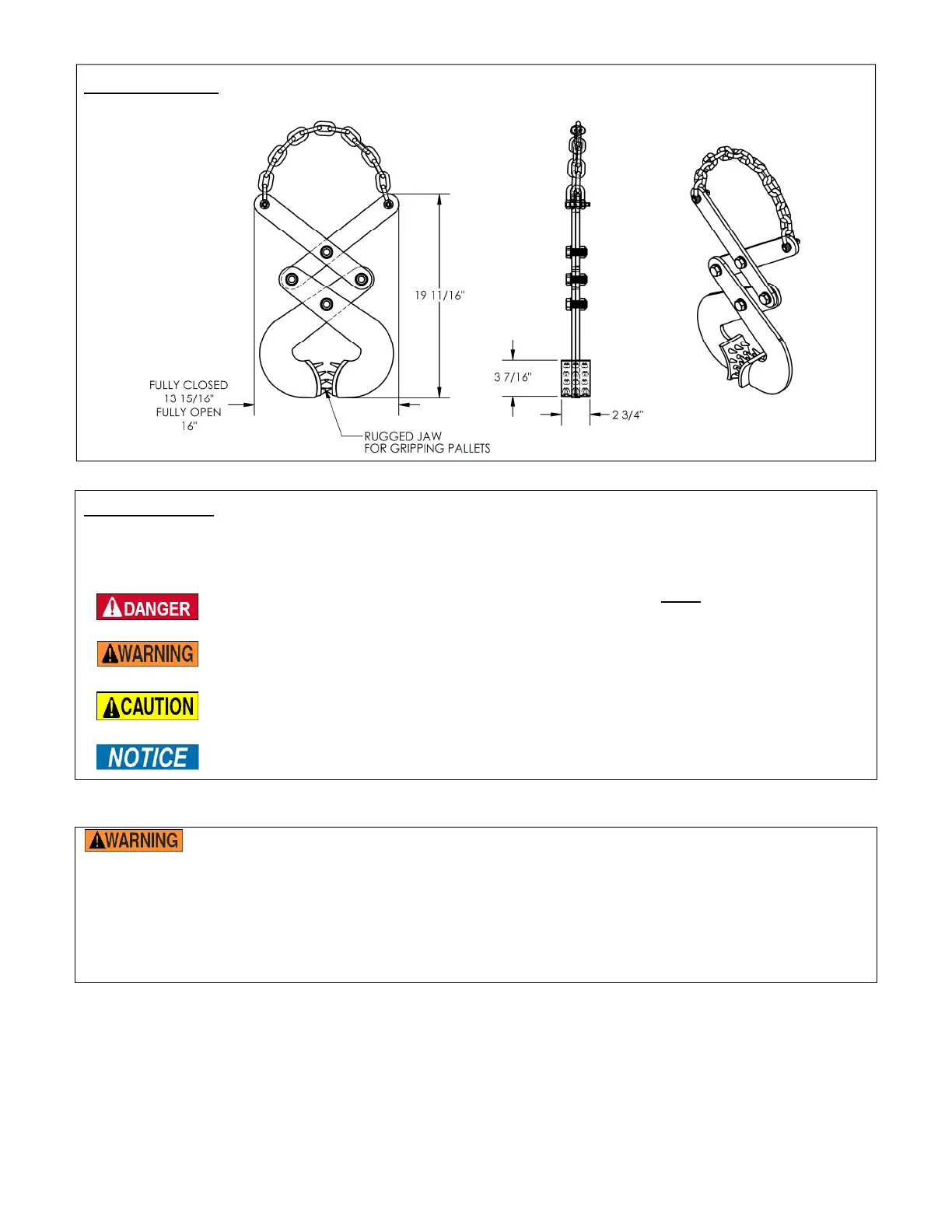

Dimensions and other specifications appear in the diagram below.
Signal Words
This manual uses SIGNAL WORDS to classify personal injury risks and situations that might lead to
property damage, as well as to draw attention to safety messages. Signal words also indicate the
seriousness of the injury that might result from specified actions. Definitions appear below.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as assembly,
installation, etc. that might unnecessarily damage the pallet puller.
Hazards of Improper Use:
Improper use might result in death or serious personal injury.
ONLY use this device to PULL pallets. NEVER use a pallet puller as a below-the-hook lifting device.
DO NOT exceed the capacity of the puller.
DO NOT use to pull top-heavy or unstable loads.
DO NOT pull broken or damaged pallets.
Pull ONLY 1 pallet at a time.
Make sure both shackle pins are securely fastened to their shackles BEFORE using the puller.
Using the pallet puller:
1. Grip the stringer (not the deck boards) of a pallet/skid with the jaws of the puller.
2. Attach the chain to a fork truck and slowly drive the truck in reverse. As force is applied, the jaws
tightly grip the stringer. Drag the pallet slowly and steadily.
3. When the pallet is in the desired position, i.e. where it can be picked up with your forklift, reverse
direction momentarily to produce slack in the chain. Then, open the jaws to release the pallet
.
CAPACITY = 5,000 LB.
