Sida 1/7
TABLE OF CONTENTS Rev. 6/8/2021 PLDL, MANUAL
1 7 TABLE OF CONTENTS Vestil Manufacturing Corp. Page of

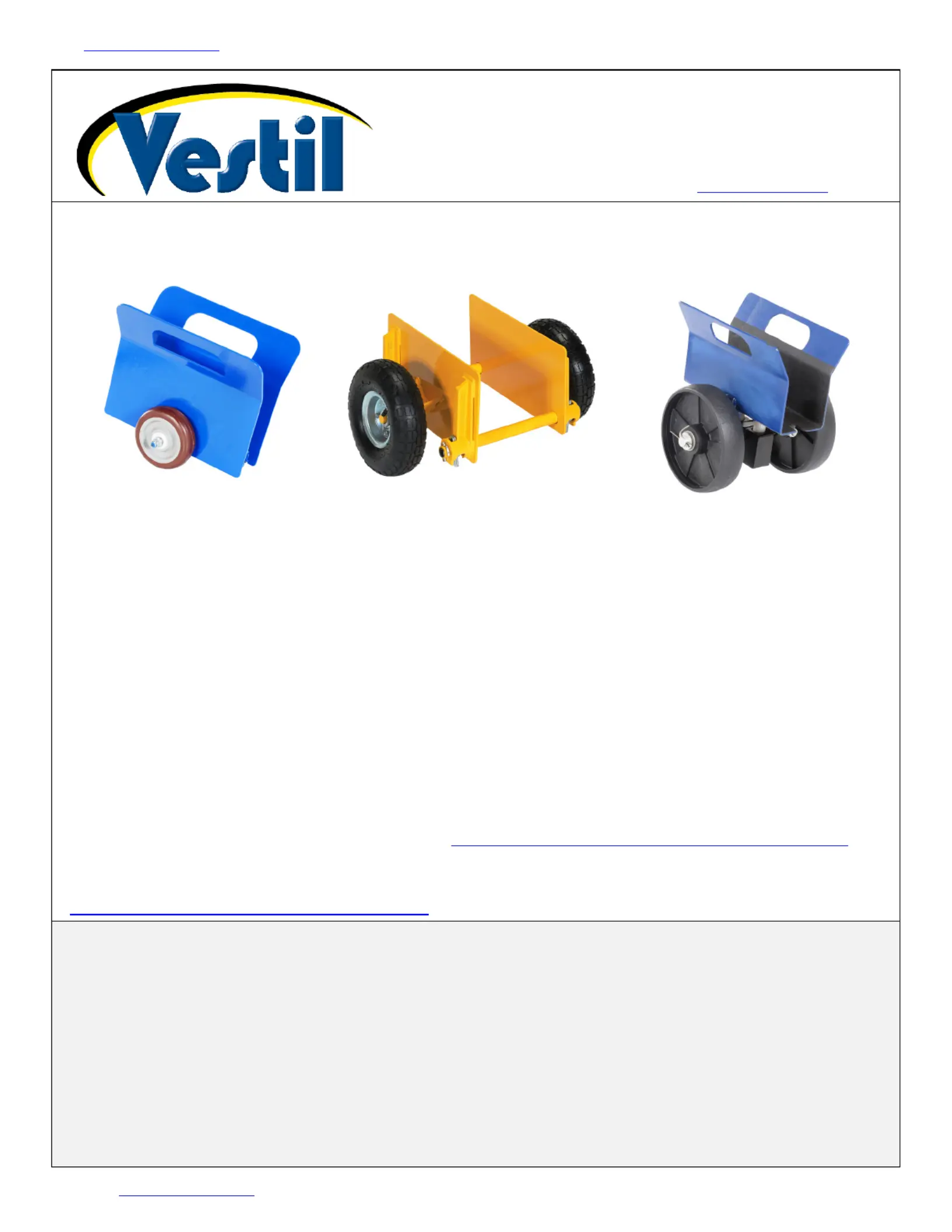

PLDL-SERIES PLATE AND SLAB DOLLIES
Receiving Instructions
A fter delivery, remove the packaging from the product. Inspect the product closely to
determine whether it sustained damage during transport. If damage is discovered, record a
complete description of it on the bill of lading. If the product is undamaged, discard the
packaging.
NOTE: The end-user is solely responsible for confirming that product design, use, and
maintenance comply with laws, regulations, codes, and mandatory standards applied where
the product is used.
Technical Service & Replacement Parts
For answers to questions not addressed in these instructions and to order replacement parts,
labels, and accessories, call our Technical Service and Parts Department at (260) 665 -7586. The
Department can also be contacted online at https://www.vestil.com/page-parts-request.php
.
Electronic Copies of Instruction Manuals
Additional copies of this instruction manual may be downloaded from
https://www.vestil.com/page-manuals.php
.
Table of Contents
Page
Specifications……...…………………………………………………………………………… ....…… …….
2
Signal Words….……….…………………………………………………………………………… …..……..
2
PLDL-HD Exploded View & Bill of Materials……..………………………………..………… …………...
3
PLDL-LD Exploded View & Bill of Materials……………………………………….………… …………...
4
PLDL-ADJ Exploded View & Bill of Materials………..........................................................................
4
Loading Instructions………...............………………………………………………………….……… …...
5
Dolly Width Adjustment (PLDL-ADJ)……………….…………………………………………...…… …...
6
Record of Satisfactory Condition…………………………………………………………………………
6
Inspections & Maintenance………………….………………………..…………………………….…….
6
Limited Warranty…………………………………………………………………………...……………..….
7
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665- - -7586 or Toll Free (800) 348-0868
Fax: (260) 665- 1339
www.vestilmfg.com e-mail:
HU
info@vestil.com
U
PLDL-HD
(Heavy Duty Models);
Shown with GFN Wheels)
PLDL-LD
(Light Duty)
PLDL-ADJ
(Adjustable Models;
Shown with Pneumatic Wheels)
TABLE OF CONTENTS Rev. 6/8/2021 PLDL, MANUAL
2 7 TABLE OF CONTENTS Vestil Manufacturing Corp. Page of

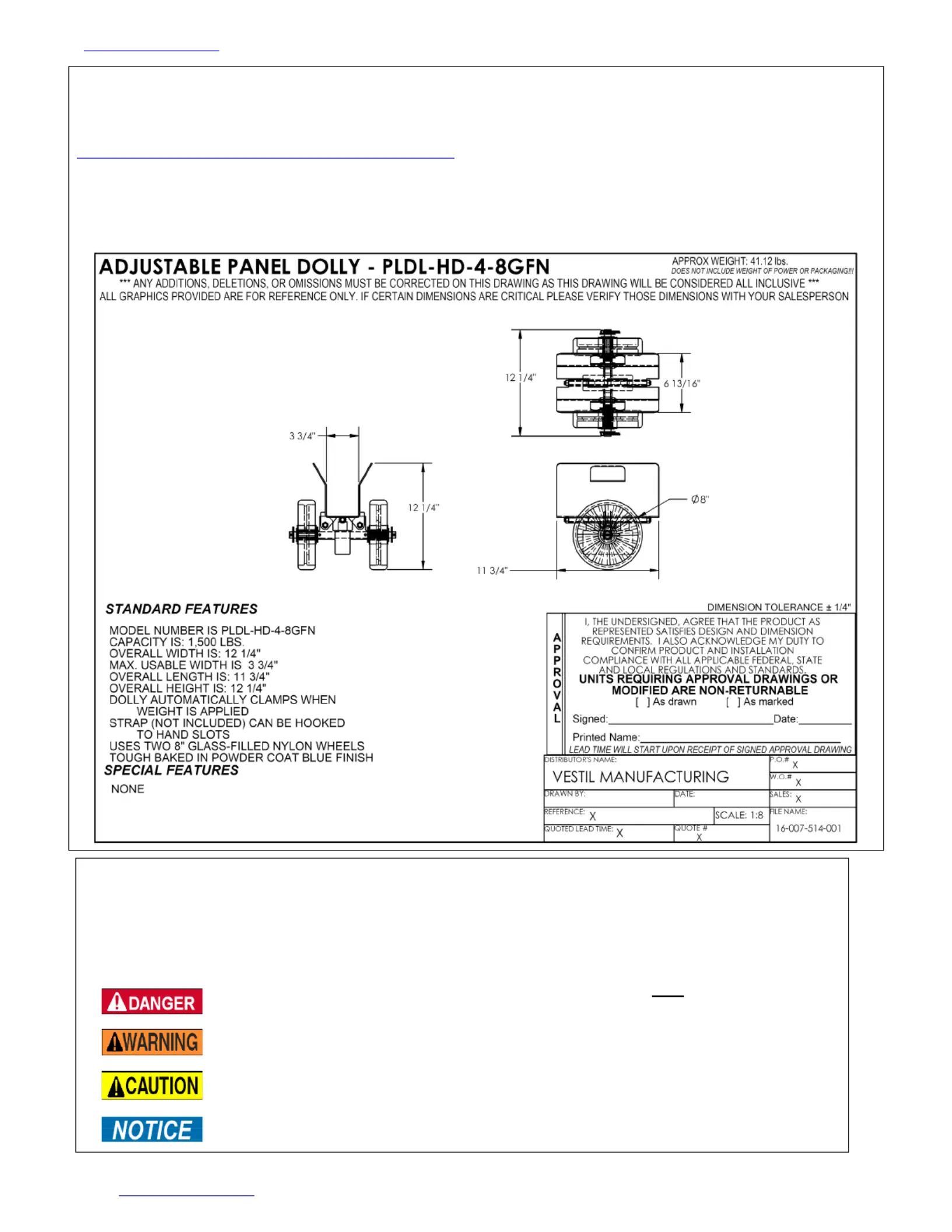

SPECIFICATIONS
- Specifications for heavy duty PLDL series dollies are provided on Vestil’s website. To access
the appropriate specifications document, navigate to this webpage:
https://www.vestil.com/product.php?FID=829
. Click the “Specifications” tab. Scroll the page to
the entry for the model you purchased, and click the button in the PDF column that looks like a
pencil inside a box. A PDF file will open. This file is the specifications document. Print a copy of
the document and keep it with your copy of this manual. The following is an exemplar
specifications document.
SIGNAL WORDS
This manual uses SIGNAL WORDS to indicate a particular will the likelihood that action
cause personal injuries or
property damage. words also level Signal specify the of
seriousness of injury if misused the product is in the ways
described. The following signal
words are used in this manual
.
Identifies a hazardous situation which, if not avoided, WILL result in DEATH or
SERIOUS INJURY. Use of this signal word is limited to the most extreme situations.
Identifies a hazardous situation which, if not avoided, COULD result in DEATH or
SERIOUS INJURY.
Indicates a hazardous situation which, if not avoided, COULD result in MINOR or
MODERATE injury.
Identifies practices likely to result in product/property damage, such as operation
that might damage the product.
TABLE OF CONTENTS Rev. 6/8/2021 PLDL, MANUAL
3 7 TABLE OF CONTENTS Vestil Manufacturing Corp. Page of
PLDL- S HD EXPLODED VIEW AND BILL OF MATERIAL
NOTE: EXPLODED VIEW AND BI IT RECEVIED AFTER LL OF MATERIALS MIGHT DIFFER FROM UN
6/1/2021. IF PICTURE DOES NOT MATCH YOUR UNIT, CONTACT THE TECHNICAL SERVICE
DEPARTMENT.
Item
Part Number
Description
Q . ty
1
16 514- - 143
Frame, weldment, heavy duty
2
2
16 113- - 019
Spacer
1
3
Wheel packages
16 132- - 239
16 132 001- - -039
16 132 001- - -208
16 132 002- - -198
16 132- - 240
Wheel packages
8” rubber on steel wheel;-
8” polyurethane- - on steel wheel;
8” glass filled nylon wheel;
10” x 3.5” pneumatic wheel for ¾” axle;
10” foam filled wheel
2
2
2
2
2
4
16 001- - -A 202
Heavy- - Duty Spray on Liner
2
5 11105
3
/
8
” –-16 x 1” grade A, zinc plated hex
bolt
2
6
16 112- - 025
Axle, long
1
7
65077
1
/
8
” x 1
1
/
4
” zinc- plated cotter pin
4
8
37026
3
/
8
” - - 16 zinc plated nylock jam nut
2
9
33018
3
/
4
” zinc- plated flat washer
4
