MODEL #

PIT FLOOR WIDTH &

OPENING WIDTH

PIT FLOOR

LENGTH

RR-65/EH-6580"53"

RR-66/EH-6680"65"

RR-68/EH-6880"89"

RR-610/EH-61080"113"

RR-75/EH-7592"53"

RR-76/EH-7692"65"

RR-78/EH-7892"89"

RR-710/EH-71092"113"

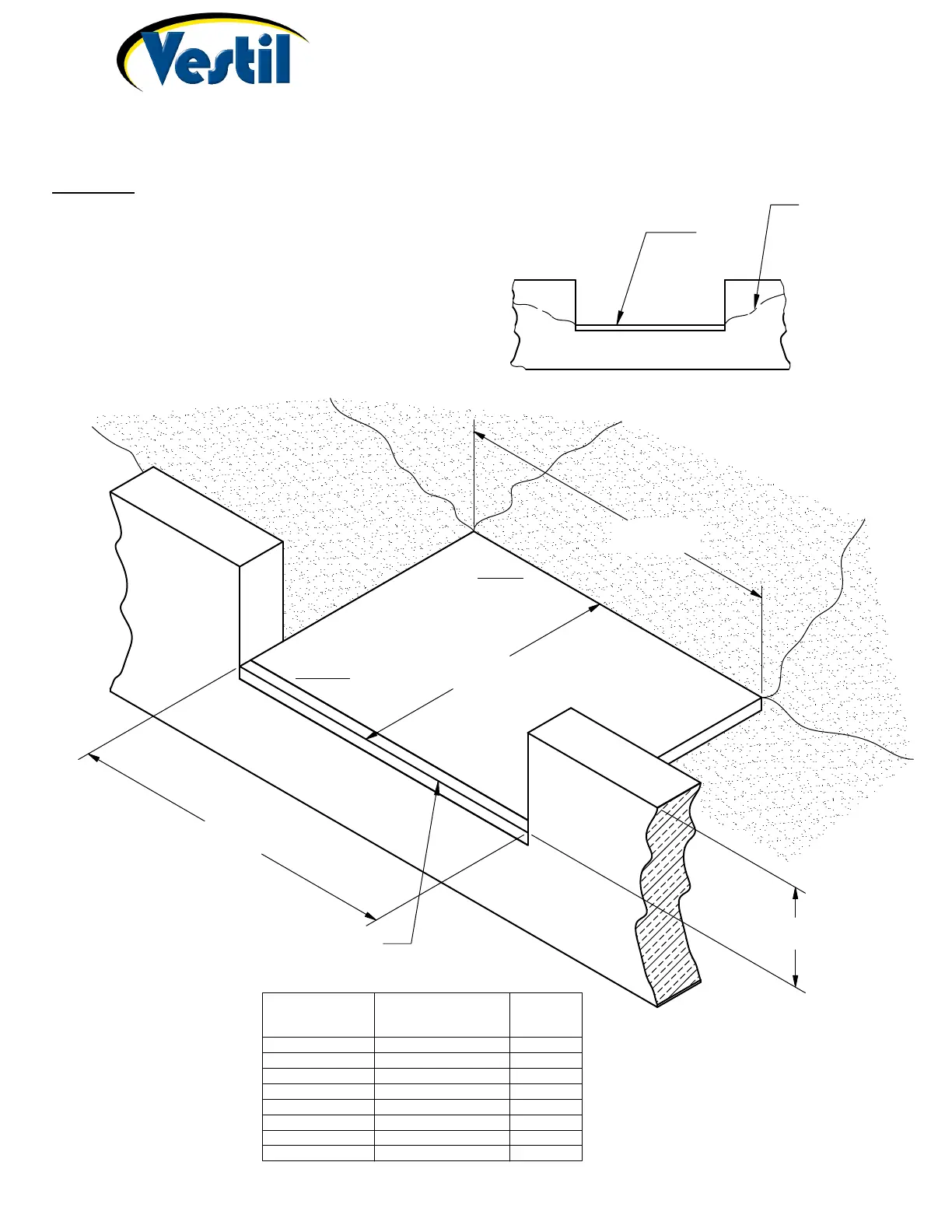

INSTALLING A POUR-IN-PLACE DOCK LEVELER (EH & RR)

Part A: Prepare the Site & Make the Floor

1.) Prepare (concrete) dock wall and pit floor as

shown in the diagrams. Pit floorshould taperfrom

back to front. The front of the pit should be1/2"

lower than theback. Tapering the floorfacilitatespit

cleaning and allows to pit to drain tothe outside of

the building.

2.) The installation site should be excavated such

that the rough grade of the area surrounding the pit

slopes gently from the rough grade of the

surrounding floor to the bottom ofthe pit floor.

DOCK

WALL

FRONT CURB (RECOMMENDED)

(3" x 3" x 1/4" ANGLE WITH "J" ANCHORS)

PIT FLOOR

LENGTH

PIT FLOOR

WIDTH

24"PIT

HEIGHT

OPENING

WIDTH

FRONT

CURB

AREA

SURROUNDING

PIT SHOULD

SLOPE FROM

ROUGH

GRADE OF

FLOOR TO

BOTTOM OF PIT

BACK

FRONT

Vestil Manufacturing Corp.

2999 North Wayne Street, P.O. Box 507, Angola, IN 46703

Telephone: (260) 665-7586 Toll Free (800) 348-0868 Fax: (260) 665-1339

Web: www.vestilmfg.com E-mail: [email protected]

Page 1 of 5
