Table of Contents 2/19/2019 TT MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 1 of 13
TT Series Benchtop Turntables
Instruction Manual
Receiving instructions:
After delivery, remove the packaging from the product. Inspect the product closely to determine whether
it sustained damage during transport. If damage is discovered, record a complete description of it on the
bill of lading. If the product is undamaged, discard the packaging.
NOTE:
The end-user is solely responsible for confirming that product design, use, and maintenance comply with
laws, regulations, codes, and mandatory standards applied where the product is used.
Replacement Parts and Technical Assistance:
For answers to questions not addressed in these instructions and to order replacement parts, labels,
and accessories, call our Technical Service and Parts Department at (260) 665-7586. The department can
also be contacted online at http://www.vestilmfg.com/parts_info.htm
.
Table of Contents
Parts and Specifications…….……………………….………………………….………………2, 3, 4, 5, 6, 7, 8, 9, 10
Signal Words….……………………....................................................................................................................10
Hazards………………….………………………………………………………………………………………..……... 11
Record of Normal Condition……………………………………….…………………………………………………... 11
Inspections……………………………………………….……………………………………………………..……….. 11
Labeling Diagram……………………………………….……………………………………………………..…..…… 11
Limited Warranty (models ending with –PED, -DPED, -CPED, and CDPED suffices)…………………………. 12
Limited Warranty (models without pedestal)…………………………………………..…………………..………… 13
Vestil Manufacturing Corp.
2999 North Wayne Street, P.O. Box 507, Angola, IN 46703
Telephone: (260) 665-7586 -or- Toll Free (800) 348-0868
Fax: (260) 665-1339
Web: www.vestilmfg.com Email: info@vestil.com
Manual turntables
Manual turntable on
manually adjusted
pedestal
Manual turntable on gas
cylinder adjusted
pedestal
Table of Contents 2/19/2019 TT MANUAL
Table of Contents Copyright 2017 Vestil Manufacturing Corp. Page 2 of 13
Parts and Specifications:

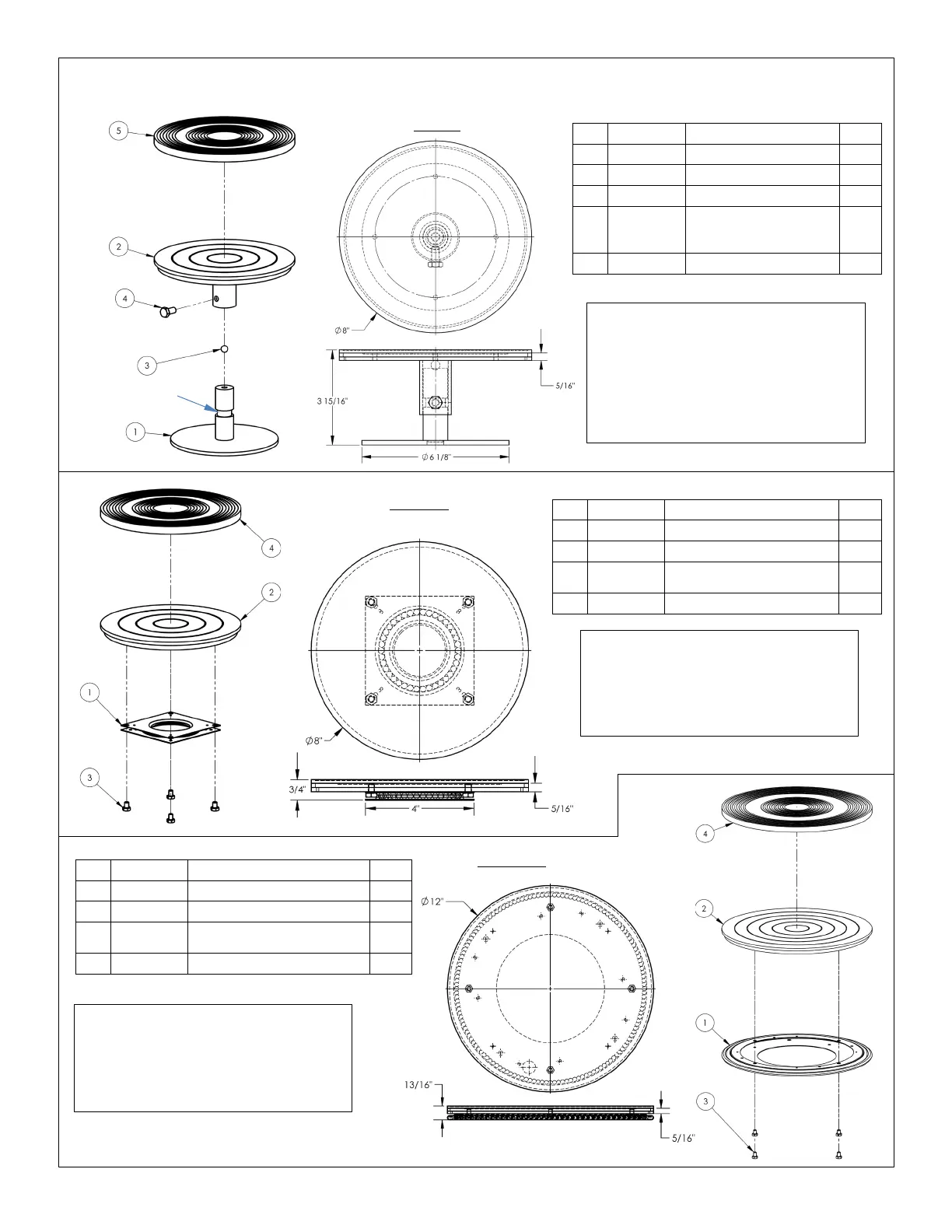

Dimensions and other specifications for each TT-series turntable appear in the diagrams and tables on pages 2-6.
TT-8-4
Uniform capacity = 500 lb.
Turntable diameter = 8”
Base diameter = 6
1
/
8
”
Overall height = 3
15
/
16
”
Top plate thickness =
5
/
16
”
Net weight = 7.1 lb.
Rubber cover on top plate.
Bolt (4) must seat into groove on base post.
Groove in base
post
Item
Part no. Description Qty.
1
20-514-113
Weldment, frame, base
1
2 20-513-104 Weldment, top plate 1
3 99-110-006 Bearing ball,
3
/
8
” 1
4 38614
Metric hex bolt, class
8.8, z-finish, M8-
1.25x16mm
1
5
20-024-010
Guard, cover, mat
1
TT-8-7/8
Item
Part no.
Description
Qty.
1 20-110-011 Bearing ball carousel 1
2
20-013-018
Turntable platform plate
1
3 38561
Bolt, HHCS, class 8.8, z-
finish, M6-1.0x8mm
4
4 20-024-010 Guard, cover, mat 1
Uniform capacity = 500 lb.
Turntable diameter = 8”
Overall height =
3
/
4
”
Top plate thickness =
5
/
16
”
Net weight = 4.9 lb.
Rubber cover on top plate.
TT-12-7/8
Item
Part no.
Description
Qty.
1 20-110-007
Bearing ball carousel 1
2 20-013-017
Turntable platform plate 1
3 38561
Bolt, HHCS, class 8.8, z-
finish, M6-1.0x8mm
4
4 20-024-011
Guard, cover, mat 1
Uniform capacity = 500 lb.
Turntable diameter = 12”
Overall height =
13
/
16
”
Top plate thickness =
5
/
16
”
Net weight = 12.3 lb.
Rubber cover on top plate.
