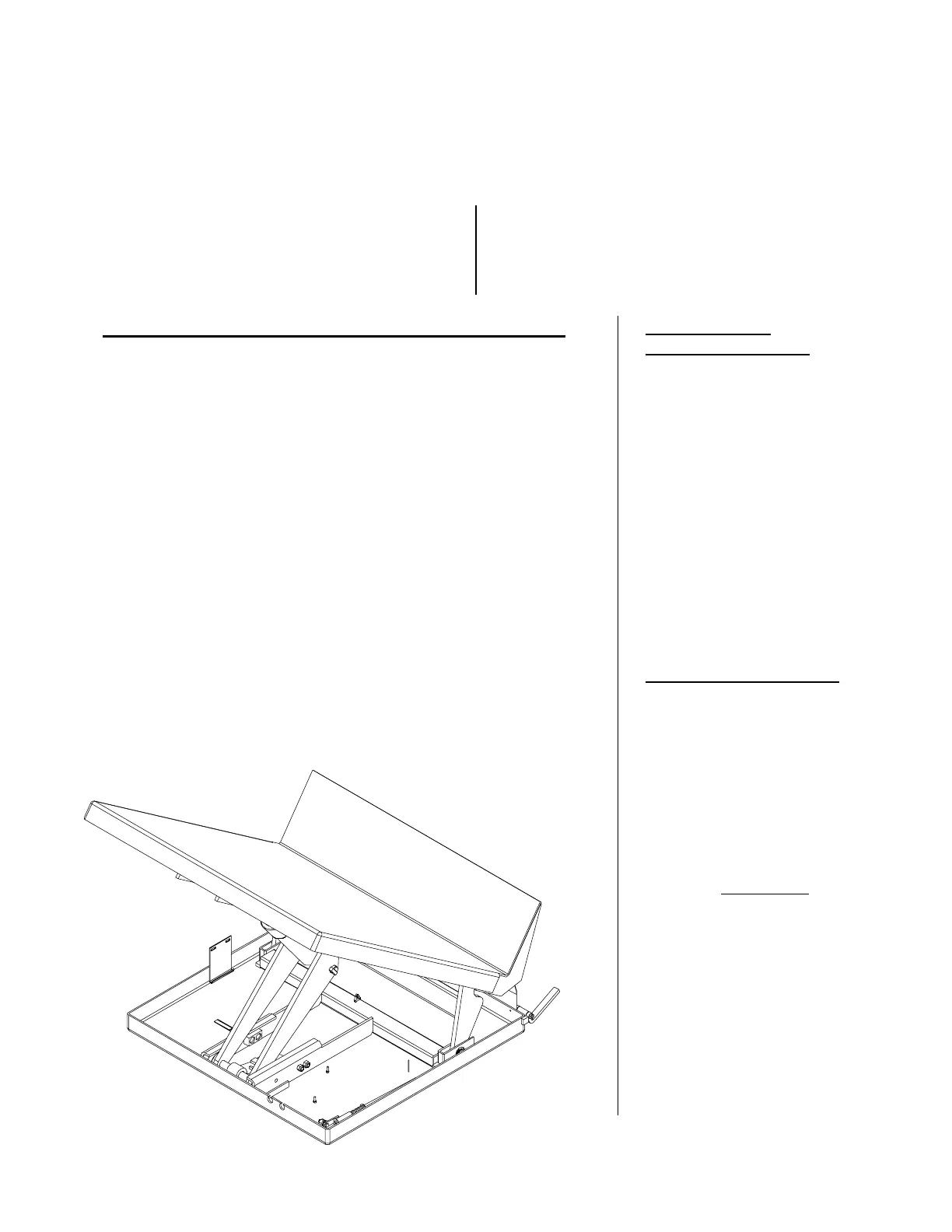

VESTIL MFG. CO. 1
VESTIL MANUFACTURING CORP.
2999 N. Wayne St., Angola, IN 46703
Ph: 260-665-7586 · Fax: 260-665-1339
E-mail: sales@vestil.com Website: www.vestil.com
MODEL UNI
Serial number ____________
Installation Instructions ……………….....................… 2
Operation Instructions ……………………….……… 3-4
Routine Maintenance & Safety Checks ……………… 5
Exploded Structural Parts Drawing & BOM ………... 6-7
Motor and Transformer Connections ............................ 8
Electrical & Hydraulic Diagrams & BOM ………….. 9-10
Power Unit’s Operation ………………...…..………... 11
Troubleshooting …………………………....………… 12
Safety Label Identification .............................................13
Warranty …………………………………….……..…. 14
IMPORTANT NOTES, WARNINGS AND SAFETY INSTRUCTIONS
Ensure that all employees understand and follow the following.
o Read and understand the owner’s manual before using or servicing
the Uni-Tilt.
o The load must be removed and the platform supported or fully
lowered before any work is performed on the lift.
o Ensure that all safety and warning labels stay in place and are
legible.
o Do not use the Uni-Tilt if any damage or unusual noise is observed.
o Always watch the platform and the container carefully when the
tilter is in operation.
o Do not transport the Uni-Tilt with any load on the platform.
o Do not use brake fluid or jack oils in the hydraulic system. If oil is
needed, use an anti-wear hydraulic oil with a viscosity grade of
150 SUS at 100°F, (ISO 32 cSt @ 40°C), or Dexron transmission fluid.
o Contact the manufacturer for any needed MSDS information.
♦ Do not perform any modifications to the Uni-Tilt without the
manufacturer’s approval. Failure to receive authorization for
changes to the equipment could void the warranty.
♦ Maintenance and repairs are to be done only by personnel qualified
to perform the required work. Warranty labor charges will not
receive consideration without prior written authorization by the
manufacturer.
WHEN ORDERING
REPLACEMENT PARTS:
We take pride in using quality
parts on the equipment we
manufacture. We are not
responsible for equipment
problems resulting from the use
of unapproved replacement
parts.
To order replacement or
spare parts for this equipment,
contact the factory.
In any communication with
the factory please be prepared
to provide the machine’s serial
number, which is indicated on
the machine dataplate.
RECEIVING INSTRUCTIONS
Every unit is thoroughly
tested and inspected prior to
shipment. However, it is
possible that the unit could
incur damage during transit.
Inspect the unit closely when
it arrives. If you see evidence
of damage or rough handling to
either the packaging or to the
product when it is being
unloaded, immediately
make a
note of it on the Bill Of Lading!
It is important that you
remove the product’s packaging
upon its arrival to ensure that
there is no concealed damage
or to enable a timely claim with
the carrier for freight damage.
Also verify that the product
and its specifications are as
ordered.
O
WNER
’
S
MANUAL
02/05 03-126-121.doc
VESTIL MFG. CO. 2
INSTALLATION INSTRUCTIONS – UNI
Review this entire page before installing the Uni-Tilt.
Consult the factory in the event there are any questions or problems at the time of installation, or for
information regarding optional features not covered by the owner’s manual.
• Modifications or additions to the Uni-Tilt without prior manufacturer’s authorization may void the unit’s warranty.
The addition of ancillary equipment to the platform may necessitate that its load capacity be reduced.
• The installation must be made so that it complies with all the regulations applicable to the machine and its
location. The end-user must verify that the supplied equipment is installed so it will be suited to the environment
in which it will be used.
• Installation must be performed by suitably trained personnel with access to the appropriate equipment. The
electrical aspects of the installation should be performed by an electrician.
---------------------------------------------------------------------------------------
For a typical installation you will need the following:
1. A fork truck or hoisting means to unload the Uni-Tilt from the freight truck and set it into place.
2. A smooth, level, and adequately strong concrete surface on which to mount and operate the Uni-Tilt.
3. Concrete anchors, a masonry drill, a masonry bit, hand tools, grout, and steel shims. Consult the building’s
architect or facility engineer to determine the best size and type of hardware with which to anchor the machine to
the floor.
• Portable units do not need to be anchored to the floor.
4. A power supply circuit and electrical disconnect matching the motor voltage and current requirements. Refer to
the machine’s dataplate, to the labels on the control enclosure, and to the electrical section in this manual for
more information. The end-user is responsible for supplying the branch circuit’s required ground fault and short-
circuit protection. (Motor overload protection is provided by a thermostat built into the motor.)
---------------------------------------
1. Move the tilter into place with a fork truck having at least a 2,000 lb capacity.
2. Temporarily connect the power supply to the pigtail cord supplied with the Uni-tilt, and raise the platform so the
unit’s safety maintenance prop(s) can be utilized. Lower the platform so the unit is supported by the prop(s).
o The maintenance prop(s) is located in the Uni-tilt’s frame next to the lifting assembly. It is a rod with a 90° bend.
To install the prop(s), raise the platform to its full raised height and insert the longer end through the holes in the
frame roller weldment. Lower the frame roller assembly unit it rests on the prop.
o If the platform must be raised without first having the proper power supply connected, raise the platform at the
side of the table opposite the platform cradle. Use rigging or insert a lift truck’s forks under the front edge of the
platform to tilt the platform up. Hold the frame down at the ends of the shipping 4 x 4’s on the hinged side of the
Uni-tilt while the platform is raised.
3. Anchor the frame to the floor through the holes located at the frame’s corners. (Non-portable units only.)
4. Make permanent connection to the power supply, using an appropriate wiring method.
5. Operate the Uni-Tilt through several full raise and lower cycles. Verify that the upper travel limit switch functions
properly.
6.
Check the hydraulic oil level. It should be filled to within 1” to 1½” of the reservoir’s fill hole. If oil is needed,
use an anti-wear hydraulic oil with a viscosity grade of 150 SUS at 100°F (ISO 32 at 40°C) or a non-synthetic
automatic transmission fluid.
7. Clean up any debris or spilled oil, and verify that all of the warning and safety labels are intact.
