Dear Customer,
Thank you for choosing a
VIKING quality product.
This product has been pro-
duced using state-of-the-art
production methods and
extensive quality assurance
procedures, because our goal
is only achieved if you, the
customer, are satisfied with
your appliance.
If you have any questions
concerning your appliance,
please contact your dealer or
our sales department directly.
I hope that your VIKING
appliance will give you great
enjoyment.
Nikolas Stihl
Manager
Table of contents
Notes on the instruction manual 2
Lawn mower with blade brake
clutch, BBC 2
Appliance overview 3
For your Safety 3
Preparatory measures 3
Mowing procedure 3
Maintenance and repairs 4
Petrol is poisonous and extremely
inflammable 5
Description of symbols 5
Standard equipment 6
Preparing the lawn mower for operation 6
Assembling the handlebar 6
Attaching the starter cable 6
Assembling the grass catcher bag 6
Attaching and detaching the grass
catcher bag 6
Fuel and engine oil 7
Adjusting the cutting height 7
Installation of the mulch insert
MB 450 M, MB 455 M 7
Removing the mulch insert
MB 450 M, MB 455 M 7
Notes on mowing 8
Mowing on slopes 8
Mulching function MB 450 M, MB 455 M 8
Mulching procedure MB 450 M, MB 455 M 8
Motorstop lever 8
Blade brake clutch, (BBC) 8
Applications 9
Initial operation of lawn mower 9
Starting the engine MB 400,
MB 450/ M, MB 455 M/ E/ C 9
Stopping the engine MB 400,
MB 450/ M, MB 455 M/ E/ C 10
Checking the BBC 10
Starting engine/ blade, MB 455 BC 10
Stopping blade/ engine MB 455 BC 11
Single-speed wheel drive
MB 455 E/ M/ C/ BC 11
Emptying the grass catcher bag 11
Maintenance 11
Cleaning the appliance 11
Combustion engine 12
Wheels and wheel drive 12
Adjusting the drive cable 12
Mowing blade maintenance 12
Removing the mowing blade 12
Sharpening the mowing blade 13
Installing the mowing blade 13
Maintainance of the blade brake clutch 13
Electric start model MB 455 E 13
Winter break 13
Electric starting device model MB 455 E 14
Storage 14
Environmental protection 14
Standard spare parts 14
Available accessories 14
Notes on maintenance and care 14
CE - Manufacturer’s
declaration of conformity 15
Technical specifications 16
Troubleshooting 18
VIKING is continually striving to further develop
its range of products; we therefore reserve the
right to make alterations to the form, technical
specifications and equipment level of our
standard equipment.
The information and illustrations in this manual
are therefore subject to alterations.
20478 105 9821 K - EN
This symbol serves to link
the Figs. on the illustration
pages with the correspon-
ding text passages in the
instruction manual.
Illustration symbols
Notes on the instruction
manual
1
Designation of text
passages
The operating steps described
may be designated in different
ways.
Operating step without direct
reference to a figure.
Example:
• Sharpen blades evenly to
prevent vibration due to
imbalance.
Operating step with direct
reference to the relevant figure
to be found in the illustration
pages (at the front of the
instruction manual), with a
corresponding reference to the
item number in the figure.
Example:
1= bolt
2= Lever ...
General lists, which do not
refer to the illustrations.
Example:
- use of the product for
sporting or competitive
events
In addition to descriptions
of operating steps, this in-
struction manual includes text
passages containing important
additional information. Such
passages are identified using
the symbols described below
in order to especially empha-
sise them in the instruction
manual:
Danger of accident and
risk of injury to persons
and serious damage to
property.
Information which is not
absolutely necessary for
operation of the appliance,
but which may lead to a
better understanding and
better use.
The illustrations can be found
at the front of the instruction
manual
Lawn mower with blade
brake clutch, BBC
VIKING lawn mowers with the
designations BC are
equipped with a blade brake
clutch, BBC.
As with all modern lawn
mowers, the blade comes to
a stop within in a short time
as soon as the lawn mower
handlebar is released.
However, thanks to the BBC
system, the engine continues
to run. After the blade has
stopped, this function allows
the user to e.g. move the
mower using the drive
wheels, empty the grass
catcher bag or replace it
with the mulching wedge
and continue working without
having to switch the engine
back on again.
In order to prevent injuries or
damage when working with
the lawn mower, ensure
that you are familiar with
operation of the BBC system
prior to initial use of the lawn
mower. Operation of the BBC
system is described in the
instruction manual; refer in
particular to the sections
"Blade brake clutch, (BBC)",
"Stopping blade/ engine MB
455 BC".
Only touch the
blade once the
engine has been
switched off, the
blade has come
to a complete
stop and the
spark plug socket has been
detached.
CAUTION
Never reach into
the working area
of the blade while
the engine is
running.
Risk of injury!
3
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
• Before using, always ensure
that the cutting tool, the
fastening bolt and the entire
cutting unit are in good
condition.
• Please observe the local
regulations regarding
permitted operation times for
lawn mowers.
Mowing procedure
• Before starting the engine,
disengage the cutting tool
and drive (if so equipped).
• When starting the engine,
ensure that spark plugs,
mufflers, fuel tank cap and
air filter are in place.
• Do not attempt to start the
engine if the spark plug has
been removed.
• The mower must not be tilted
when starting the engine.
Risk of injury caused by
rotating blade.
• Never use the mower with
damaged safety devices or
safety grids or without
installed safety devices, e.g.
without the grass ejection
flap or the grass catching
unit.

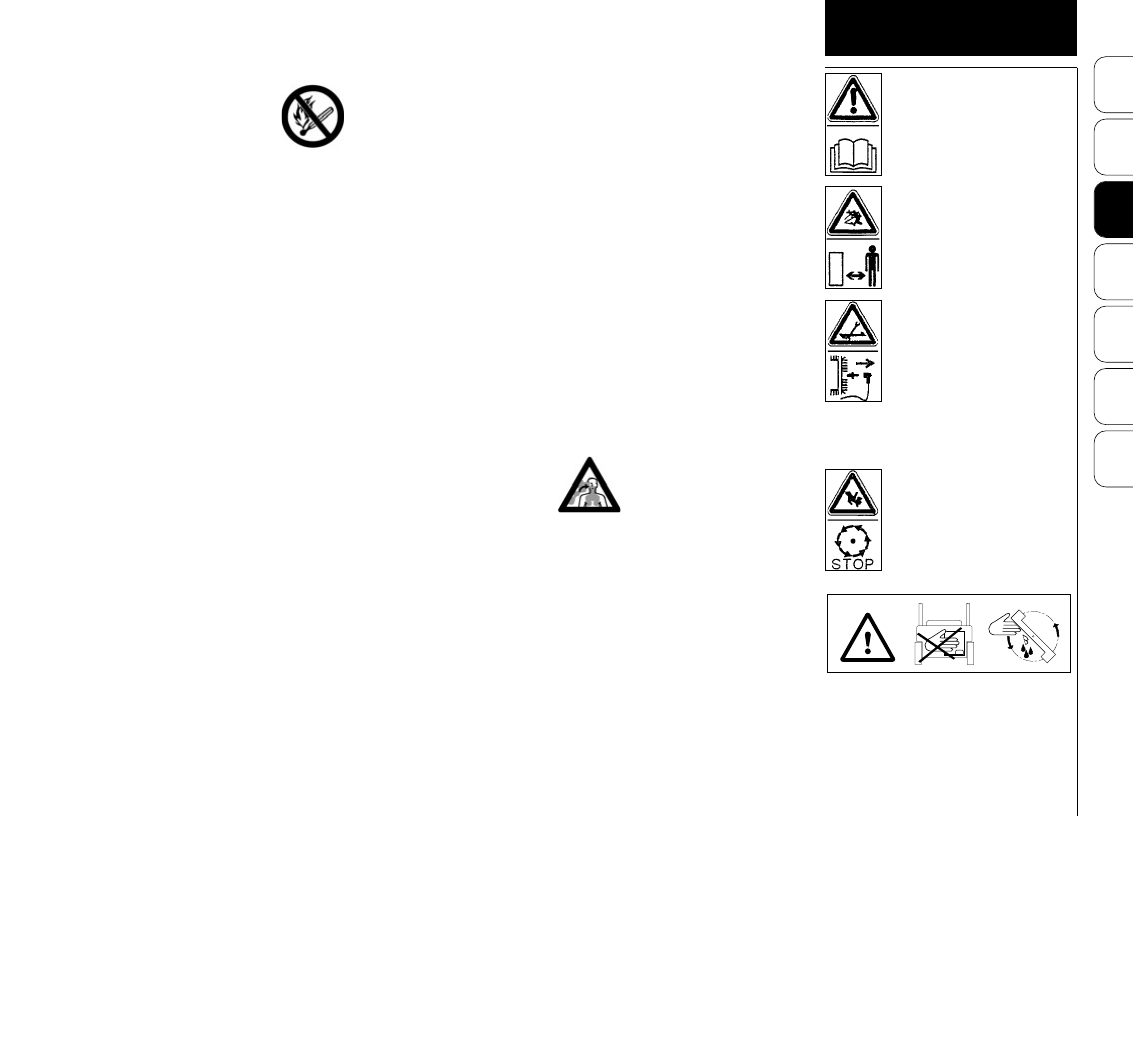

These safety regu-
lations must be
observed when
working with the lawn mower.
Read the whole
instruction manual for
the appliance and the
instruction manual for
the engine before initial ope-
ration and keep in a safe place
for future reference.
Ensure that you are familiar
with the controls and use of
the appliance.
Never allow children or other
persons who are not familiar
with the operating instructions
to use the lawn mower. The
lawn mower must not be used
by children under the age of
16. Never mow in the vicinity
of other persons, particularly
children, or animals.
Be aware that the person
operating the appliance or the
user is responsible for acci-
dents involving third parties
or their property.
The lawn mower should not be
operated after the consump-
tion of alcohol, medications
which impair reactions, or
drugs.
Before initial use, obtain
advice from the vendor or
another expert.
The lawn mower is only in-
tended for mowing lawns; its
use for other purposes is not
permitted.
Due to the physical danger to
the user, the lawn mower must
not be used for cleaning paths
(vacuuming, blowing, clearing
snow) or as a shredder for
chopping tree or hedge
cuttings.
Only give (or lend) the appli-
ance to persons who are
familiar with this model and
how to operate it - always
provide them with the
instruction manuals.
Preparatory measures
• Always wear robust shoes
and long trousers
when mowing. Never
mow barefoot or in
sandals.
• Carefully inspect the comp-
lete area on which the appli-
ance is to be used and
remove any stones, sticks,
wires, bones and other
foreign objects.
For your safetyAppliance overview
ABlade clutch lever
(MB 455 BC)
BUpper handlebar
CMotorstop lever
DThrottle lever
(MB 455 BC)
EWheel drive
(MB 455 E/ M/ C/ BC)
FLevel indicator
GStarter cable
HEjection flap
IGrass catcher bag
JWheels
KCutting height adjustment
LEngine
MCable guide
NRotary knob
OElectric start (MB 455 E)
1
40478 105 9821 K - EN
A slope inclination of 25°
corresponds to a vertical
height increase of 46.6 cm
for a 100 cm horizontal
surface.
• Always ensure good stability
on slopes. Avoid mowing on
excessively steep slopes in
order to prevent loss of
control of the appliance.
• Only mow at right-angles to
the slope and never up or
down the slope, in order to
avoid being additionally run
over by the running lawn
mower in the case of loss of
control of the appliance or of
falling.
• Be particularly careful when
changing direction on a slope
in order to prevent loss of
control.
• Be particularly careful when
moving backwards and when
pulling the lawn mower.
Risk of stumbling.
• Be particularly careful when
turning the mower around or
pulling it towards you.
• Switch off the engine if tilting
of the mower is necessary
when transporting over
surfaces other than grass,
and when transporting the
mower to and from mowing
areas.
• Never open the grass
ejection flap or empty the
grass catcher bag when the
engine and the blade is
running. A rotating blade can
cause injury.
•Risk of injury. Never put
your hands or feet
on or underneath
rotating parts.
Always observe the safety
distance indicated by the
handlebar.
• Switch off the engine and
detach the spark plug socket:
- Before lifting, carrying or
transporting the appliance.
- Before blockages are re-
moved, including those in
the ejection chute.
- If the blade has hit a
foreign object.
The cutting tool needs to
be checked for possible
damage.
- Before checking, cleaning
or working on the mower.
- If the mower begins to
vibrate excessively. It must
be checked immediately.
- Before leaving the mower
unattended.
- When the appliance is not
in use.
• To fill with fuel, switch off the
engine and allow to cool
down for at least two minutes
before removing the tank
cap.
• Beware of the cutting tool
running on for
several seconds
before coming to a
standstill.
• Local regulations may specify
a minimum age for using the
mower.
• In order to prevent fire
hazards, keep the engine,
exhaust and battery case
free from grass, leaves or
escaping oil (or grease).
Maintenance and repairs
Detach the spark plug
socket before
performing any work
on the appliance or
engine.
Only carry out servicing
procedures which are
described in the instruction
manual.
For all other work, contact
VIKING customer service.
25°
Angle of inclination
100 cm
46.6 cm
• Keep other persons away
from the danger
area.
• Only mow during the day or
when there is enough light.
• For safety reasons, always
use an undamaged grass
catcher bag.
• The switch mechanisms
installed in the appliance by
the manufacturer must not be
removed or bypassed, e.g. by
fixing a control lever to the
handlebar.
• Avoid mowing wet grass. The
risk of accidents is higher if
the grass is wet (increased
danger of slipping for
operator).
• Only mow at walking speed.
Mowing quickly with the
appliance increases the risk
of injury due to stumbling,
slipping etc.
• For safety reasons, VIKING
mowers with petrol engines
must not be used on slopes
with an incline of more than
25° (46.6 %). It is only per-
mitted to mow across the
direction of the gradient and
never up or down the slope,
in order to prevent loss of
control of the lawn mower.
Risk of injury.
5
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Blades run on.
Detach the spark
plug socket before
carrying out work on
the cutting tool or
maintenance and
cleaning work and
before leaving the
mower unattended.
Keep other persons
away from the
danger area.
Read instruction
manual before initial
use.
Description of symbols
Warning: petrol is
poisonous and extremely
inflammable
• Keep petrol away from
sparks, naked
flames, pilot lights,
heat sources, and
other ignition
sources.
• Transport the appliance with
an empty fuel tank or closed
fuel cock (if fitted).
•Re-fill the tank out of doors
and do not smoke during re-
filling.
• Petrol must only be stored in
appropriate containers.
• Re-filling with petrol must be
performed before the engine
is started. When the engine
is running or is hot, the tank
cap must not be removed
and the tank must not be re-
filled with petrol.
• Do not fill fuel tank comple-
tely, but fill to approx. 4 cm
below the edge of the filler
neck so that the fuel has
room to expand.
• If petrol is spilled, the engine
must only be started after the
petrol-contaminated area has
been cleaned. All attempts at
starting must be avoided until
the petrol fumes have
dispersed (wipe dry).
• For safety reasons, fuel line,
petrol tank, tank cap and
connections must be
checked regularly for cracks
and leaks and replaced if
damaged.
• Replace damaged exhaust
silencers and guard plates
on the exhaust.
• Never store the appliance
with petrol in the tank inside
a building. The resulting
petrol fumes could come into
contact with naked flames or
sparks and could be ignited.
• Allow the engine to cool
before storing the appliance
in an enclosed space.
• Do not alter the basic setting
of the engine or run at
excessive engine speeds.
• The engine-powered
appliance generates
poisonous exhaust
gases as soon as
the engine is
running. These gases may be
odourless and invisible.
Never work with the engine-
powered appliance in a
closed or poorly ventilated
room.
Danger to life through
poisoning!
• If it is necessary to drain the
tank, this must be done out
of doors by driving until
empty.
Only use original spare parts.
This applies to cutting tools in
particular. When replacing the
cutting tool, ensure that the
correct type of cutting tool is
installed.
• Ensure that all nuts, pins and
bolts are securely tightened,
so that the appliance is in a
safe operating condition.
• If the cutting tool or the lawn
mower hits an obstacle or a
foreign object, the mower
must be switched off and a
competent inspection must
be performed (if necessary,
contact authorised customer
service).
• Check the grass catching
unit regularly for wear,
damage or for loss of
functionality.
• In the interests of safety,
replace all worn or damaged
parts.
• Do not continue using
damaged or cracked tools
and do not repair - for
example by welding or
straightening - change of
shape (imbalance).
Caution!
Never reach into the working
area of the blade while the
engine is running.
Risk of injury!
60478 105 9821 K - EN
Attaching and
detaching the grass
catcher bag 7
Assembling the grass
catcher bag
Fit the
7= grass catcher bag upper
part to the
6= grass catcher bag lower
part.
Press both
8= pins through the
apertures provided from
the inside.
Allow the grass catcher
bag upper part to
engage in the lower part
using slight pressure.
CAUTION
Risk of injury.
The engine must be
switched off or the mowing
blade must be disengaged
(MB 455 BC) before
attaching and detaching
the grass catcher bag.
Assembling the
handlebar
Insert
4= cable guide
(for starter cable) through
12= cable guide and fit the
13= cable into the cable guide.
Insert
3= bolt through
12= cable guide and fit
15= cable and
16= wiring harness
(only MB 455 E).
Fit
B= upper handlebar onto
both parts of lower
handlebar.
Insert
4= cable guide
(for starter cable) and
3= bolt (both with cable
guide) through bore from
the inside to the outside
and tighten securely with
2= rotary knobs.
Preparing the lawn
mower for operation
3Secure cable to the lower
handlebar using
5= cable clips as illustrated.
Secure cable to the lower
handlebar using
5= cable clips and
11= cable ties
(only MB 455 E)
as illustrated.
Item Designation Qty.
1Basic unit 1
2Rotary knobs 2
3Bolt (50 mm) 1
4Cable guide 1
5Cable clip MB 400,
MB 450/ M 1
5Cable clip
MB 455 E/ M/ C/ BC 2
6Grass catcher bag,
lower part 1
7Grass catcher bag,
upper part 1
8Pin 2
9Socket wrench 1
10 Battery charger
MB 455 E 1
11 Cable tie MB 455 E 1
12 Cable guide
MB 400, MB 450/ M 1
12 Cable guide
MB 455 E/ M/ C/ BC 2
13 Instruction manual 1
14 Engine
instruction manual 1
Standard equipment
2
Attaching the starter
cable
Press and hold
C= motorstop lever to release
the engine brake.
Slowly pull out
G= starter cable and fit into
4= cable guide.
4
NOTE
The machined grooves in the
threads prevent the rotary
knobs from becoming
completely detached from
the bolts (safeguard against
loss).
1
2
3
4
5
5
6
7
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Installation of the
mulch insert
MB 450 M, MB 455 M
Open
H= ejection flap
Position
19= mulch insert in the
ejection tunnel.
Press mulch insert until it
audibly locks, as
illustrated.
Close ejection flap again
manually.
10
Removal of the mulch
insert MB 450 M,
MB 455 M
The mulch insert must be
removed to use the multi-
mower as a rear-ejection
mower or a grass collector
(with attached grass catcher
bag).
It is not necessary to replace
the blade.
Open
H= ejection flap.
Pull up
20= detent catch on
19= mulch insert and remove
mulch insert.
Close ejection flap or
attach grass catcher bag.
11
Adjusting the cutting
height
There are 7 cutting height
adjustment settings ranging
from 24 to 75 mm.
Cutting levels 2 to 6 are
standard.
Level 1= lowest cutting
height
Level 7= highest cutting
height
K= Adjustment lever for the
central height adjustment
is located next to the left
rear wheel.
First, gently push
adjustment lever in
direction of the wheel
and then allow to lock in
the desired position
(= cutting height).
9
CAUTION
Risk of injury.
Only adjust the cutting
height when the engine is
switched off or the mowing
blade is disengaged
(MB 455 BC).
Fuel and engine oil
Always use:
fresh, good quality fuel -
normal, lead-free petrol.
Checking engine oil
Check engine oil
level at regular
intervals. The oil
level must be
within the marked field on
the dipstick.
To measure the oil level,
screw the dipstick fully in.
Please consult the engine
instruction manual for the
type of engine oil to be used
and the filling quantity.
Pull
H= ejection flap upwards.
Attaching:
Attach grass catcher bag
with
17= snap-in hooks in the
18= apertures provided on the
appliance. Close ejection
flap again manually.
Detaching:
Detach grass catcher bag
from the
17= snap-in hooks and
remove.
Close
H= ejection flap again
manually.
CAUTION
Risk of injury.
Only carry out work on the
mulching key when the
engine is switched off or
the mowing blade is dis-
engaged (MB 455 BC).
8
NOTE
Top up engine oil before
initial start. (oil dipstick)
Fuel and engine oil
CAUTION
Risk of injury.
Only carry out work on the
mulching key when the
engine is switched off
or the mowing blade is
disengaged (MB 455 BC).
80478 105 9821 K - EN
Notes on mowing Blade brake clutch (BBC)
NOTE
NOTE
Mulching function
MB 450 M, MB 455 M
To ensure a perfect, thick
lawn, mow regularly and keep
the grass short. Do not cut too
short in hot, dry conditions as
the lawn will dry out or burn in
the sun and become unsightly.
The cutting pattern will be
better with a sharp blade than
with a blunt one. The blade
must therefore be sharpened
regularly (dealer).
Do not mow wet grass or mow
in the rain. The risk of acci-
dents is higher if the grass is
wet (increased danger of
slipping for operator).
For safety reasons, always
use an undamaged grass
catcher bag.
Mulching is performed with
the new multi-blade - i.e. the
grass is cut in steps, chopped
to a fine organic mass in the
housing closed off by the
mulch insert and is ejected
back into the grass to
decompose.
The cuttings must not be
disposed of when mulching,
as the finely chopped grass
decomposes on the lawn,
returns the nutrients in the
cuttings to the plants and also
protects the ground from
drying out.
Time and money is saved for
fertiliser and sprinkling.
Mowing on slopes
In order to ensure an ade-
quate oil supply for the
4-stroke engine, the lawn
mower must not be used on
inclines of more than 25°.
A slope inclination of 25°
corresponds to a vertical
height increase of 46.6 cm for
a 100 cm horizontal surface.
12
13
Mulching procedure
MB 450 M, MB 455 M
Cutting height 4-7 should
be selected for mulching,
as this is the most suitable
range for shredding the
grass.
14
It is important to select the
correct operating speed and
height for mulching to allow
the multi-blade to achieve
optimal grass shredding and
a good cutting pattern.
Mulching should not be
performed when the grass is
too high or wet.
Motorstop lever
MB 400, MB 450/ M,
MB 455 E/ M/ C
To stop the engine,
release
C= motorstop lever; the
engine and the mowing
blade come to a complete
standstill after a short
run-down time.
15
The model MB 455 BC is
equipped with a blade brake
clutch (BBC).
The blade is switched
on when the engine is
running by pressing
C= blade stop lever and then
pulling
A= blade clutch lever in the
direction of the handle-
bar.
When the blade stop
lever is released, the
blade comes to a
standstill in less than
3 seconds and the blade
clutch lever returns to the
initial position.
The engine continues to
run.
16
9
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Initial operation of lawn
mower
• Re-filling with petrol must be
performed before the engine
is started.
When the engine is running
or is hot, the tank cap must
not be removed and the tank
must not be re-filled with
petrol.
• Filling with oil must be
performed before the engine
is started. The oil level must
be within the marked field on
the dipstick.
• Carefully inspect the
complete area on which the
appliance is to be used and
remove any stones, sticks,
wires, bones and other
foreign objects.
• Start the engine with care.
Ensure that you keep your
feet far enough away from
the cutting tool.
•Risk of injury.
Never put your hands or feet
on or underneath rotating
parts.
• Always wear robust shoes
and long trousers when
mowing. Never mow barefoot
or in sandals.
• Never mow in the vicinity of
other persons, particularly
children, or animals.
CAUTION Starting the engine
MB 400, MB 450/ M,
MB 455 M/ E/ C
MB 400, MB 450, MB 450 M,
MB 455 C, MB 455 M:
17
NOTE
Do not start the engine in
high grass or when the
mower is set to the lowest
cutting height.
The engine is equipped
with an auto-choke
mechanism and a fixed
throttle adjustment and
always operates at the
optimum working speed.
Manual adjustment is not
necessary.
Applications of models
MB 400, MB 450,
MB 455 E/ C/ BC
Models MB 400, MB 450 and
MB 455 E/ C/ BC
can be used as grass
collectors (grass catcher bag
attached) as well as rear-
ejection mowers (grass
catcher bag detached and
ejection flap closed).
Applications of models
MB 450 M and MB 455 M
Models MB 450 M and
MB 455 M can be used as
grass collectors, mulching
mowers or rear-ejection
mowers.
Grass collector:
- Remove mulch insert
- Attach grass catcher bag
Mulching mower:
- Insert mulch insert
- Detach grass catcher bag
Rear-ejection mower:
- Remove mulch insert
- Detach grass catcher bag
Applications
Press
C= motorstop lever.
Pull out
G= starter cable slowly to the
point of resistance
and then pull vigorously
to arm’s length.
Slowly release the cable
so that it can gradually be
rolled up by the starter.
Repeat until the engine
starts.
10 0478 105 9821 K - EN
Starting engine/ blade,
MB 455 BC
Starting the engine:
Set the
D= throttle lever to the MAX
position.
Pull out
G= starter cable slowly to the
point of resistance and
then pull vigorously to
arm's length.
Slowly release the cable
so that it can gradually be
rolled up by the starter.
Repeat until the engine
starts.
19
NOTE
Do not start the blade in
high grass and only start it
at maximum engine speed.
Press
C= blade stop lever in
direction of arrow.
Pull back
A= blade clutch lever straight
in direction of handlebar
(= direction of arrow).
NOTE
Pull back blade clutch lever
quickly to avoid
unnecessary wear in the
blade clutch.
Starting the blade:
Risk of injury!
If the function test fails
(continued audible wind
noise despite relasing the
handlebar), shut off the
engine, detach the spark
plug socket and contact an
authorised dealer (VIKING
customer service).
• Start the engine
as described in the
instruction manual.
• Engage the blade
as described in the
instruction manual.
A running blade generates
a clearly audible wind noise.
The running of the blade can
be checked by means of the
wind noise generated.
• Release the handlebar.
The blade brake clutch
disengages the blade from
the engine drive, causing a
braking action. The blade
quickly comes to a standstill.
This procedure causes the
wind noise to cease. No wind
noise is audible when the
blade is stopped.
Checking the BBC
Before starting work, always
perform the following function
test three times:
Stopping the engine
MB 400, MB 450/ M,
MB 455 M/ E/ C
To stop the engine,
release
C= motorstop lever;
the engine and the
mowing blade come to a
complete standstill after a
short run-down time.
18
MB 455 E:
C= motorstop lever.
21= Turn the ignition key to
the right. Actuate the
starter for no longer than
three to five seconds,
pausing for the same
amount of time between
attempts.
When the engine starts,
release the ignition key.
Avoid repeat starting
when the engine is
running.
CAUTION
11
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Cleaning the
appliance
Maintenance interval:
Each time the appliance is
used
Clean the appliance
thoroughly after mowing.
Looking after your appliance
carefully will protect it against
damage and extend its
service life.
Clean the underside of the
mower with water and a
brush. Detach accumulated
cutting deposits in the
housing and in the ejection
chute beforehand using a
stick.
Never spray water onto
engine components, seals,
bearing points or electrical
parts such as switches. This
would result in expensive
repairs.
Please note:
Tilt up front of mower when
carrying out cleaning or
maintenance work.
Empty the fuel tank (run
empty), release the rotary
knobs and lift the ejection
flap before tilting upwards.
23
Maintenance
Disconnect the spark
plug socket before
performing any
maintenance or other
work on the blade.
Do not touch the blade until it
has come to a standstill.
Always allow the engine to
cool before carrying out
maintenance and cleaning
work.
Risk of injury.
Always wear gloves.
If you do not have the
necessary auxiliary
equipment, your dealer will
be pleased to assist you.
In the interests of safety, only
use original VIKING spare
parts.
CAUTION
Emptying the grass
catcher bag
If
F= level indicator closes
(STOP position), the
grass catcher bag is full
and must be emptied.
Detach the grass catcher
bag and open it at
22= tab. Fold
7= grass catcher bag upper
part upwards.
Fold back the full grass
catcher bag.
The grass catcher bag
can be emptied easily via
the
23= integrated handle.
After emptying, close the
upper part and lock back
into position.
22
Single-speed wheel
drive MB 455 E/ M/ C/ BC
Pull
E= drive lever:
The mower's wheel drive
engages.
Release the drive lever:
The mower's wheel drive
is disengaged.
21
NOTE
Please observe the
illustrations on the level
indicator.
Stopping the blade/
engine MB 455 BC
Stopping the blade:
To stop the blade,
release
A= blade stop lever. The
blade is disengaged and
brought to a standstill in
a few seconds by means
of a brake.
The engine continues
running after the blade
stop lever has been
released.
Stopping the engine:
To stop the engine, set
D= acceleration lever to the
STOP position.
20
12 0478 105 9821 K - EN
Adjusting the drive
cable
The cable is correctly
adjusted in new units. The
cable may have to be re-
adjusted due to wear of the
clutch.
For this purpose, an
adjustment screw is provided
on the panel.
Correct adjustment:
Actuate the drive lever while
pulling the lawn mower
backwards.
The driving wheels must lock
after approx. one third of the
lever travel.
24
CAUTION
Risk of injury.
Adjustment is carried out
with the engine stopped.
Combustion engine
Maintenance interval:
See engine instruction
manual
Observe the operating and
maintenance instructions
contained in the accompa-
nying engine instruction
manual. To achieve a long
service life, it is always
particularly important to
maintain a sufficient level of
oil and to change the oil and
air filter regularly.
The cooling ribs must always
be kept clean to ensure that
the engine is adequately
cooled.
Wheels and wheel drive
Maintenance interval:
Once a year
Plastic ball bearings are
maintenance-free. The metal
ball bearings should be
lubricated at least once a
year with resin-free grease
or oil.
Your dealer will be happy to
assist you.
The gearbox is maintenance-
free. (MB 455/ M/ E/ C/ BC)
Mowing blade
maintenance
Maintenance interval:
Every 25 operating hours
If mowing results deteriorate
with time, the mowing blade is
probably blunt.
Risk of injury!
Always wear
gloves.
25
Removing the mowing
blade
ACHTUNG
Risk of injury!
If you do not have the
necessary expertise or
auxiliary equipment, please
always contact your dealer.
In the interests of safety,
only use original VIKING
spare parts.
For removal, use a
25= wooden block (approx.
60 x 60 mm) to
counterhold the
24= mowing blade.
Loosen the
26= blade fastening screw(s)
using an A/F 17 spanner
and remove together with
the
27= retaining washer (not
fitted on MB 455 BC).
Remove the
24= mowing blade.
MB 450 M, MB 455 M:
The
24= mowing blade consists of
an upper blade (24a) and
a lower blade (24b). It can
be separated for
convenient regrinding.
Push the upper blade
(24a) to the left as far as
the stop and then lift the
opposite side.
The upper blade (24a) is
then disengaged from the
lower blade (24b) by
pushing to the right.
13
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Electric start model
MB 455 E 27
Winter break
Note the following points
when storing the mower for
long periods:
• Carefully clean all external
parts of the engine and
mower, in particular the
cooling ribs.
• Thoroughly lubricate /
grease all moving parts.
• Empty fuel tank and
carburettor (e.g. by running
empty).
Unscrew spark plug and
pour approx. 3 cm3of
engine oil into the engine
via the spark plug hole.
Turn the engine several
times with the spark plug
removed.
Caution:
• Keep the spark plug socket
away from the spark plug
hole due to danger of
ignition. Re-install the spark
plug and store the lawn
mower in a dry, dust-free
room in the normal
position.
• Cover the engine well and
store the lawn mower in a
dry, dust-free room in the
normal position.
• Perform oil change.
Maintainance of the
blade brake clutch
The blade brake clutch is
subject to natural wear. In
order to fulfil its function,
regular maintenance and
servicing work must be
performed on the BBC by
trained personnel (e.g.
VIKING customer service)
in the following intervals:
Professional use:
every six months
(commercial use of the
mower)
Private use: annually
The starter battery is
maintenance-free and is
charged automatically during
operation.
If discharging should occur
(engine starting problems),
the battery must be recharg-
ed without delay. The charg-
ing time is approx. 48 hours.
Only use the original battery
charger supplied.
The battery manufacturer's
regulations must be observed.
CAUTION
Risk of injury.
Observe the specified
torque of 45-55 Nm when
tightening the blade
fastening screws, as the
secure attachment of the
cutting tool depends on
this.
Installing the mowing
blade
Risk of injury!
Always wear gloves.
MB 450 M, MB 455 M:
Engage the upper blade
(24a) in the lower blade
(24b) as illustrated. For
this purpose, ensure that
the bores in both blades
are aligned.
Install
24= mowing blade with the
curved edges pointing
upwards.
For installation, use a
25= wooden block (approx.
60 x 60 mm) to counter-
hold the mowing blade.
Tighten the
26= blade fastening screw(s)
with
27= retaining washer (not
required on MB 455 BC)
to a torque of 45-55 Nm.
26
Sharpening the
mowing blade
The following points must be
observed when re-sharpening
the mowing blade:
• Cool the mowing blade
when sharpening, e.g. with
water. The blade must not
be allowed to display blue
colouring, as this would
reduce its cutting quality.
• Sharpen blades evenly to
prevent vibration due to
imbalance.
CAUTION
Check blade for damage
before installing. The blade
must be replaced if
notches or cracks are
detected, or if the blades
are sharpened back by
5 mm (wear limit).
14 0478 105 9821 K - EN
Storage
The storage room should be
dry and be free of dust. The
mower should also be stored
out of reach of children.
Any appliance faults must be
remedied prior to storage in
order to maintain a safe
operating condition.
Standard spare parts
Mowing blade MB 400
6118 702 0100
Mowing blade MB 450,
MB 455 E, MB 455 C,
MB 455 BC
6103 702 0102
Mowing blade MB 450 M,
MB 455 M
6103 702 0111
Environmental
protection
Lawn cuttings should
be turned into
compost or mulch
and should not be disposed
of with the household waste.
The appliance, its packaging
and accessories are all
produced from recyclable
materials and must be
disposed of accordingly.
By disposing of materials
separately, and in an
environmentally-friendly
manner, valuable resources
can be re-used.
Available accessories
Kit 40 M, Kit 45 MS
With the 40 M mulching kit
and the 45 MS mulching kit,
the lawn mower models
MB 400, MB 450 and
MB 455/ E/ C/ BC can be
converted into mulching
mowers.
The 40 M mulching kit and the
45 MS mulching kit are only
available from your VIKING
dealer and can be used for
the following models.
Kit 40 M:
MB 400
Kit 45 MS:
MB 450, MB 455/ E/ C/ BC
Electric starting device
model MB 455 E
The battery should be dis-
connected from the lawn
mower during the winter
period or during long periods
of non-use.
It is recommended that the
battery is stored in a dry
location, at a temperature
of +5° C to 23° C.
The battery must be fully
charged before the onset of
the winter period.
Observe the battery manu-
facturer's instructions.
Notes on maintenance
and care
Important information on
maintenance and care of the
product group
Petrol Lawn Mowers
Please always observe the
following important information
for the prevention of damage
or excessive wear to your
VIKING appliance:
1. Wearing parts
Some parts of the VIKING
appliance are subject to
normal wear even when used
properly and must be replaced
in due time depending on type
and duration of use.
These include:
- Blade
- Grass catcher bag
- Starter battery (MB 455 E)
- V-belt
(MB 455 E/ M/ C/ BC)
15
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
We,
VIKING GmbH
Hans Peter Stihl-Straße 5
A-6336 Langkampfen /
Kufstein
declare, that the machine,
manually-operated lawn
mower with combustion
engine,
Manufacturer's
brand: VIKING
Type: MB 400 MB 450
MB 450 M
MB 455 E
MB 455 M
MB 455 C
MB 455 BC
Serial
number: 6118 6103
conforms to the following EC
guidelines:
98/37/EC, 89/336/EEC,
2000/14/EC
The product has been
developed and manufactured
in conformance with the
following standards:
EN 836
CE - Manufacturer's
declaration of conformity
Applicable conformity
assessment procedure:
Appendix VI
Name and address of relevant,
named location:
Societe Nationale de
Certification et d’Homologation
S.a.r.l.
11, Route de Sandweiler
5230 Sandweiler
Luxembourg
Storage of technical
documentation:
VIKING GmbH
Product approval
Measured sound power level:
92 dB(A) MB 400
94 dB(A) MB 450/ M,
MB 455 E/ M/ C,
MB 455 BC
Guaranteed sound power
level:
96 dB(A)
Langkampfen, 01. 01. 2006
VIKING GmbH
Lechner
Managing Director /
Marketing Manager
2. Observance of the
information in this
instruction manual
The VIKING appliance must
be used, maintained and
stored with the care described
in this instruction manual. Any
damage caused by non-
observance of the safety,
operating and maintenance
instructions is the sole
responsibility of the user.
This applies in particular to:
- improper use of the product
- use of fuel and lubricants
not approved by VIKING
(lubricants, petrol and
engine oil, see engine
manufacturer's specifi-
cations)
- product modifications not
approved by VIKING
- use of attaching parts,
attachments or cutting
tools not approved by
VIKING (see VIKING sale
documents)
- use of the product for
sporting or competitive
events
- resultant damage due to
continued use of the
product with defective
components
3. Maintenance operations
All work listed in the section
”Maintenance” must be
performed regularly. If this
maintenance work cannot
be performed by the user
himself, an authorised
specialist dealer must be
commissioned. If these
operations are neglected,
faults may arise which are
the responsibility of the user.
These include:
- corrosive and other
resultant damage caused
by incorrect storage
- damage and resultant
damage due to the use of
spare parts which are not
original VIKING parts
- damage due to
maintenance and repair
work not performed in the
workshops of authorised
specialist dealers
16 0478 105 9821 K - EN
Technical specifications
Manufacturer's brand: VIKING
Model MB 400 MB 450/ M MB 455 M
Serial number 6118 6103 6103
Engine, design 4-stroke combustion engine from Briggs & Stratton
Type Quantum Quantum Quantum
Displacement 190 ccm 190 ccm 190 ccm
Fuel tank 1.5 l 1.5 l 1.5 l
Type of cutting utilities Cutter bar Cutter bar Cutter bar
Cutting width 38 cm 43 cm 43 cm
Speed of cutting utilities 3000 1/min 3000 1/min 3000 1/min
In accordance with Guideline
2000/14/EU:
Guaranteed sound power level LWA 96 dB 96 dB 96 dB
In accordance with EN 836:
Sound pressure level at workplace LpA 79 dB 82 dB 82 dB
Acceleration on the upper
handlebar avhw 14 m/sec214 m/sec214 m/sec2
Test speed 3000 1/min 3000 1/min 3000 1/min
Starter Cord start Cord start Cord start
Safety device Motorstop Motorstop Motorstop
Tightening torque
Blade fastening screw 45-55 Nm 45-55 Nm 45-55 Nm
Wheel drive - - Rear wheel
Cutting height 24-75 mm 24-75 mm 24-75 mm
Grass catcher bag 40 l 60 l 60 l
L/W/H 140/44/104 146/47/104 146/47/104
Weight 25 kg 28 kg 31 kg
17
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Manufacturer's brand: VIKING
Model MB 455 E MB 455 C MB 455 BC
Serial number 6103 6103 6103
Engine, design 4-stroke combustion engine from Briggs & Stratton
Type Quantum Quantum Quantum
Displacement 190 ccm 190 ccm 190 ccm
Fuel tank 1.5 l 1.5 l 1.5 l
Type of cutting utilities Cutter bar Cutter bar Cutter bar
Cutting width 43 cm 43 cm 43 cm
Speed of cutting utilities 3000 1/min 3000 1/min 3000 1/min
In accordance with Guideline
2000/14/EU:
Guaranteed sound power level LWA 96 dB 96 dB 96 dB
In accordance with EN 836:
Sound pressure level at workplace LpA 82 dB 82 dB 82 dB
Acceleration on the upper
handlebar avhw 14 m/sec214 m/sec214 m/sec2
Test speed 3000 1/min 3000 1/min 3000 1/min
Starter Electric start/ Cord start Cord start
Cord Start
Safety device Motorstop Motorstop BBC (blade stop)
Tightening torque
Blade fastening screw 45-55 Nm 45-55 Nm 45-55 Nm
Wheel drive Rear wheel Rear wheel Rear wheel
Cutting height 24-75 mm 24-75 mm 24-75 mm
Grass catcher bag 60 l 60 l 60 l
L/W/H 146/47/104 146/47/104 146/47/104
Weight 34 kg 31 kg 35 kg
18 0478 105 9821 K - EN
Fault Possible cause Remedy
Illustration
Page
- Engine will not start - Motorstop lever is not pressed
- Throttle lever set to STOP
position (MB 455 BC)
- No fuel in tank; fuel line blocked
- Inferior, dirty or old fuel in tank
- Dirty air filter
- Spark plug socket disconnected
from spark plug; ignition lead
incorrectly fastened to socket
- Spark plug dirty or damaged;
incorrect electrode gap
- Engine is flooded due to several
starting attempts
- Mower housing is blocked
- Battery for electric start is
discharged
- Press motorstop lever to
handlebar
- Set the throttle lever to the CHOKE
or MAX position (MB 455 BC)
- Top up fuel, clean fuel line
- Always use fresh, good quality
fuel, normal unleaded petrol;
clean carburettor
- Clean air filter
- Connect spark plug socket; check
connection between ignition lead
and socket
- Clean or replace spark plug;
adjust electrode gap
- Remove spark plug and dry; pull
starter cable repeatedly with the
spark plug removed (throttle lever
in STOP position)
- Clean mower housing
(disconnect spark plug socket
before cleaning)
- Charge battery for electric start
9
10
7, !
7
!
!
!
!
11
13
17
19
8
8
23
27
Troubleshooting
!see engine instruction manual
!if necessary, contact authorised customer service
19
0478 105 9821 K - EN
SV NO EN
DA
FIPL
HU
Fault Possible cause Remedy
Illustration
Page
- Starting problems or deteriorating
engine performance
- Mowing grass which is too long
or too wet
- Mower housing is blocked
- Dirty air filter
- Dirty spark plug
- Mowing blade is blunt or worn
- Water in fuel tank and
carburettor; carburettor blocked
- Work at appropriate cutting
height and mowing speed for
mowing conditions
- Clean mower housing
(disconnect spark plug socket
before cleaning)
- Clean air filter
- Clean spark plug
- Re-sharpen or replace mowing
blade
- Empty fuel tank, clean fuel line
and carburettor
7
11
!
!
12, !
!
9
23
24
!see engine instruction manual
!if necessary, contact authorised customer service
- No response when drive lever is
actuated
- Drive cable incorrectly adjusted - Readjust drive cable 13 26
- Engine overheating - Incorrect spark plug electrode
gap
- Dirty air filter
- Cooling ribs are dirty
- Oil level in engine too low
- Adjust electrode gap
- Clean air filter
- Clean cooling ribs
- Top up engine oil
!
!
11, !
7, !
23
8
20 0478 105 9821 K - EN
Fault Possible cause Remedy
Illustration
Page
- Poor cut, lawn turning yellow - Mowing blade is blunt or worn
- The rate of feed is too high in
relation to the cutting height
- Engine speed too low
- Re-sharpen or replace mowing
blade
- Reduce rate of feed and/or select
correct cutting height
- Set throttle lever to MAX position
(maximum engine speed)
- Excessive vibration during
operation
- Blade fastening screws are loose
- Engine mounting is loose
- Blade imbalance due to incorrect
re-sharpening or fracture
- Tighten blade fastening screws
- Tighten engine fastening bolts
- Re-sharpen (balance) or replace
blade
12
!, !
12, !
24
24
12, !
7
24
9
- Ejection chute blocked - Mowing blade is blunt or worn
- Mowing grass which is too long
or too wet
- Re-sharpen or replace mowing
blade
- Work at appropriate cutting height
and mowing speed for mowing
conditions (not at the lowest
cutting height = level 1)
12, !
7
24
9
!see engine instruction manual
!if necessary, contact authorised customer service
1
0478 105 9821 K - NO
SV NO EN
DA
FIPL
HU
Kjære kunde.
Takk for at du valgte et
kvalitetsprodukt fra VIKING.
Dette produktet er et resultat
av moderne produksjons-
metoder og omfattende
kvalitetssikringstiltak. Det er
først når du som kunde er
fornøyd med produktet at også
vi kan si oss fornøyde.
Hvis du har spørsmål om
produktet, kan du henvende
deg til din STIHL-forhandler
eller direkte til markedsførings-
selskapet vårt.
Vi ønsker deg lykke til med
VIKING-produktet.
Nikolas Stihl
Ledelsen
Innholdsfortegnelse
VIKING arbeider kontinuerlig med å videreut-
vikle produktspekteret, og vi må av den grunn
forbeholde oss retten til forandringer i
produktenes form, teknikk og utstyr.
Det kan derfor ikke fremmes krav på grunnlag
av informasjon og bilder i denne brosjyren.
Om denne bruksanvisningen 2
Gressklippere med knivbremsclutch, BBC 2
Maskinbeskrivelse 3
For din egen sikkerhet 3
Forberedelser 3
Fremgangsmåte ved gressklipping 3
Vedlikehold og reparasjoner 4
Bensin er giftig og lettantennelig 5
Symbolforklaringer 5
Produktkomponenter 6
Gjøre gressklipperen klar til bruk 6
Montere styret 6
Feste startsnoren 6
Montere oppsamleren 6
Hekte oppsamleren av og på 6
Drivstoff og motorolje 7
Justere klippehøyden 7
Montere biopluggen
MB 450 M, MB 455 M 7
Demontere biopluggen
MB 450 M, MB 455 M 7
Informasjon om gressklipping 8
Klipping i skråninger 8
Virkemåte - bioklipping
MB 450 M, MB 455 M 8
Fremgangsmåte ved bioklipping
MB 450 M, MB 455 M 8
Bøyle for motorstopp 8
Knivbremsclutch (BBC) 8
Bruksområder 9
Ta gressklipperen i bruk 9
Starte motoren MB 400,
MB 450/ M, MB 455 M/ E/ C 9
Slå av motoren MB 400,
MB 450/ M, MB 455 M/ E/ C 10
Kontrollere BBC 10
Starte motoren / kniven på MB 455 BC 10
Stanse kniven / motoren MB 455 BC 11
Ettgirsdrift MB 455 E/ M/ C/ BC 11
Tømme oppsamleren 11
Vedlikehold 11
Rengjøring 11
Forbrenningsmotor 12
Hjul og hjuldrift 12
Justere wiren 12
Vedlikehold av klippekniver 12
Demontere klippekniven 12
Slipe klippekniven 13
Montere klippekniven 13
Vedlikehold av knivbremsclutchen 13
Elektrisk start MB 455 E 13
Vinteropplag 13
Innretning for elektrisk start MB 455 E 14
Lagring 14
Miljøvern 14
Vanlige reservedeler 14
Tilgjengelig tilbehør 14
Vanlig vedlikehold 14
Produsentens
CE-konformitetserklæring 15
Tekniske data 16
Feilsøking 18
20478 105 9821 K - NO
Gressklippere med
knivbremsclutch, BBC
VIKING gressklippere med
betegnelsen BC er utstyrt
med knivbremsclutch, BBC.
Under gressklipping bremses
kniven raskt så snart man har
sluppet styret, slik tilfellet er
for alle moderne gress-
klippere. Med BBC-systemet
slås imidlertid ikke motoren
av samtidig. Denne funks-
jonen gjør det mulig for
brukeren for eksempel å
transportere
gressklipperen ved
hjelp av fremdriften,
tømme oppsamleren eller
bytte oppsamleren med
bioklippkilen og omgående
fortsette arbeidet uten først å
måtte starte motoren igjen.
Det er svært viktig å gjøre
seg kjent med BBC-syste-
mets virkemåte før gress-
klipperen brukes første gang,
slik at personskader og
materielle skader unngås.
Betjeningen av BBS-systemet
er beskrevet i bruksanvis-
ningen, se spesielt kapitlene
“Knivbremsclutch (BBC)” og
“Stanse kniven / motoren
MB 455 BC”.
Kniven får bare
berøres når
kniven har
stanset helt etter
at motoren er
slått av, og
tennpluggkon-
takten er tatt ut.
OBS
Ha aldri hendene
i knivens arbeids-
område når
motoren er i gang.
Fare for at det
oppstår skader!
Dette symbolet knytter
bilder på ilustrasjons-
sidene sammen med
tilhørende tekst i
bruksanvisningen.
Symboler
Om denne
bruksanvisningen
1
Merking av tekstavsnittene
Fremgangsmåtene som er
beskrevet, kan være merket
på forskjellige måter.
Del av
arbeidsbeskrivelse/fremgangs
måte uten direkte referanse til
et bilde.
Eksempel:
• Kniven må slipes jevnt for å
unngå vibrasjoner forårsaket
av ubalanse.
Del av arbeidsbeskrivelse med
direkte referanse til bilde som
du finner på illustrasjons-
sidene (i begynnelsen av
bruksanvisningen), med
henvisning til nummerering
på selve bildet.
Eksempel:
1= Løsne skruen
2= spak...
Generelle opplistinger uten
bilde.
Eksempel:
- Bruk ved sportsarrange-
menter eller andre
konkurranser
I tillegg til beskrivelsen av
fremgangsmåtene, kan det i
denne bruksanvisningen
finnes tekstavsnitt med ekstra
betydning. Disse avsnittene er
merket med et av symbolene
som beskrives nedenfor, slik at
disse avsnittene fremheves
spesielt:
Advarsel om fare for uhell
og personskader, samt
alvorlige skader på
gjenstander.
Informasjon som ikke er
absolutt påkrevd for å
bruke maskinen, men som
gir bedre forståelse og
kan gjøre brukeren i stand
til å bruke maskinen på en
bedre måte.
Bilder finner du helt i begyn-
nelsen av bruksanvisningen.
3
0478 105 9821 K - NO
SV NO EN
DA
FIPL
HU
• Før gressklipperen tas i bruk,
skal den alltid sees over for å
kontrollere at det ikke er feil
på klippeenheten, monte-
ringsskruen og delene i
klippeenheten.
• Overhold de lokale forskrif-
tene for når på døgnet
gressklippere kan brukes.
Fremgangsmåte ved
gressklipping
• Koble fra skjæreverktøyet og
driften (hvis montert) før du
starter motoren.
• Kontroller at tennplugg,
lyddempere, tanklokk og
luftfilter er satt riktig på før
du starter motoren.
• Ikke start motoren hvis
tennpluggen er tatt ut.
• Ikke tipp gressklipperen når
den startes eller når motoren
slås på. Roterende kniv - fare
for personskade.
• Bruk aldri gressklipperen hvis
beskyttelsesutstyr eller -gitter
er skadet, eller uten at be-
skyttelsesutstyr er montert,
for eksempel utkastdeksel
eller oppsamler.
Under arbeid med
gressklipperen må
forholdsreglene som
skal forhindre ulykker, alltid
overholdes.
Bruksanvisningen
for produktet og
motorhåndboken må
leses i sin helhet før
gressklipperen brukes første
gang, og disse må oppbevares
tilgjengelig for senere bruk.
Gjør deg kjent med innstillin-
gene på og bruken av gress-
klipperen.
La aldri barn eller andre som
ikke vet hvordan den skal
betjenes, bruke gressklippe-
ren. Minstealderen for bruk av
denne gressklipperen er 16 år.
Gressklipperen må aldri bru-
kes når det er andre personer,
spesielt barn, eller dyr i nær-
heten.
Tenk på at det er brukeren av
gressklipperen som er an-
svarlig hvis det oppstår ulykker
som involverer andre personer
eller andres eiendom.
Det er ikke tillatt å bruke
gressklipperen etter inntak
av alkohol eller medikamenter
som fører til nedsatt reaksjons-
evne.
Før gressklipperen brukes
første gang, skal forhandleren
eller annen fagkyndig person
gi brukeren en innføring i
hvordan gressklipperen
fungerer.
Gressklipperen er bare bereg-
net til klipping av gress, og det
er ikke tillatt å bruke den til
andre formål.
På grunn av faren for person-
skader, er det ikke tillatt å
bruke gressklipperen til
rengjøring (oppsuging,
renblåsing, snøfjerning) av
gangveier eller som kvern til å
finkutte tre- eller hekkrester.
Gressklipperen skal bare
lånes ut til personer som er
kjent med bruken av denne
modellen, og bruksanvisnin-
gene skal alltid følge med.
Forberedelser
• Bruk alltid kraftige, solide
sko og langbukser
under gressklipping.
Gå aldri barbent eller
med sandaler.
• Se over hele området som
skal klippes, og ta bort
eventuelle steiner, pinner,
metalltråder og andre
gjenstander.
Maskinbeskrivelse
Maskinbeskrivelse
AKnivclutchhendel
(MB 455 BC)
BStyreoverdel
CBøyle for motorstopp
DGasshendel
(MB 455 BC)
EFremdrift
(MB 455 E/ M/ C/ BC)
FNivåindikator
GStart m/snor
HUtkast
IOppsamler
JHjul
KKlippehøydejustering
LMotor
MKabelføring
NDreiehåndtak
OElektrisk start (MB 455 E)
1
For din egen sikkerhet
40478 105 9821 K - NO
25° helning på skråning
tilsvarer en vertikal stigning
på 46,6 cm ved 100 cm
horisontal flate.
• Pass på at du alltid står
stødig i skråninger. Unngå å
klippe i svært bratte skrå-
ninger, ettersom du kan
miste kontrollen over
gressklipperen.
• Klipp på tvers i skråninger,
aldri opp- eller nedover. Hvis
du skulle miste kontrollen
over gressklipperen, kan du
i sistnevnte tilfelle også
risikere å få gressklipperen
over deg.
• Vær spesielt forsiktig ved
endring av arbeidsretning
i skråninger, slik at du ikke
mister kontrollen.
• Vær spesielt forsiktig når du
går bakover og når du drar
gressklipperen.
Det er lett å snuble!
• Vær forsiktig når du snur
gressklipperen eller drar den
mot deg.
• Slå av motoren når gress-
klipperen kjøres på annet
underlag enn gress, og når
den transporteres til og fra
området som skal klippes.
• Du må ikke åpne utkastdek-
selet eller tømme oppsam-
leren når motoren og kniven
er i gang. Den roterende
kniven kan forårsake skader.
•Fare for at det oppstår
skader! La aldri hender eller
føtter komme i
kontakt med
roterende deler.
Sikkerhetsavstanden mellom
styret og maskinen må alltid
overholdes.
• Slå av motoren og trekk ut
tennpluggkontakten:
- Før du skal løfte opp, bære
eller transportere gress-
klipperen.
- Før du fjerner blokkeringer
eller tilstoppinger i utkast-
sjakten.
- Når kniven har kommet
borti en gjenstand.
Kontroller at klippeenheten
ikke er skadet.
- Før du rengjør eller utfører
reparasjoner på gress-
klipperen.
- Hvis gressklipperen
begynner å vibrere mer
enn vanlig. Se straks over
gressklipperen.
- Når du skal gå fra gress-
klipperen.
- Når gressklipperen ikke er i
bruk.
• Slå av motoren når du skal
fylle drivstoff. La motoren
avkjøles i minst to minutter
før du tar av tanklokket.
• Vær oppmerksom på at
klippeenheten
roterer også etter at
motoren er slått av.
Den stopper etter
noen sekunder.
• Lokale bestemmelser
regulerer nedre aldersgrense
for bruk av maskinen.
• For å unngå brannfare, skal
motoren, eksosanlegget og
batterikassen holdes fri for
gress, blader og olje (fett).
Vedlikehold og reparasjoner
Trekk ut tennplugg-
kontakten før det skal
utføres arbeider på
gressklipperen og
motoren.
Utfør bare vedlikeholdsar-
beider som er beskrevet i
bruksanvisningen.
I forbindelse med alt annet
arbeid, må du henvende deg
til VIKING kundetjeneste.
25°
Helningsvinkel
100 cm
46,6 cm
• Hold tredjepersoner borte fra
arbeidsområdet.
• Bruk gressklipperen bare ved
dagslys eller ved god
belysning.
• Oppsamleren skal alltid være
feilfri og uskadet.
• Bryterne som er montert på
gressklipperen av produ-
senten, må ikke fjernes eller
overstyres, ved at for eksem-
pel girspaken bindes fast i
styret.
• Unngå å klippe fuktig gress.
Faren for ulykker øker når
gresset er vått (gjør at
brukeren står mindre stødig).
• Gå langsomt når du bruker
maskinen. Ved høy hastighet
under gressklipping, øker
faren for skade ved at man
snubler, glir osv.
• Av sikkerhetsgrunner får
VIKING gressklippere med
bensinmotor ikke brukes i
skråninger med stigning på
mer enn 25° (46,6 %).
Skråninger får kun klippes på
tvers, aldri oppover eller
nedover, da det kan føre til at
man mister kontrollen over
gressklipperen. Fare for at
det oppstår skader!
Produktspecifikationer
| Varumärke: | Viking |
| Kategori: | Gräsklippare |
| Modell: | MB 455 C |
Behöver du hjälp?
Om du behöver hjälp med Viking MB 455 C ställ en fråga nedan och andra användare kommer att svara dig
Gräsklippare Viking Manualer
27 Oktober 2024
16 Oktober 2024
28 September 2024
14 September 2024
13 September 2024
13 September 2024
13 September 2024
12 September 2024
12 September 2024
12 September 2024
Gräsklippare Manualer
- Ransomes
- Topcraft
- Husqvarna
- Proviel
- Ariens
- Mellerware
- MacAllister
- Silvercrest
- Vonroc
- Defort
- Greenworks
- Aurora
- Rapid
- Yardforce
- King
Nyaste Gräsklippare Manualer
5 April 2025
2 April 2025
1 April 2025
1 April 2025
31 Mars 2025
29 Mars 2025
27 Mars 2025
27 Mars 2025
27 Mars 2025
13 Mars 2025
