Quick Reference Install Guide

3108V Security System

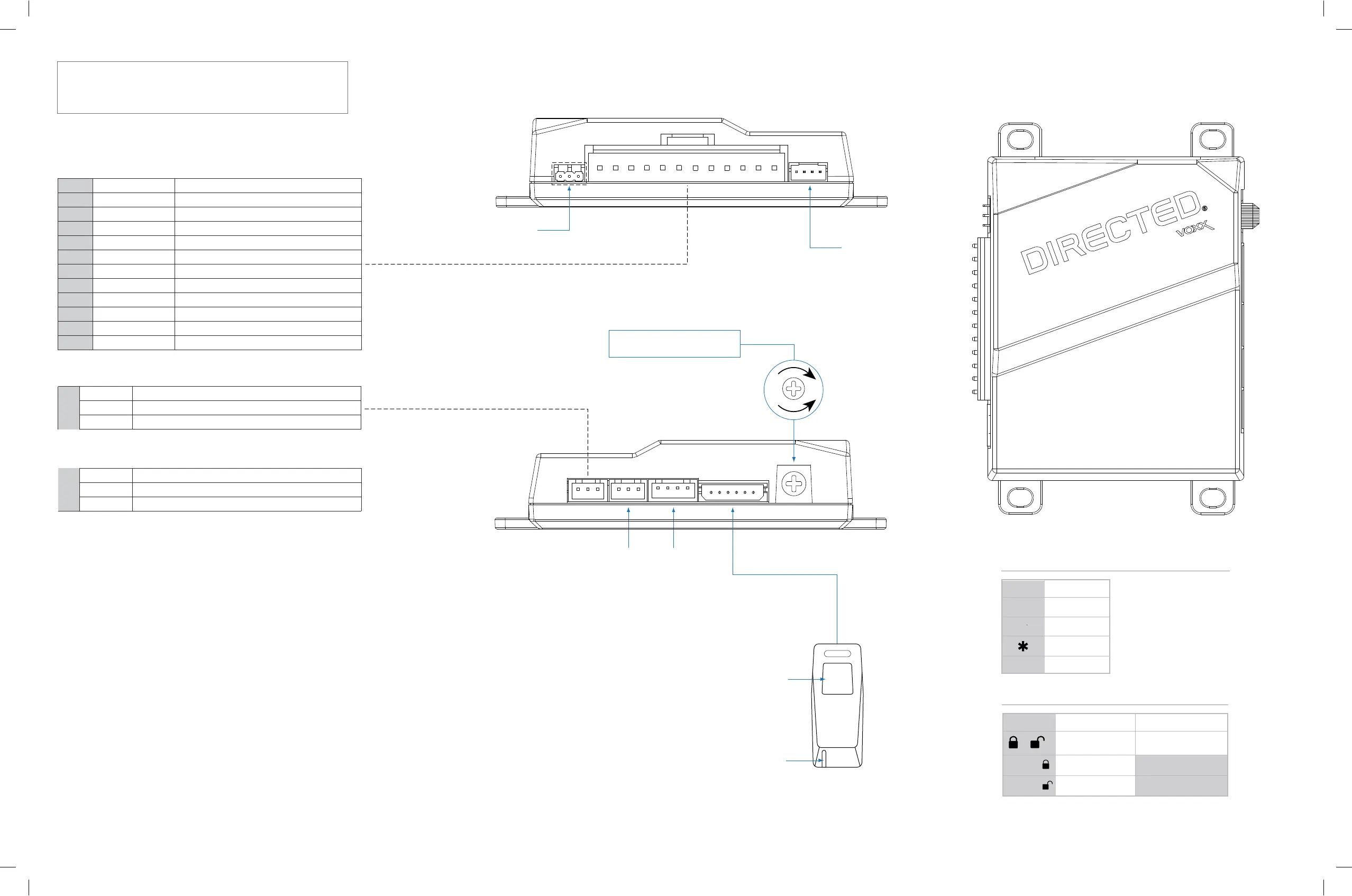

Wiring Connections

Primary Harness, White 12-pin connector

1 RED/WHITE (-) 200mA TRUNK / AUX 1 OUTPUT (Channel 2)

2

RED (+)12V CONSTANT - 15A FUSED (Main power input)

3

BROWN ˜+° SIREN/HORN OUTPUT

4

YELLOW ˜+° IGNITION INPUT ˜See Pre-Wired Starter Kill Relay)

5

BLACK ˜˛° CHASSIS GROUND

6

VIOLET ˜+° DOOR TRIGGER INPUT

7

BLUE ˜˛° INSTANT TRIGGER INPUT

8

GREEN ˜˛° DOOR TRIGGER INPUT

9

BLACK/WHITE

(-) DOME LIGHT OUTPUT

10

WHITE/BLUE (-) 200mA AUX 2 OUTPUT (Channel 3)

11

WHITE (-)/(+) SELECTABLE PARKING LIGHT OUTPUT - 10A FUSED

12

ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT

Parking Light

Polarity Jumper (-/+)

Sensor Port

Shock Sensor Adjustment

Clockwise = More Sensitive

Counterclockwise = Less Sensitive

Door Lock, 3-pin connector

1

BLUE

200mA ˜˛° UNLOCK OUTPUT / ˜+° LOCK OUTPUT

2

EMPTY NOT USED

3

GREEN

200mA ˜˛° LOCK OUTPUT / ˜+° UNLOCK OUTPUT

Pre-Wired Starter Kill Relay

86 YELLOW ˜+° IGNITION INPUT

30 GREEN

STARTER ISOLATION - KEY SIDE

87a

BLACK

STARTER ISOLATION - CAR SIDE

D2D Port

(For external interface module)

SMARTSTART PRO / DirectLoader

Control Center

Button

LED

Important: NEVER connect low current outputs directly to a motor or high

current circuit WITHOUT a relay.

Basic Remote Functions

Button Function

ARM

DISARM

PANIC

AUX

TRUNK / AUX

Advanced Remote Functions

Button

AUX 2

(PRESS Together)

AUX 2 - VALIDITY

(HOLD Together)

AUX

Then

SILENT DISARM

+

Press Function Hold Function

SILENT ARM

AUX

Then
