TSOP312.., TSOP314..
www.vishay.com
Vishay Semiconductors
Rev. 1.1, 05-Feb-14
1
Document Number: 82492
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

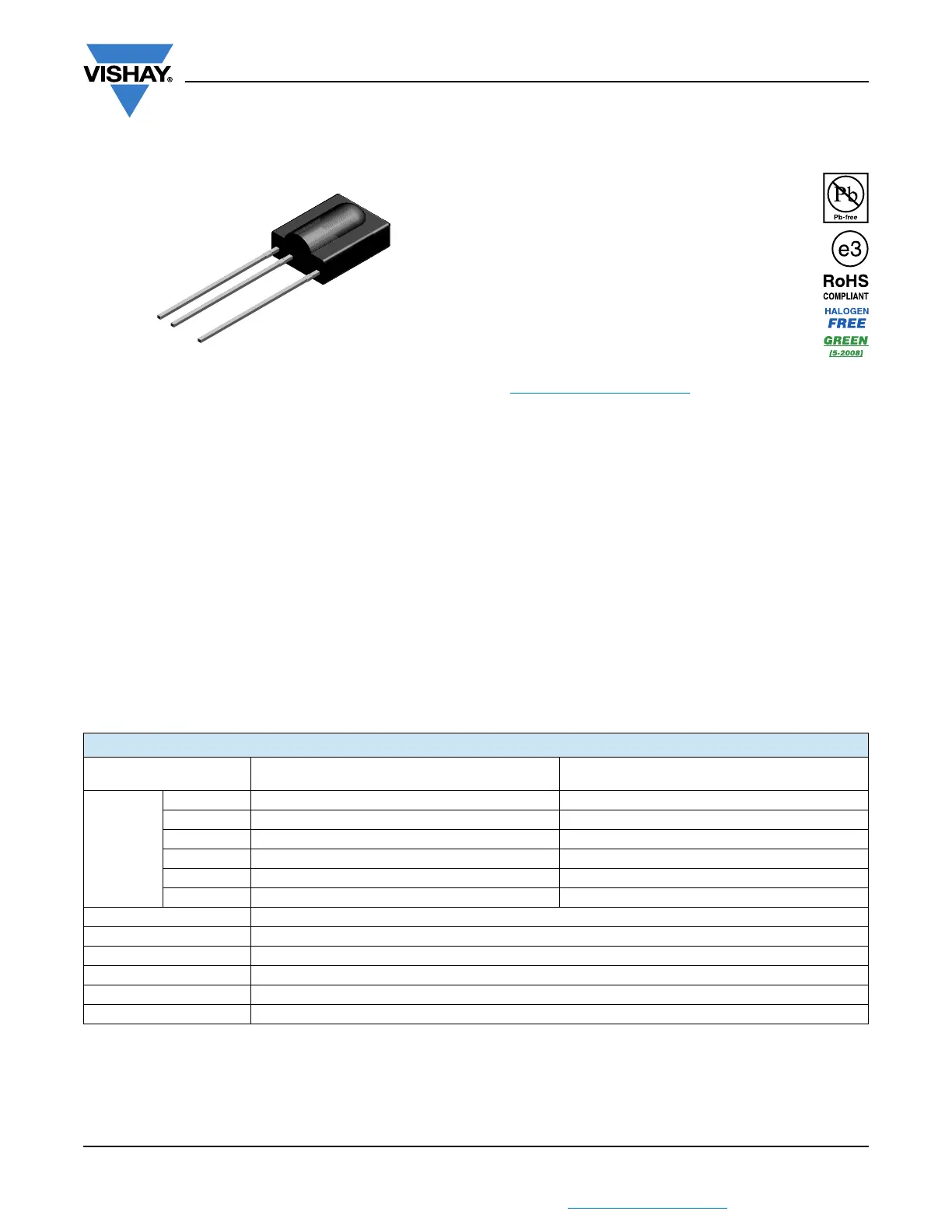

IR Receiver Modules for Remote Control Systems
MECHANICAL DATA
Pinning:
1 = GND, 2 = V
S
, 3 = OUT
FEATURES
• Very low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against EMI
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against ambient light
• Insensitive to supply voltage ripple and noise
• Material categorization:
For definitions of compliance please see
www.vishay.com/doc?99912
DESCRIPTION
The TSOP312.., TSOP314..series are miniaturized IR
receiver modules for infrared remote control systems. A PIN
diode and a preamplifier are assembled on a leadframe, the
epoxy package contains an IR filter.
The demodulated output signal can be directly connected to
a microprocessor for decoding.
The TSOP312.., TSOP314.. are optimized to suppress
almost all spurious pulses from energy saving lamps like
CFLs. The AGC4 used in the TSOP314.. may suppress
some data signals. The TSOP312.. is a legacy product for
all common IR remote control data formats. Between these
two receiver types, the TSOP314.. is preferred. Customers
should initially try the TSOP314.. in their design.
These components have not been qualified according to
automotive specifications.
Note
(1)
We advise try AGC4 first if the burst length is unknown.
94 8691
1
2
3
PARTS TABLE
AGC
LEGACY, FOR
LONG BURST REMOTE CONTROLS (AGC2)
RECOMMENDED FOR
LONG BURST CODES (AGC4)
(1)
Carrier
frequency
30 kHz TSOP31230 TSOP31430
33 kHz TSOP31233 TSOP31433
36 kHz TSOP31236 TSOP31436
(2)(3)(4)
38 kHz TSOP31238 TSOP31438
(5)(6)
40 kHz TSOP31240 TSOP31440
56 kHz TSOP31256 TSOP31456
(7)(8)
Package Cast
Pinning 1 = GND, 2 = V
S
, 3 = OUT
Dimensions (mm) 10.0 W x 12.5 H x 5.8 D
Mounting Leaded
Application Remote control
Best remote control code
(2)
RC-5
(3)
RC-6
(4)
Panasonic
(5)
NEC
(6)
Sharp
(7)
r-step
(8)
Thomson RCA
TSOP312.., TSOP314..
www.vishay.com
Vishay Semiconductors
Rev. 1.1, 05-Feb-14
2
Document Number: 82492
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

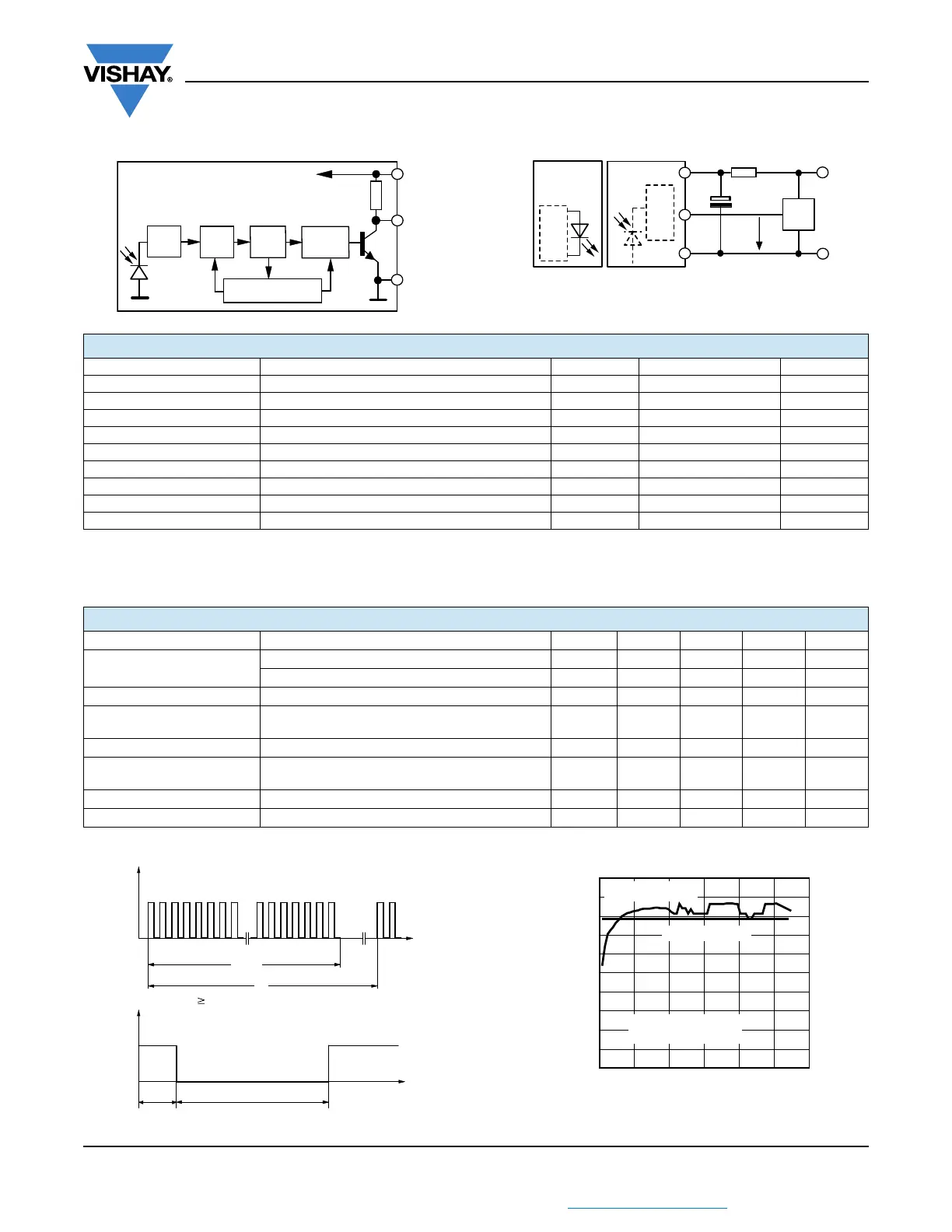

BLOCK DIAGRAM APPLICATION CIRCUIT
Note
• Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for extended periods may affect the device reliability.
TYPICAL CHARACTERISTICS (T
amb
= 25 °C, unless otherwise specified)
Fig. 1 - Output Active Low Fig. 2 - Pulse Length and Sensitivity in Dark Ambient
30 kΩ
2
3
1
V
S
OUT
Demo-
GND
pass
AGCInput
PIN
Band
dulator
Control circuit
16832
C
1
IR receiver
GND
Circuit
µC
R
1
+ V
S
GND
Transmitter
with
TSALxxxx
V
S
V
O
17170_5
OUT
R
1
and C
1
are recommended for protection against EOS.
Components should be in the range of 33 Ω < R
1
< 1 kΩ,
C
1
> 0.1 µF.
ABSOLUTE MAXIMUM RATINGS
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Supply voltage (pin 2) V
S
-0.3 to +6.0 V
Supply current (pin 2) I
S
3mA
Output voltage (pin 3) V
O
-0.3 to (V
S
+ 0.3) V
Output current (pin 3) I
O
5mA
Junction temperature T
j
100 °C
Storage temperature range T
stg
-25 to +85 °C
Operating temperature range T
amb
-25 to +85 °C
Power consumption T
amb
≤ 85 °C P
tot
10 mW
Soldering temperature t ≤ 10 s, 1 mm from case T
sd
260 °C
ELECTRICAL AND OPTICAL CHARACTERISTICS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Supply current (pin 2)
E
v
= 0, V
S
= 3.3 V I
SD
0.27 0.35 0.45 mA
E
v
= 40 klx, sunlight I
SH
0.45 mA
Supply voltage V
S
2.5 5.5 V
Transmission distance
E
v
= 0, test signal see fig. 1,
IR diode TSAL6200, I
F
= 200 mA
d45m
Output voltage low (pin 3) I
OSL
= 0.5 mA, E
e
= 0.7 mW/m
2
, test signal see fig. 1 V
OSL
100 mV
Minimum irradiance
Pulse width tolerance:
t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see fig. 1
E
e min.
0.12 0.25 mW/m
2
Maximum irradiance t
pi
- 5/f
o
< t
po
< t
pi
+ 6/f
o
, test signal see fig. 1 E
e max.
30 W/m
2
Directivity Angle of half transmission distance ϕ
1/2
± 45 deg
E
e
T
t
pi
*
t
* t
pi
10/f
0
is recommended for optimal function
V
O
V
OH
V
OL
t
16110
Optical Test Signal
(IR diode TSAL6200, I
F
= 0.4 A, 30 pulses, f = f
0
, t = 10 ms)
Output Signal
t
d
1)
t
po
2)
1)
7/f
0
< t
d
< 15/f
0
2)
t
pi
- 5/f
0
< t
po
< t
pi
+ 6/f
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.1 1 10 10
2
10
3
10
4
10
5
E
e
- Irradiance (mW/m
2
)
t
po
- Output Pulse Width (ms)
20752
Input Burst Length
λ
= 950 nm,
Optical Test Signal, Fig.1
Output Pulse Width
TSOP312.., TSOP314..
www.vishay.com
Vishay Semiconductors
Rev. 1.1, 05-Feb-14
3
Document Number: 82492
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

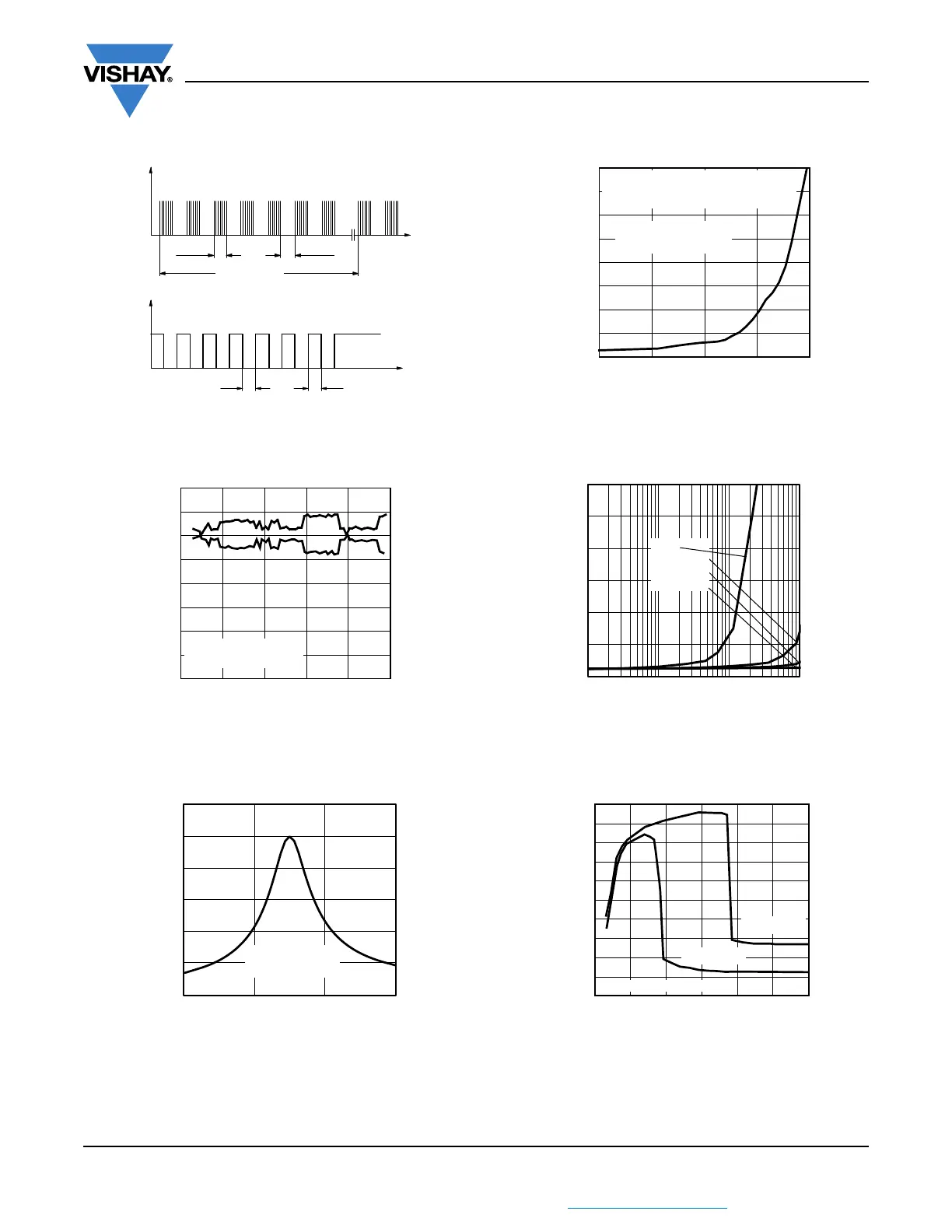

Fig. 3 - Output Function
Fig. 4 - Output Pulse Diagram
Fig. 5 - Frequency Dependence of Responsivity
Fig. 6 - Sensitivity in Bright Ambient
Fig. 7 - Sensitivity vs. Supply Voltage Disturbances
Fig. 8 - Maximum Envelope Duty Cycle vs. Burst Length
E
e
t
V
O
V
OH
V
OL
t
600 µs 600 µs
t = 60 ms
t
on
t
off
94 8134
Optical Test Signal
Output Signal, (see fig. 4)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.1 1 10 100 1000 10 000
E
e
- Irradiance (mW/m
2
)
T
on
, T
off
- Output Pulse Width (ms)
20759
λ = 950 nm,
Optical Test Signal, Fig. 3
T
on
T
off
0.0
0.2
0.4
0.6
0.8
1.0
1.2
0.7 0.9 1.1 1.3
f/f
0
- Relative Frequency16925
f = f
0
± 5 %
Δ f(3 dB) = f
0
/10
E /E - Rel. Responsivity
e min.
e
0
0.5
1
1.5
2
2.5
3
3.5
4
0.01 0.1 1 10 100
E
e
- Ambient DC Irradiance (W/m
2
)
E
e min.
- Threshold Irradiance (mW/m
2
)
Correlation with Ambient Light Sources:
10 W/m
2
= 1.4 kLx (Std. illum. A, T = 2855 K)
10 W/m
2
= 8.2 kLx (Daylight, T = 5900 K)
Wavelength of Ambient
Illumination:
λ
= 950 nm
20757
0
0.5
1.0
1.5
2.0
2.5
3.0
1 10 100 1000
E
e min.
- Threshold Irradiance (mW/m
2
)
ΔV
S
RMS
- AC Voltage on DC Supply Voltage (mV)
f = f
0
f = 30 kHz
f = 10 kHz
f = 100 Hz
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0 20 40 60 80 100 120
Burst Length (number of cycles/burst)
Max. Envelope Duty Cycle
f = 38 kHz, E
e
= 2 mW/m²
TSOP312..
TSOP314..
20773
