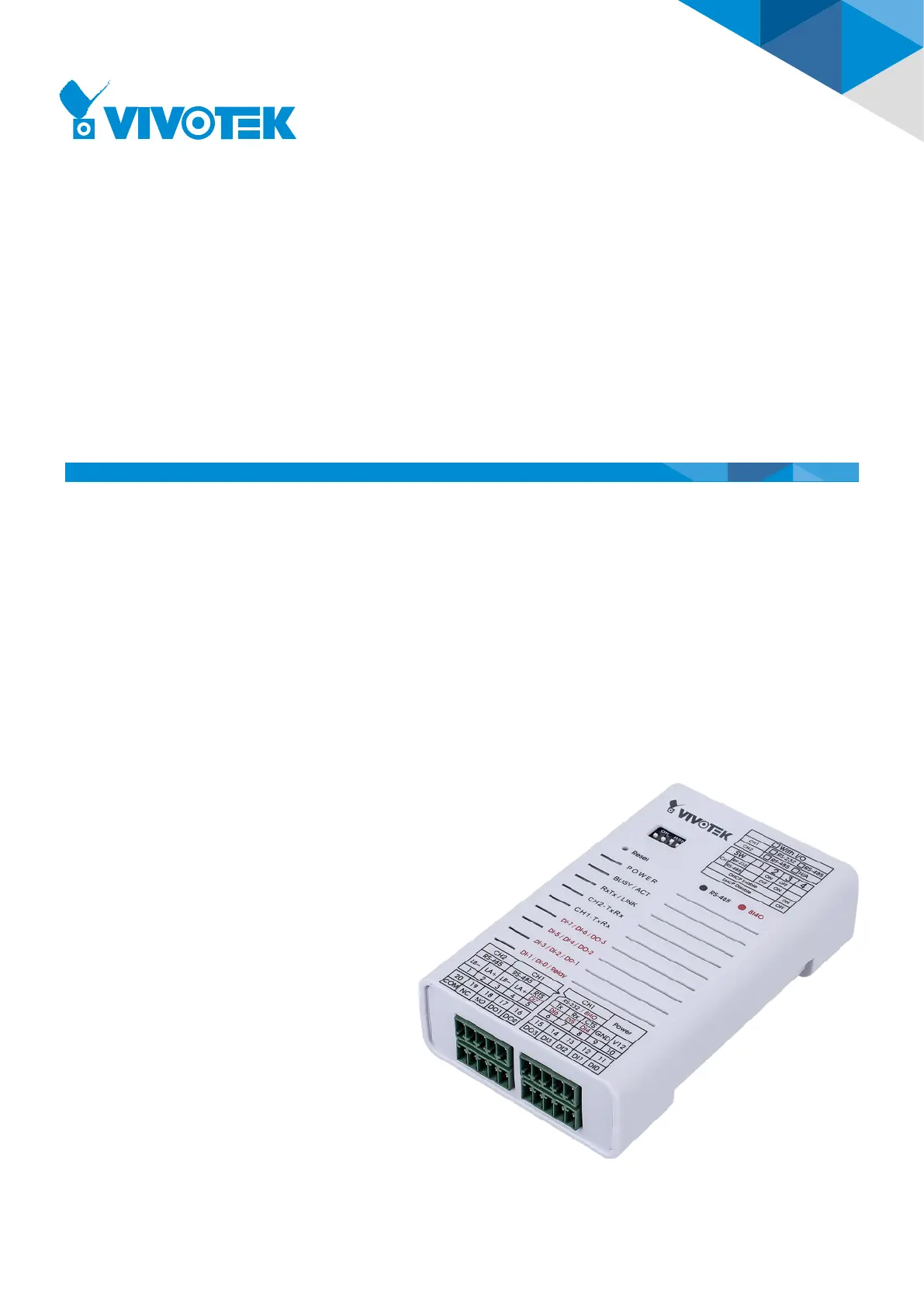

AO-20W
Wiegand Converter
Easy Integration • Ethernet to Wiegand Output Conversion
•Easy Integration into any Access Control System
•Use in Combination with the ANPR Access Service
•Supports Ethernet to Wiegand Output Conversion
•Supports 26-bit and 34-bit Wiegand Format
Overview
Scenario
The Wiegand protocol is commonly used in traditional access control systems, which grant access to drivers based on
their badge with valid Wiegand ID numbers. In order to easily upgrade existing access control systems with the power of
VIVOTEK LPR cameras, VIVOTEK’s onboard ANPR software can link license plates to specic Wiegand ID numbers (eg.
driver’s badge). In the meantime, the VIVOTEK Wiegand converter can convert the Ethernet signal to Wiegand output
signal in order to work with the existing access control system.
Moreover, with VIVOTEK’s ANPR software, you can also easily congure a mapping list to link plate numbers to specic
ID numbers and set specic actions to individual groups.
PoE Switch
Wiegand Converter Access Control System Barrier
Ethernet
Wiegand RS-485
Management System
Complex Scenario
Technical Specications
Model AO-20W
Hardware
TCP Server 10/100 Mbps Base T Ethernet <--> RS485
(Auto-detection by order: RS232, RS232+RS485)
Server Port 0 Baud rate: 2400 bps - 115200 bps
Support TCP/Server, TCP/Client, UDP mode
Server Port 1 Baud rate: 2400 bps - 115200 bps
Support TCP/Server, TCP/Client, UDP mode
Maximum Wiegand Output Up to 96 bits
PoE No
General
Connectors
Digital input x 8
Digital output x 4: relay output p3-x1 & digital output x3
(DO1, DO2 = WG data 1, data 0 when using Wiegand protocol)
LED Indicator 9 LEDs for power, communication
Power Input DC 9 ~ 24V
Power Consumption Max. 2W
Dimension 106.5 (L) x 66.3 (W) x 27.7 (H) mm
Weight 86 (±5) g
Safety Certications FCC, CE, RoHs
Operating Temperature Starting Temperature: -25°C ~ 85°C (14°F ~ 185°F)
Working Temperature: -20°C ~ 65°C (-4°F ~ 149°F)
Humidity Storage: 5% ~ 95%
Working: 20% ~ 90%
Buer 1K each channel
Surge Protection
Power: 30 Volt, bi-directional avalanche breakdown device
RS485 6.5 Volt, bi-directional avalanche breakdown device
400W peak power dissipation
Clamping time < 1 picosecond (theoretical)
Fuse Protection Power PTC 150mA / RS485 PTC 30mA
Software
Software Setting 701Server, 701Client HTTP web browser
Operating System Windows 7/8/10
Win Server 2008/2012/2016
Watchdogs Yes, build in watchdog for system error handling
