Compatible VIVOTEK Cameras

Compatible brackets Supported Cameras

AM-714 IB836BA-EHF3/EHT/HF3/HT, IB8382-EF3/ET/F3/T, IB9371-EHT/HT, IB9381-EHT/HT

AM-719

IB836BA-EHF3/EHT/HF3/HT, IB8382-EF3/ET/F3/T, IB9371-EHT/HT, IB9381-EHT/HT,

IB9365-EHT/HT, IB9367-EHT/HT/H, IB8377-EHT/HT

AM-218 (via AM-714/

AM-719)

Please refer to AM-218, AM-520, and AM-525 documents.

Directly attached Supported Cameras

* IB836BA-EHF3/EHT/HF3/HT, IB8382-EF3/ET/F3/T, IB9371-EHT/HT, IB9381-EHT/HT,

IB9365-EHT/HT, IB9367-EHT/HT/H, IB8377-EHT/HT, IB8367A, IB8369A, IB8377-H,

IB8379-H, MS8391-EV, MS9390-HV, IB9367-EHT-v2

* The directly-attached conguration is less recommended for the lack of waterproof and cabling

protection. If directly attached, you should properly wrap the rear-end cables and connectors with

waterproof protection such as putties.

Revision History:

Rev. 1.0: Initial release; Rev. 1.1: Added mounting holes for IB8367A, IB8369A, IB8377, and IB8379.

Rev. 1.2: Added MS9390-HV as the supported model. Rev. 1.3: Added IB9367-EHT-v2 as the supported model.

Corresponding ordering part numbers:

AM-312: 900034801G, AM-714: 100134800G

AM-218: 100146100G AM-719: 100184500G

VIVOTEK Mounting Accessories

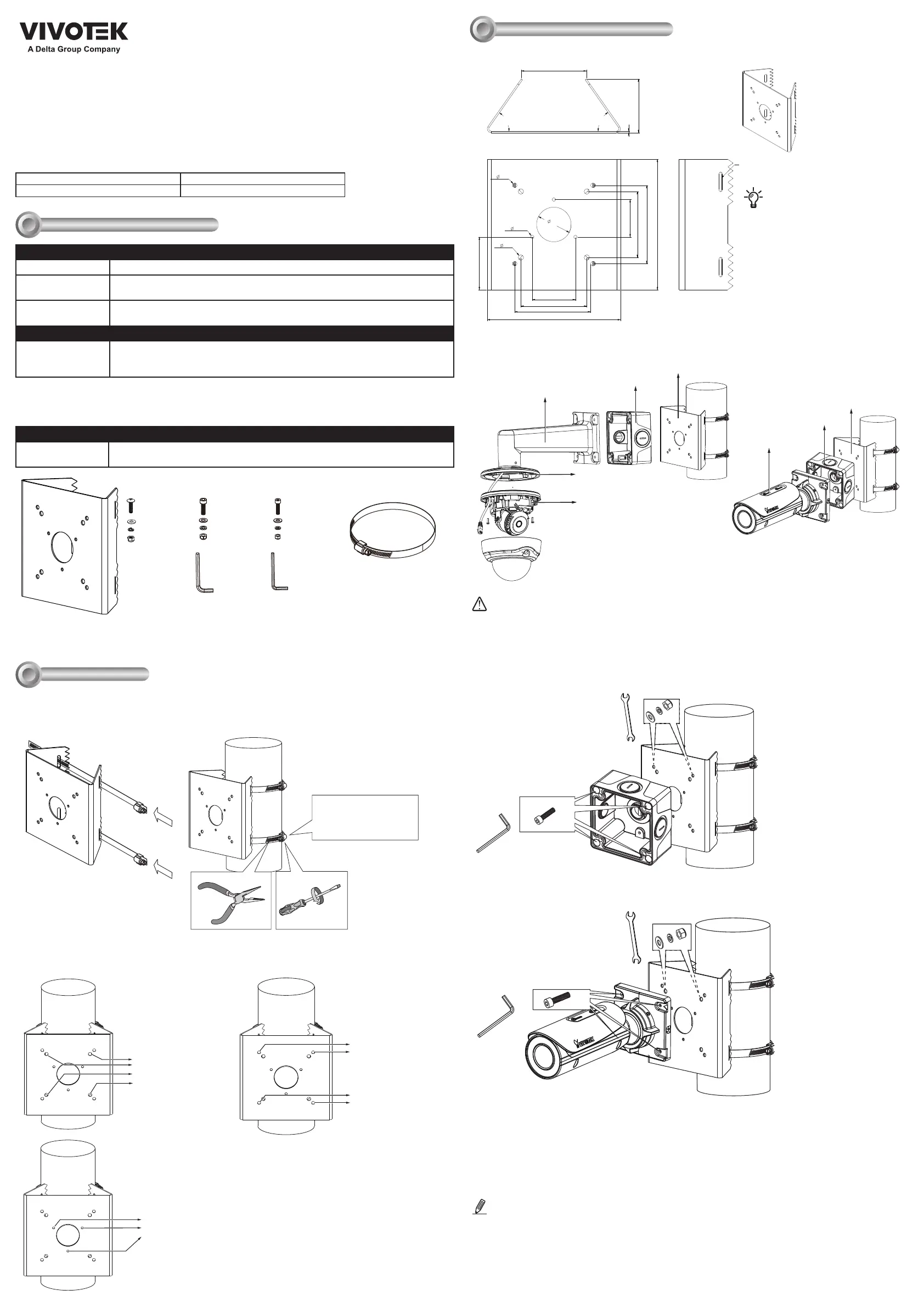

AM-312 Pole mount

Installation Guide

https://www.dropbox.com/sh/eo7e72dc1vh6vtc/AADVuNErcli6woSgWBA1RyDta?dl=0

Package Contents

Items 1. Pole mount bracket, 2. Stainless strap x2, 3. M6X20mm screws x4. 4. M5X20mm

screws x4, 5. Hex L wrench 5mm x1, 6. Hex L wrench 4mm x1, 7. M4x15 screws x4.

AM-312

Pole mount bracket

Mechanical Drawings

173,79

170

4- 6

102

55°

70,05

4- 7

84,9

56,29

48,75

3- 4,5

68,75

4-OB 25.5X5.5mm

M6X20

5mm

M5X20

4mm

Stainless steeel strap

M4X15

AM-312

Applications

Bullet camera

AM-312

AM-218

AM-714 / AM-719

Dome camera

AM-520 / AM-525, etc.

AM-312

AM-714 / AM-719

Installation

III

Below is a general, sample procedure using a Pole mount bracket:

1. Pass the stainless steel straps through the bracket and around the pole.

2. Tighten the straps using a pincer plier and a at blade screwdriver.

3. The 4 screw holes in the center are used for directly mounting the IB series bullet cameras.

The 4 screw holes at the edges are used for mounting the AM-714 conduit box.

For M6 socket screws

- for IB series bullet cameras

directly attached

Also applies to MS9390 using

the M4 screws

The pole mount bracket is designed to

accommodate a pole in a diameter ranging

from 90 ~ 152mm (3.5 ~ 6 inches)

• Make sure you have purchased the adequate accessories to be combined for your installation.

• Please do not install an indoor camera in an outdoor environment! Doing so will void our

warranty.

This is determined by whether the camera housing is weather-proof.

• Direct sunlight can tremendously increase the temperature within the device.

Installation Torque:

35 lb-in(40kg-cm)

For M5 socket screws

- for AM-714/AM-719

conduit box

4. Secure the AM-714 / AM-719 conduit box to bracket using the M5 screws, washers, and hex heads. A hex

crescent wrench is required.

If you are installing a bullet camera directly to the bracket, use the M6 screws in the center. A hex crescent

wrench is required.

5. For the rest of the installation procedure, refer to the documentation that came with the AM-714, AM-719, AM-

218, and the other accessories.

The 3/4" cable glands and conduts for protecting cables are user-supplied.

Rev. 1.3

The 3 screw holes in the center are used for mounting

the IB8367A, IB8369A, IB8377-H, IB8379-H bullet

cameras.

For M4 screws

- for IB8367A, IB8369A

IB8377-H, IB8379-H

The installation of IB8367A, IB8369A, IB8377, and IB8379 is similar to the above, except using di󰀨erent

mounting holes and screws.
