Sida 1/4

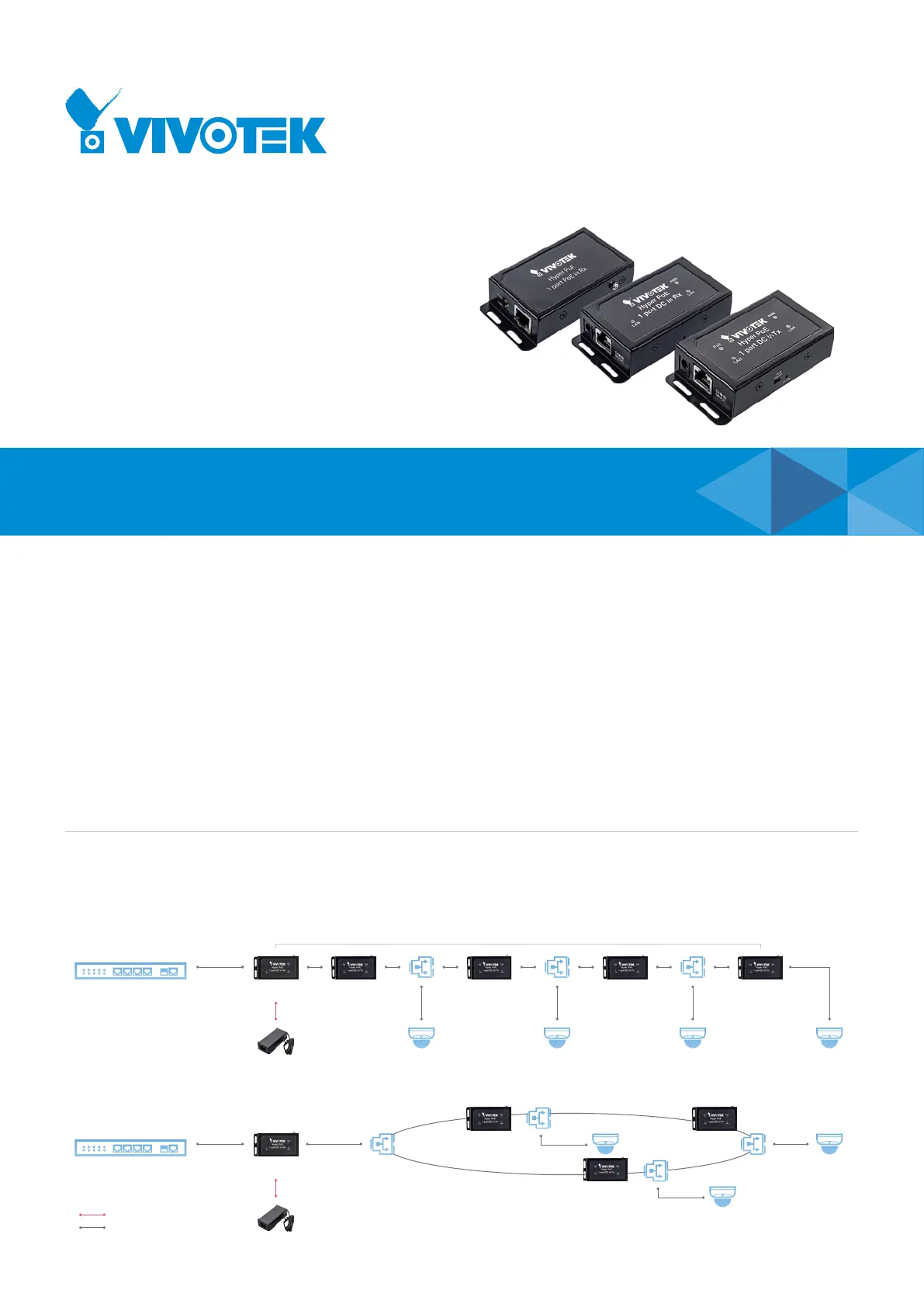

AP-FHP-0100-R

AP-FHP-0105-R

AP-FHP-0105-T

Hyper PoE Extender

Key FeaturesIntroduction

The Hyper PoE Extender for IP cameras is a long-range solution

providing Fast Ethernet and Power over Ethernet cables up

to 1,200m. This product line is the best solution for IP video

surveillance in cases of long-distance applications. By adopting

VIVOTEK'S Hyper PoE Extender, our customers no longer require

a ber cable for data transmission over distances above 300m,

thereby saving on wiring and extra installation costs. In addition,

the Hyper PoE Extender transmits both power and data to IP

cameras whereas fiber solutions only provide data, further

reducing installation and maintenance expenditure.

•

Extend Ethernet and Power up to 1,200m (3,937 ft) over Cat 5e

Ethernet Cable

•

Support Ring Topology up to 4 IEEE 802.3af Camera for Power

Redundancy

•

Support Daisy Chain Topology up to 4 IEEE 802.3af Camera

•

Easy Installation

•

Both Wall Mount and Rackmount Supported

Long Range Solution • Quick Installation •

Flexible Connection

Application

Daisy Chain 400M

Ring 400M

Network Switch

Power

Ethernet Cable

AP-FHP-0105-R AP-FHP-0105-T AP-FHP-0105-T

400m

100m

AP-FHP-0105-T AP-FHP-0105-T

Network Switch AP-FHP-0105-R

AP-FHP-0105-T

Distance/Power Table

AP-FHP-0105-T

Length of Ethernet Cable (Cat 6) Power with AA-420 65 Watt Power with PoE Switch 30 Watt

Power with

AP-GIC-011A-060 60 Watt

AP-GIC-011A-095 95 Watt*

300 m (984 ft) 27.7 W41.2 W 8.8 W

500 m (1,640 ft) 23.9 W 5 W 17.2 W

800 m (2,625 ft) 14.7 W 10.5 W-

1000 m (3,281 ft) 11.7 W - 8.2 W

1200 m (3,937 ft) 5.9 W8.8 W -

2400 m (7,873 ft) Data only (100Mbps) Data only (100Mbps) Data only (100Mbps)

NOTE:

1. The power table is measured by VIVOTEK's PoE switch and PoE injector.

2. The length of network cable for camera and switch connection is 1m Cat6 cable.

3. The power delivery will vary depending on the quality of Cat6 cable used due to variations in resistance.

*Due to the current limit and resistance in long length, the output will be the same as 60 Watt.

Solution Kit

Ordering Information

Model Content Description P/N

AP-FHP-0100-R AP-FHP-0100-R 1 Port Hyper PoE Rx Module,

PoE input 900057600G

AP-FHP-0105-R AP-FHP-0105-R + AA-420

1 Port Hyper PoE Rx Module, USA 100216800G

1 Port Hyper PoE Rx Module, EU 100216810G

1 Port Hyper PoE Rx Module, UK 100216820G

1 Port Hyper PoE Rx Module, AU 100216830G

1 Port Hyper PoE Rx Module, JP 100216840G

AP-FHP-0105-T AP-FHP-0105-T 1 Port Hyper PoE Tx Module 900057700G

DC input

Network Switch

Power

Ethernet Cable

AA-420

AP-FHP-0105-R Camera

AP-FHP-0105-T

PoE Switch AP-FHP-0100-R Camera

AP-FHP-0105-T

PoE input

Network Switch

Note: VIVOTEK's Hyper PoE Rx modules are only compatible with Hyper PoE Tx modules

Note: It is not recommended to install these in outdoor environments

PoE Injector AP-FHP-0100-R Camera

AP-FHP-0105-T

Technical Specications

Model AP-FHP-0100-R AP-FHP-0105-R AP-FHP-0105-T

Product Description 1 Port Hyper PoE Rx Module, PoE

input 1 Port Hyper PoE Rx Module 1 Port Hyper PoE Tx Module

Hyper PoE Port 1x FE RJ45

Power Pin 1~4(-), 5~8(+)

1x FE RJ45

Power Pin 1~4(-), 5~8(+)

1x FE RJ45

Power Pin 1~4(-), 5~8(+)

Ethernet Port 1 x FE RJ45, 30/60/95W PoE input 1 x FE RJ45 1 x FE RJ45, PoE output

1/2(+), 3/6(-), 4/5(+),7/8(-)

DC Jack - 1 1

PoE on/off Switch - - 1

Transmission Mode Rx Rx Tx

Max. PoE Distance (Cat 6) 8.8W @1200m, 100Mbps

Max. Ethernet Distance (Cat 6) 2400m, 100Mbps

Power Input 30/60/95W PoE input DC 56V DC 56V or Hyper PoE

Power Consumption 3W 3W 3W

PoE Standard IEEE 802.3 bt - -

Dimension 102.9 x 48.9 x 23.4 mm 109 x 51.5 x 24 mm 109 x 51.5 x 24 mm

Weight 156 g 169 g 169 g

Operating Temperature -20˚C ~ 60˚C ( -4˚F ~ 140˚F) -20˚C ~ 60˚C ( -4˚F ~ 140˚F) -20˚C ~ 60˚C ( -4˚F ~ 140˚F)

Storage Temperature -20˚C ~ 85˚C ( -4˚F ~ 185˚F) -20˚C ~ 85˚C ( -4˚F ~ 185˚F) -20˚C ~ 85˚C ( -4˚F ~ 185˚F)

Operating Humidity 5% ~ 95% non-condensing 5% ~ 95% non-condensing 5% ~ 95% non-condensing

Safety Certication CE, FCC, VCCI, C-Tick CE, FCC, VCCI, C-Tick CE, FCC, VCCI, C-Tick

Dimension

102.9 mm

48.9 mm 23.4 mm

109 mm

51.5 mm 24 mm

109 mm

51.5 mm 24 mm
