LC

VDC: 50V ~ 56V

AC-to-DC power

100~240 VAC IN

(DO NOT connect external power

supply to V2!)

POWERGreen ONPower is on and normal.

Fiber Link/

Act

Green ONFiber is attached.

Green FlashingData is being transmitted / received.

LAN port

Green

Green ONTX link is detected.

Green FlashingData is being transmitted or received.

PoE port

Amber

Amber ONPSE is activated and PD is detected.

Amber FlasingPSE data is being transmitted or received.

1. Install the converter in a ventilated and dry place that is free of electromagnetic source, vibration, moisture, and dust.

2. Make sure the ventilation openings on the converter are not blocked.

3. Use ber optic cables and transceiver compliant with the following: Multi-mode: 50/125um, 62.5/125um, 850/1310nm;

Single-mode: 9/125um ,1310/1550nm.

4. DC input: 50V~56VDC. Follow the printed polarity for V+, V-, and Ground.

5. Please DO NOT connect power to the V2 pins.

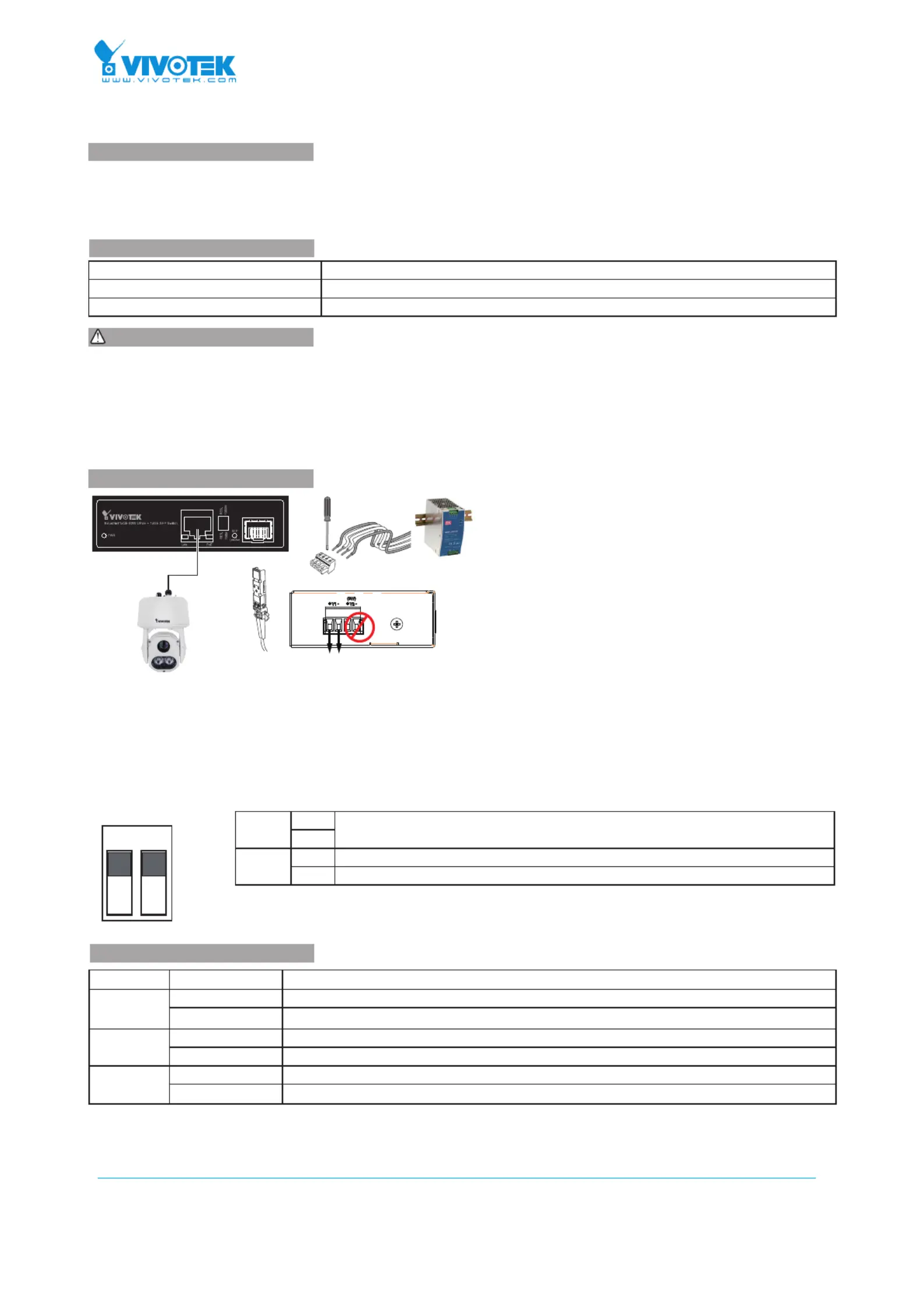

AW-IHH-0200 Industrial 95W PoH/PoE Switch

Quick Installation Guide

The AW-IHH-0200 is a rugged Gigabit switch designed for critical and space-limited outdoor applications. Designed for IP

surveillance, trafc monitoring, and security applications in critical environments, the converter can deliver a 95W output

on Ethernet port, featuring an operating temperature ranging from -40°C to 75°C.

IMPORTANT:

INTRODUCTION

LED DEFINITIONS

CONNECTION

* 1x PoE switch* 1x Quick Installation Guide

* 2x wall mount brackets* 1x DIN rail bracket

* 1x 4-pin terminal block

PACKAGE CONTENTS

1. Pull out the 4-pin terminal block.

2. V1(power input): Connect positive wire of external

power supply to V1 +, negative wire to V1 -, and

neutral wires to the ground screw.

3. V2(relay output): Connect the 24VDC@1A pins

to external devices, When 2 power pins are

connected, the relay is shorted. When any of them is

disconnected, the relay connection is open.

4. Connect an SFP transceiver to the ber port.

5. install the 4-pin terminal block. You can connect

redundant power line pairs for fault tolerance.

ON

OFF

21

DIP 1OFFno use, reserved.

ON

DIP 2OFF1000Mbps speed for SFP port (default)

ON100Mbps speed for SFP port

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|||T:+886-2-82455282F:+886-2-82455532E:sales@vivotek.com

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|||T: 408-773-8686F: 408-773-8298E: salesusa@vivotek.com

VIVOTEK Europe

Randstad 22-133, 1316BW Almere, The Netherlands

TE:+31(0)36-5298-434 : saleseurope@vivotek.com

All specications are subject to change without noice.

Copyright © 2016 VIVOTEK INC. All rights reserved.

Solid or stranded (AWG): 12-24/14-22.

Wire strip length: 7-8mm

Torque: 5lb-In/0.5Nm/0.56Nm.

WARNING - Always ground the power source to maintain a clean power input.

- Always shut off power source before connecting power wires.
