ENGLISH

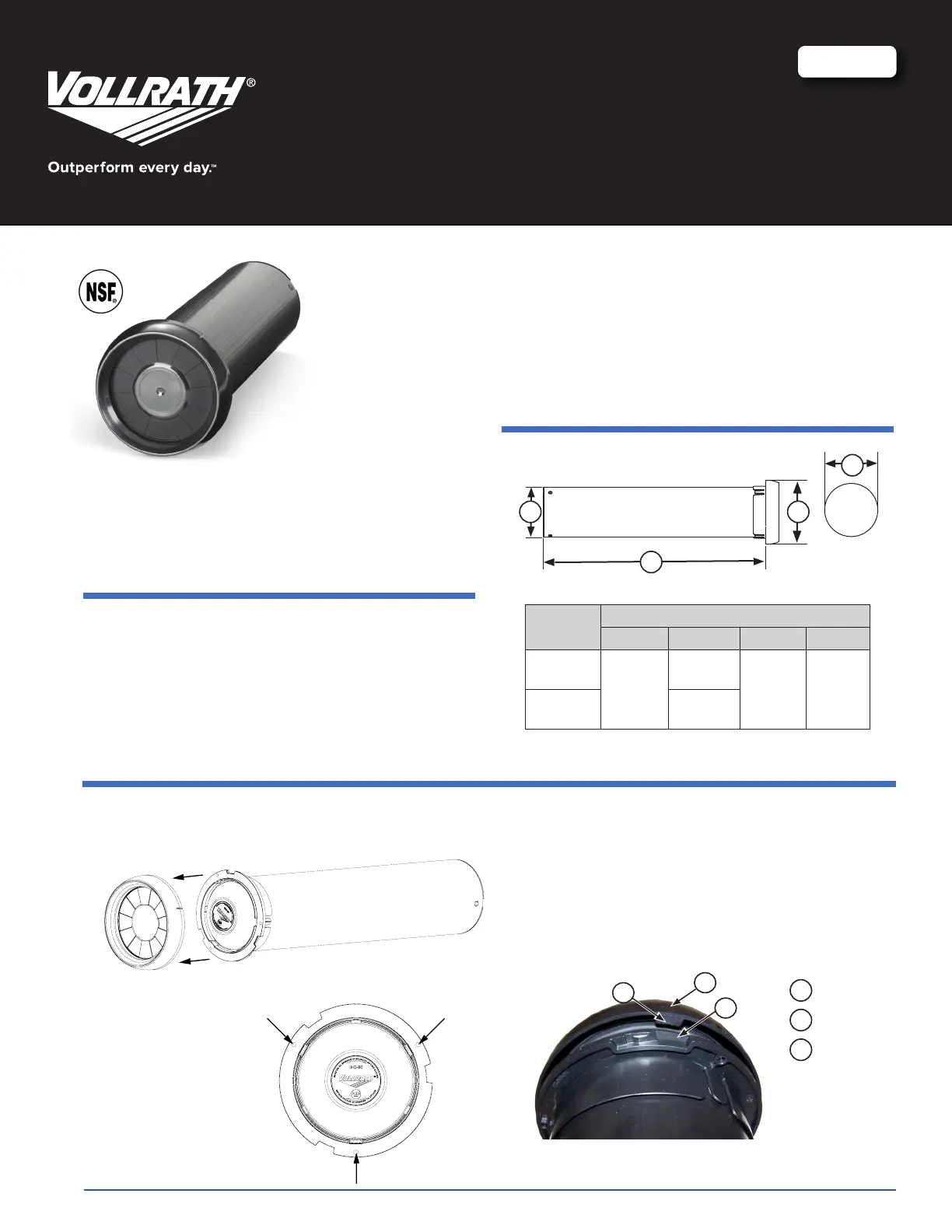

Operator’s Manual

Item No.8013051Rev4/9/15

INC-80 AND INC-80S18 CUP DISPENSER

Thank you for purchasing this Vollrath product. Before operating the equipment, read and

familiarize yourself with the following operating and safety instructions. SAVE THESE

INSTRUCTIONS FOR FUTURE REFERENCE. Save the original box and packaging.

Use this packaging to ship the equipment if repairs are needed.

Tools Needed

Medium size Phillips head screwdriver

Hole saw

Drill and 1/8” drill bit

Included parts: 3 #8 x 1” screws, 3 additional gaskets for dispensing

different diameter cups, parts bag for horizontal mounting

IN-CouNTer (VerTICal) INsTallaTIoN

dImeNsIoNs

31

4

2

Model

Dimension

1234*

INC-80

6-5/8”

(16.8 cm)

23-1/8”

(58.7 cm)

5-1/4”

(13.3 cm)

5-1/2”

(13.9 cm)

INC-80S18

18-1/8”

(46 cm)

*Mounting hole diameter

1. Determine installation location.

2. Use a hole saw to cut a 5-1/2” (13.9 cm) hole in the countertop.

3. Remove the bezel/gasket from the dispenser.

4. Place dispenser in cutout hole.

5. Mark the three ange mounting

holes with a center punch.

6. Drill three 1/8” holes.

7. Secure dispenser into counter with included #8 x 1” screws.

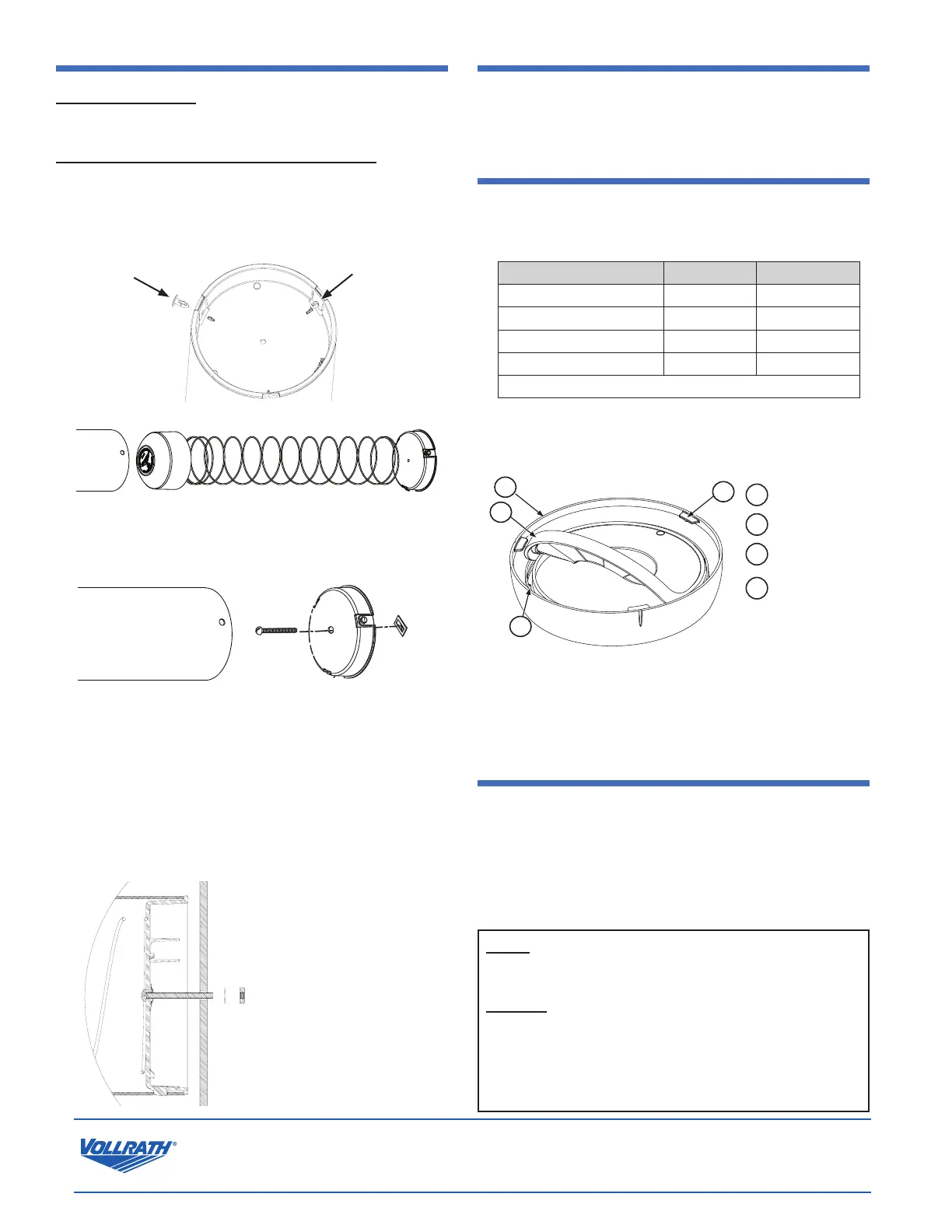

8. Dispenser ships with medium size gasket installed. To change gasket to

t a different cup size, see “Change the Cup Size” on page 2.

9. Re-install the bezel (with gasket) onto tube.

• Align the three tabs on the bezel with the notches on the ange or use

the lines on the bezel to align the bezel with the ange.

• Rotate clockwise until you feel and hear a click, securing the

assembly together.

A

B

C

A

Tab

B

Notch

C

Alignment

line
