Installation Instructions

©

2017 The Vollrath Company L.L.C. Part No.350588-1 ml10/17/17

Low Profile Hinged Glass Breath Guards

Please register your product at Vollrath.com/ProductRegister

TABLE OF CONTENTS

Breath Guard Installation .............................................page1

Single-Sided RetroFit Kit Installation ...........................page5

Heat Strip Installation ..................................................page7

Light Strip Installation .................................................page8

BREATH GUARD INSTALLATION

Before You Begin

1.Download the specification sheet from Vollrath.com. You will need

to refer to this document for dimensions and NSF requirements.

2.Know the countertop manufacturer's requirements for preparing and

installing equipment into the countertop prior to starting installation.

Tools You Will Need

Drill Mounting Holes

NOTICE:Countertop materials require specific preparation. Refer to

the countertop manufacturer for instructions regarding the

proper installation of equipment into the material.

1.Place the cut out template over one end of the countertop. Follow the

instructions on the template.

2.Repeat step 1 on the other end of the countertop.

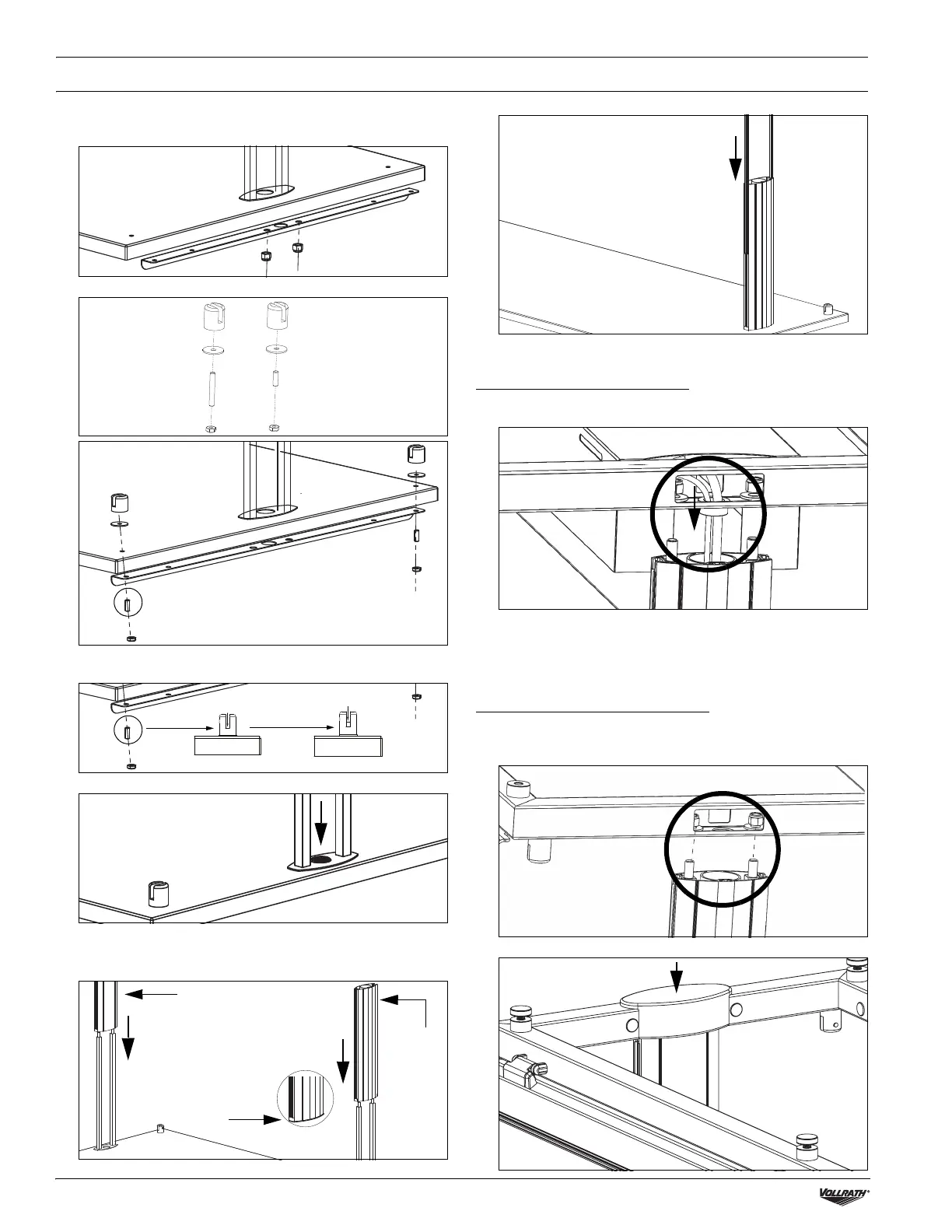

Assemble and Mount the Breath Guard

1.Assemble the tie rods.

2.Set the mounting gasket in place. Insert the tie rods through the

holes in the gasket and countertop.

Item No.

StyleLength

For Signature Server

®

With Stainless Steel

Countertops

For Drop-ins and Signature

Server

®

With Non-Stainless

Steel Countertops

—LP55277

Double-

Sided

Buffet

2-Well/Pan

55278LP552783-Well/Pan

55279LP552794-Well/Pan

55280LP552805-Well/Pan

55281LP552816-Well/Pan

—LP55319

Single-

Sided

Buffet with

Top Shelf

2-Well/Pan

55315LP553153-Well/Pan

55316LP553164-Well/Pan

55317LP553175-Well/Pan

55318LP553186-Well/Pan

•Drilling template, included•⁹⁄₃₂" drill bit

•Allen wrench, included•¹³⁄₃₂" drill bit

•Hammer•1

" drill bit

•Drill•⁷⁄₁₆"

combo wrench

•Spotting punch•⁹⁄₁₆ "combo wrench

Solid-surface and

laminate countertops:

use longer mounting

hardware

Stainless steel

countertops: use shorter

mounting hardware
