WAC Lighting

www.waclighting.com

Phone (800) 526.2588 • Fax (800) 526.2585

Headquarters/Eastern Distribution Center

44 Harbor Park Drive • Port Washington, NY 11050

Phone (516) 515.5000 • Fax (516) 515.5050

Western Distribution Center

1750 Archibald Ave • Ontario, CA 91761

Phone (800) 526.2588 • Fax (800) 526.2585

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEPTEMBER, 2015

a. With HANGERb. With 1/2

CHANNEL (not included)

c. With 3/4

CHANNEL (not included)

d. With 1 1/2

CHANNEL (not included)

e. With ROUND

CHANNEL (not included)

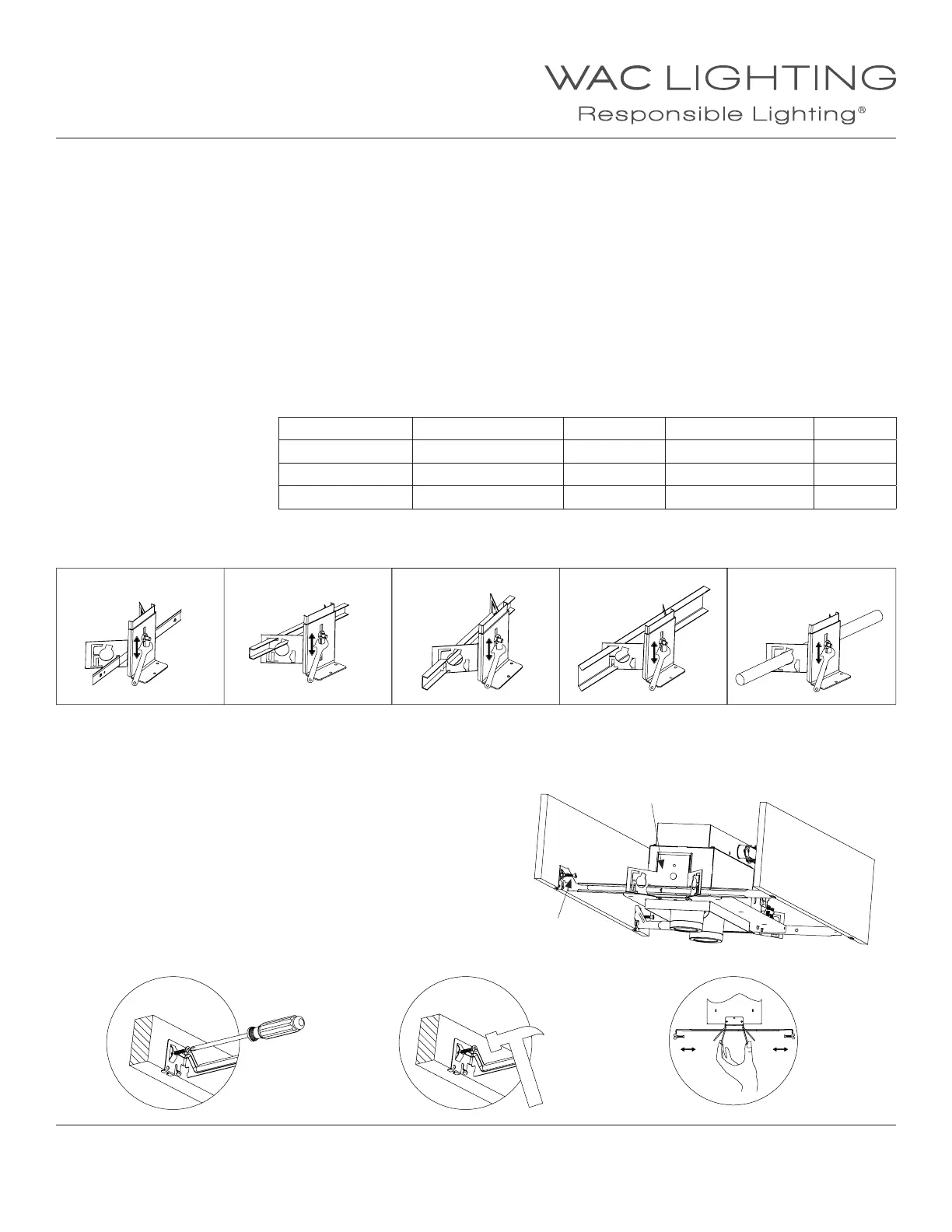

INSTALLATION INSTRUCTION

Precision Multiples

4” LED Adjustable recessed downlights MT-4LD

Fig. 1Fig. 2Fig. 3Fig. 4Fig. 5

2. Install the mounting frame using two hanger bars. Bars are notched on

the ends to t over “T” bars in suspended ceilings.Hanger bars include

a captive mounting “screw-nail” for ease of installation (Fig.6). Align the

bottom of the hanger bar with the bottom of the wood joist. Secure the

“screw-nail” on each end by screwdriver (Fig. A), or by hammer (Fig. B).

3. Pinch the adjustable bracket, slide the xture along hanger bars into

desired location (Fig. C).

4. The junction box is suitable for branch wiring and has trade size knock-

outs and integral non-metallic sheathed cable connectors.

Fig. C

Fig. 6

Fig. AFig. BFig. C

Fig. A / Fig. B

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before installing.

2. System is intended for installation by a qualied electrician in accordance with the National Electrical Code and

local regulations.

3. Go to the main fuse box, or circuit breaker. Place the main power switch in the “OFF” position and unscrew the fuse(s) or switch ”OFF” the

circuit breaker switch(es) that control the power to the xture or room that you are working on.

4. Place the wall switch in the “OFF” position.

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

1. Lisez toutes les instructions avant d’installer.

2. Système est destiné à être installé par un électricien qualié en conformité avec le code national de l’électricité et

les règlements locaux.

3. Accédez au panneau central de disjoncteurs ou de fusibles de votre demeure et placez l’interrupteur principal en position d’arrêt («OFF »).

4. Placez l’interrupteur mural en position d’arrêt (« OFF »).

OVERVIEW:

Housing is new construction

and requires a trim or invisible trim.

MOUNTING:

1. Adjust the housing to proper height by loosening the wing nut on both adjustable brackets and set the basic plate so that the bottom edge

of the frame is ush to the nished ceiling (Fig.1, Fig.2, Fig.3, Fig.4 and Fig.5) . Tighten the wing nut.

Table 1 - HOUSING OVERVIEW

MODELDIMMING TYPEIC RATINGINPUT VOLTAGEPOWER

MT-4LD*16N*0-10VNon-IC120V-277V16.5W

MT-4LD*16NE*ELVNon-IC120V16.5W

MT-4LD*11NE*ELVIC-Rated120V11.5W
