REQUIRED TOOLS:PARTS INCLUDED:
Adjustable Wrench
Optional Caps - Soap, Lotion and Finish
(TRADITIONAL MODELS ONLY)
COUNTER
OR SINK
SPACER IS FOR
#4065 AND #9065
MODELS ONLY
1-3/8”
HOLE
A
B
C
F
G
D
E
1.
2.
3.4.
5.
6.7.
BEFORE YOU BEGIN YOUR INSTALLATION:
038-SOAP Rev. D

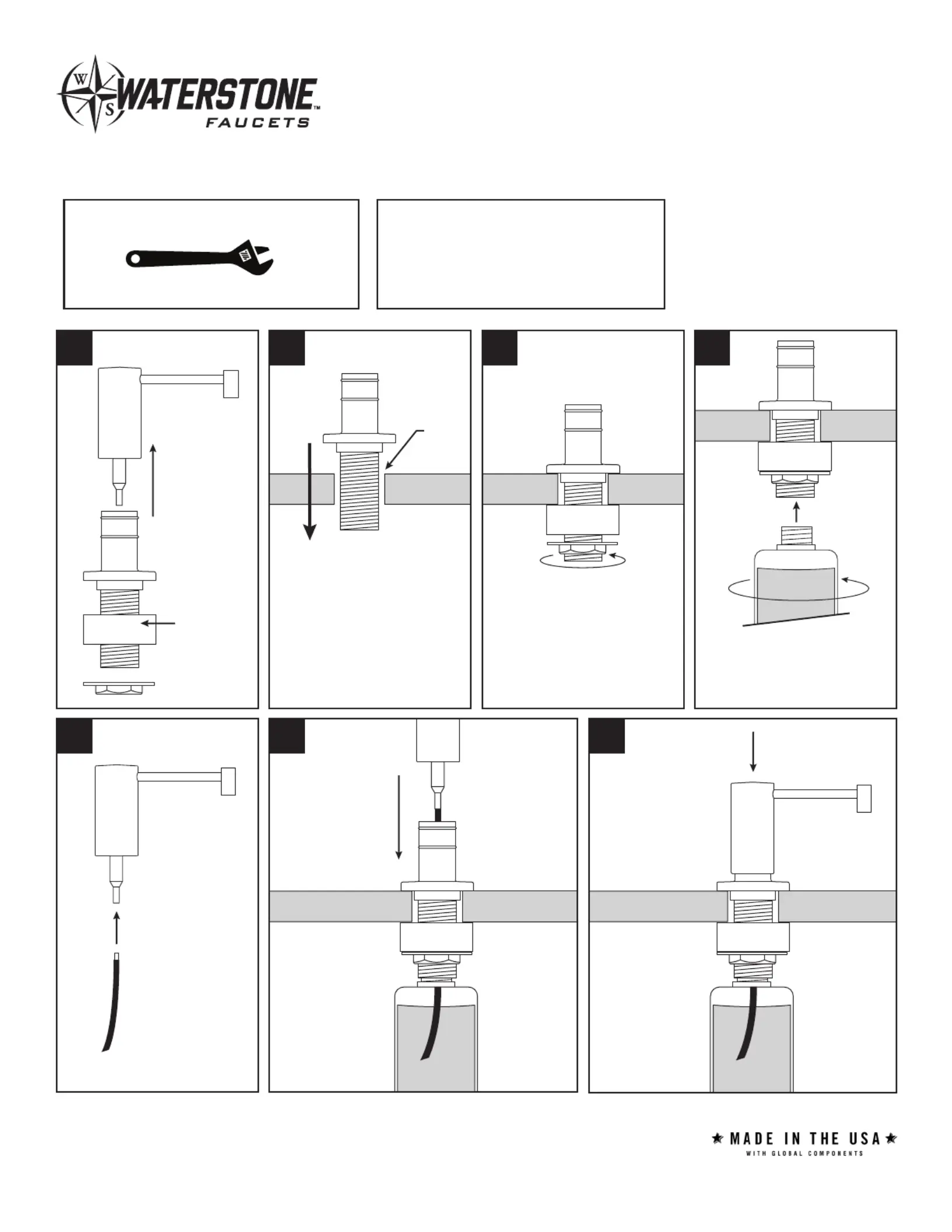

SOAP/LOTION DISPENSER INSTALLATION
Model #s 4055, 4060, 4065, 9065
Slide the brass spacer ring up to top
of dispenser shroud, then thread
the clamp nut. Tighten nut snug to
underside of sink or counter.
Add soap or lotion to plastic bottle. Thread
bottle (E) into bottom of dispenser
shroud.
Pull and remove
spout (A) from
dispenser body
(B). Remove clamp
nut (C) and brass
spacer ring (D) from
threaded shroud.
Slide red tubing (F)
into tube tting (G) at
bottom of spout.
Insert open end of red
tubing down through
dispenser and into
plastic bottle.
Push down on spout to
secure over white O-rings.
Pump spout a few times to
get soap or lotion owing.
Fit dispenser body through 1-3/8” hole
on counter or sink. (No plumbers
putty is required. O-ring seals base).
41180 Raintree Court • Murrieta, CA 92562
1-888-304-0660 • 951-304-0520
www.waterstoneco.com
