Sida 1/5

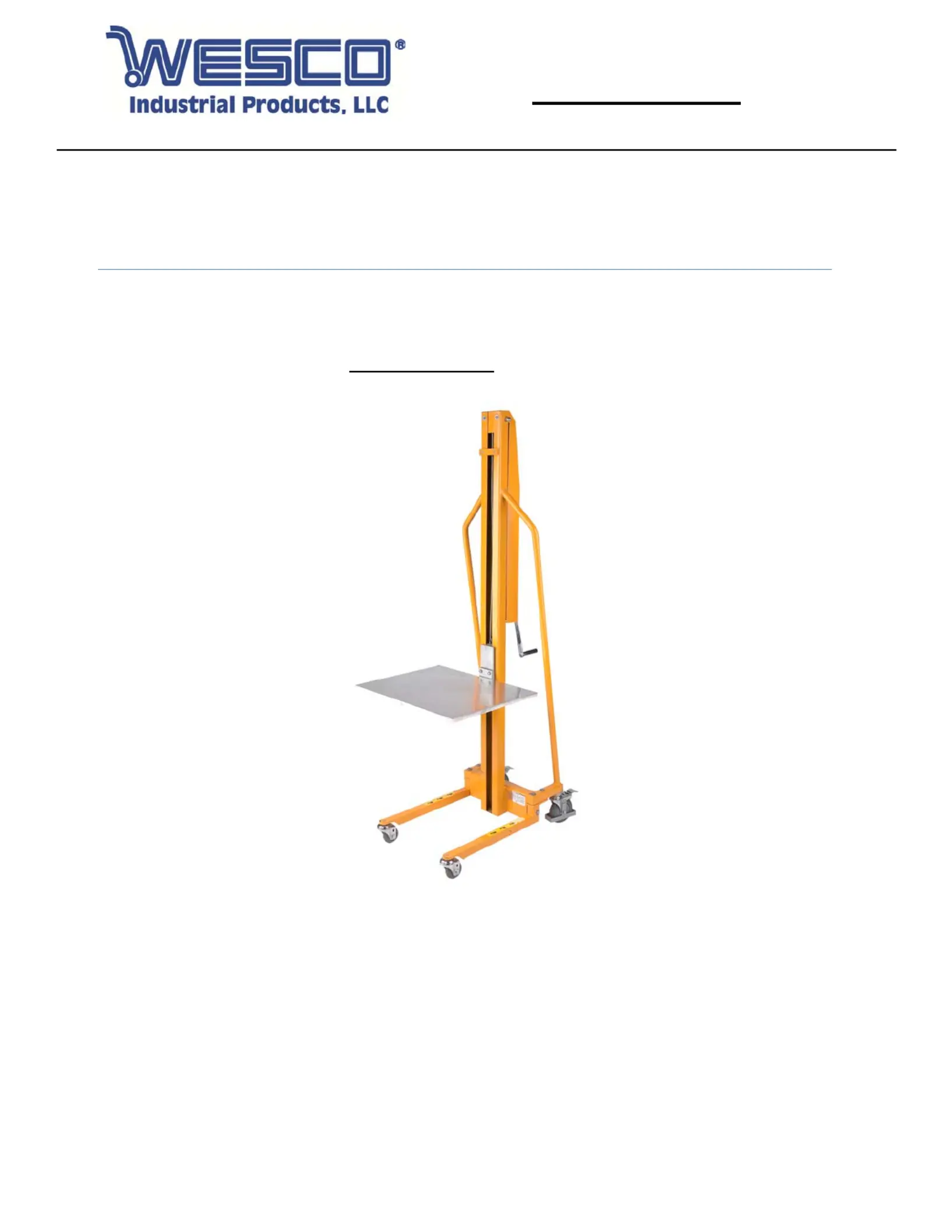

Page 1of 5
©Copyright 2018 Wesco Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
InstructionManual
ManualOffice Lift
PartNumber:
272467
Note: Operator MUST read and understand these operating instructions before using this Lift.
Table of Contents
1 General Information ......................................................................................................... 2
1.1 Description...................................... ................................................... ..................... 2
1.2 Specifications.......................................................................................................... 2
2 Section Identification................................ ....................................................................... ... 2
3 Safety Instructions................................. ......................................................................... ... 3
4 Operation........................................................................................................................... 3
5 Maintenance & Inspection................................................................................................. 3
6 Trouble Shooting............................................................................................................... 3
7 Part Information................................................................................................................. 4
7.1 Part Diagram............................................................................................................ 4
7.2 Part List.................................................................................................................... 5
Manual Office Lift
(Part # 272467)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO MANUAL LIFT,
READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
Page 2of 5
©Copyright 2018 Wesco Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
Manual Office Lift
(Part # 272467)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO MANUAL LIFT,
READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
NOTE: All of the information reported herein is based on data available at the moment of printing. We reserve the
right to modify our own products at any moment without notice and liability in any sanctions. So, it is suggested to
always verify possible updates and changes.
1.1 DESCRIPTION
Thank you for purchasing a Wesco Manual Office Lifter. This unit is ideal for narrow aisles and
great for offices. It features a lightweight, but sturdy body and a 9/16” plastic platform.
1.2 SPECIFICATIONS
Part Number
272467
Model #
MOL
Capacity
220 lbs
Platform or Fork W x L
Platform 18” x 23”
Lift Height
58.5”
Lowered Height
5”
Adjustable Fork Width
58.5”
Swivel Casters
5” x 1.25” Hard Rubber
Load Wheels
2.75” x 1.25” Hard Rubber
Load Center
9.25”
Weight
104 lbs
2. SECTION IDENTIFICATION
Figure 1
1. Rear Wheel 2. Handle 3. Ratchet Transmission Structure
4. Guard 5. Platform 6. Wire Rope
7. Pole 8. Front Wheel
Page 3of 5
©Copyright 2018 Wesco Industrial Products, LLC. Specifications subject to change. Not responsible for errors or omissions.
Manual Office Lift
(Part # 272467)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO MANUAL LIFT,
READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
3. SAFETY INSTRUCTIONS
1) Use only on hard, level, and paved surfaces.
2) Don’t load over the maximum capacity and ensure the balance of loading.
3) Pay attention to wheels and rolling parts to be safe, when loading and unloading.
4) Keep the platform at lowest position, stable and raise/lower slowly when loaded.
5) When the platform is in its lowest position, do not turn the handle counter-clockwise continuously.
Doing so will loosen the wire rope that keeps the pulley in check.
6) Make sure the unit is stable when raising the platform.
4. OPERATION
1) Lock up the wheels before raising, lowering, loading or unloading of the platform.
2) Validate the wire rope seated in the pulley, connecting bolts fast and fixed and safe.
3) Turn the handle clockwise, the platform will rise. Stopping the turning of the handle will stop and keep
the platform at its present position.
4) Turn the handle counter clockwise to lower the platform. Do not turn the handle continuously, or the
wire rope will escape.
5. MAINTENANCE & INSPECTION
1) Check daily the wire rope, pulley, roller, fron and rear wheels and other parts of the unit for wearing and
deformation.
2) Once every three months check the wear and lubrication of the ratchet, wheel structure and parts. If
necessary reapply lubrication to areas of need.
3) Once every three months check the oil and grease of the ratchet structure, gear structure and handle
structure.
4) Check and tighten all connection bolts.
6. TROUBLE SHOOTING
No. Problem
Description
Cause
Remedy
1
Platform will not
rise
1. Wire fall-off
2. Wire flossing in disk
3. Particle blocking it.
1. Check adjusting, connect fast
2. Readjust
3. Clear away blocking particle
2
Platform descends
after being raised
1. Ratchet damaged
2. Copper friction washer wearing-off
1. Check, replace if necessary
2. Check, adjust, replace if necessary
3
Platform
descending
1. Ratchet damaged
2. Particle blocking it.
1. Check, replace if necessary
2. Clear away blocking particle
