Sida 1/15
Page1of15
©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions
Table of Contents
1 General Information ............................................................................................................. 2
1.1 Description.............................................................................................................. 2
1.2 Specifications.......................................................................................................... 2
2 Pre-Operation Assembly....................................................................................................... 3
3 Safety Information...................………................................................................................... 3
4 Maintenance......................................................................................................................... 3
5 Operation.............................................................................................................................. 4
5.1 Transportation/Loading/Unloading........................................................................... 4
5.2 Lifting and Lowering the Platform............................................................................ 4
5.3 Battery...................................................................................................................... 4
5.4 Charger.................................................................................................................... 4
6 Trouble Shooting................................................................................................................... 5
7 Electrical Diagrams............................................................................................................... 6
7.1 Circuit Diagram
(Units Manufactured After June 2014)
........................................... 6
7.2 Electric Panel Diagram
(Units Manufactured After June 2014)
............................... 6
7.3 Circuit Diagram
(Units Manufactured Before June 2014).
....................................... 7
7.4 Electric Panel Diagram
(Units Manufactured Before June 2014)
............................ 7
8 Part Information
(Units Manufactured After June 2014)
......................................................... 8
8.1 Frame Part Diagram................................................................................................ 8
8.2 Frame Part List........................................................................................................ 9
8.3 Handle & Platform Part Diagram.............................................................................. 10
8.4 Handle & Platform Part List...................................................................................... 10
8.5 Electrical Box Diagram............................................................................................. 11
8.6 Electrical Box Part List............................................................................................. 11
9 Part Information
(Units Manufactured Before June 2014)
...................................................... 12
9.1 Frame Part Diagram................................................................................................ 12
9.2 Frame Part List........................................................................................................ 13
9.3 Electrical Box Part Diagram..................................................................................... 14
9.4 Electrical Box Part List............................................................................................. 15
WESCOINDUSTRIALPRODUCTS,LLC
InstructionManual
ElectricOfficeLift
PartNumber: 272468
Note: Operator MUST read and understand these operating instructions before using
this Lifter.
Page2of15
©Copyright2018WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions
Electric Office Lift
(Part # 272468)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO LIFTER, READ
THESE INSTRUCTIONS ENTIRELY BEFORE USING.
WARNING: The battery in this product contains lead. The State of California under
Proposition 65 has determined that exposure to lead is known to cause cancer or birth
defects or other reproductive harm. Please wash hands after use.
1. GENERA
L INFORMATION
1.1 DESCRIPTION
Thank you for purchasing a Wesco Electric Office Lift. This lifter is designed for transporting
and vertical lifting. The lift features a 1 year warranty covering manufacturing defects. Wesco reserves
the right to repair or replace defective parts or the entire unit as required to correct any defective
components. This warranty expressly excludes damage due to normal wear and or misuse.
1.2 SPECIFICATIONS
Model 272468
Capacity 220 lbs
Load Center (C) 9.25”
Lowered Height (H1) 5”
Raised Height (H2) 66”
Platform Size (L1 X W) 18” x 23”
Overall Dimensions (L X W X H ) 32” x 23.5” x 78”
Front Wheel (Ød) 2.75” x 1.25” (Hard Rubber)
Rear Wheel (ØD) 5” x 1.25” (Hard Rubber)
Battery 24V
Weight 147 lbs
Materials and specifications are subject to change without notice.

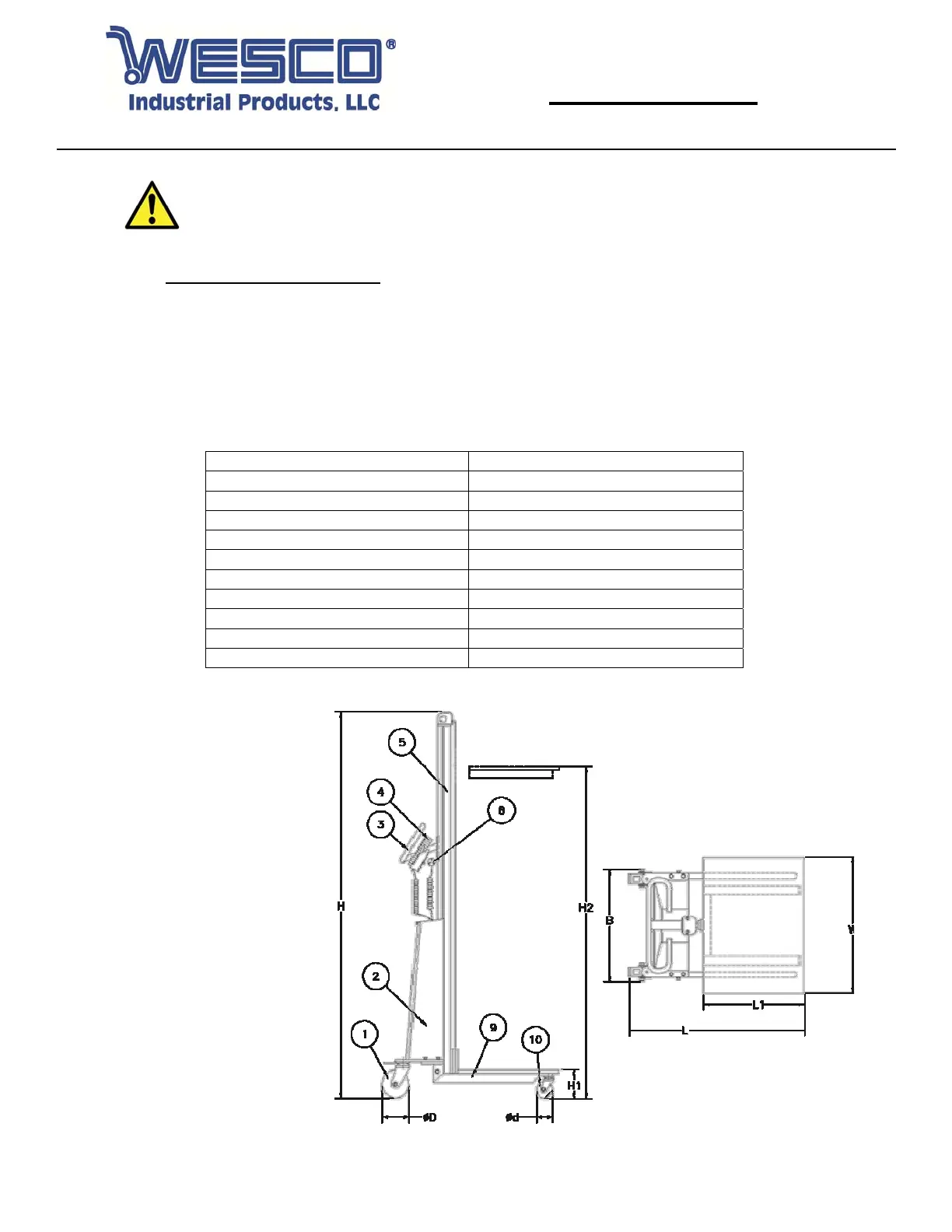

Figure1
Items in Figure 1
1. Rear Wheel
2. Electric Control of Transmission Box
3. Handrails
4. Movable Hand Panel
5. Aluminum Alloy Pole
6. Safety Belt
7. Platform (Various Accessories)
8.
Socket for Charger
9. Chassis
10. Front Wheel
