Sida 1/9

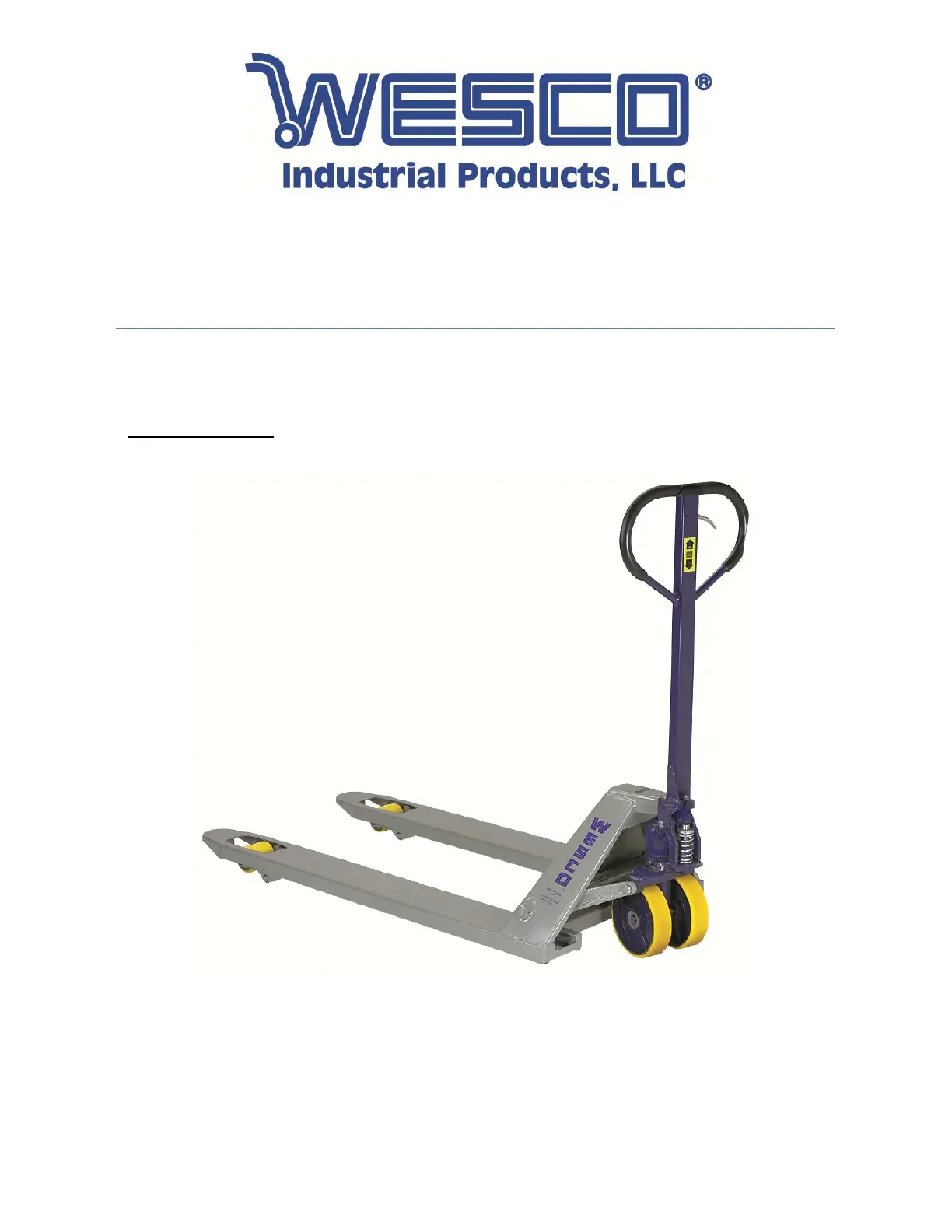

Page1of9
©Copyright2020WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions.
WESCOINDUSTRIALPRODUCTS,LLC
InstructionManual
StandardDeluxePalletTruck
PartNumber:272136,272142,272148,272736,272742,272748
Note: Operator MUST read and understand these operating instructions before
using this Hand Pallet Truck.
Page2of9
©Copyright2020WESCOIndustrialProducts,LLC.Specificationssubjecttochange.Notresponsibleforerrorsoromissions.
TABLE OF CONTENTS
1 General Information ............................................................................................................... 2
1.1 Description..................................................................................................................... 2
1.2 Specifications................................................................................................................. 2
2 Handle Assembly...................................................................................................................... 3
3 Operation................................………........................................................................................4
3.1 Lower.............................................................................................................................. 4
3.2 Lift................................................................................................................................... 4
4 Maintenance..............................................................................................................................4
4.1 Daily Check..................................................................................................................... 4
4.2 Lubrication...................................................................................................................... 4
5 Safety Information..................................................................................................................... 4
6 Trouble Shooting.................................................................................................................. ..... 5
7 Fork Frame & Handle Part Information..................................................................................... 6
7.1 Fork Frame & Handle Parts Diagram............................................................................. 6
7.2 Fork Frame & Handle Parts List..................................................................................... 7
8 Hydraulic System Part Information............................................................................................8
8.1 Hydraulic Jack System Parts Diagram........................................................................... 9
8.2 Hydraulic Jack System Parts List................................................................................... 9
Standard Deluxe Pallet Truck
(Part # 272136, 272142, 272148, 272736, 272742, 272748)
Instruction Manual
ATTENTION: TO INSURE SAFE AND EASY USE OF YOUR WESCO PALLET
TRUCK, READ THESE INSTRUCTIONS ENTIRELY BEFORE USING.
1. GENERAL INFORMATION
1.1 DESCRIPTION
Thank you for purchasing a Wesco Standard Deluxe Pallet Truck. This pallet truck is designed
for transporting and horizontal lifting. The pallet truck features a 5 year pump warranty, 6” wide forks
and a rubber coated handle. It operates with 7” or 8” moldon polyurethane steering wheels and 3”
moldon polyurethane load wheels.
1.2 SPECIFICATIONS
Model 272136 272142 272148 272736 272742 272748
Capacity 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs 5,500 lbs
Weight 143 lbs 152 lbs 157 lbs 151 lbs 161 lbs 166 lbs
Fork Lowered Height 3” 3” 3” 3” 3” 3”
Fork Raised Height 8” 8” 8” 8” 8” 8”
Single Fork Width 6” 6” 6” 6” 6” 6”
Fork Length 36” 42” 48” 36” 42” 48”
Overall Width 21” 21” 21” 27” 27” 27”
Overall Length 51” 57” 63” 51” 57” 63”
Overall Height 48” 48” 48” 48” 48” 48”
Materials and specifications are subject to change without notice.
