HATT AES
The Whirlwind HATT-AES is an active
headphone amplifier that converts a
digital AES3 stream into a high fidelity, low
distortion stereo headphone signal
o p t i m i z e d f o r m o d e r n 3 2 O h m
headphones. Sample rates from 32 kHz to
192 KHz are recognized by the HATT-AES
D/A converters. Features include an
analog 3.5mm TRS stereo input jack,
analog signal present LEDs, and a
buffered AES loop-thru output. The
headphone output can also be used as an
unbalanced stereo line driver.
The HATT-AES is powered by an included
model #PS6 “wall wart” supply. Both ¼”
TRS and 3.5mm TRS headphone jacks
are provided and the volume control
adjusts the listening level. The HATT-AES
is housed in an attractive, durable ABS
box for placement anywhere a high quality
headphone driver is required.
TABLE TOP HEADPHONE AMP
WITH AES INPUT
whirlwind
99 Ling Road Rochester, NY 14612 · Ph. 585 663-8820 Fax 585 865-8930 · sales@whirlwindusa.com
www.whirlwindusa.com

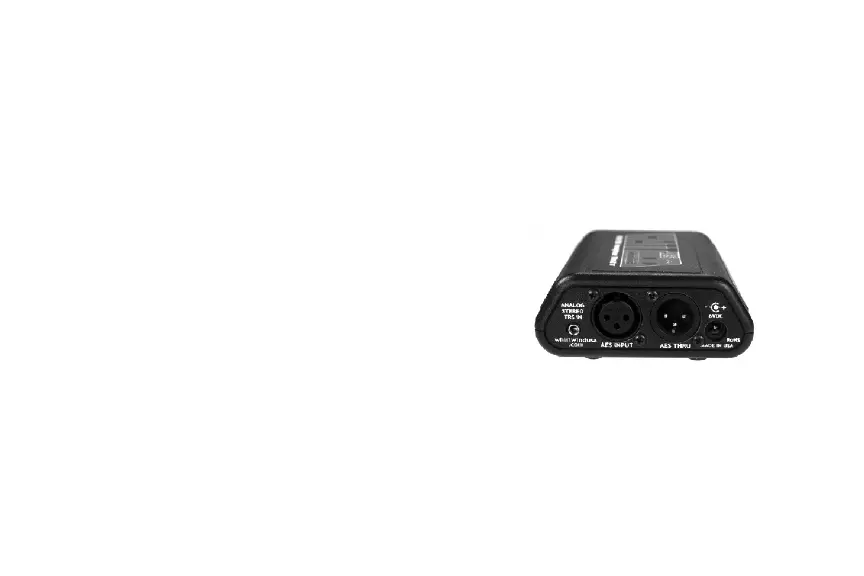

Rear Panel
A 3.5mm stereo TRS jack is provided for injection of unbalanced stereo signals. The AES3 input is a female XLR. Both
AES3 digital and 3.5mm analog inputs can be used together if required. The AES thru XLR male jack provides a
buffered, latency free, output of the input signal for daisy-chaining several units together with the same AES3 stream.
The 2.1mm power input jack is for connection to the model #PS6 6 Volt DC power supply.
Total Gain 20 dB
Noise at unity gain < -98 dBV
Maximum output level +4 dBV
Maximum Input level +0 dBfs (5 Vpp) AES
+3 dBV analog

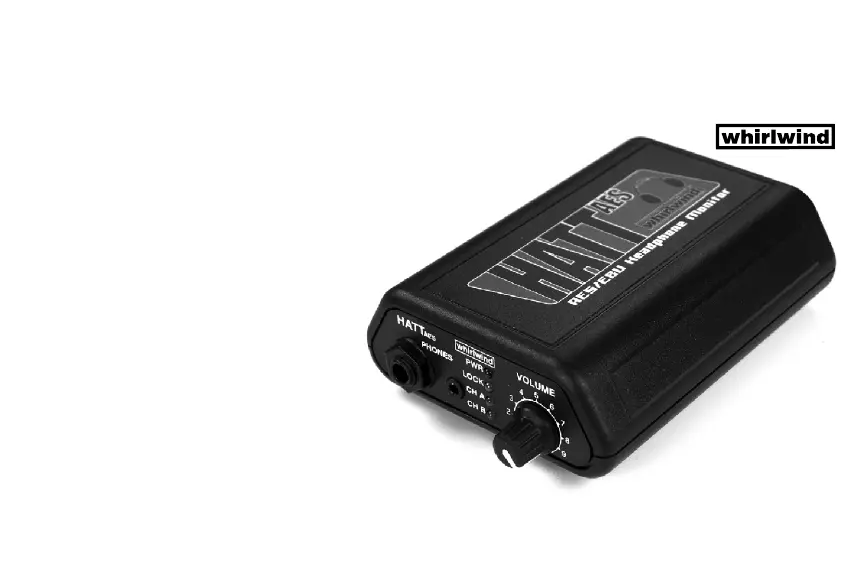

Front Panel
The single volume control adjusts the level delivered to both left and right earpieces. The PWR LED indicates
operational status, the LOCK LED shows connection with a valid AES3 stream (32 kHz to 192 KHz sample rates) and
the CHA and CHB LEDs display analog audio presence at the output of the D/A converters. Although ¼” TRS and
3.5mm TRS headphone jacks are included for convenience, only one jack should be used at a time.
SPECIFICATIONS
Frequency Response +/- .8 dB 20 Hz to 20 kHz (30 Ohm load)
+/- .2 dB 20 Hz to 16 kHz (10 kOhm load)
THD+noise < .05% 20 Hz to 20 kHz (30 Ohm load)
< .004% 20 Hz to 20 kHz (10 kOhm load)
Input Impedance 100 kOhms AES
10 kOhms analog
Headphone Impedance 32 Ohms recommended
Power requirements 6 VDC @ 300mA (#PS6 included)
Short circuit protection Withstands shorted output at
full level indefinitely
Warranty
This product is guaranteed for 2 years from the date of purchase against manufacturing defects. For warranty service, return the unit,
along with the original sales receipt, to: whirlwind, 99 Ling Road, Rochester, NY 14612, postage prepaid. We will repair or replace the unit
at our option and pay the return postage.
