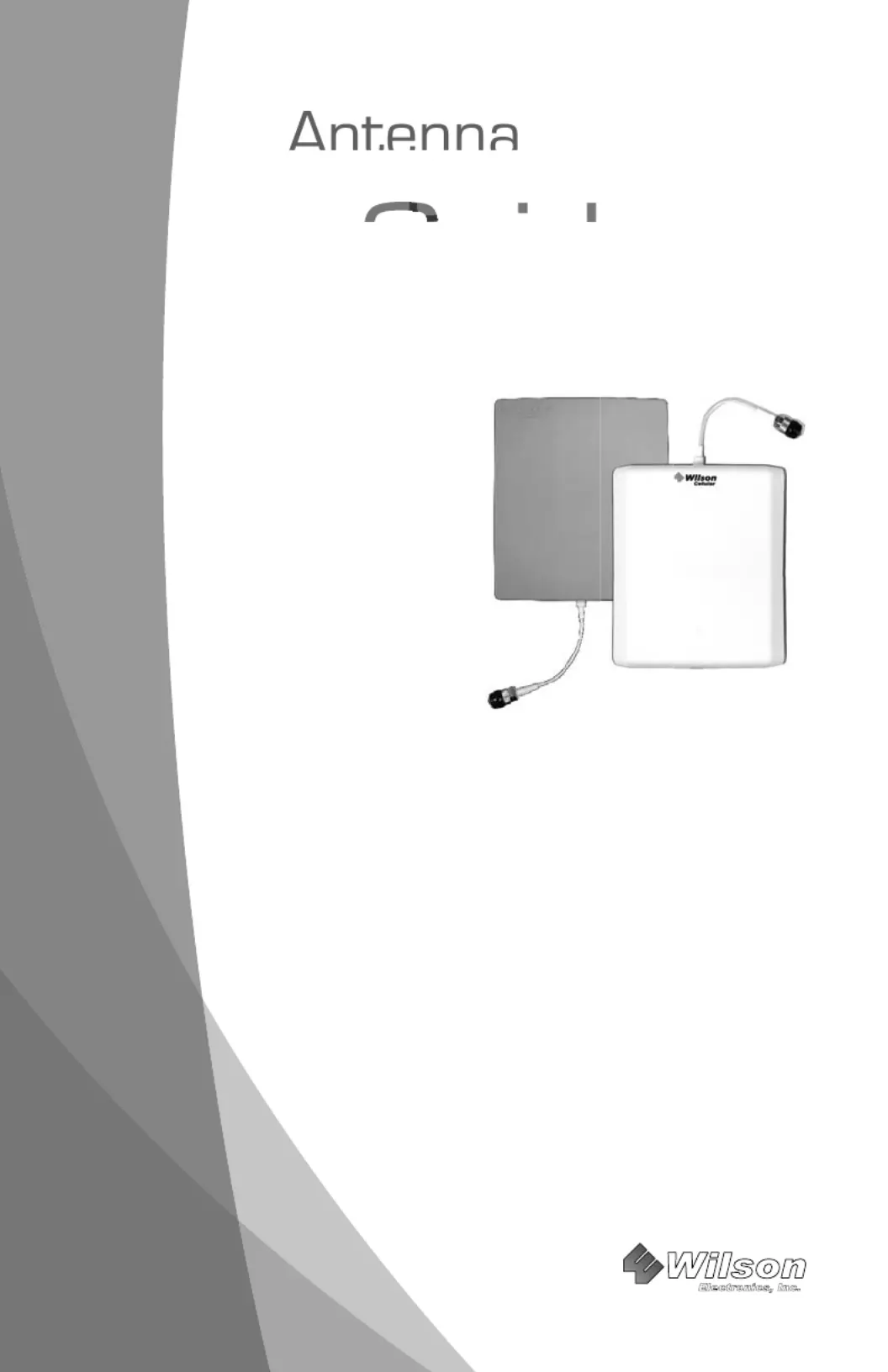

Antenna
Installation
G
u
ide
stallatio
t t
Dual-Band
Panel Antenna
PART# 301134
PART# 301135
PART# 301147
Wilson
®
Electronics, Inc.
Contents:
• Dual-Band Panel Antenna
• Two-sided tape (301134)
• Alcohol swab (301134)
• Coax cable (301147)
• Antenna installation kit (301135 & 301147)
The dual-band panel antenna is vertically polarized. For
optimum performance, install the antenna with the cable
running from the bottom or the top. If the antenna
is installed with the N-connector or cable running
horizontally, the signal will be degraded.
1
30-Day Money-Back Guarantee
All Wilson Electronics products are protected by Wilson’s 30-day money-back
guarantee. If, for any reason, the performance of any product is not acceptable,
simply return the product directly to the reseller with a dated proof of purchase.
90-Day Warranty
Wilson Electronics antennas are warranted for ninety (90) days against defects in
workmanship and / or materials. Warranty cases may be resolved by returning the
product directly to the reseller with a dated proof of purchase.
Antennas may also be returned directly to the manufacturer at the consumer’s
expense, with a dated proof of purchase and a Returned Material Authorization
(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either
repair or replace the product. Wilson Electronics will pay for delivery of the repaired
or replaced product back to the original consumer.
This warranty does not apply to any antennas determined by Wilson Electronics
to have been subjected to misuse, abuse, neglect, or mishandling that alters or
damages physical or electronic properties.
RMA numbers may be obtained by phoning Technical Support at 866-294-1660.
Disclaimer: The information provided by Wilson Electronics, Inc. is believed to
be complete and accurate. However, no responsibility is assumed by Wilson
Electronics, Inc. for any business or personal losses arising from its use, or for
any infringements of patents or other rights of third parties that may result from
its use.
Copyright © 2008 Wilson Electronics, Inc. All rights reserved.
2

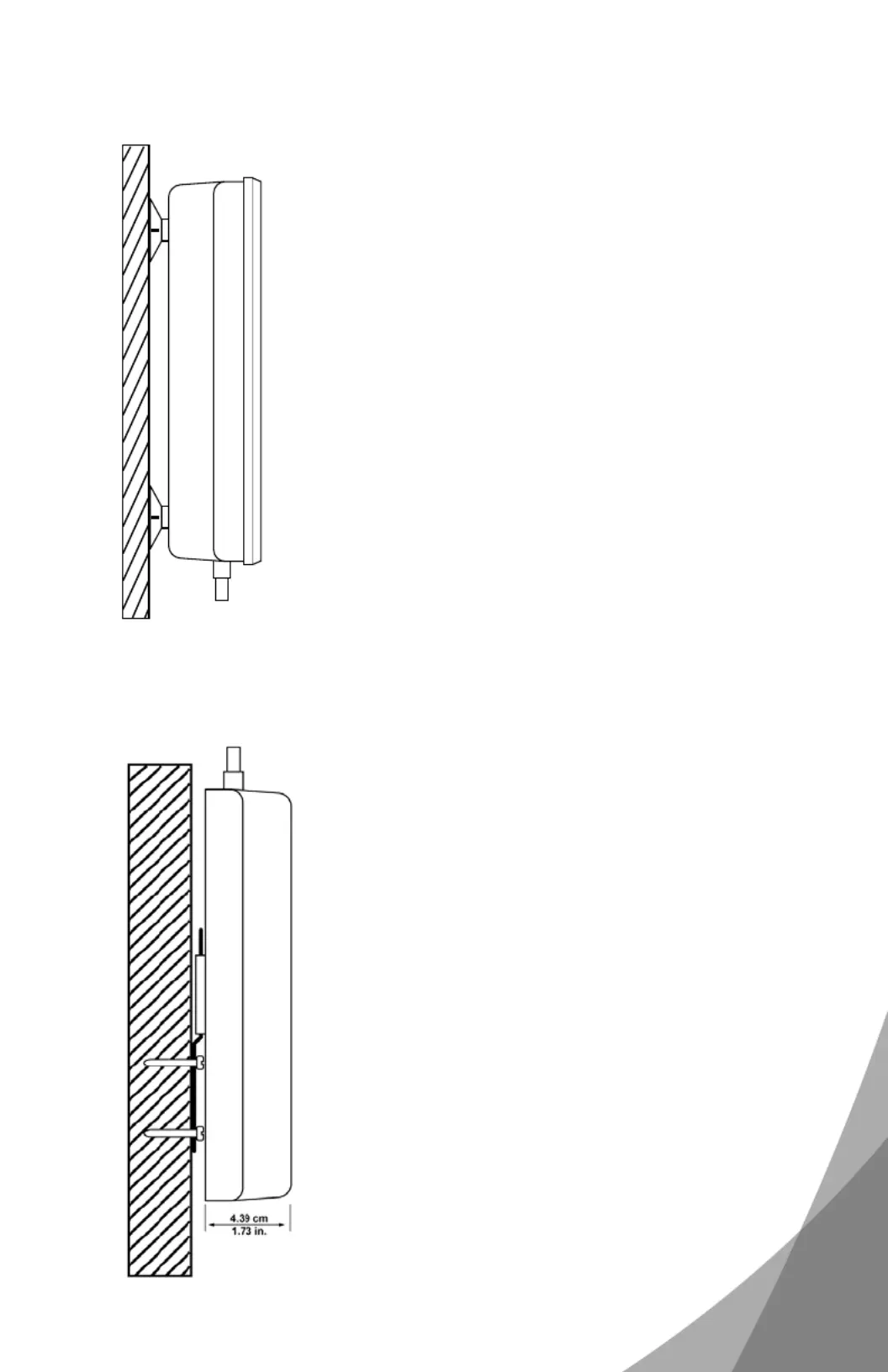

Window Installation Instructions (part # 301134)
Find the window that faces the direction of the
nearest cell tower. The signal strength function
on your cell phone can help you determine
this. See the Technical Support section of
Wilson’s website (www.wilsonelectronics.com)
for instructions on accessing the signal strength
function on your particular phone.
Choose the location on the window where the
antenna will be hung. The panel antenna must
be installed at least seven feet above the fl oor.
Clean the window and the suction cups with the
alcohol swab.
It is important that the small tabs on each
suction cup be facing outward so they may be
used to remove the antenna from the window if
desired. Use fi rm and even pressure to attach
the antenna to the window without breaking
the glass. Avoid excessive or sudden pressure
against the glass.
For a more permanent installation, remove the
suction cups and use the two-sided tape to affi x
the antenna.
Wall Installation Instructions (part # 301135 & 301147)
Find the desired location for the panel antenna.
Verify that the panel antenna and the outside
antenna have the necessary separation (see
amplifi er instructions for requirements.)
The panel antenna must be installed at least
seven feet above the fl oor. Place the diagram
where the panel antenna is to be installed.
Attach the diagram with masking tape or other
suitable adhesive tape.
Drill out the four holes as indicated on the
template. Place the mounting bracket over the
holes and insert the screws. Slide the panel
onto the installation bracket.
For questions or comments, please contact
Technical Support toll free at 866-294-1660,
email tech@wilsonelectronics.com or visit
www.wilsonelectronics.com
