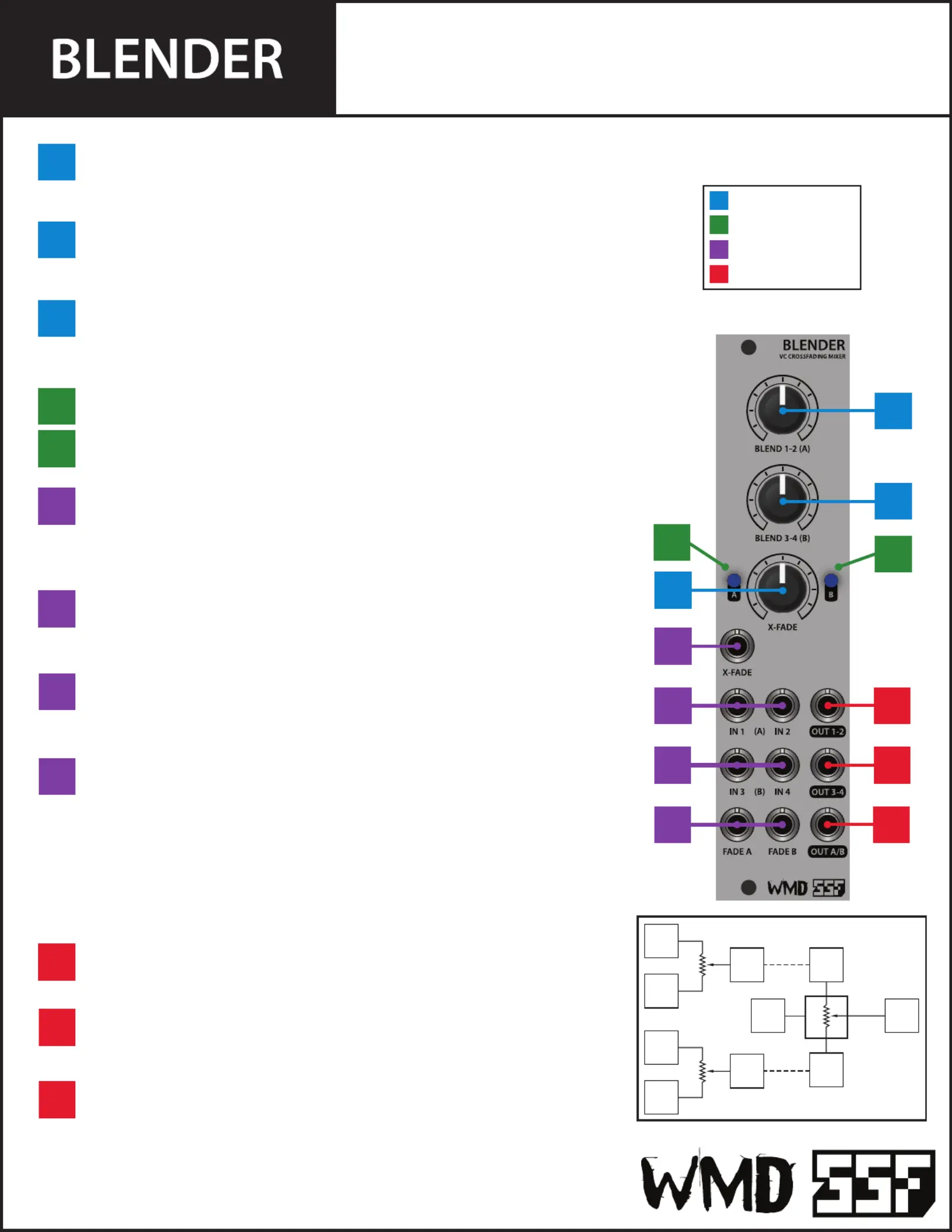

B1-2
X
L2
L1
A/B
B1-2
B3-4
X
XCV
L1
L2
INPUT 1-2 BLEND CONTROL
Manual cross-fader for input channels 1 and 2. When signals are applied to both inputs 1
and 2, use this control to smoothly blend between the two signals. This control works as a
full range attenuator if only one of the inputs is occupied.
INPUT 3-4 BLEND CONTROL
Manual cross-fader for input channels 3 and 4. When signals are applied to both
inputs 3 and 4, use this control to smoothly blend between the two signals. This
control works as a full range attenuator if only one of the inputs is occupied.
X-FADE A/B BLEND & OFFSET
This is the manual control for the voltage controlled cross-fader. Use this control to smoothly
blend signals applied or normalized (see inputs below) to the A and B inputs.
This control is also used as an when control voltage (CV) is applied to the X-FADE input.oset
BLENDER is a four channel mixer and voltage controlled cross-fader. BLENDER simplies mixing
audio and control voltages (CV) by incorporating a single control to blend two signals at a time -
also known as a cross-fader. Two manual cross-faders and a single voltage controlled master
cross-fader are provided. Use BLENDER as a main mixer or as a dynamic control for creating
complex control voltages and waveforms from your signal generators.
X-FADE CV INPUT
This input is for the A/B CROSS-FADER with bipolar or unipolar control modulating
voltages.
Use the X-FADE control to tailor the . Center position is sucient oset of modulation
for symmetrical fading between A and B with a bipolar signal.
CHANNEL (A) LED
Indicates amplitude of the signal applied to channel A.
CHANNEL (B) LED
Indicates amplitude of the signal applied to channel B.
OUTPUT 1-2
This is the for signals processed through INPUTS 1-2 and direct output
BLEND 1-2 control
INPUTS 1 & 2 (A)
These are the signal inputs associated with the BLEND 1-2 control. Signals applied here
are processed through the BLEND 1-2 control and sent to the OUT 1-2 jack. Signals
mixed through these inputs are also normalized to FADE input A.
OUTPUT 3-4
This is the for signals processed through INPUTS 3-4 and direct output
BLEND 3-4 control
OUT
PANEL CONTROL
LED INDICATOR
INPUT
OUTPUT
COLOR KEY LEGEND
B3-4
XCV
IN1-2
(A)
IN3-4
(B)
FADE
A-B
3-4
OUT
1-2
OUT
IN1-2
(A)
INPUTS 3 & 4 (B)
These are the signal inputs associated with the BLEND 3-4 control. Signals applied here
are processed through the BLEND 3-4 control and sent to the OUT 3-4 jack. Signals
mixed through at these inputs are also normalized to FADE input B.
IN3-4
(B)
FADE A-B INPUTS
These are the DC coupled signal inputs associated with the X-FADE control and X-FADE
control voltage (CV) input. Signals applied here are processed through the voltage
controlled cross-fader and sent to the OUT A/B jack. When nothing is applied to these
inputs, the signals from inputs 1-2 are normalized to the A input3-4 are normalized and
to the B input. Therefore, these normalizations serve to cross-fade the blended signals
from the 1-2 & 3-4 inputs by default.
Patching a signal into either A or B input will break the normalization associated with
that input, respectively and process the patched signal through the voltage controlled
cross-fader.
FADE
A-B
1-2
OUT
3-4
OUT
A/B
OUT
OUTPUT A/B
This is the for signals processed through INPUTS direct and main output
A-B and processed by X-FADE CV and X-FADE BLEND control.
IN 1
IN 2
IN 3
IN 4
OUT
1-2
OUT
3-4
X-FADE
CV
IN A
IN B
OUT
A/B
BLEND 1-2
BLEND 3-4
X-FADE
SIGNAL PATH DIAGRAM
