Thank you for selecting the ZOOM RFX-1100 (hereafter simply called the "RFX-
1100
"). The RFX-1100 is a sophisticated digital reverb and multi-effect processor with
the following features and functions.
Please take the time to read this manual carefully so as to get the most out of
your RFX-1100 and to ensure optimum performance and reliability. Retain this
manual, the warranty card and all other documentation for future reference.
• 33 immediately usable effects
The RFX-1100 comes with a full complement of preset effects (11 effects x 3 banks).
Right out of the box, the unit is ready to create great sound. The REVERB bank in
particular provides a wide spread and natural sounding ambience that meets even
demanding professional standards.
• Built-in professional quality reverb
The reverb effects alone allow 121 different settings. The convincing sound stage
created by the RFX-1100 far surpasses anything else available in this class.
•Innovative choices
Lo-Fi EFX purposely degrades sound quality for special effect. RESONANCE
processes the input signal with sophisticated filtering. MIC SIMULATOR produces
condenser mic sound from a dynamic microphone. These and various other effects
are great for recording and give full scope to your creativity.
• Attractive mixdown effects
Mixdown effects can be used effectively to tailor the overall mood of a song when
performing mixdown (mixing multiple tracks onto two final stereo tracks) or
mastering (fine-tuning the sound and level of a final 2-track mix).
• Intuitive editing controls
Convenient knobs on the front panel let you directly adjust items such as the mixing
ratio of original sound and effect sound. Editing effect parameters on the fly is also
easy and straightforward. This allows quick fine-tuning for optimum sound.
• MIC IN connector
The MIC IN connector on the front panel serves as an additional input for a
microphone. This is convenient for applying effects to a vocal part and for
controlling the VOCODER effect with your voice.
OPERATION MANUAL
Introduction
Contents
Controls and Functions ••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2
Front Panel
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2
Rear Panel
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 2
Rack Mounting
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 4
Getting Connected
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 4
Trying Out the Effects
••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6
Changing the Sound of an Effect
•••••••••••••••••••••••••••••••••••••••••••• 7
RFX-1100 Effects
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 8
Troubleshooting
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 15
Specifications
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 15
Safety Precautions/Usage Precautions
© ZOOM Corporation
Reproduction of this manual, in whole
or in part, by any means, is prohibited
.
2
(1) MIC IN connector
A dynamic microphone with an impedance of about
600 ohms can be connected here, for use as an
additional input source. Either an XLR plug (balanced
connection) or a phone plug (balanced/unbalanced
connection) can be used.
Normally the input signal from this connector is
mixed with the signal from the rear-panel INPUT
jacks. When the VOCODER effect is selected, the
signal from this connector serves for controlling the
sound character and the envelope (volume change
curve) of the VOCODER effect.
(2) MIC ON/OFF switch
This switch turns the signal from the MIC IN
connector on and off.
* Before inserting or removing the plug of a
microphone into and from the MIC IN connector, be
sure to set the MIC ON/OFF switch to OFF.
(3) MIC IN indicator
When the MIC ON/OFF switch is ON, this indicator
lights up.
(4) Level meter
These indicators show the signal input level.
(5) INPUT control
Serves to adjust the signal from the INPUT jacks and
the MIC IN jack.
(6) OUTPUT control
Serves to adjust the level of the signal supplied at the
OUTPUT jacks.
(7) MIX control
Serves to adjust the balance between original sound
(DRY) and effect sound (WET). When the control is
turned fully counterclockwise, only the original sound
is output. When the control is turned fully clockwise,
only the effect sound is output.
ZOOM RFX-1100
Controls and Functions

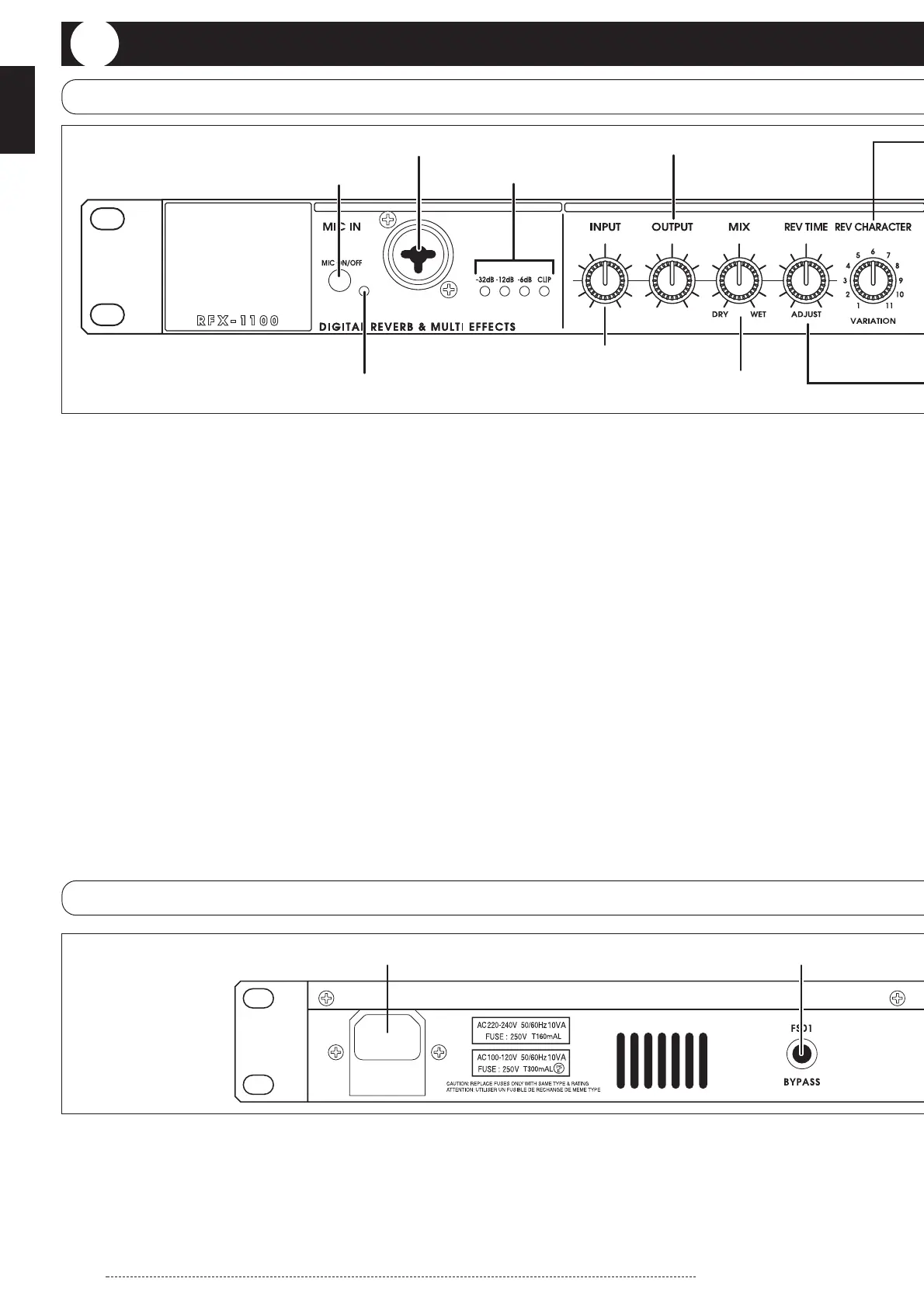

Front Panel
Rear Panel
(1) MIC IN connector
(2) MIC ON/OFF switch
(4) Level meter
(5) INPUT control
(6) OUTPUT control
(7) MIX control
(3) MIC IN indicator
(2) BYPASS jack
(1) POWER connector
(1) POWER connector
The supplied power cable is to be connected here for
powering the unit.
(2) BYPASS jack
Serves for connection of the foot switch FS01 (option)
for switching effects on and off.
Controls and Functions
