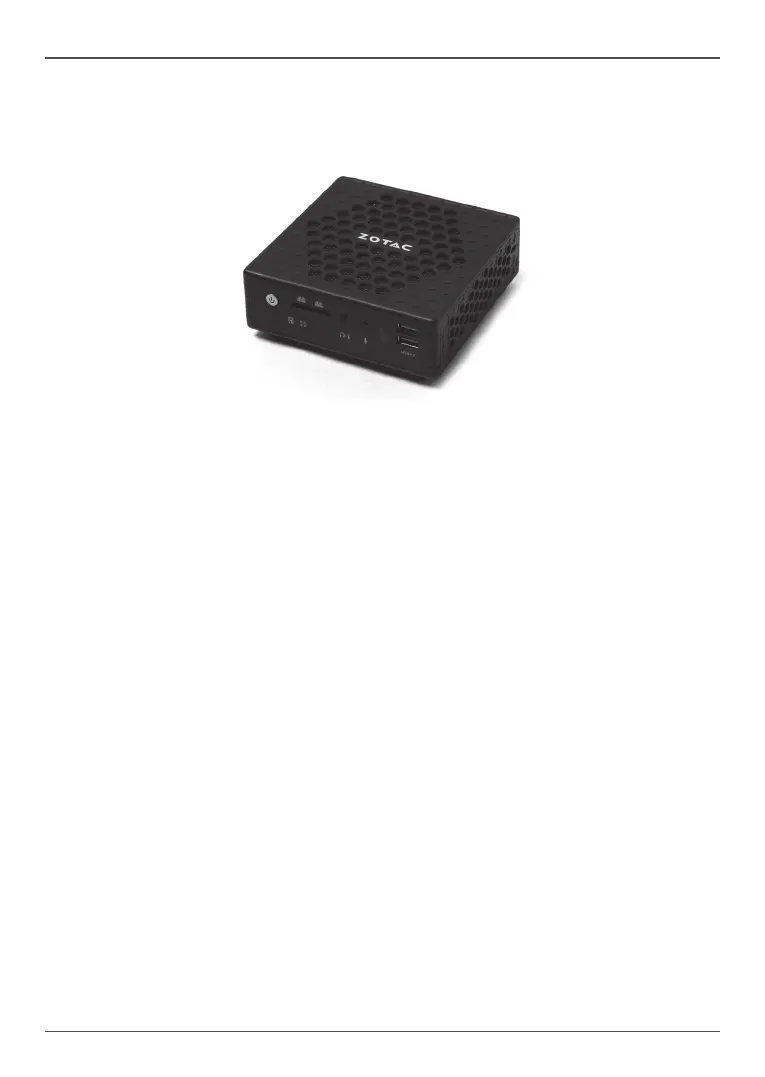

ZOTAC ZBOX nano

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be

registered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are

correct and up to date. However, the manufacturer makes no guarantee

regarding the accuracy of its contents, and reserves the right to make

changes without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX nano

Table of Contents

Product specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX nano ------------------------------------------------ 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

Customizing the ZOTAC ZBOX nano ------------------------------------------------------- 8

Installing a memory module ----------------------------------------------------------------- 9

Installing a hard disk -------------------------------------------------------------------------- 10

Connecting a S/PDIF cable ------------------------------------------------------------------ 12

Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 13

Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 15

Mounting the ZOTAC ZBOX nano to an LCD monitor -------------------------------- 15

Installing drivers and software --------------------------------------------------------------- 17

Installing an operating system -------------------------------------------------------------- 17

Installing system drivers ---------------------------------------------------------------------- 17

Using your ZOTAC ZBOX nano --------------------------------------------------------------- 18

Conguring wireless connection ----------------------------------------------------------- 18

Conguring wired connection --------------------------------------------------------------- 18

Using a static IP ---------------------------------------------------------------------------- 18

Using a dynamic IP (PPPoE connection) -------------------------------------------- 19

Conguring audio output via an HDMI device ------------------------------------------ 19

ZOTAC ZBOX nano

Product specications

Processor

• Intel Processor 2961Y (dual core, 1.1 GHz)

Onboard graphics

• Intel HD Graphics

• HDMI 1.4a (max resolutions: 1920×1200 @60Hz)

• DP 1.2 (max resolutions: 2560x1600 @60Hz)

Memory support

• 2 204-pin DDR3L-1600/1333 SO-DIMM slots

• Up to 16 GB of memory

USB ports

• 4 USB 3.0 ports & 1 USB 2.0 port

Storage support

• SATA 6.0 Gb/s transfer rates

• Supports one 2.5-inch SATA HDD/SSD (9.5mm max height)

Network support

• Dual Gigabit (10/100/1000Mbps) LAN

• IEEE 802.3 compatible

Wi-Fi support

• 802.11ac Wi-Fi (dual-band)

• Bluetooth 4.0

Audio

• Digital 8 Channel Audio (LPCM/bitstream via HDMI)

• SPDIF output

Operating System support

• Windows 7 32bit/64bit, Windows 8 32bit/64bit and Windows 8.1 32bit/64bit

Product Dimensions

• 127mm x 127mm x 45mm

Produktspecifikationer

Varumärke:	ZOTAC
Kategori:	Skrivbord
Modell:	ZBOX CI321 nano Plus
Produkttyp:	Mini-PC
Bredd:	127 mm
Djup:	127 mm
Höjd:	45 mm
Förpackningens bredd:	260 mm
Processorfrekvens:	1.1 GHz
Processorfamilj:	Intel® Celeron®
Wi-Fi:	Ja
Wi-Fi-standarder:	Wi-Fi 5 (802.11ac)
Bluetooth-version:	4.0
Antal HDMI-portar:	1
DVI-port:	Nej
Hörlursutgångar:	1
Internminne:	4 GB
HDMI-version:	1.4a
Kabelteknik:	10/100/1000Base-T(X)
Processorns cache:	2 MB
Maximalt internminne:	16 GB
Total lagringskapacitet:	64 GB
Intel® Smart Response Technology:	Ja
Intel® Small Business Advantage (Intel® SBA):	Ja
Intel® 64:	Ja
Minneslayout:	2 x 2 GB
Minnesplatser:	2x SO-DIMM
S/PDIF-utgång:	Ja
Intel® Virtualization Technology (Intel® VT):	VT-x
Volym:	1 l
Vattenkylningssystem:	Nej
Typ av minneskort:	SD, SDHC, SDXC
Produktens färg:	Svart
Antal displayportar:	1
Låddjup:	210 mm
Inbyggd kortläsare:	Ja
processortillverkare:	Intel
Installerat operativsystem:	Nej
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Antal LAN (RJ-45) anslutningar:	2
Typ av internminne:	DDR3L-SDRAM
Kabel inkluderad:	AC
Placeringar som kan användas:	Horisontell / Vertikal
Nätverksansluten (Ethernet):	Ja
Likströmsingång:	Ja
AC-adapter inkluderad:	Ja
Antal USB 2.0 anslutningar:	1
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	4
Processorkärnor:	2
Bluetooth:	Ja
Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Processortrådar:	2
Minne klockhastighet:	1600 MHz
Lagringsmedia:	SSD
Optisk enhetstyp:	Nej
Ombord grafikkort modell:	Intel® HD Graphics
Ombord grafikkort:	Ja
Familj av inbyggda grafikkort:	Intel® HD Graphics
Uttag för mikrofon/linje in:	Ja
Förstärkt Intel Speedstep Technology:	Ja
Intel Virtualization Technology (VT-x):	Ja
Antal installerade lagringsenheter:	1
Mus inkluderad:	Nej
Tangentbord inkluderat:	Nej
Display inkluderad:	Nej
Chassityp:	Mini PC
Antal processorer installerade:	1
Open GL stött grafikkort:	Ja
Intel® Smart Connect Technology:	Ja
Intel HD Audio-teknik:	Ja
