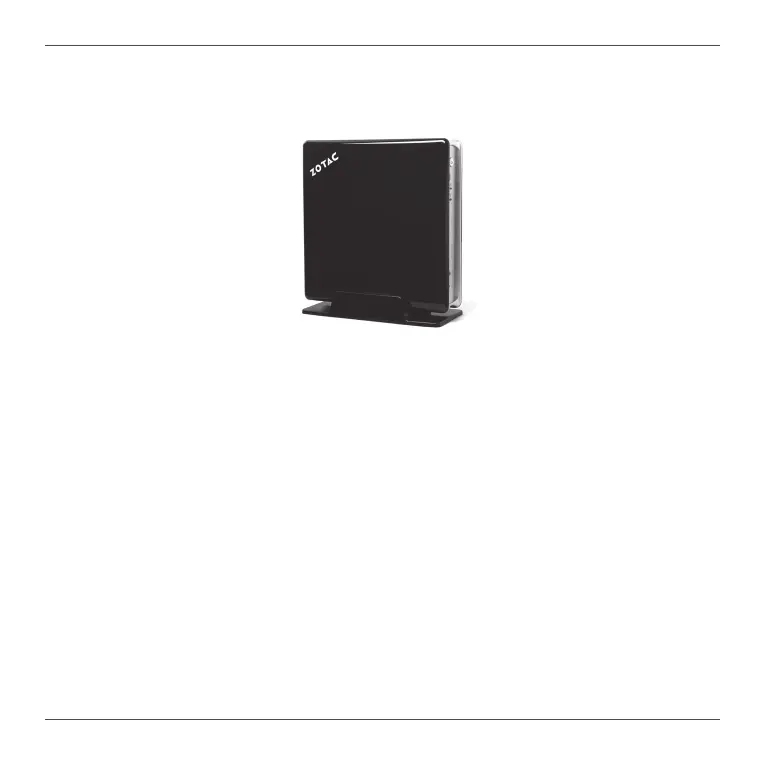

ZOTAC ZBOX
1
ZOTAC ZBOX
User’s Manual
No part of this manual, including the products and software described in it, may
be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language in any form or by any means, except documentation kept by the
purchaser for backup purposes, without the express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be registered
trademarks or copyrights of their respective companies, and are used for identication
purposes only. All trademarks are the property of their respective owners.
Every effort has been made to ensure that the contents of this manual are correct and
up to date. However, the manufacturer makes no guarantee regarding the accuracy of
its contents, and reserves the right to make changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries should be
recycled where possible. Disposal of used batteries must be in accordance with local
environmental regulations.
ZOTAC ZBOX
2
Table of Contents
Product specications ------------------------------------------------------------------------------------------- 3
Safety information ------------------------------------------------------------------------------------------------- 4
Setting up your system ---------------------------------------------------------------------------------------- 4
Care during use ------------------------------------------------------------------------------------------------- 4
Welcome --------------------------------------------------------------------------------------------------------------5
Package contents ---------------------------------------------------------------------------------------------- 5
Getting to know your ZOTAC ZBOX -------------------------------------------------------------------------6
Front view -------------------------------------------------------------------------------------------------------- 6
Rear view --------------------------------------------------------------------------------------------------------- 7
BIOS settings of specic functions -------------------------------------------------------------------------- 8
How to disable the ring LED indicator --------------------------------------------------------------------- 8
How to disable the integrated IR receiver ---------------------------------------------------------------- 10
Installing hardware inside the ZOTAC ZBOX -------------------------------------------------------------12
Installing a memory module --------------------------------------------------------------------------------- 13
Removing a memory module -------------------------------------------------------------------------------- 14
Installing a hard disk drive ----------------------------------------------------------------------------------- 15
Installing an M.2 SSD ----------------------------------------------------------------------------------------- 17
Setting up your ZOTAC ZBOX ---------------------------------------------------------------------------------19
Positioning your ZOTAC ZBOX --------------------------------------------------------------------------------21
Installing the stand --------------------------------------------------------------------------------------------- 21
Attaching your ZOTAC ZBOX to a monitor --------------------------------------------------------------22
Installing drivers and software -------------------------------------------------------------------------------- 23
Installing an operating system ------------------------------------------------------------------------------ 23
Installing system drivers -------------------------------------------------------------------------------------- 23
Using your ZOTAC ZBOX ----------------------------------------------------------------------------------------24
Conguring a wireless connection ------------------------------------------------------------------------- 24
Conguring a wired connection ----------------------------------------------------------------------------- 25
Using a static IP --------------------------------------------------------------------------------------------25
Using a dynamic IP (PPPoE connection) ------------------------------------------------------------25
Conguring audio output ------------------------------------------------------------------------------------- 26
Installing Windows 7 ---------------------------------------------------------------------------------------------- 27
Intel Rapid Storage Technology -------------------------------------------------------------------------------30
Introduction ------------------------------------------------------------------------------------------------------30
Setting up Intel Rapid Storage Technology -------------------------------------------------------------- 30
ZOTAC ZBOX
3
Product specications
q Chipset
v Intel H170 chipset
q Microprocessor support
v Intel Core i7-6700T, quad core 2.8 GHz (8 M Cache, up to 3.6 GHz) for ZBOX-MI571 series
v Intel Core i5-6400T, quad core 2.2 GHz (6 M Cache, up to 2.8 GHz) for ZBOX-MI551 series
q Operating systems:
v Supports Windows 7 / 8.1 / 10 32/64-bit
q System Memory support
v Two DDR3L-1600/1333 SODIMM slots
v Up to 16 GB of memory
q USB Ports
v One USB 3.1 Type-C port, one USB 3.1 port (from SD/USB 3.1 Combo)
v Two USB 3.0 ports, one USB 2.0 port
q Onboard Serial ATA
v SATA 6.0 Gb/s transfer rates
v Supports one 2.5-inch SATA HDD or SSD (max 9.5mm height)
q Expansion slot
v One M.2 SATA SSD slot (22/42,22/60,22/80)
q Onboard Dual LAN
v Supports 10/100/1000 Mbps operation
v Supports IEEE 802.3
q WiFi/Bluetooth support
v 802.11ac (dual-band)
v Bluetooth v4.0
q Onboard Audio
v Stereo analog audio output and Microphone input
q Onboard Graphics support
v Intel HD Graphics 530
v DP 1.2: (max resolution: 3840x2160 @60Hz)
v HDMI 1.4: (max resolution: 4096x2160 @24Hz)
q Product Size
v 188mm x 188mm x 51mm
Produktspecifikationer
| Varumärke: | ZOTAC |
| Kategori: | Skrivbord |
| Modell: | ZBOX MI551 |
